Rockville CC525T 5.25-inches Ceiling Speakers
ATTENTION
WATCH THIS VIDEO BEFORE USE!
Who reads manuals?
Instead, go to vimeo.com/522376444 (CC525T) vimÂeo.com/519161897 (CC65T/CC80T), or scan the QR codes and watch short videos, detailing how to set these items up and how to use them.
If you like to read though, we won’t stop you LOL!
Isn’t it good to have options? With Rockville we offer options. Missing items? If you ordered a bundle that includes more than one product and you are missing part of your bundle then it just means your order shipped from two different warehouses. You will receive the remaining items very soon. If you have any concerns or inquiries, feel free to call our customer support center at 646-758-0144, Monday through Thursday, 9am to 1 Opm EST, and Fridays, 9am to 3pm EST.
Introduction

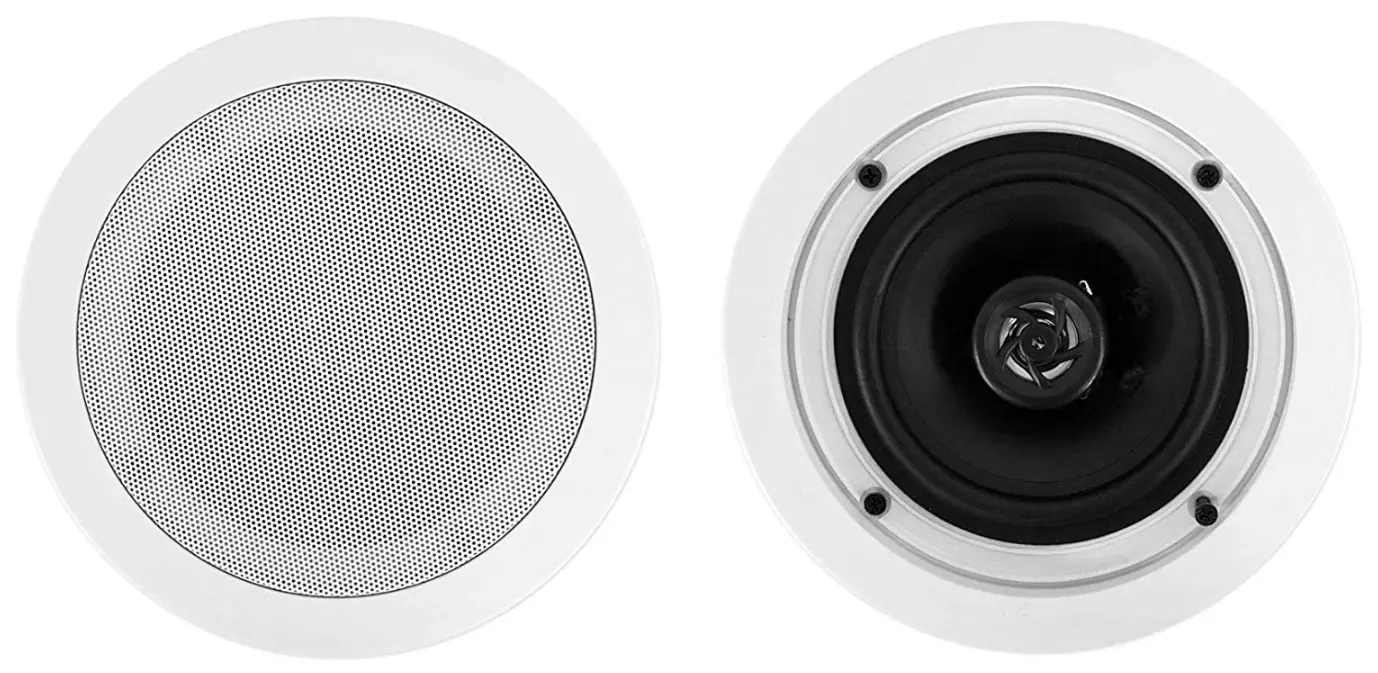

The CC-T series 70 volt in-ceiling speakers are perfect for any commercial application where you want to get amazing sound quality out of your music and have the ability to crank the volume really loud. It will obviously still handle your PA announcements and chimes, etc. We took a high quality home theater speaker and added 70 volt technology to it to give of the best of both worlds. With a selectable tap wattage that ranges from 2.5w all the way to 20w these speakers are great or any commercial application.
These ceiling speakers are precision tuned for excellent audio response at high and low volumes. If you want good musical sound you really need a 2-way speaker with a dedicated tweeter for highs and a dedicated woofer for lows. These n-ceiling speakers feature polypropylene woofer cones for clear, rich mids and deep bass. Our mylar dome tweeters provides clean, crisp highs. The included sheer grills enable flush installation and can be painted to match any decor. Our igh quality spring loaded push terminals make your wiring very secure.
Please read this guide carefully for proper use of your Rockville CC-T series in-ceiling home theater speakers. Should you eed technical assistance please call our technical help line at 1-646-758-0144, Monday through Thursday, 9am to 10pm EST., d Fridays, 9am to 3pm EST.
Installation
Tools needed: A dry wall knife, a level, a phillips head screwdriver, and a flat head screwdriver.

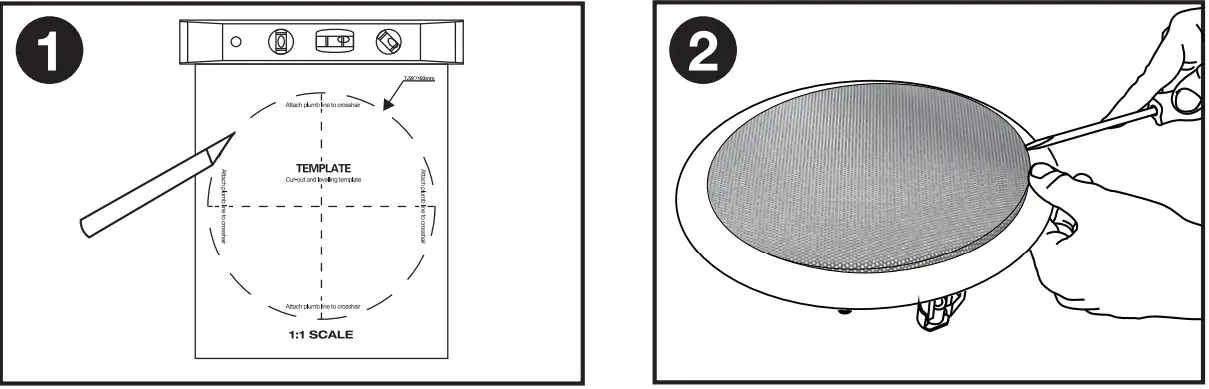

- Using the included template, cut an opening in the drywall.

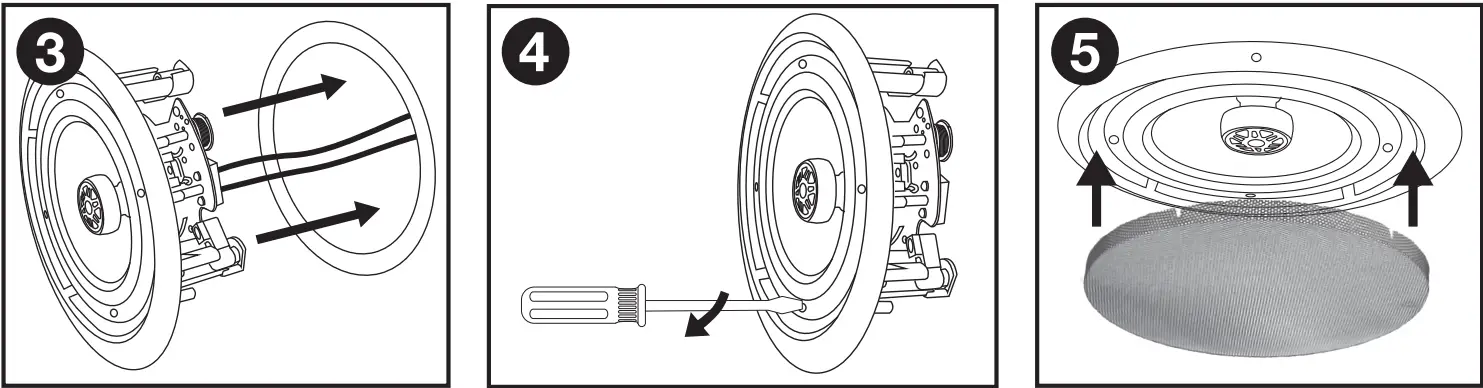

Note: Always allow at least Yi’ between a wall stud and the speaker cutout or the locking tabs will not be able to swivel into place. - To remove the grille insert a flat head screwdriver into the space between the grill and the inner lip of the speaker housing. Gently lift the grill out being careful not to bend it.
- Connect the speaker wires, set taps to the desired power setting (see diagram on next page), and insert the speaker into the cutout. Be sure to observe proper polarity.
- Screw down each of the four Phillips head screws. The locking tabs will swivel into place and secure the unit to the rear surface of the drywall. Put in the strips of adhesive to secure the grille.
- Replace the grill by gently pushing it onto the speaker face.
Features/Specifications
- 70 Volt Power Options: 20w, 15w, 10w, 5w, 2.5w
- 8 Ohm Power handling: 40W
- Polypropylene Cone
- Rubber Surround
- 25″ Woofer
- Aluminum Voice Coil
- Yi’ Mylar Dome Tweeter
- 8 oz. Ferrite Magnet
- High Quality Spring Loaded Push Terminals
- Aim-able Swivel Tweeter
- Paintable Flush Mount Grills
- Frequency Response: BOHz – 20KHz
- Sensitivity: BBdB@ 1 w/1 m
- Impedance: 8 Ohms
- Mounting Depth:6″
- Cut-out Diameter:5″
- Color: Available in White (paintable)
Setting the Taps

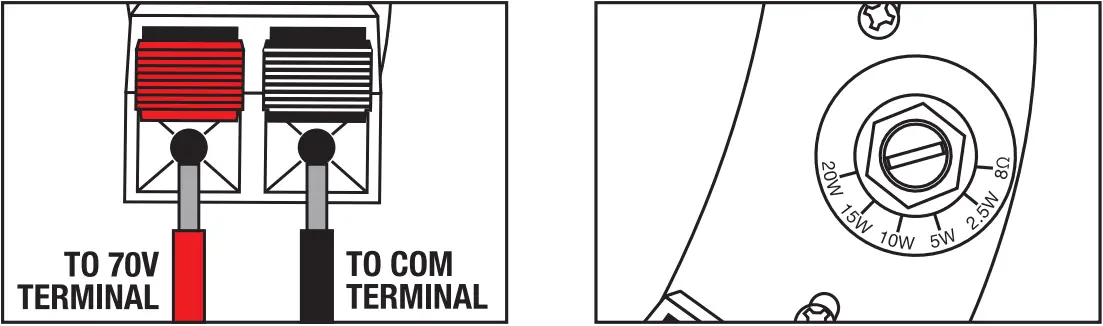

The tap is the selector knob at the rear of the CC-T Series speakers. It allows you to set how many watts the built-in transformer will allow the speaker to get from the amplifier. CC-T Series speakers have taps set at 2.5, 5, 10, 15, and 20 watts for 70-volt input. This range of taps allows for full customization of the sound for the space in which the speakers are installed. In a restaurant, for example, you can tap your dining room speakers at 5 watts, the speakers in the outside seating area at 10 watts, the ones in the hallway at 2.5 watts, and the speakers in the bathrooms at 5 watts. Another great feature of 70-volt speakers is that you can mix and match any type whether they are ceiling speakers (such as these), wall mounted speakers, subwoofers, etc.
Wiring

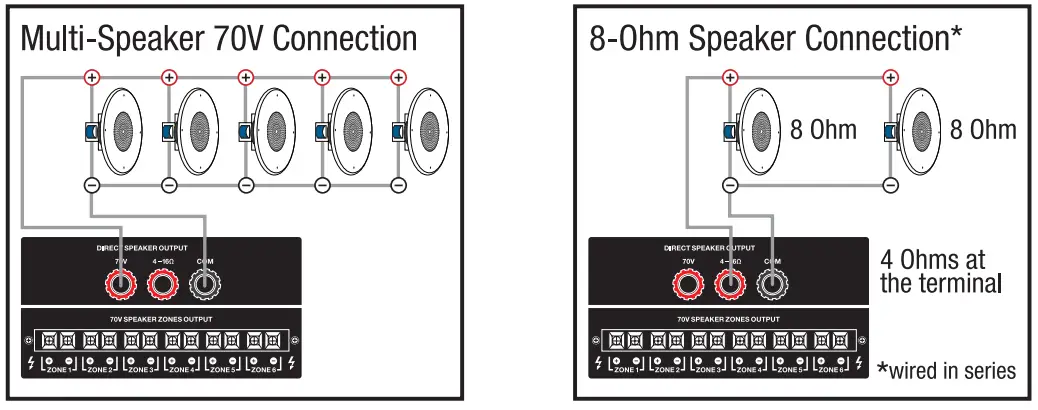

70-volt speaker set-ups allow you to run very long lines of speaker wire without signal loss. Wire all the positive terminals of the speakers to the positive 70-volt terminal of the amplifier. The negative terminals on the speaker simply get wired to the COM (negative) terminals on the amp. You do not have to worry about impedance. The power is constant.
The total number of speakers multiplied by the tap value cannot exceed the output power (in watts) of your 70V amplifier. The example below shows 5 total speakers. Using the 20W taps, you will need an amplifier with at least 100 watts (5 x 20 = 100W). A good rule of thumb is to select an amplifier with 15 to 20% greater power; in this case, an amplifier that delivers about 120W.
Dimensions
FAQs
For the wires, drill a hole. Make sure the amplifier is unplugged and turn off your breaker. Put the wires in. Start attaching the wires to the ceiling speakers’ terminals. Take the opposite side of the wires and attach it to the amplifier’s terminals. Try it by turning on your breaker.
Do ceiling speakers require a power outlet? No, ceiling speakers typically function as passive speakers, which means they lack internal amplifiers and are powered by speaker cables connected to an external amplifier. Each ceiling speaker is connected to the binding posts on the amplifier to do this..
While passive ceiling speakers require a separate amplifier to power them, active ceiling speakers have an amplifier built in into the unit.
Important: The term “mono” refers to the fact that the majority of ordinary ceiling speakers only output the left or the right channel of sound.
Every TV will have some sort of connected audio output. It will most likely be a digital optical output presently. You can enjoy TV sound through your ceiling speaker system by connecting an analogue cable from your TV to the amplifier, plugging it in, and setting your TV to line output.
Ceiling speakers are indeed excellent for playing music. Similar to being at a concert hall or live music event, they have the power to immerse you in a surround sound experience.
If you want a more immersive audio experience, ceiling speakers are a terrific addition to a home theatre. Although they must be made specifically for ceilings, they are a great addition to a surround sound system.
Speakers installed in walls and ceilings are typically passive speakers. They are thus not required to be connected to a power source. They just require a connection to a receiver or amplifier that can also serve as a power supply.
Most ceiling speakers are compatible with Atmos. While some of the older models might not be able to support this surround sound application, most speaker options, including those for the ceiling, will be compatible with Dolby Atmos if you are creating your home theatre.
It is possible to install in-ceiling speakers in walls, and they will sound quite similar to in-wall speakers. The size is the main distinction that you’ll see. Typically, in-wall speakers are bigger than in-ceiling speakers.
As long as the amplifier you’re using supports surround sound, the answer is definitely.
Switch off everything. assemble your cables. Cut the wires’ ends apart. Look at the recommended wiring for the speakers. As soon as you get your wires, attach them to the correct sockets. Attach the sockets’ cables with locks.
Every TV will have some sort of connected audio output. It will most likely be a digital optical output presently. You can enjoy TV sound through your ceiling speaker system by connecting an analogue cable from your TV to the amplifier, plugging it in, and setting your TV to line output.
Ceiling speakers are indeed excellent for playing music. Similar to being at a concert hall or live music event, they have the power to immerse you in a surround sound experience.
In-wall speakers are frequently more potent and of greater quality as a result than in-ceiling speakers. When in-wall speakers are installed in numerous walls of a room or other space, they can add more sound dimensions than just a downward-firing one.
Even if ceiling speakers are capable of producing all the bass and low-end frequencies, a subwoofer will be helpful in handling them. Additionally, it significantly improves the overall sound quality of your sound system.
No, ceiling speakers typically function as passive speakers, which means they lack internal amplifiers and are powered by speaker cables connected to an external amplifier. Each ceiling speaker is connected to the binding posts on the amplifier to do this.
It is possible to install in-ceiling speakers in walls, and they will sound quite similar to in-wall speakers. The size is the main distinction that you’ll see. Typically, in-wall speakers are bigger than in-ceiling speakers.
Bluetooth ceiling speakers are often wirelessly managed by a smartphone or other internet-connected device. The Bluetooth chip in the speaker will receive the content from the smartphone and play it through the speaker.
There is never a bass response point and a background sound field with in-ceiling speakers. They are designed for atmosphere.
Take your measurements in inches for the speaker using a ruler or a tape measure. The biggest portion of the cone should be facing up while your speaker is erect. Measure the distance between the mounting frame’s two edges at the speaker’s widest point. So that you won’t forget it later, note the measurement.
As long as the amplifier you’re using supports surround sound, the answer is definitely.
