Sunco GD_BC_SR-BK-3070K LED Selectable Solar Sidewalk Light

COMPONENTS

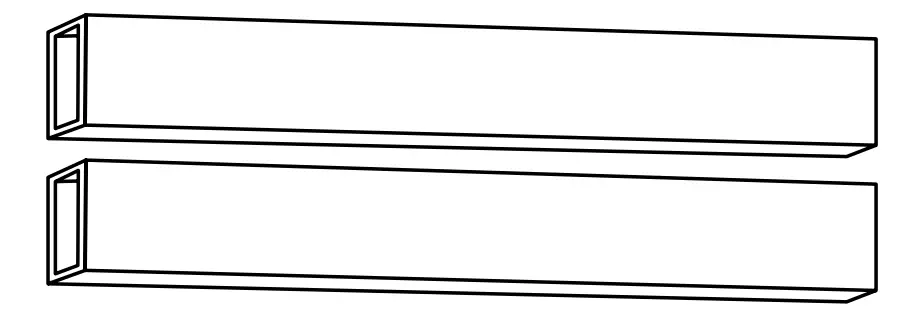

• x2 Light Pole

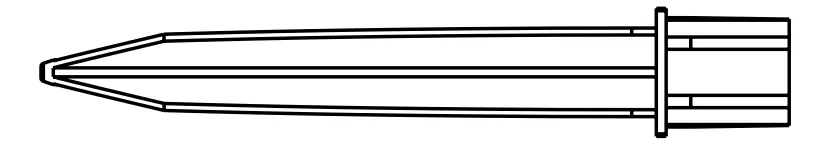

• x1 Floor Plug

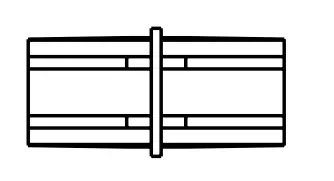

• x1 Connector


Please review instructions carefully before proceeding.

NOTE: Ground should be soft enough to easily insert floor plug.

EASY INSTALLATION

Floor Plug

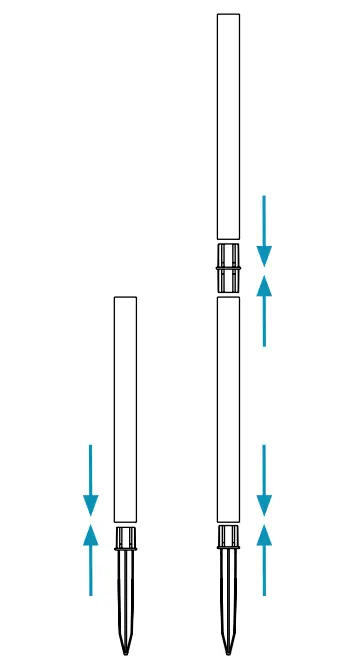

1. Insert floor plug into light pole.
   If desired, add more height by using connector to attach additional light pole.

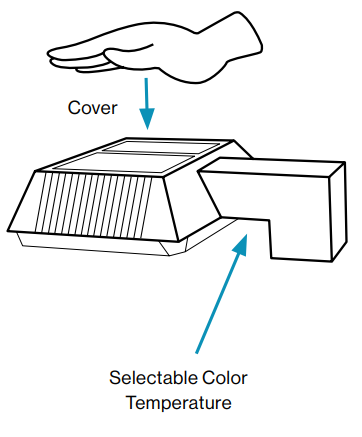

2. On main body, cover solar panels on top of light and select desired color temperature.
   If light does not turn on when solar panels are covered, leave in daylight for 2-3 hours and try again.

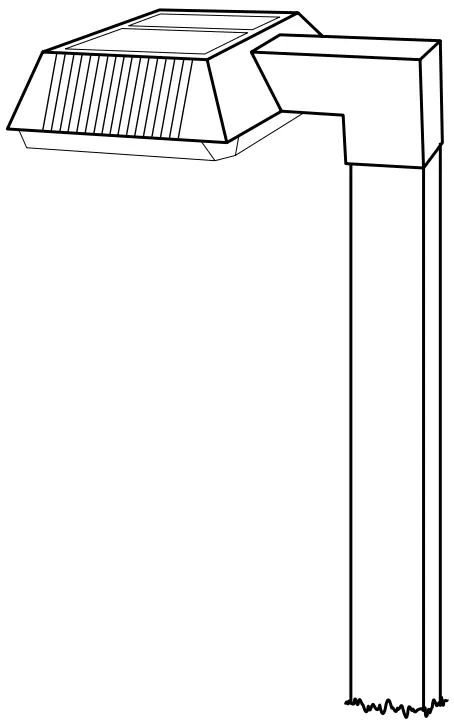

3. Insert light pole into main body.

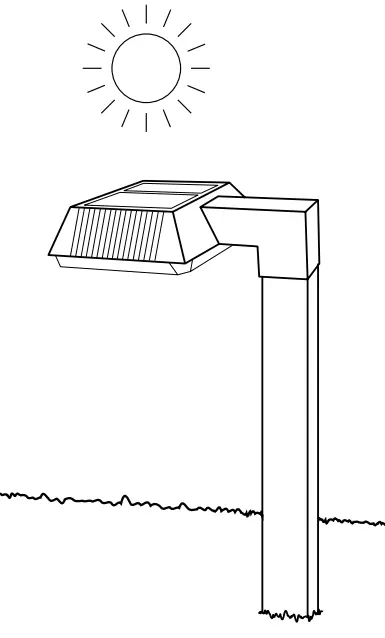

   • Place fully assembled fixture into desired location.

4. NOTE: Location should have clear access to sunlight and kept away from other sources of light that could interfere with sensor.


WARNING

To reduce the risk of fire, electric shock, or physical injury:

• This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and hazards involved.
• Abide by related regional and local laws or regulations.
• Do not cover the fixture with thermally insulating material.
• Check for shipping damage before installing. If the product is damaged, do not use it.
• Keep fixture away from corrosive substances.
• Suitable for outdoor wet environments ranging from -4°F-104°F.
• Clean the fixture regularly to ensure proper operation. Do not clean with harsh solvents.
• Use safety precautions and abide by regional and local laws or regulations.
• This product is not compatible with dimmers or timing devices.
• This product is not compatible with third party sensors.
• This product is not compatible with occupancy sensors.

SPECIFICATIONS
