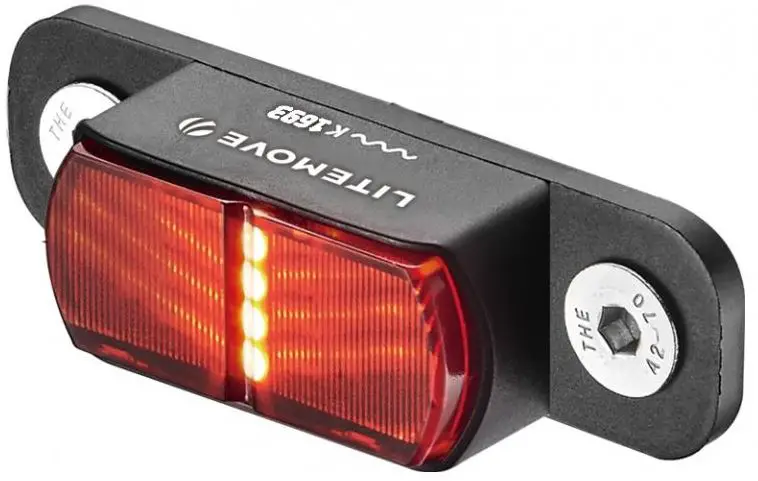

LITEMOVE TS-RK Tail Light

The TS Tail Light Series is a DC power source tail light that operates from 5 to 16 V only. It should not be connected to an AC power source, as this may cause the lamp to be destroyed.
The tail light is without a switch and it is switched on and off by the system of the e-bike.

Installation Guide

The tail light has to be installed at a minimal height and aligned parallel to the ground. It is 50-degree adjustable and should be tightened with a maximum torque of 2 Nm. The installation package includes screws and rubber for the bracket. Please use them when mounting the light and take care to tighten the screws with the right torque.

Technical Data

• Model name: TS-SP
• Model no.: TKSESP1-316
• Light output: 7200mcd
• Optical technology: LTi
• Light source: LED*4
• Input voltage (DC): 5 – 16V
• Power consumption: 0.6W
• Cable diameter: 0.5mm
• Cable length: 1400 mm
• IP rating: IP56
• Material: Plastic
• Weight (ext. cable): 18g (w/o bracket)
• Dimension (WxHxL): 38 x 18 x 24 mm (w/o bracket)
• Mounting option: Universal
• Reflector (optional): RF2
• Compliance: RoHS / CE / Prop 65 StVZO-K ~ K 1693

Caution

Prior to every ride, a secure and sturdy connection of the light to its mounting bracket and of the mounting bracket to the bicycle must be checked and ensured.
The mounting height of the tail light should be at least 250 mm and a maximum of 1200 mm above the ground. If an LED has failed, the tail light must be replaced accordingly.
Never use a high-pressure hose or alcohol-containing fluids to clean, and do not use aggressive cleaning agents (also no alcohol!).

• This tail light for DC power source from 5 to 16 V only.
• Do not use it to an AC power source (e.g. a dynamo)!
• Connecting over voltage power may cause the lamp to be destroyed!
• The tail light is without switch, switching on and on by the system of the e-bike

Installation Guide

TS-RK series

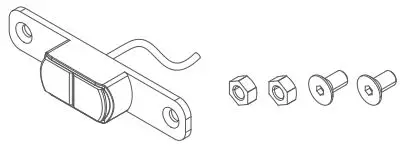

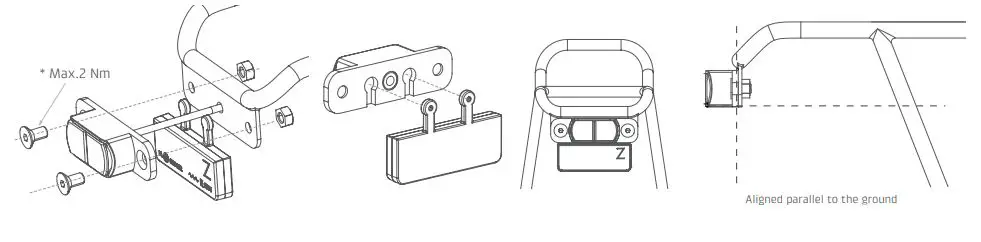

For a 50mm rear rack holder

• Model No. TKSE-RR500
• Include
• 1 x Tail light with cable
• 2 x M5 10mm bolts
• 2 x M5 nuts
• For an 80mm rear rack holder
• Model No. TKSE-RR800
• Include
• 1 x Tail light with cable
• 2 x M5 10mm bolts
• 2 x M5 nuts

Z Reflector (rear)

• Model No. RF2
• Include
• 1 x Reflector

Note:

• The tail light has to be installed at a minimal height of 250mm and a max. height of 1200mm.
• It has to be aligned parallel to the ground and parallel to the longitudinal plane of the bicycle.

TS-FD series

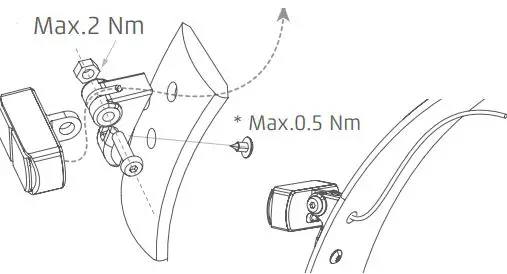

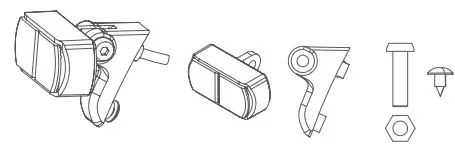

• For rear fender
• Model No
• Include
• 1 x Tail light with cable
• 1 x 1 x fender connector
• 1 x M4 10mm bolts
• 1 x M3 6mm Self-tapping bolt
• The power cable can go through the adapter.

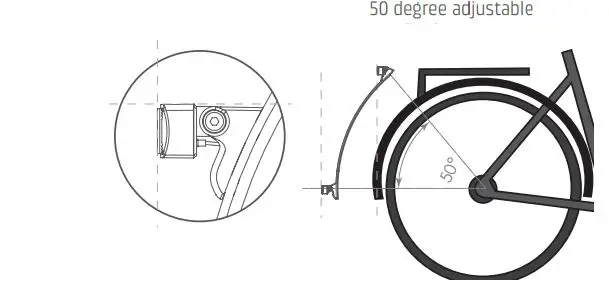

50 degree adjustable

Aligned parallel to the ground

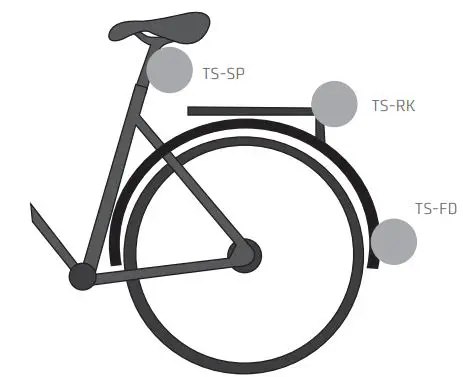

TS-SP series

Mount on Ø 27.2 mm seat post

• Model No. TKSESP1-272
• Include
• 1 x Tail light with cable
• 1 x seat post clamp Ø 27.2mm
• 2 x M4 8mm bolts
• 2 x M4 nuts

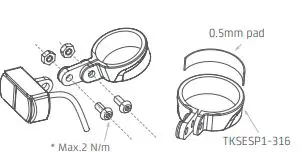

Mount on Ø 31.6 mm & Ø 30.9 mm seat post

• Model No
• Include
• 1 x Tail light with cable
• 1 x seat post clamp Ø 31.6mm
• 2 x M4 8mm bolts
• 2 x M4 nuts
• 1 x 0.5mm Pad

Adhered the 0.5mm pad on the inner side of TKSESP1-316 to fit Ø 30.9 mm seat post

Aligned parallel to the ground

Technical Data

These tail lights have been developed for use on E-Bikes with speeds up to 25 km/h (Pedelecs).

Caution

• When mounting the litemove light, please use the existing screws and rubber from the bracket from the package.
• Please take care to tighten the screws with the right torque shown on each model.
• Never use a high-pressure hose or alcohol-containing fluids to clean.
• Do not use aggressive cleaning agents (also no alcohol!)
• According to StVZO §67, the light needs to be mounted properly ready for use.
• Prior to every ride, a secure and sturdy connection of the light to its mounting bracket and of the mounting bracket to the bicycle must be checked and ensured.
• Mounting height of the tail light should be at least 250 mm and maximum 1200 mm above the ground.
• If an LED has failed, the tail light must be replaced accordingly.
• Technical modification reserved.
