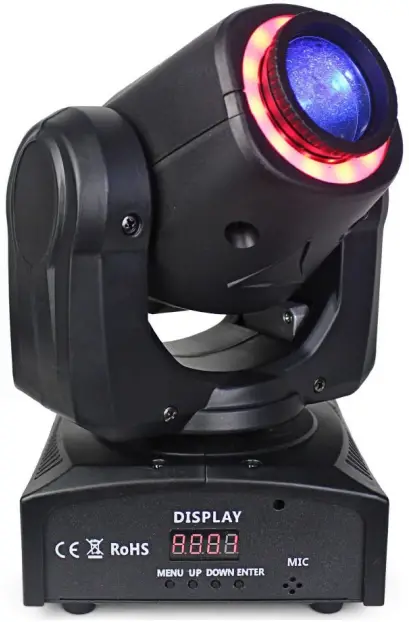

Free Color DMX-512 30W Mini Moving Head Gobo Light
Function Description
| Addr | A001-A512 | 512 Address setting |
| CHnd | 12CH | 12 channel setting |
| 10CH | 10 channel setting | |
| SLnd | Auto | Host mode |
| SL 1 | Console mode | |
| SL 2 | Secondary mode | |
| SHnd | SH 0 | Effect 0 (recommended) |
| SH 1 | Effect 1 | |
| SH 2 | Effect 2 | |
| SH 3 | Effect 3 | |
| Soud | on | Voice activated |
| oFF | Voice off | |
| SEnS | 0-99 | Voice-activated sensitivity adjustment |
| bLnd | bLAc | No 512 signal return to zero |
| Auto | No 512 signal self-propelled | |
| Soun | No 512 signal sound | |
| HoLd | No 512 signal keeps last console state | |
| LEd | OFF | After 5 seconds off the screen |
| ON | The screen is always on | |
| dISP | no | Display reverse |
| YES | Display positive | |
| rPAN | no | X motor forward |
| YES | X motor reversal | |
| rTiL | no | Y motor forward |
| YES | Y motor reversal | |
| REST | YES | System reset |
Channel
| Channel | Features | Instructions |
| 1 | Horizontal operation | 0-255 |
| 2 | Horizontal fine-tune | 0-255 |
| 3 | Vertical operation | 0-255 |
| 4 | Vertical fine-tune | 0-255 |
| 5 | color | 0-9 White |
| 10-139 Color selection | ||
| 140-255 Automatic color change from slow to fast | ||
| 6 | Gobo | 0-7 White |
| 8-63 Fixed gobo | ||
| 64-127Shaking gobo | ||
| 128-255 Automatic change pattern from slow to fast | ||
| 7 | strobe | 0-255 |
| 8 | Dimming | 0-255 |
| 9 | Motor speed | 0-255 from fast to slow |
| 10 | Automatic mode | 0-59 Other channels function |
| 60-84 Automatic mode3 | ||
| 85-109 Automatic mode2 | ||
| 110-134 Automatic model | ||
| 135-159 Automatic modeO | ||
| 160-184 Voice-control mode3 | ||
| 185-209 Voice-control mode2 | ||
| 210-234 Voice-control model | ||
| 235-255 Voice-control modeO | ||
| 11 | reset | 250-255 (5S) |
| 12 | Light strips | 5-109 Color selection 110-255 Color auto operation |
| Channel | Features | Instructions |
| 1 | Horizontal operation | 0-255 |
| 2 | Vertical operation | 0-255 |
| 3 | color | 0-9 White |
| 10-139 Color selection | ||
| 140-255 Automatic color change from slow to fast | ||
| 4 | Gobo | 0-7 White |
| 8-63 Fixed gobo | ||
| 64-127 Shaking gobo | ||
| 128-255 Automatic change pattern from slow to fast | ||
| 5 | strobe | 0-255 |
| 6 | Dimming | 0-255 |
| 7 | Motor speed | 0-255 |
| 8 | Automatic mode | 0-59 Other channels function |
| 60-159 Automatic mode | ||
| 160-255 Voice-control mode | ||
| 9 | Reset | 250-255 (5 seconds) |
| 10 | Light strips | 5-109 Color selection 110-255 Color auto operation |
Specification
| AC 100-240V, 50-60HZ | |
| Power consumption: | 60W |
| Light Source: | 1PCS*3OW White LED+ 12 RGB 0.2W lamp beads |
| Gobos: | lwhite+7 gobos |
| Color: | lwhite+7 colors |
| Channel: | 10/12CH |
| Operation: | DMX, Sound, Master-slave, Auto Tilt: 540° Pan: 270° |
