Saginaw SCE-EKDF SCE Electrical Interlock Defeater Installation Guide
sce electrical interlock defeater

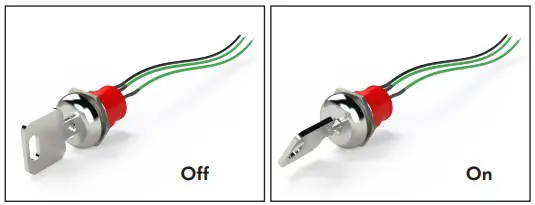

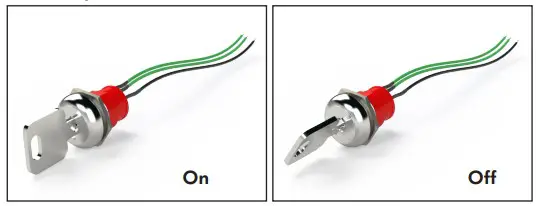

The switch provides a means for interrupting the circuit to the electrical interlock by turning a key clockwise to operate the switch (keys included).
The enclosure door can then be opened without disconnecting the power source to the enclosure.
Wire lead: 6” black, 22 awg insulated
wires included.
Contact rating:
Q contact material:
– 4 Amps @ 125 V AC or 28 V DC
– 2 Amps @ 250 V AC (UL/CSA)
Momentary off
Momentary on
Momentary on/off
