Infaco V5000p3e Olive Harvester User Guide

V5000p3E Olive Harvester
User Guide
Original user guide

https://www.infaco.com/fr/downloads/usermanuals

PW3, a multi-function handle

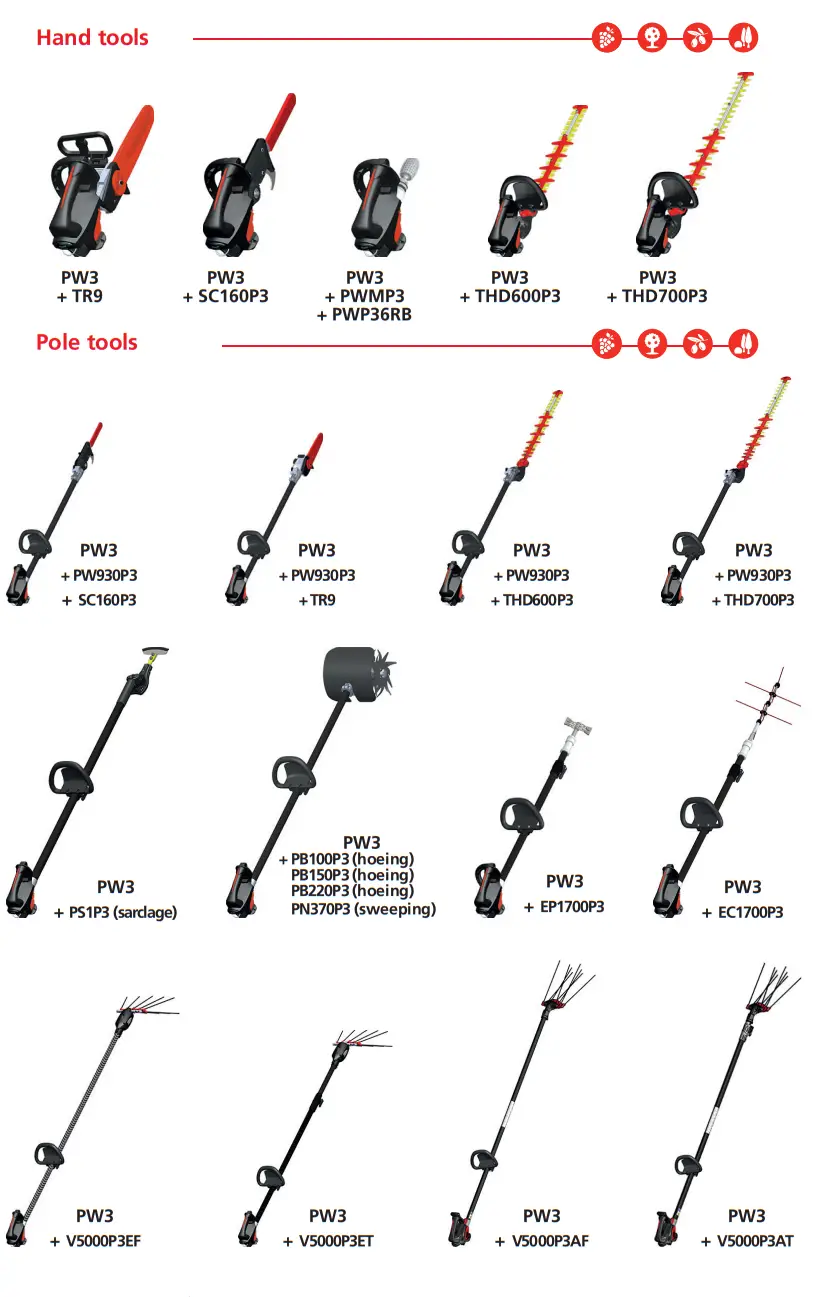

Compatible tools

Precautions before use

WARNING. Read all the safety warnings and all the instructions. Failing to heed warnings and follow instructions may lead to an electric shock, fire and/ or serious injury. Keep all warnings and instructions for future reference. The term “tools” in the warnings refers to your battery-powered electric tool (with a power cord), or your tool operating on a battery (without a power cord).

Personal protection equipment

	Read the instructions for use carefully, especially the safety instructions.
	The wearing of a hard hat, eye and ear protection is MANDATORY
	Hand protection using cut-prevention work gloves.
	Foot protection using safety footwear.
	Face protection using a visor
	Body protection, using cut protection overalls.
	IMPORTANT! Extensions can be made of conductive materials. Do not use near sources of electricity or electric wires
	IMPORTANT! Do not approach any part of the body to the blade. Do not remove the cut material or hold the material to be cut while the blades are moving.

Protection of the environment

Observe all country-specific waste disposal rules and regulations.
> Power tools must not be disposed of with household refuse.
> The device, accessories, and packaging must be taken to a recycling center.
> Ask the approved INFACO dealer for up-to-date information on the eco-compatible elimination of waste.

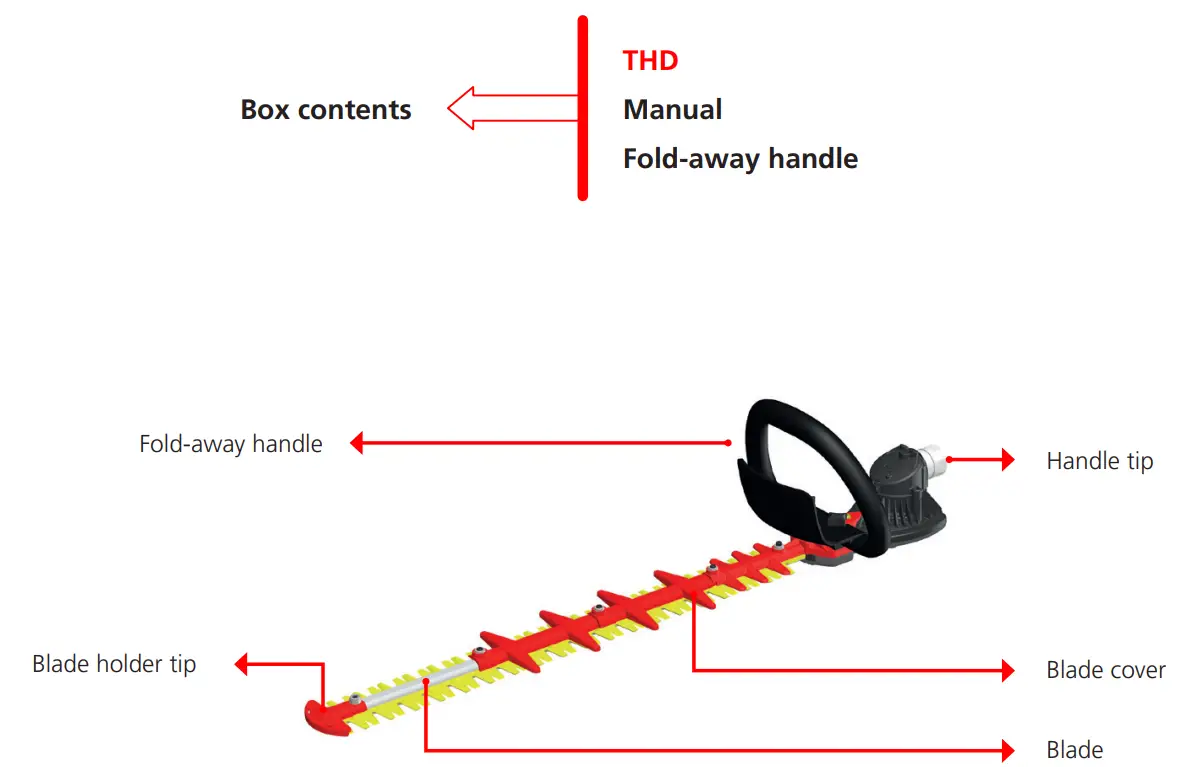

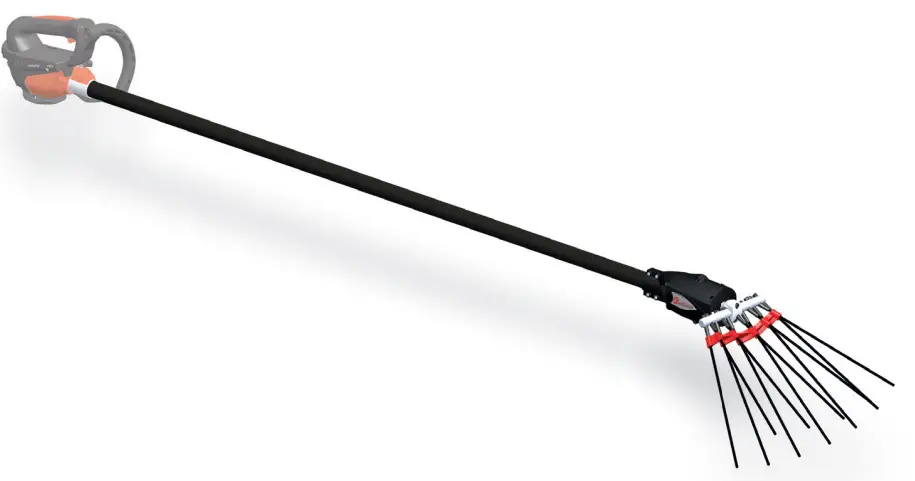

General product view

Specifications

These specifications are given as an indication only. Under no circumstances may they be considered as contractually binding.They are subject to modification without prior notice in the interests of product development.
Patented equipment

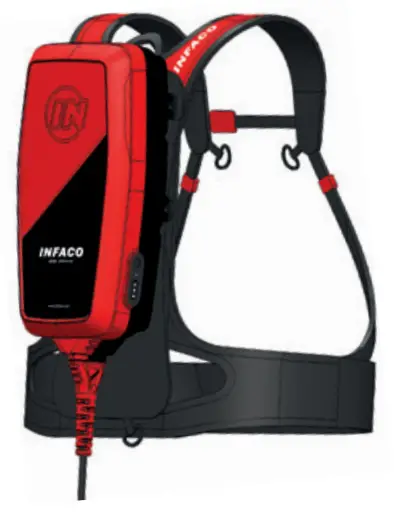

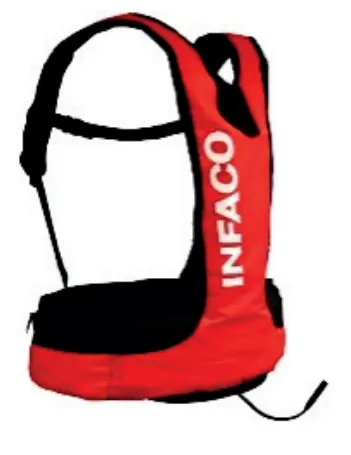

Compatible batteries

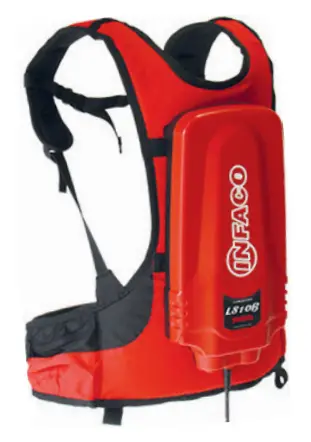

820Wh battery L850B Cable compatibility L856CC

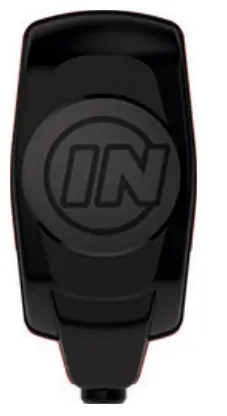

120Wh battery 831B Cable compatibility 825S
500Wh battery L810B Cable compatibility PW225S
150Wh battery 731B Cable compatibility PW225S (requires fuse replacement by 539F20).

User guide

First use
The first time you use the equipment, we strongly recommend you to ask the advice of your dealer, who is qualified to give you all the advice you need for correct use and optimum performance. It is imperative to carefully read the device and accessory user manuals before handling or connecting the device.

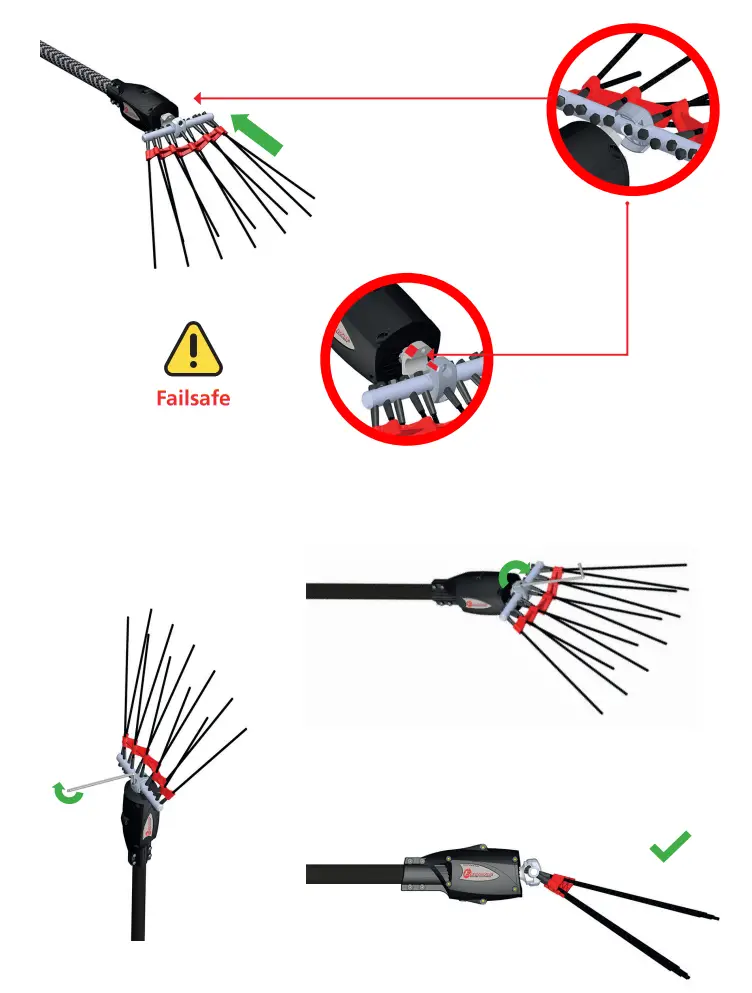

Fitting the comb
Please ask your dealer for advice on fitting the comb. Incorrect assembly can cause wear on the comb or rods.

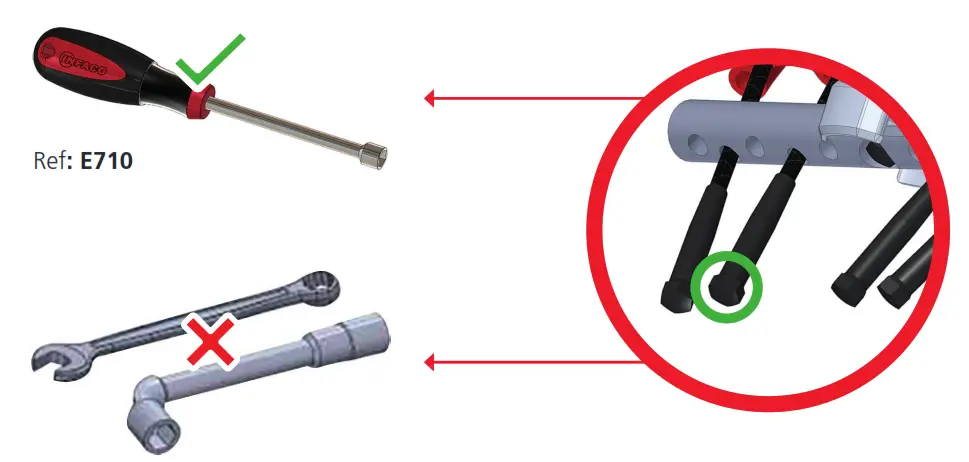

The use of the INFO (E710) screwdriver when tightening is strongly recommended to avoid damaging the tightening tips.

Comb assembly:

Installation and connection

Only use INFACO brand batteries with a 48 Volt power supply.
Any use with batteries other than INFO batteries may lead to damage. The warranty on the motorized handle will be void if batteries other than those manufactured by INFACO are used. In wet weather, it is imperative to carry the battery belt under waterproof clothing to keep the battery unit protected from the rain.
Using the machine

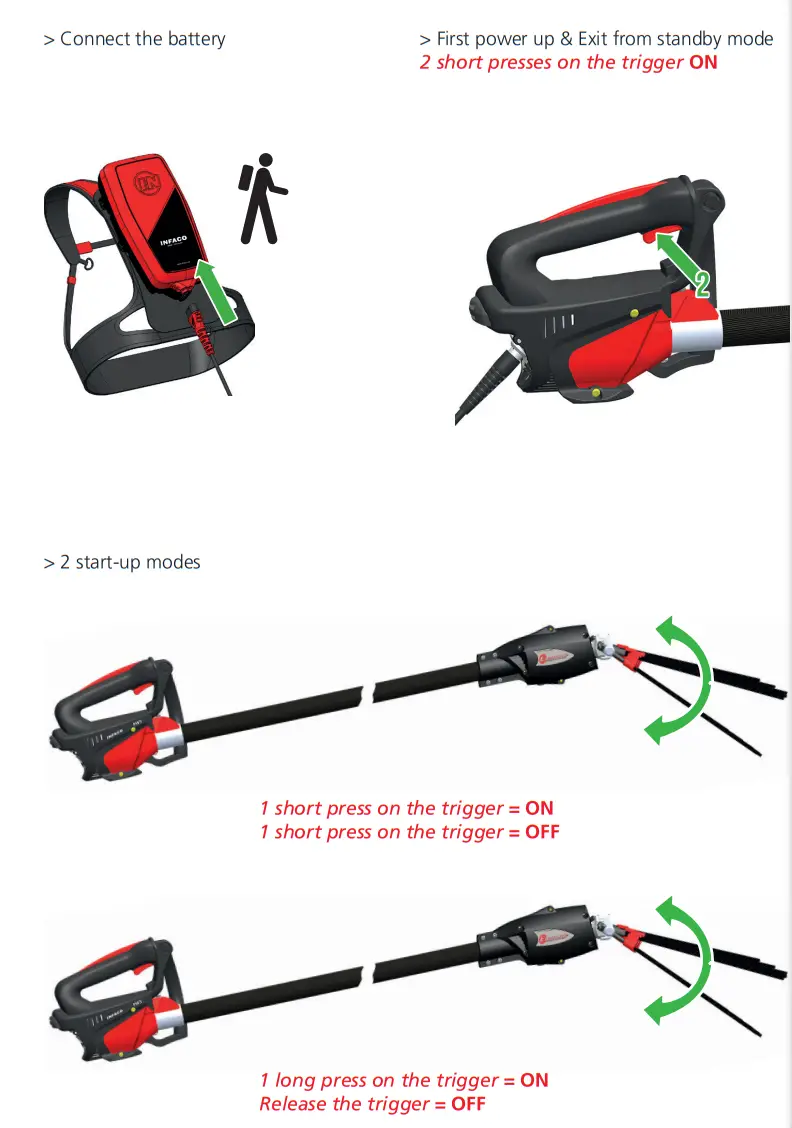

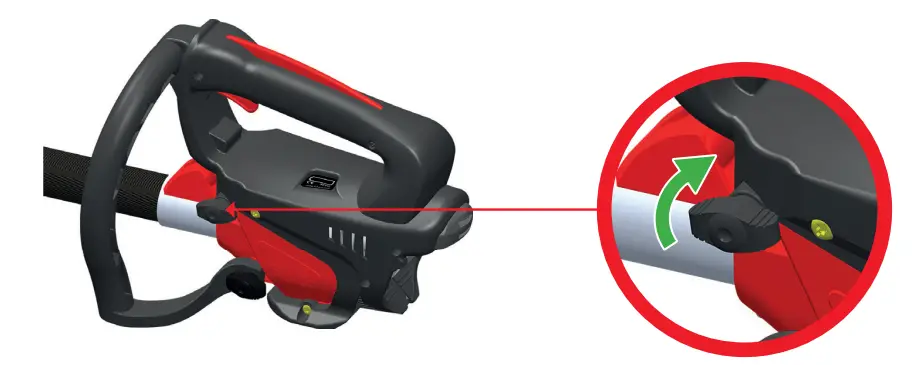

> Fit the harvester onto the handle

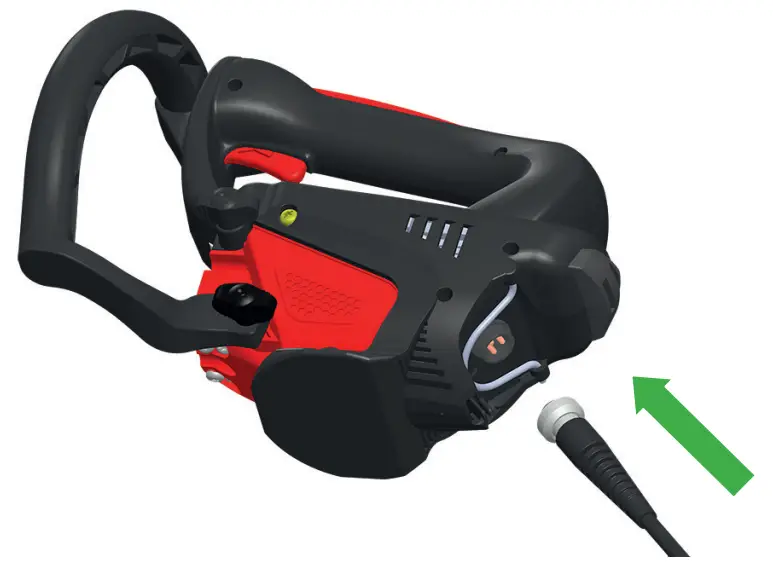

> Tighten the wing nutConnect the power cable

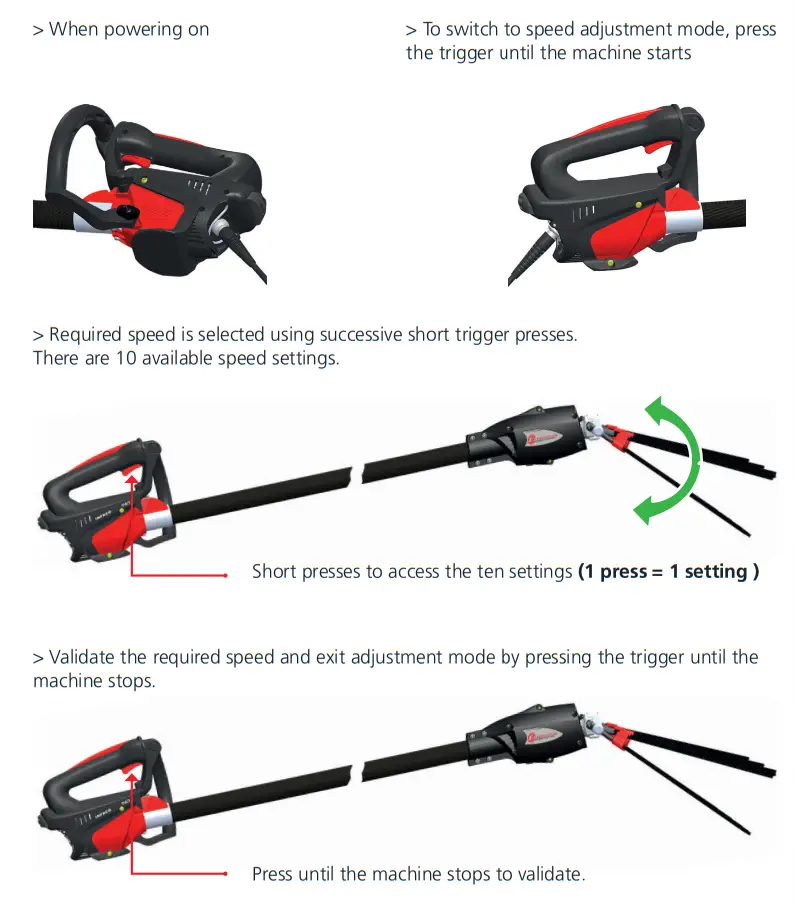

Speed adjustment

10-speed settings configurable from 1700 to 2075 pm

The machine is ready to run, the speed will be memorised until the next adjustment. The machine is fi tted with electronic protection. Whenever the comb encounters too  much resistance, the electronics cut the motor.

Tool gap adjustment

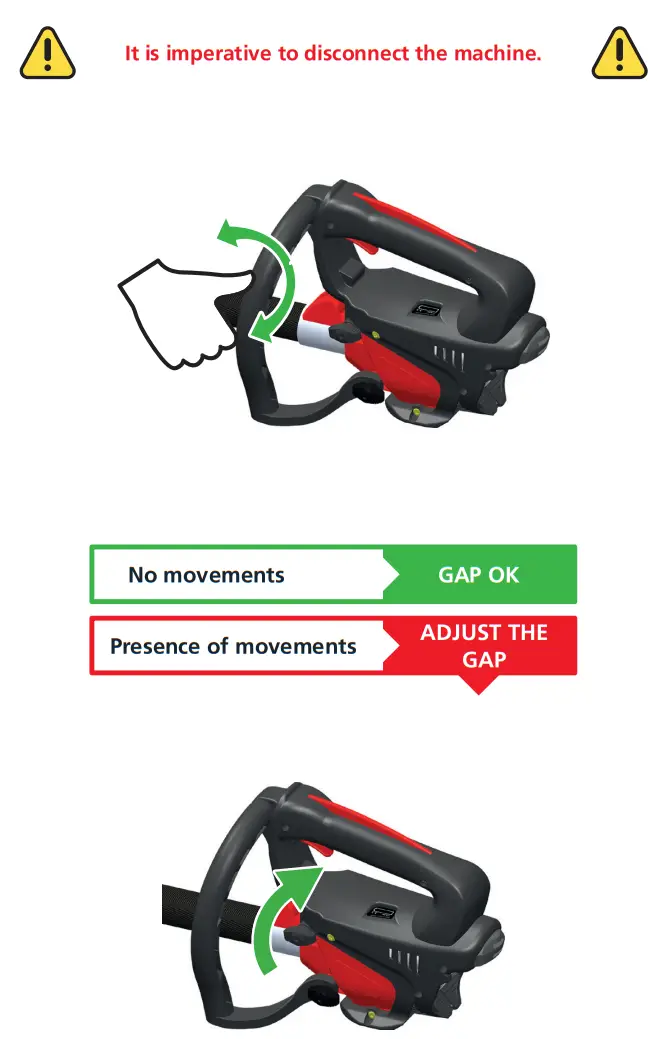

It is imperative to disconnect the machine.

Precautions for use and safety

The tool is fitted with an electronic protection system. As soon as the tool jams due to excessive resistance, the electronic system stops the motor. Restart the tool: see the  User manual” section. We also advise keeping the tool’s protective packaging for possible returns to factory customer service.
For the transport, storage, servicing, maintenance of the tool, or any other operations not related to tool function operations, it is imperative to disconnect the device.

Servicing and maintenance

Lubrication
Generously lubricate the vibrating head at least once every day, in the morning before starting to work.
Use
Position the spray nozzle towards the ball and socket. Hold the spray can upright and then press. Grease the vibrating head at least once per day (lubrication without removing  NY parts).

Safety instruction

IMPORTANT. To reduce the risk of electric discharges, injuries, and fire when using electric tools, follow the fundamental safety measures indicated below. Read and follow these instructions before using the tool, and keep the safety instructions!
Outside operations related to the use of the tool, your tool and its accessories must be disconnected and stored in their respective packaging.

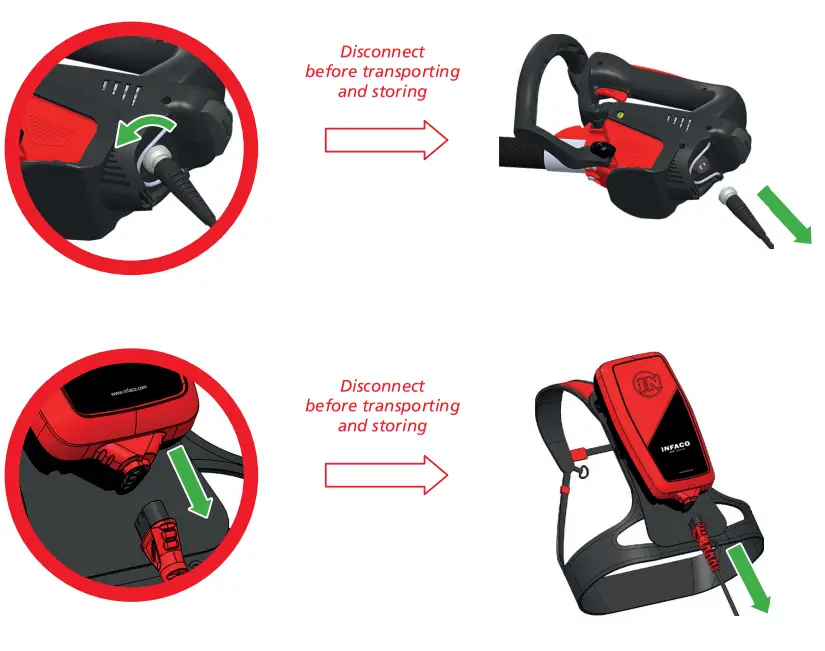

It is imperative to disconnect your tool from all power sources for the following operations:
– Servicing.
– Battery charging.
– Maintenance.
– Transport.
– Storage.
When the tool is running, always remember to keep the hands away from the accessory head being used. Do not work with the tool if you are tired or feeling unwell. Wear the specific recommended personal protection equipment for each accessory. Keep the equipment out of the reach of children or visitors.
Do not use the tool if there is a risk of fire or explosions, for example in presence of flammable liquids or gases.
Never carry the charger by the cord, and do not pull on the cord to disconnect it from the socket.
Keep the cord away from heat, oil, and sharp edges.
Never use the tool at night or in bad light without setting up additional lighting. When using the tool, keep both feet on the ground and keep as much balance as possible.
Caution: extensions can be made of conductive materials. Do not use near sources of electricity or electric wires.

Warranty conditions

Your tool has a two-year warranty for manufacturing defects or faults. The warranty applies to the normal use of the tool and does not cover:
– damage due to poor maintenance or lack of maintenance,
– damage due to incorrect use,
– worn parts,
– tools that have been taken apart by unauthorized repairers,
– external factors (fire, flood, lightning, etc.),
– impacts and their consequences,
– tools used with a battery or charger other than those of the INFO brand.
The warranty is only applicable when the warranty has been registered with INFACO (warranty card or online declaration on www.infaco.com). If the warranty declaration was not made when the tool was purchased, the factory departure date will be used as the warranty start date. The warranty covers factory labor but not necessarily dealer labour. The repair or replacement during the warranty period does not extend or renew the initial warranty.
All failings regarding the storage and safety instructions will void the manufacturer’s warranty. Under no circumstances can the warranty entitle to compensation for any immobilization of the equipment during the time required for its repair. All work carried out by a person other than approved INFACO agents will cancel the tool warranty. The repair or replacement during the warranty period does not extend or renew the initial warranty. We strongly recommend INFACO tool users to contact the dealer that sold them the tool in the event of a failure.
To avoid all disputes, please note the following procedure:
– Tool is still under warranty, send it to us carriage paid and we will pay the return.
– Tool is no longer under warranty, send it to us carriage paid and the return will be at your expense by cash on delivery. If the cost of the repair were to exceed 80 excluding VAT, you will be supplied with a quote.

Advice

Keep your work area tidy. Clutter in work areas increases the risk of accidents.
Take into account the work zone. Do not expose electric tools to rain. Do not use electric tools in a damp or wet environment. Make sure the work area is properly lit. Do not use electric tools near inflammable liquids or gases.
Protect yourself from electric shocks. Avoid bodily contact with surfaces connected to the earth, such as battery chargers, electric multi-plugs, etc.
Keep away from children! Do not allow third-parties to touch the tool or cable. Keep them away from your work area.
Store your tools in a safe location. When not in use, tools must be stored in a dry, locked location in their original packaging and out of the reach of children.
Wear suitable work clothing. Do not wear loose-fitting clothing or jewelry. It could be caught up in moving parts. When working in the open air, wearing rubber gloves and nonslip sole footwear is recommended. If your hair is long, wear a hairnet.
Wear protective eyewear. Also wear a mask if the work being carried out generates dust. Protect the power cord. Do not carry the tool using its cord and do not pull on the cord to disconnect it from the socket.
Protect the cord from heat, oil, and sharp edges. Maintain your tools carefully. Regularly check the plug and power cord condition and, if they are damaged, have them replaced by a recognized specialist. Keep your tool dry and free of oil.
Remove the tool keys. Before starting the machine, make sure the keys and adjustment tools have been removed.
Check your tool for damage. Before reusing the tool, carefully check that the safety systems or slightly damaged parts are in perfect working order.
Have your tool been repaired by a specialist? This tool is compliant with applicable safety rules. All repairs must be carried out by a specialist and only using original parts, failure to do so could result in serious risks to user safety.

Troubleshooting

DISRUPTIONS	CAUSES	SOLUTIONS
Significant abnormal vibrations	Incorrect comb assembly	Refit the comb by following the procedure and contact the dealer if necessary.
	Incorrect comb tightening	Re-tighten the comb by following the procedure.
	Incorrect rod tightening	Re-tighten the rods by following the procedure.
	Comb wear	Check that one of the combs is not loose or damaged, and contact the dealer if necessary.
	Defective tool detection	Contact your dealer.
Broken carbon rod	Wear	Replace the broken and/or worn rod.
Noise in the extension	Extension guide damaged	Contact your dealer.
The machine will not start	Battery discharged red steady	Recharge the battery.
	No power supply	Re-connect the machine.
	Other	Contact your dealer.
Unexpected machine stoppages	Too strong a pulse Mechanical jam red flashing	Change the work method or ask your dealer for advice. Restart by pressing the trigger once.
	Battery discharged red steady	Recharge the battery.

Dealer part
Part to be kept by the dealer

Coupons to be rDeetaulrenrepdaorntpurchase of the tool Part to be kept by the dealer.
Serial number > ………………………………………
Ref > ……………………………………………….
Surname > ………………………………………………
First Name > ……………………………………………
Company name > …………………………………………
Full address > …………………………………….
Town/city > ……………………………………….
Postcode > ……………………………………………..
Phone number > …………………………………….. customer signature
Purchase date > ………… / ………… / …………..
Comments > …………………….
To be returned to info
To validate the warranty, REGISTER IMMEDIATELY ONLINE ON: www.infaco.com
Your warranty declaration or send this form filled out IN BLOCK CAPITALS AS SOON AS THE TOOL IS PURCHASED.
Surname > ……………………………………………..
First name > ……………………………………..
Company name > ……………………………………
Full address > ………………………………………….
Town/city > …………………………………………….
Postcode > ……………………………………….
Phone number > ……………………………………..
Email > ………………………………………………….
Orchards
Dealer’s stamp
Purchase date > ………… / ………… / ………….. Oil production
Serial number – Ref > ……………………………. Vine growing
Parks & gardens………………………………..
Comments > …………………………………………..
Serial number
Dealer
To be kept by the dealer for the INFO customer file
IN FACT S.A.S. Bois de Roziès 81140 CAHUZAC-SUR VERE
Manufacturer > INFACO S.A.S. – 81140 CAHUZAC-SUR-VÈRE (FRANCE)
Type >POWERCOUP PW3 THD Ref > THD600P3 / THD700P3
Handle weight > THD600 3300g / THD700 3400g
Maximum power > 1300 W
Battery rated voltage > 48 Volts
These specifications are given as an indication only.
Under no circumstances may they be considered contractually binding.
They are subject to modification without prior notice in the interests of product development.
Technical information or After-sales
INFACO S.A.S. Bois de Roziès 81140 CAHUZAC-SUR VERE France
Phone: (+33) 05 63 33 91 49
– Fax: (+33) 05 63 33 95 57
Email: [email protected]
Technical videos are available on the website: www.infaco.com
CE declaration of conformity
DECLARATION OF CONFORMITY (EC)
INFO S.A.S. declares that the new equipment designated below:
Electric device INFO
De marque / brand name > INFACO
Year of manufacture >
“Machines” (directive 2006/42/EEC).
Appliances” (directive 2006/42/CEE)
Directive 200/14/EC « on the noise emission by equipment for use outdoors » (order of 18 march 2002) modified by the directive 2005/88/EC (order of 22 may 2006).
The person authorized to compile the technical file within the company INFACO is Mr. Gregory ALVAREZ.
POWERCOUP PW3 – THD600P3 / THD700P3
Weighted sound pressure level A at the work station, LpA (NF EN 60745-2-11: 2009)
Sound pressure level LpA
Uncertainty KpA = 3 dB(A)
Uncertainty K = 1.5 m/s² 79 dB(A) 5 m/s2
INFACO Managing Director
LE / Date > 01/09/2021 Signature / Signature
The partly-completed machine must not be put into service until the final machine into which it is to be incorporated has been declared in conformity with the relevant provisions of this Directive.
INFO undertakes to provide national authorities with all relevant information concerning the machine.

LE / Date > 01/09/2021
Signature

www.infaco.com
Original user guide – Hedge trimmer THD600/700P3 NOT_ THD600/700P3_EN_09_21
