Infaco Thd600-700p3 Electric Hedge Trimmer User Guide

Hedge trimmer THD600/700p3
Original user guide

https://www.infaco.com/fr/downloads/usermanuals

PW3, a multi-function handle

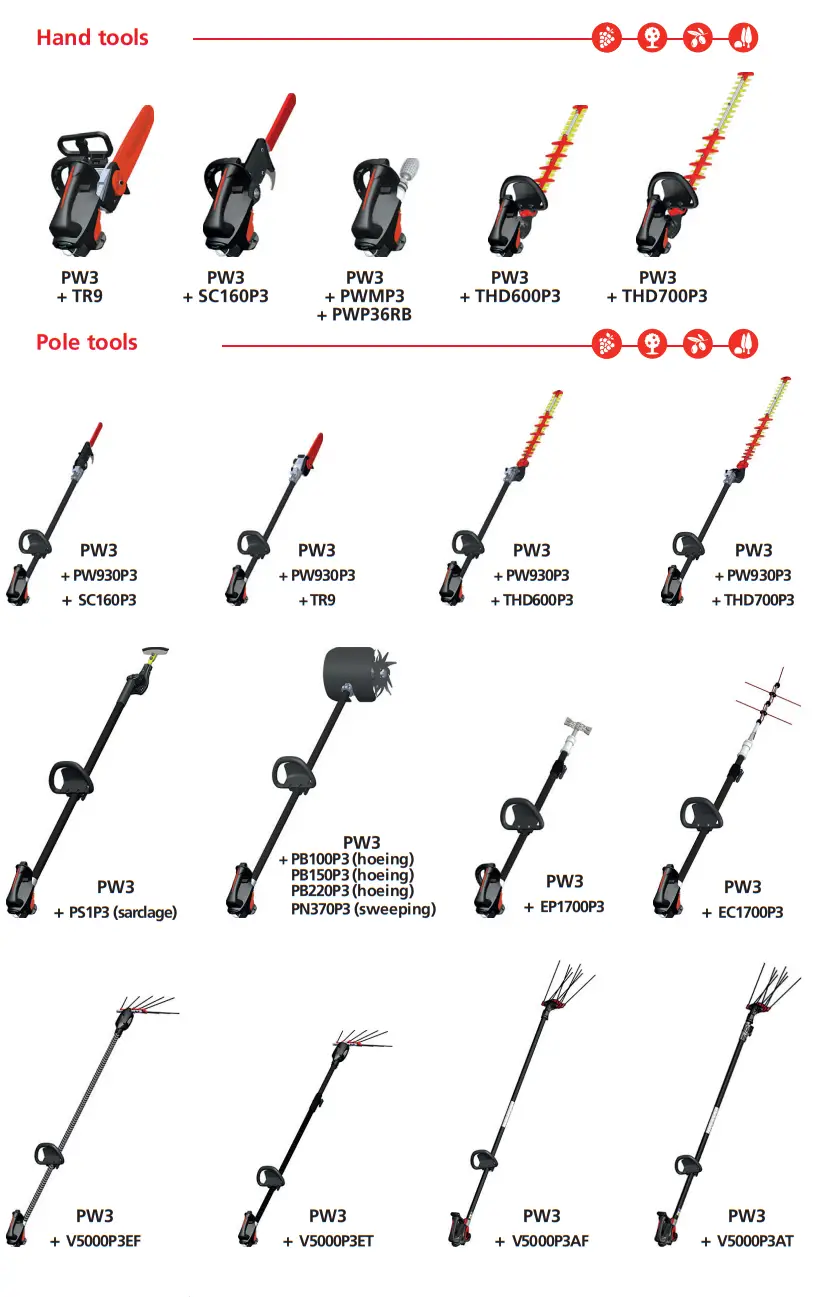

Compatible tools

Precautions before use

WARNING. Read all the safety warnings and all the instructions. Failing to heed warnings and follow instructions may lead to an electric shock, fire and/ or serious injury. Keep all warnings and instructions for future reference. The term “tools” in the warnings refers to your battery-powered electric tool (with a power cord), or your tool operating on a battery (without a power cord).

Personal protection equipment

	Read the instructions for use carefully, especially the safety instructions.
	The wearing of a hard hat, eye and ear protection is MANDATORY
	Hand protection using cut-prevention work gloves.
	Foot protection using safety footwear.
	Face protection using a visor
	Body protection, using cut protection overalls.
	IMPORTANT! Extensions can be made of conductive materials. Do not use near sources of electricity or electric wires

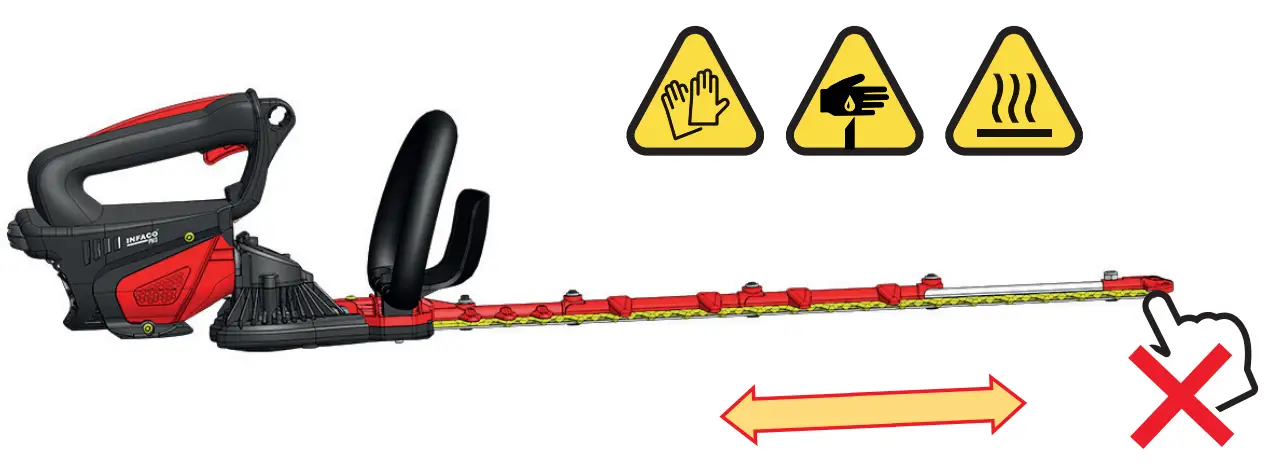

	IMPORTANT! Do not approach any part of the body to the blade. Do not remove the cut material or hold the material to be cut while the blades are moving.

Protection of the environment

Observe all country-specific waste disposal rules and regulations.
> Power tools must not be disposed of with household refuse.
> The device, accessories, and packaging must be taken to a recycling center.
> Ask the approved INFACO dealer for up-to-date information on the eco-compatible elimination of waste.

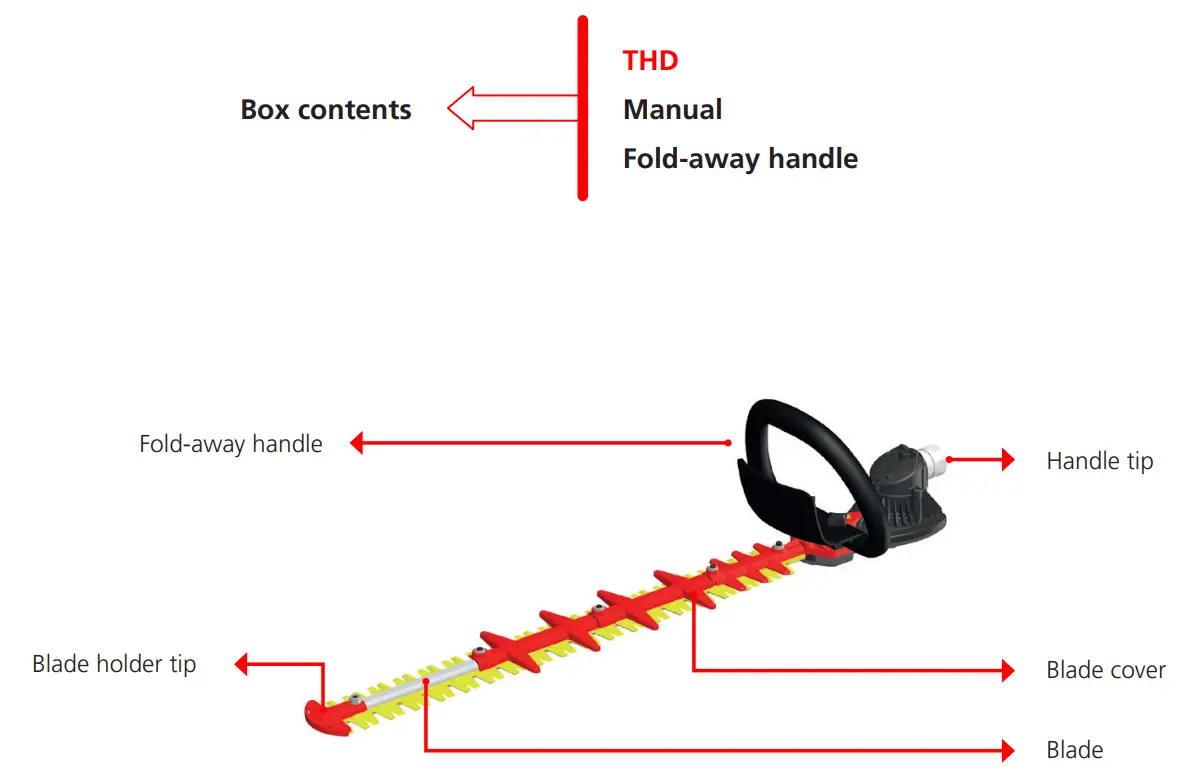

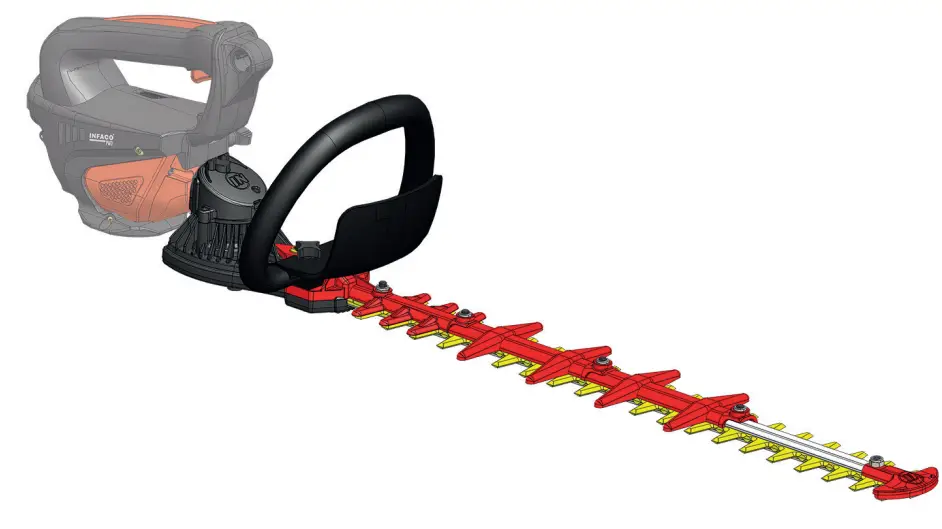

General product view

Specifications

These specifications are given as an indication only. Under no circumstances may they be considered as contractually binding.They are subject to modification without prior notice in the interests of product development.
Patented equipment

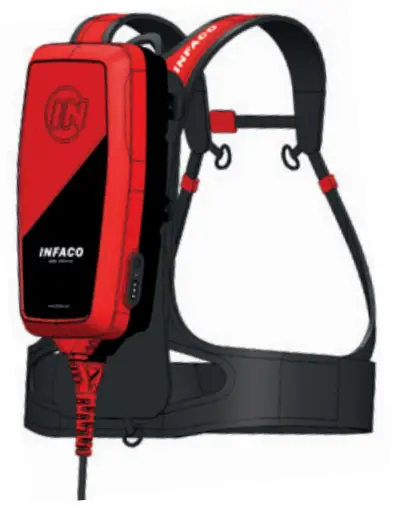

Compatible batteries

820Wh battery L850B Cable compatibility L856CC
120Wh battery 831B Cable compatibility 825S

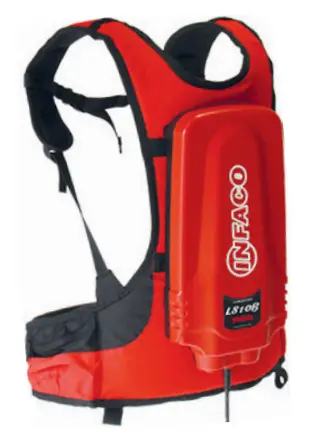

500Wh battery L810B Cable compatibility PW225S
150Wh battery 731B Cable compatibility PW225S (requires fuse replacement by 539F20).

User guide

First, use The first time you use the equipment, we strongly recommend you to ask the advice of your dealer, who is qualified to give you all the advice you need for correct use and optimum performance. It is imperative to carefully read the tool and accessory user manuals before handling or powering up the tool.

1st start-up: 2 short presses on the trigger = ON
Exit from standby mode: 2 short presses on the trigger = ON
Normal operation: 1 long press on the trigger = ON
Trigger release: OFF
It is mandatory to hold it with both hands
Storage and transport

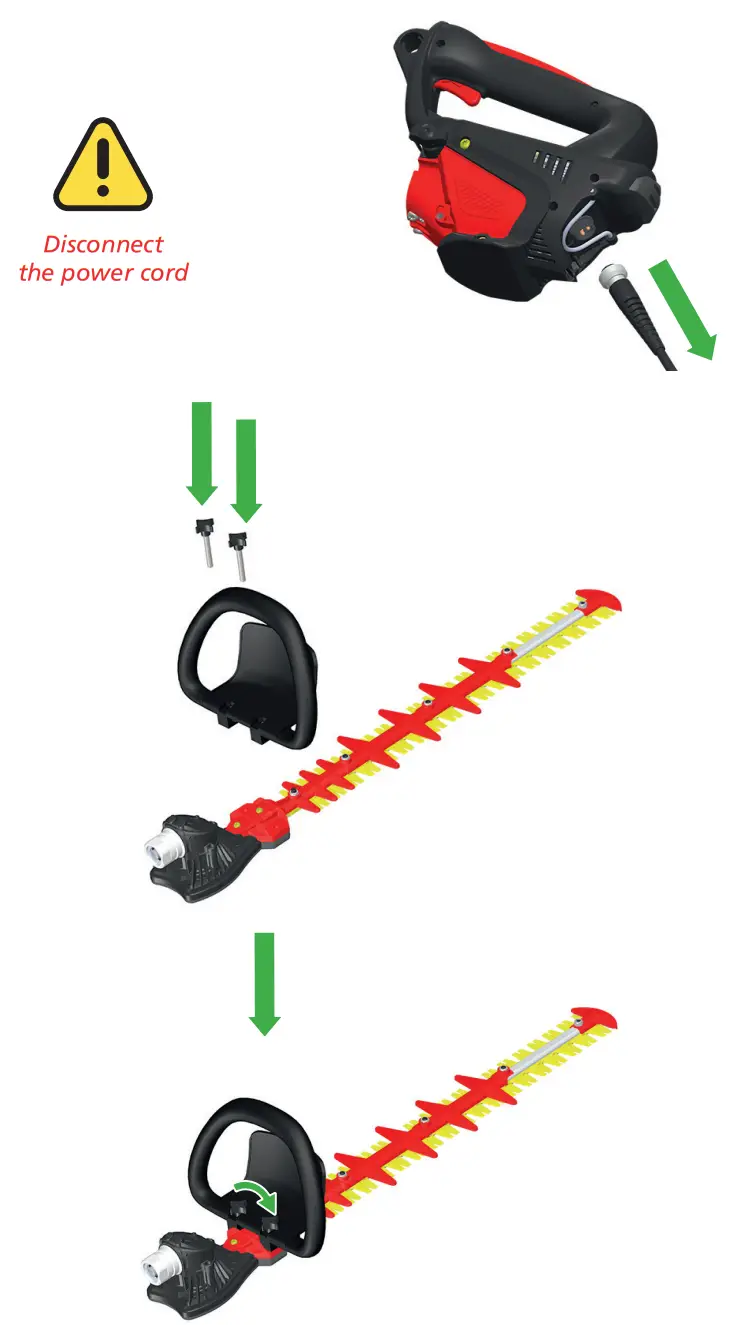

For the transport, storage, servicing, maintenance of the tool, or any other operations not related to tool function operations, it is imperative to disconnect the device.

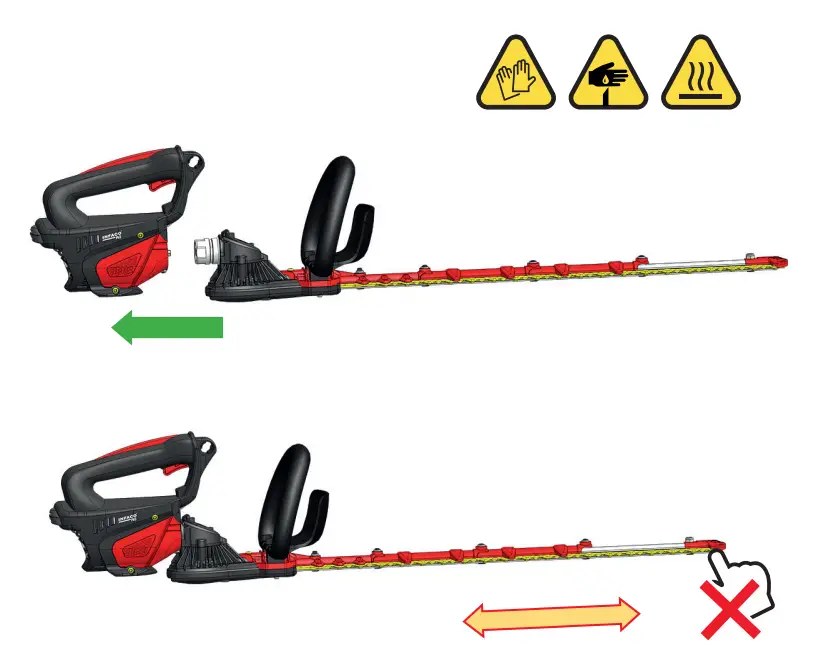

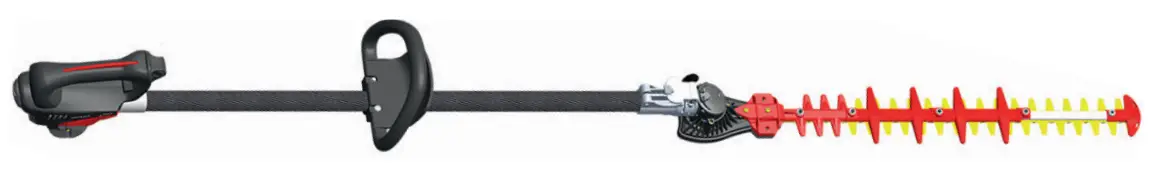

Assembly on a pole

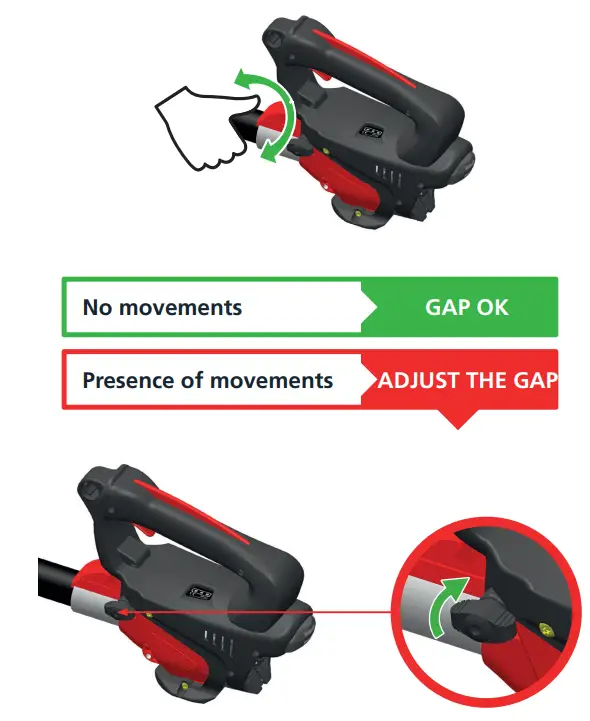

Tool gap adjustment

It is imperative to disconnect the machine.
Check the tightening by exerting an alternative pressure.

Precautions for use and safety

It is mandatory to hold it with both hands

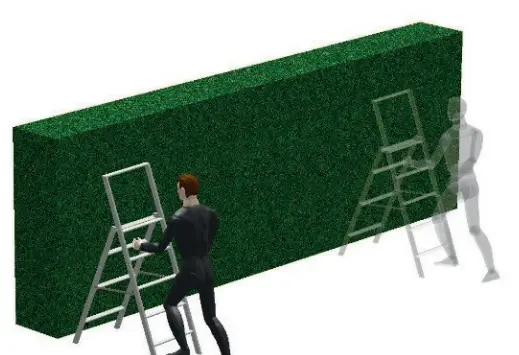

Warning about risks when working at heights using a ladder. High-risk work configuration not recommended.
We recommend the use of the extension (option) for all work at heights. In order to prevent any risk of falls and other accidents.

If you use any external resources to the supply of the INFO to carry out your work, it is IMPERATIVE to place the tool on the ground.

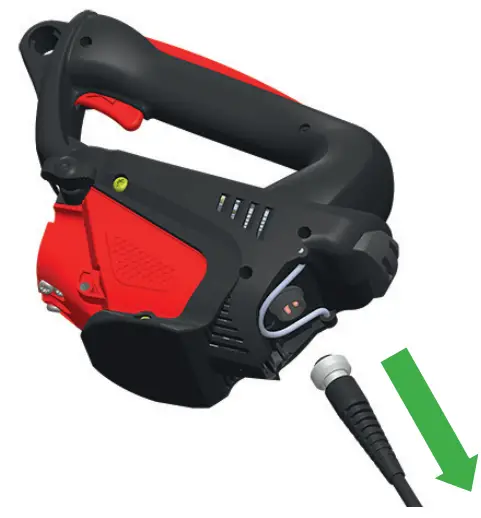

Disconnect the cord from the battery quick connector before moving from A to B.

Servicing and maintenance

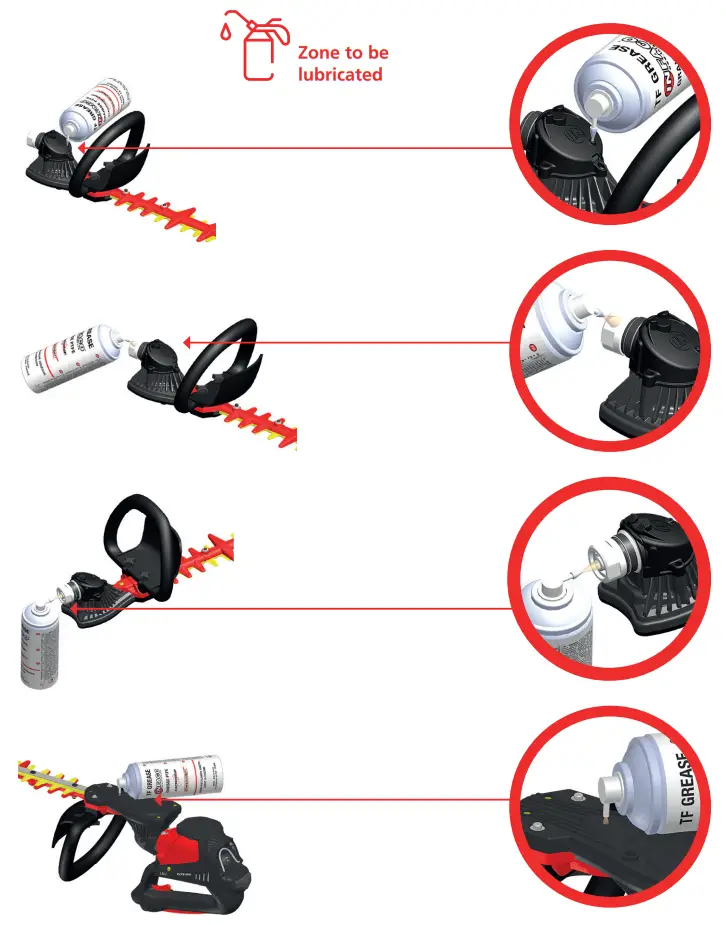

Blade holder lubrication
Recommended products: Lithium grease ref: 352B – Grease ref: B400G
Always disconnect your tool from the battery.

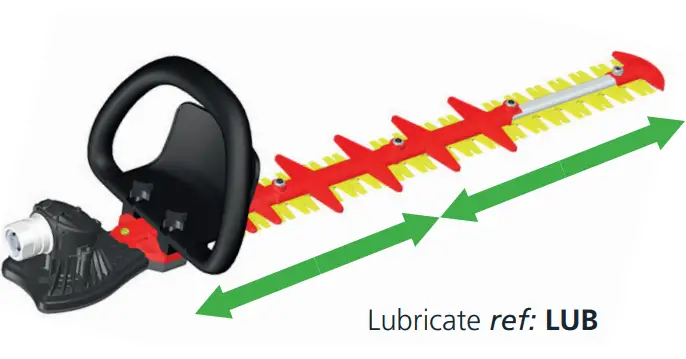

Blade holder lubrication
Recommended products: Grease ref: LUB Always disconnect your tool from the battery.
Lubricate ref: LUB Sharpening Always disconnects your tool from the battery. If you have no experience in blade sharpening, it is strongly recommended to ask for your dealers’ help, as they are authorized to sharpen your hedge-trimmer blade.

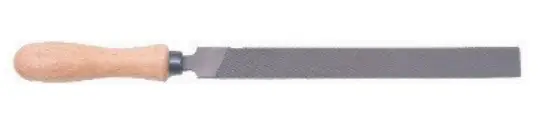

Recommended equipment: – Flat file for hard steel

Recommended sharpening:

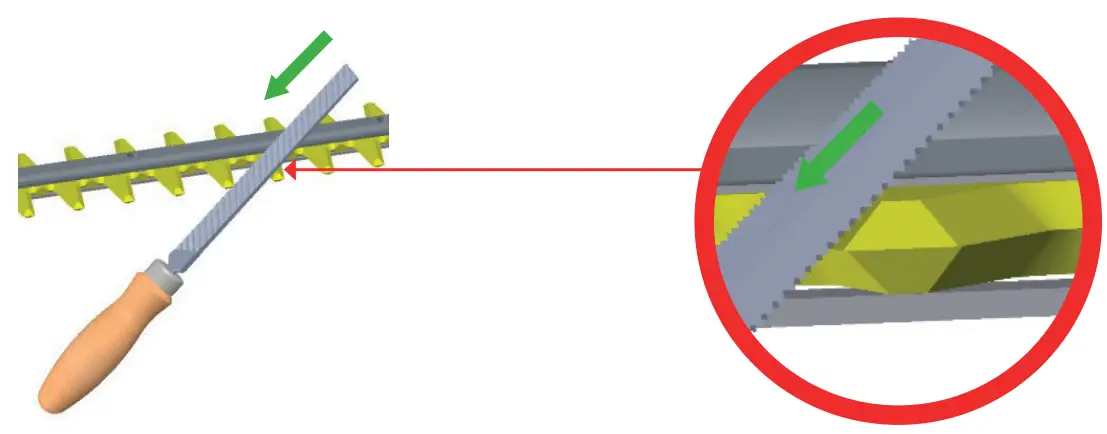

– Place the file on the tooth and comply with the existing sharpening angle. Apply a movement towards the contact surface of the two blades.

Safety instruction

IMPORTANT. To reduce the risk of electric discharges, injuries, and fire when using electric tools, follow the fundamental safety measures indicated below. Read and follow these instructions before using the tool, and keep the safety instructions!
Outside operations related to the use of the tool, your tool and its accessories must be disconnected and stored in their respective packaging.
It is imperative to disconnect your tool from all power sources for the following operations:
– Servicing.
– Battery charging.
– Maintenance.
– Transport.
– Storage.
When the tool is running, always remember to keep the hands away from the accessory head being used. Do not work with the tool if you are tired or feeling unwell. Wear the specific recommended personal protection equipment for each accessory. Keep the equipment out of the reach of children or visitors.
Do not use the tool if there is a risk of fire or explosions, for example in presence of flammable liquids or gases.
Never carry the charger by the cord, and do not pull on the cord to disconnect it from the socket.
Keep the cord away from heat, oil, and sharp edges.
Never use the tool at night or in bad light without setting up additional lighting. When using the tool, keep both feet on the ground and keep as much balance as possible.
Caution: extensions can be made of conductive materials. Do not use near sources of electricity or electric wires.

Warranty conditions

Your tool has a two-year warranty for manufacturing defects or faults. The warranty applies to the normal use of the tool and does not cover:
– damage due to poor maintenance or lack of maintenance,
– damage due to incorrect use,
– worn parts,
– tools that have been taken apart by unauthorized repairers,
– external factors (fire, flood, lightning, etc.),
– impacts and their consequences,
– tools used with a battery or charger other than those of the INFO brand.
The warranty is only applicable when the warranty has been registered with INFACO (warranty card or online declaration on www.infaco.com). If the warranty declaration was not made when the tool was purchased, the factory departure date will be used as the warranty start date. The warranty covers factory labor but not necessarily dealer labour. The repair or replacement during the warranty period does not extend or renew the initial warranty.
All failings regarding the storage and safety instructions will void the manufacturer’s warranty. Under no circumstances can the warranty entitle to compensation for any immobilization of the equipment during the time required for its repair. All work carried out by a person other than approved INFACO agents will cancel the tool warranty. The repair or replacement during the warranty period does not extend or renew the initial warranty. We strongly recommend INFACO tool users to contact the dealer that sold them the tool in the event of a failure.
To avoid all disputes, please note the following procedure:
– Tool is still under warranty, send it to us carriage paid and we will pay the return.
– Tool is no longer under warranty, send it to us carriage paid and the return will be at your expense by cash on delivery. If the cost of the repair were to exceed 80 excluding VAT, you will be supplied with a quote.

Advice

Keep your work area tidy. Clutter in work areas increases the risk of accidents.
Take into account the work zone. Do not expose electric tools to rain. Do not use electric tools in a damp or wet environment. Make sure the work area is properly lit. Do not use electric tools near inflammable liquids or gases.
Protect yourself from electric shocks. Avoid bodily contact with surfaces connected to the earth, such as battery chargers, electric multi-plugs, etc.
Keep away from children! Do not allow third-parties to touch the tool or cable. Keep them away from your work area.
Store your tools in a safe location. When not in use, tools must be stored in a dry, locked location in their original packaging and out of the reach of children.
Wear suitable work clothing. Do not wear loose-fitting clothing or jewelry. It could be caught up in moving parts. When working in the open air, wearing rubber gloves and nonslip sole footwear is recommended. If your hair is long, wear a hairnet.
Wear protective eyewear. Also wear a mask if the work being carried out generates dust. Protect the power cord. Do not carry the tool using its cord and do not pull on the cord to disconnect it from the socket.
Protect the cord from heat, oil, and sharp edges. Maintain your tools carefully. Regularly check the plug and power cord condition and, if they are damaged, have them replaced by a recognized specialist. Keep your tool dry and free of oil.
Remove the tool keys. Before starting the machine, make sure the keys and adjustment tools have been removed. Check your tool for damage. Before reusing the tool, carefully check that the safety systems or slightly damaged parts are in perfect working order.
Have your tool been repaired by a specialist? This tool is compliant with applicable safety rules. All repairs must be carried out by a specialist and only using original parts, failure to do so could result in serious risks to user safety.

Troubleshooting

Dealer part
Part to be kept by the dealer

Coupons to be rDeetaulrenrepdaorntpurchase of the tool Part to be kept by the dealer.
Serial number > ………………………………………
Ref > ……………………………………………….
Surname > ………………………………………………
First Name > ……………………………………………
Company name > …………………………………………
Full address > …………………………………….
Town/city > ……………………………………….
Postcode > ……………………………………………..
Phone number > …………………………………….. customer signature
Purchase date > ………… / ………… / …………..
Comments > …………………….
To be returned to info
To validate the warranty, REGISTER IMMEDIATELY ONLINE ON: www.infaco.com
Your warranty declaration or send this form filled out IN BLOCK CAPITALS AS SOON AS THE TOOL IS PURCHASED.
Surname > ……………………………………………..
First name > ……………………………………..
Company name > ……………………………………
Full address > ………………………………………….
Town/city > …………………………………………….
Postcode > ……………………………………….
Phone number > ……………………………………..
Email > ………………………………………………….
Orchards
Dealer’s stamp
Purchase date > ………… / ………… / ………….. Oil production
Serial number – Ref > ……………………………. Vine growing
Parks & gardens………………………………..
Comments > …………………………………………..
Serial number
Dealer
To be kept by the dealer for the INFO customer file
IN FACT S.A.S. Bois de Roziès 81140 CAHUZAC-SUR VERE
Equipment manufactured in France
Manufacturer > INFACO S.A.S. – 81140 CAHUZAC-SUR-VÈRE (FRANCE)
Type >POWERCOUP PW3 THD Ref > THD600P3 / THD700P3
Handle weight > THD600 3300g / THD700 3400g
Maximum power > 1300 W
Battery rated voltage > 48 Volts
These specifications are given as an indication only.
Under no circumstances may they be considered contractually binding.
They are subject to modification without prior notice in the interests of product development.
Technical information or After-sales
INFACO S.A.S. Bois de Roziès 81140 CAHUZAC-SUR VERE France
Phone: (+33) 05 63 33 91 49
– Fax: (+33) 05 63 33 95 57
Email: [email protected]
Technical videos are available on the website: www.infaco.com
CE declaration of conformity
DECLARATION OF CONFORMITY (EC)
INFO S.A.S. declares that the new equipment designated below:
Electric device INFO
De marque / brand name > INFACO
Year of manufacture >
“Machines” (directive 2006/42/EEC).
Appliances” (directive 2006/42/CEE)
Directive 200/14/EC « on the noise emission by equipment for use outdoors » (order of 18 march 2002) modified by the directive 2005/88/EC (order of 22 may 2006).
The person authorized to compile the technical file within the company INFACO is Mr. Gregory ALVAREZ.
POWERCOUP PW3 – THD600P3 / THD700P3
Weighted sound pressure level A at the work station, LpA (NF EN 60745-2-11: 2009)
Sound pressure level LpA
Uncertainty KpA = 3 dB(A)
Uncertainty K = 1.5 m/s² 79 dB(A) 5 m/s2
INFACO Managing Director
LE / Date > 01/09/2021 Signature / Signature
The partly-completed machine must not be put into service until the final machine into which it is to be incorporated has been declared in conformity with the relevant provisions of this Directive.
www.infaco.com
Original user guide – Hedge trimmer THD600/700P3 NOT_ THD600/700P3_EN_09_21
