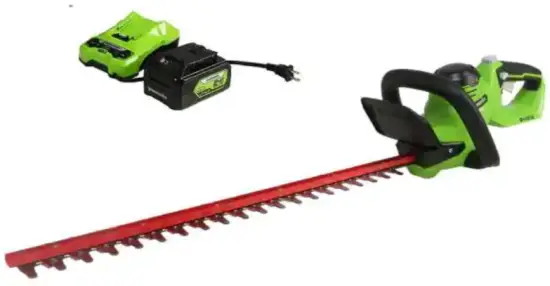

greenworks HT60L211 60V Hedge Trimmer User Manual

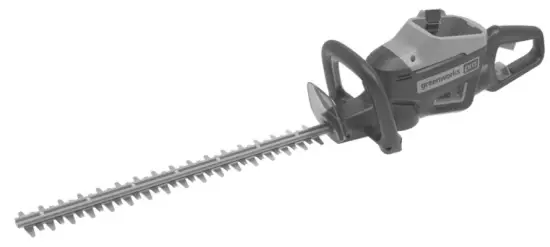

HEDGE TRIMMER

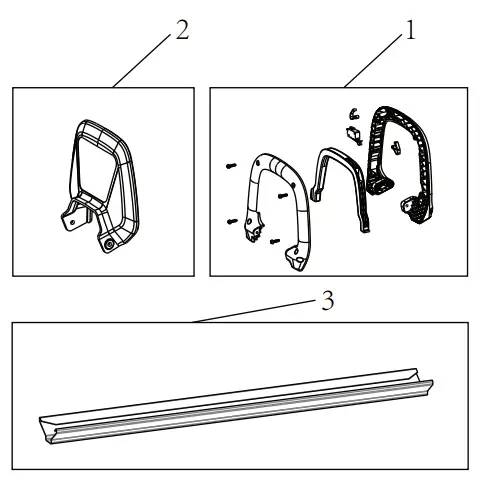

EXPLODED VIEW
| No. | Part No. | Qty | Description |
| 1 | R0201807-0 0 | 1 | Auxiliary handle assembly |
| 2 | R0201808-0 0 | 1 | Guard |
| 3 | R0201931-0 0 | 1 | Blade cover |

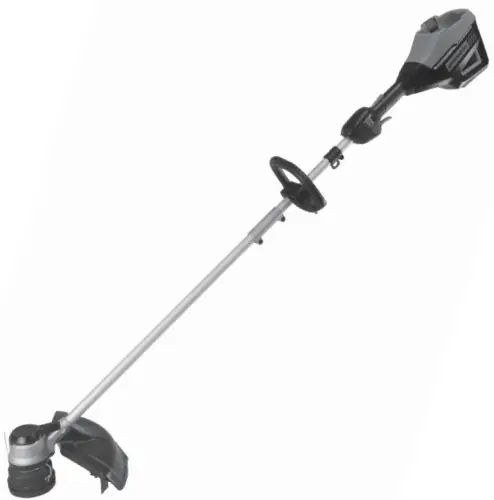

STRING TRIMMER

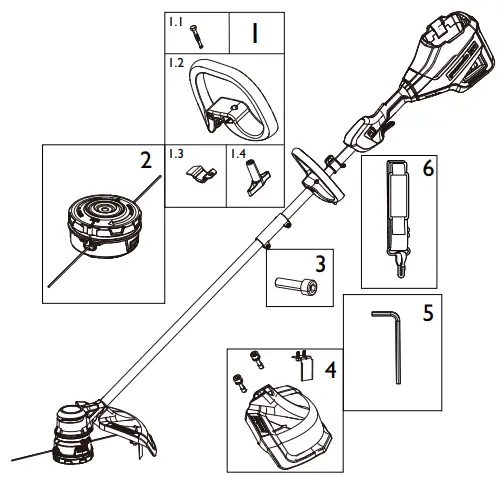

EXPLODED VIEW
| No. | Part No. | Qt y | Description | No. | Part No. | Qty | Description |
| 1 | R0201836-00 | 1 | Auxiliary Handle Assembly | 2 | R0201834-00 | 1 | Trimmer Head Assembly |
| 1.1 | R0201826-00 | 1 | Bolt | 3 | R0201830-00 | 1 | Hex Screw |
| 1.2 | R0201827-00 | 1 | Auxiliary handle | 4 | R0201881-00 | 1 | Guard Assembly |
| 1.3 | R0201828-00 | 1 | Bracket | 5 | R0201770-00 | 1 | Allen key |
| 1.4 | R0201833-00 | 1 | Knob | 6 | RB37902144 | 1 | Shouler strap |
