PIPELINE FILTERS®
THE FUTURE
OF FILTRATION IS HERE
Certified to NSF/ ANSI/CAN 50

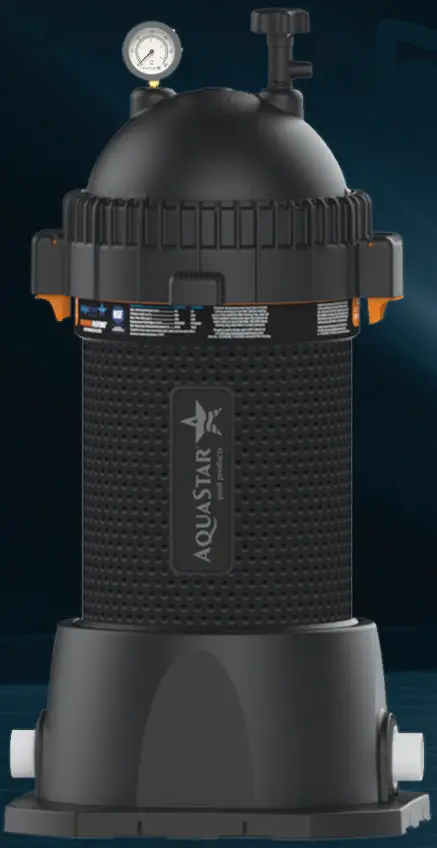

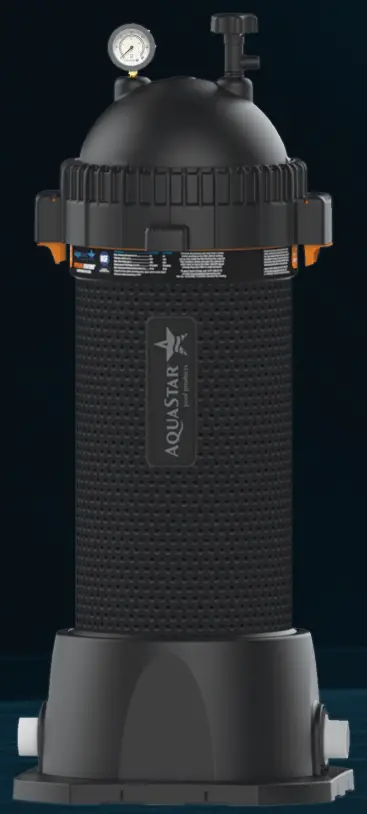

PLF35000, PLF27000 Pipeline Filters
 |  |
MODEL #PLF35000 | MODEL # PLF27000 |
No more half dirty filter elements, choose the cartridge filter with near 100% usable square footage. Made in the USA!
*See chart on back for residential treatment rates
PIPELINE CATRIDGE FILTERS
Superior performance in three distinct categories
Filtration Performance

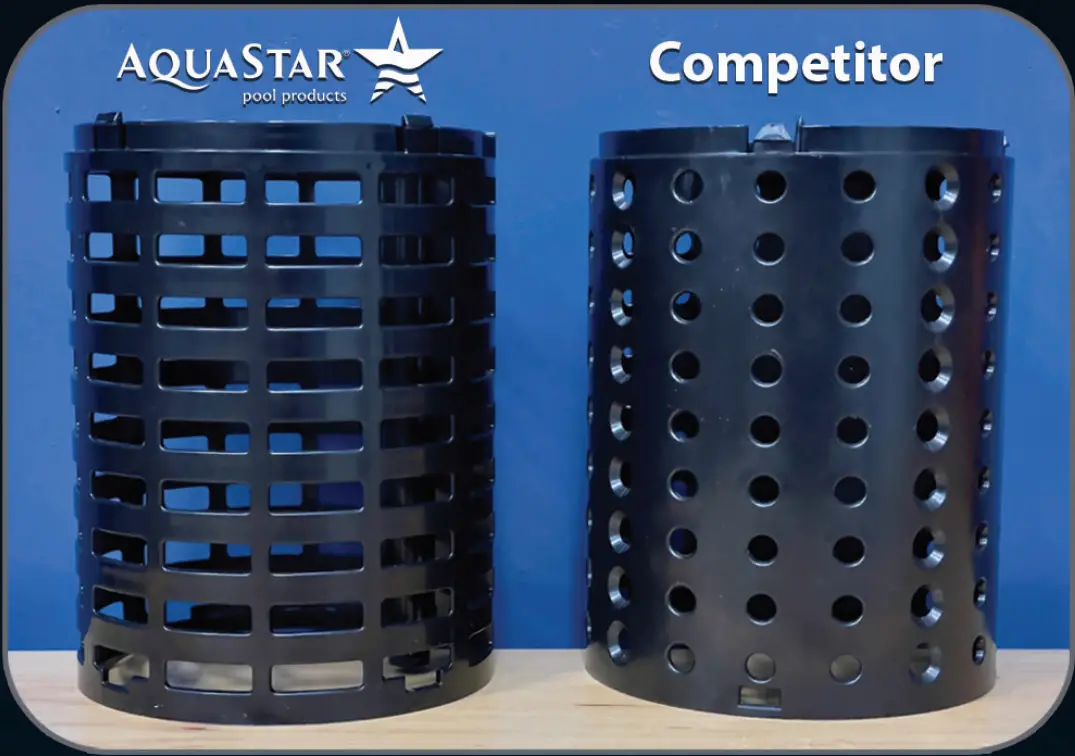

Pipeline Filters passed the NSF water clarity (turbidity reduction) test with just 1 turnover, similar to DE filters. Other cartridge filters typically take up to 5 turnovers to pass the same test. Engineered pleat spacing, (34% lamer core and patented uniform tank design allow for more uniform flow from bottom to top, providing best-in-class filtration.
Safety and Ease-of-Access

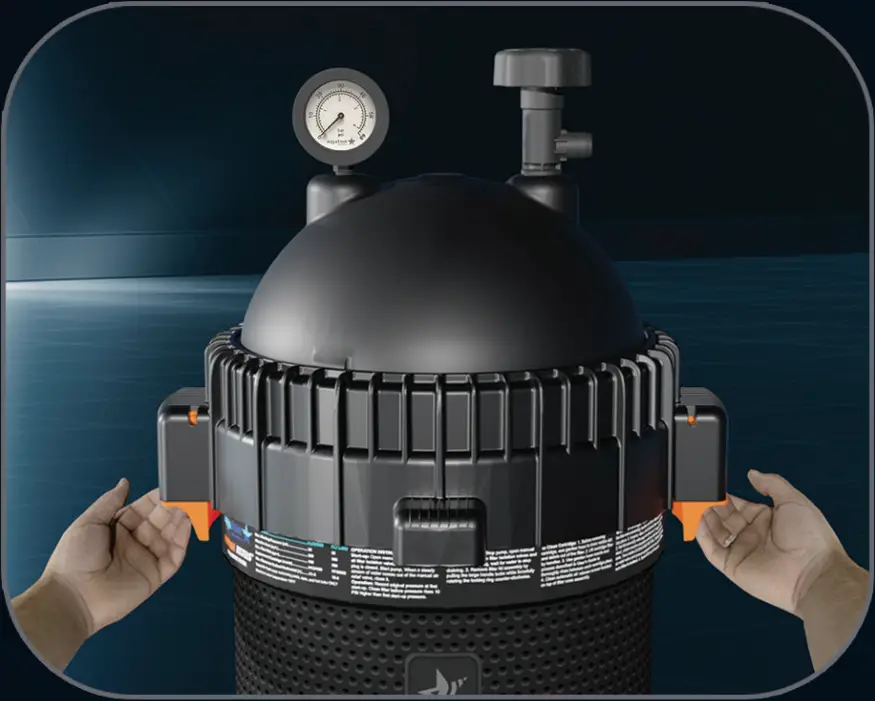

Pipeline Filters patented double-locking system allows for safe, quick, and easy depressurization, making the filter extremely easy to access compared to filters that use a traditional clamp.
Hydraulic Performance

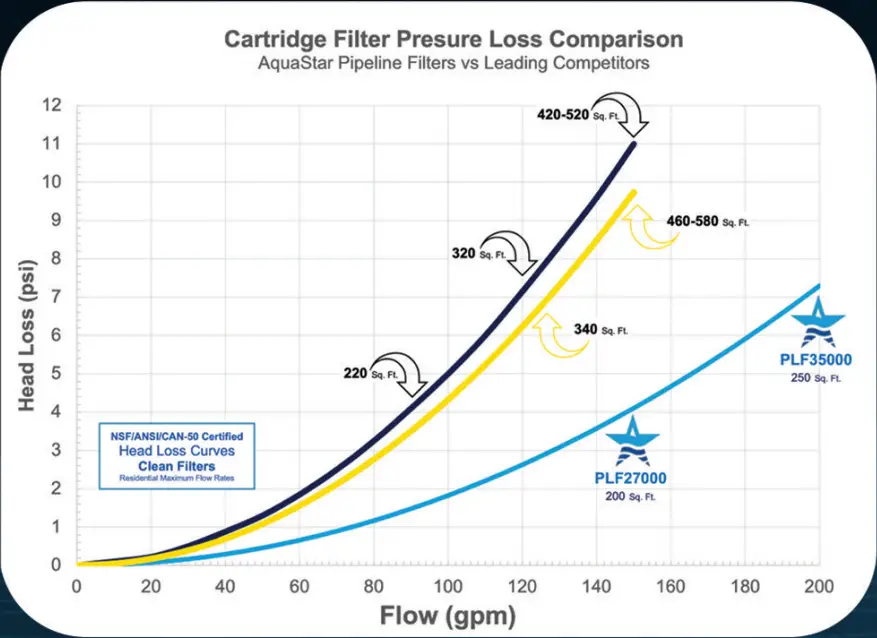

Pipeline Filters provide top-tier hydraulic performance, as shown in the chart to the right. These filters continue to outperform even after the first cleaning of the filter and cartridge element. Head loss in a Pipeline Filter only increases by 2% after cleaning according to instructions (up to 50% is allowed for NSF certification). Less head loss at the filter provides less stress on the pump, saving energy and money.
Performance Data
| Performance Data | GPM | Residential Turnover (Pool Gallons) | Public Turnover (Pool Gallons) | ||||
| Model | Filter Area (sq.ft) | Max Residential Flow Rate | Max Public Flow | 8 Hours | 10 Hours | 6 Hours | 8 Hours |
| PLF27000 | 200 | 150 | 75 | 72,000 | 90,000 | 27,000 | 36,000 |
| PLF35000 | 250 | 200 | 99 | 96,000 | 120,000 | 35,640 | 47,520 |
Gallons calculated per ISPSC
Claims backed by NSF testing data
(877) 768-2717 – www.aquastarpoolproducts.com
U.S. Patent No. 10,792,596, 11,014,027 and Other Patents Pending
