Flow rate: 20 GPM (gallons per minute)**
Bathrooms: 3-4 bath**
See other side for 1 to 2.5 baths

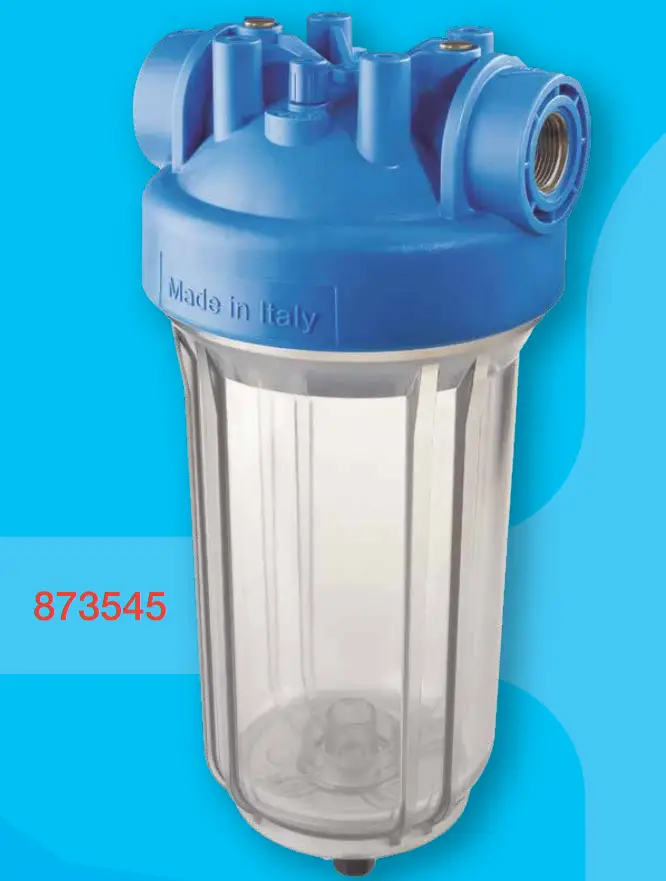

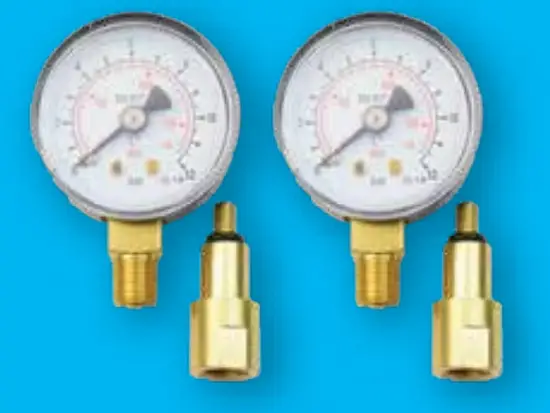

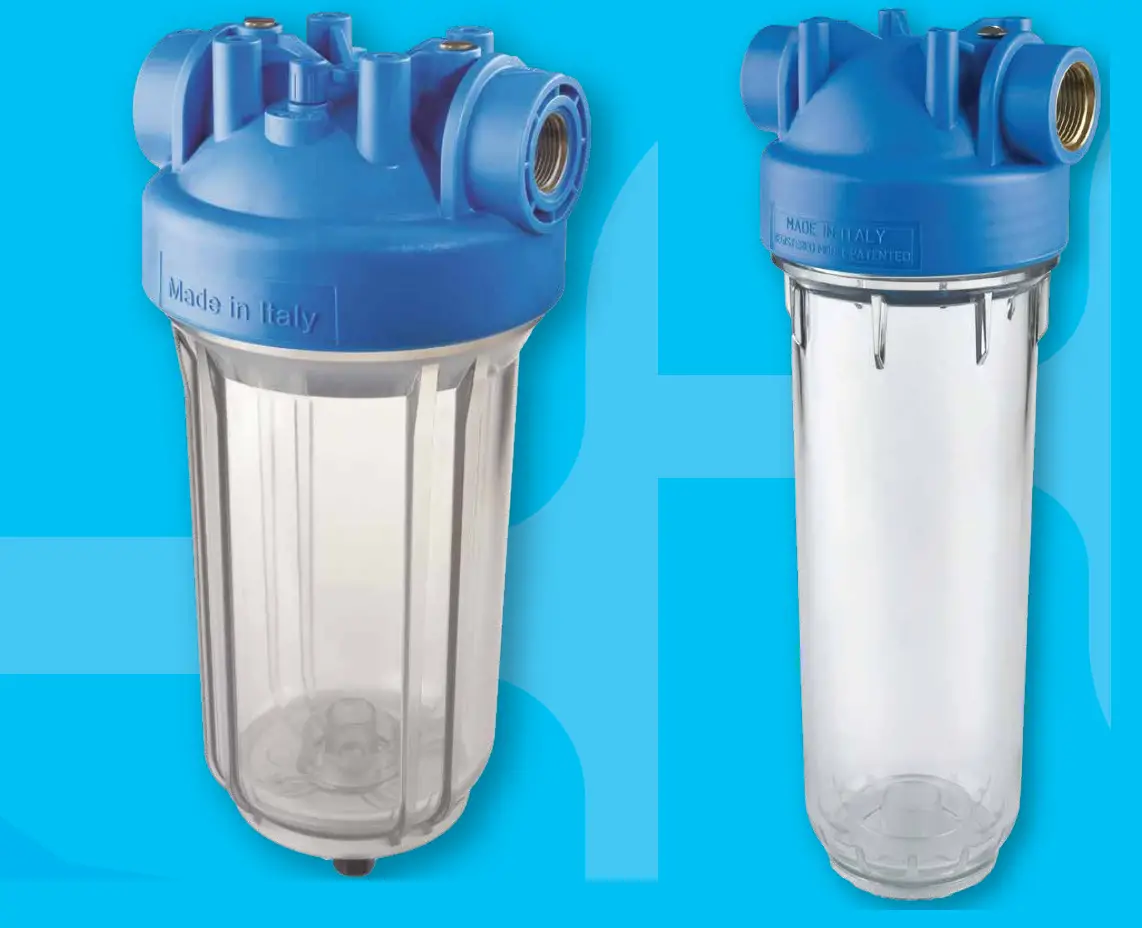

HOUSING: DP BIG 4.5”X 10” CLEAR SUMP 1” NPT – GAUGES & DRAIN OPTIONAL	COMPLAINTS/ PROBLEMS	CARTRIDGE FEATURES	QUICKCODE #

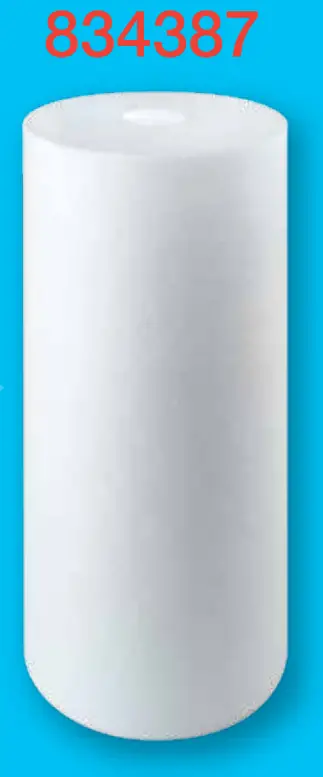

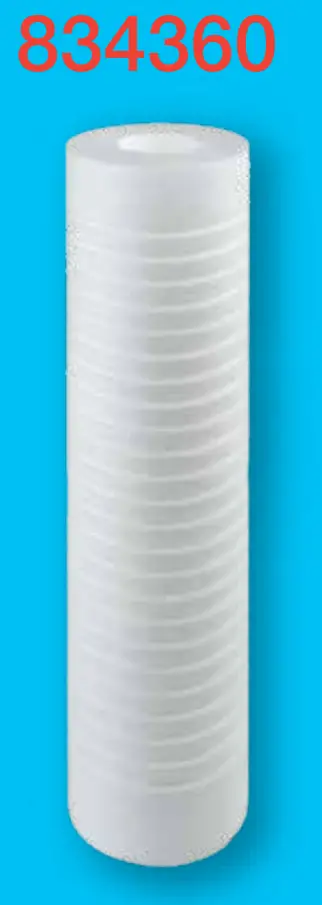

	Sediment, hardness, Corrosion. White build-up on glassware and showerheads.	SCALE-SEDIMENT FILTER 5 Micron Melt blown polypropylene two stage sediment & scale reduction water conditioning filters

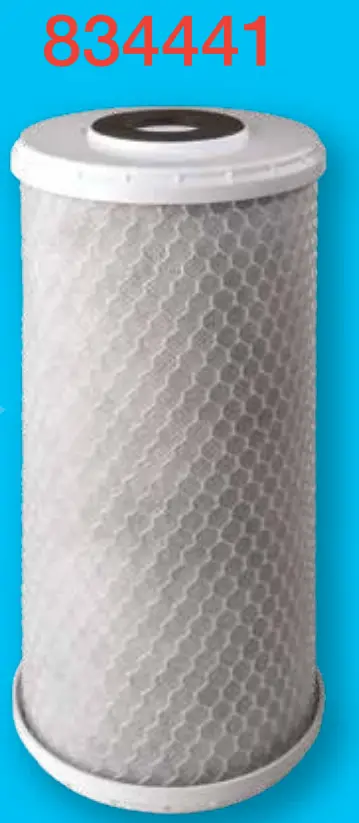

	Chlorine taste/odor, musty smell.	CARBON BLOCK FILTERS CTO Cartridge (Chlorine, Taste and Odor) Also available in VOC CYST, VOC CYST/LEAD and chloramine.

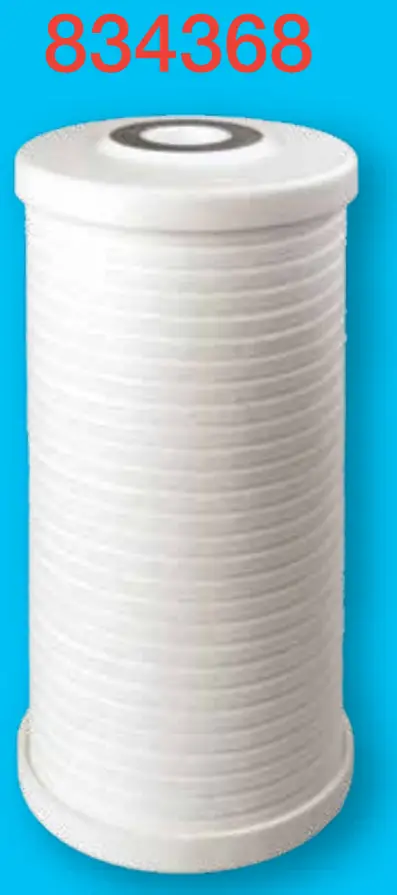

	Sediment/Rust, particulate, brown/black staining on fixtures.	SCALE-SEDIMENT FILTER CARBON BLOCK FILTERS 5 Micron Grooved media improves sediment retention, service time, filtration surface and flow rates.

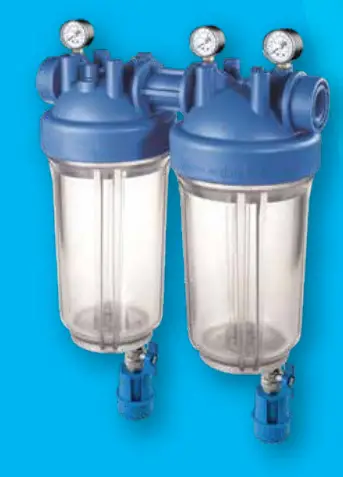

Also Available in a DUO Configuration!! 834598 (comes with 834387 & 834441) or 834599 (empty, gauges and drain kit separate)	Larger housing sizes (and DUO) and inlets available (IE 4+ bath 1.5” main) *Estimated flow rates on standard city pressure through a new cartridge This decision tree is based on standard city water complaints, this can be applied to private well applications but a water test would be suggested before proceeding.

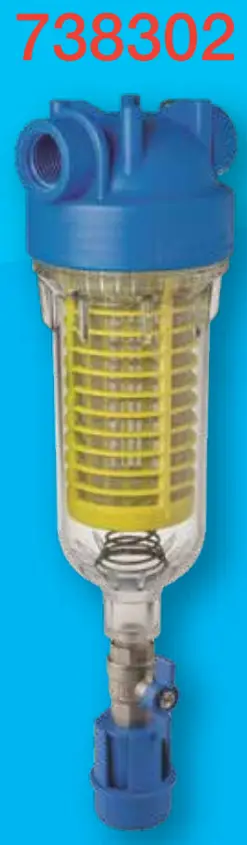

Add a Hydra cleanable Prefilter to any application for a premium setup!!

HEAVY SEDIMENT FILTER
50 or 90 Micron

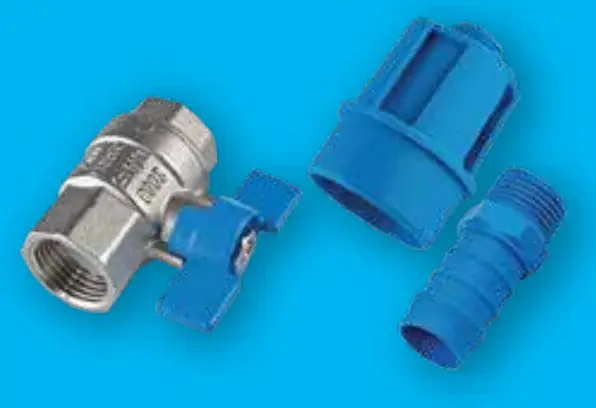

734439 drain kit

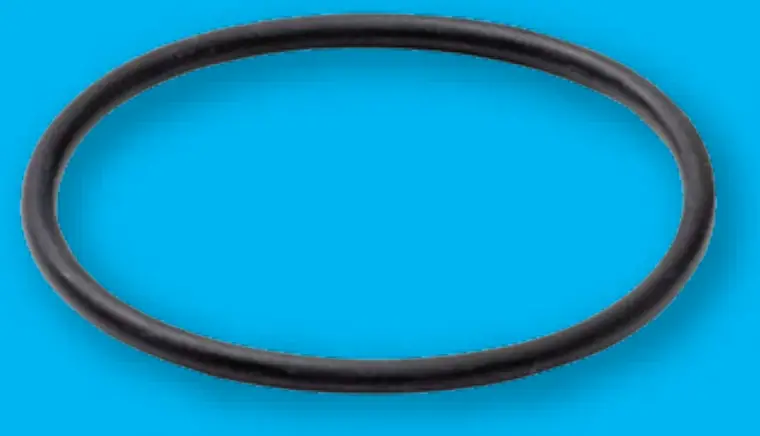

(2) 734437 O-Ring (blue) (every cartridge change)

Flow rate: 12 GPM (gallons per minute)**
Bathrooms: 1-2.5 bath**
See other side for 3 to 4 baths

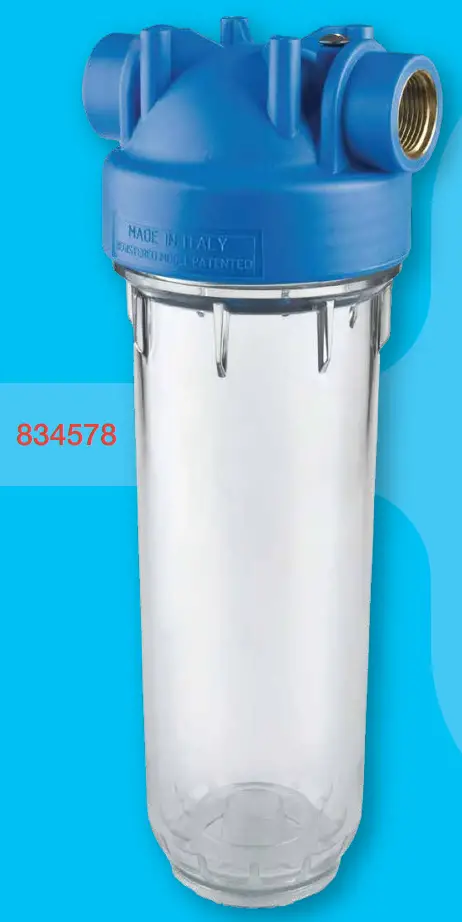

HOUSING: DP BIG 4.5”X 10” CLEAR SUMP 1” NPT – GAUGES & DRAIN OPTIONAL	COMPLAINTS/ PROBLEMS	CARTRIDGE FEATURES	QUICKCODE #
	Sediment, hardness, Corrosion. White build-up on glassware and showerheads.	SCALE-SEDIMENT FILTER 5 Micron Melt blown polypropylene two stage sediment & scale reduction water conditioning filters
	Chlorine taste/odor, musty smell.	CARBON BLOCK FILTERS CTO Cartridge (Chlorine, Taste and Odor) Also available in VOC CYST, VOC CYST/LEAD and chloramine.
	Sediment/Rust, particulate, brown/black staining on fixtures.	SCALE-SEDIMENT FILTER CARBON BLOCK FILTERS 5 Micron Grooved media improves sediment retention, service time, filtration surface and flow rates.
	Larger housing sizes (and DUO) and inlets available (IE 4+ bath 1.5” main) *Estimated flow rates on standard city pressure through a new cartridge This decision tree is based on standard city water complaints, this can be applied to private well applications but a water test would be suggested before proceeding.
