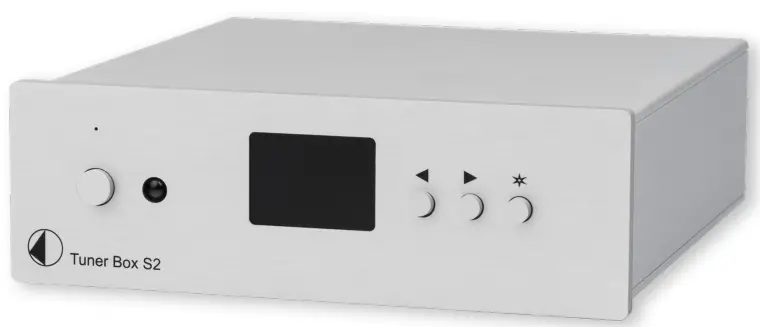

Tuner Box S2 Compact FM Tuner, Silver
Instruction Manual
Tuner Box S2
PRODUCT INFORMATION
Micro-sized FM-Tuner
- Micro-sized FM-Tuner
- 99 presets
- Manual or automatic tuning
- Adaptive noise reduction
- High-contrast dot-matrix display
- Display of frequency, preset number, centre of station, Stereo or Mono reception, signal strength
- Trigger switching (on/off)
- Full function IR remote control
- Aluminium case in new S2 design
- Available in silver or black
colour options:
| Tuning range FM-band: | 87,5 – 108MHz (50kHz steps) |
| Programmable presets: | 99 |
| Frequency response: | 20Hz – 20kHz (±1dB) |
| S/N ratio: | 50dB |
| THD: | 0,05% / Δf 75kHz and f mod 1kHz |
| Stereo separation: | 30dB / Δf 75kHz and f mod 1kHz |
| Sensitivity: | 7dB / µV mono, 17dB / µV stereo /75ohms |
| Antenna input: | 1 x co-axial DIN-socket (75 ohms) / US-model F-socket |
| Line-level output: | 1 pair RCA/phono sockets |
| Trigger in and out: | 2-pole coaxial 2,5mm jack |
| Output voltage: | 0,775Vrms |
| Outboard power supply: | : 5V/1A DC; 110-240V/50, 60Hz |
| Power consumption: | 70mA DC, <1W in standby |
| Dimensions W x H x D: | 103 x 37 x 112 (121) mm |
| Weight: | 315g without power supply |
PRO-JECT AUDIO SYSTEMS
www.project-audio.com
Technical data and price changes reserved.
