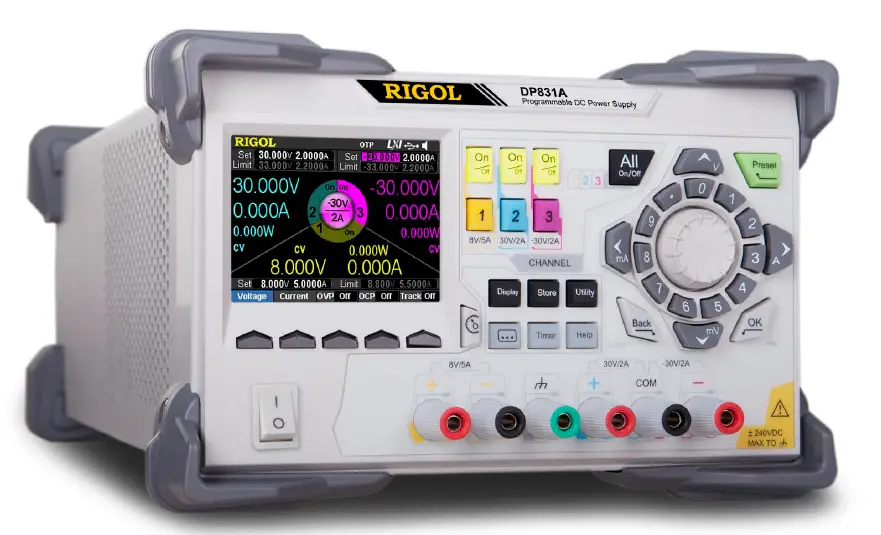

RIGOL DP800 Series Programmable Linear DC Power Supply

DP800 Series Overview

DP800 series is high-performance programmable linear DC power supply. It is designed with clear user interface, superb performance specifications, various analysis functions and various communication interfaces. DP800 series can fulfill versatile test requirements.

Main Features

• Three-channel/dual-channel/single-channel models available, up to 200W total output power
•  Low ripples and noise: DP832A/DP832/DP831A/DP831/DP822A/DP822/DP821A/DP821: <350uVrms/2mVpp DP813A/DP813/DP811A/DP811: <350uVrms/3mVpp
• Excellent load regulation rate and linear regulation rate
•  Fast transient response time: <50μs
•  Some channels are isolated
• Provide overvoltage/overcurrent/overtemperature protection function
•  Independent control for each channel
•  Support serial and parallel output functions
•  Some channels support the track function to track the channel voltage setting value and output on/off status
• Provide the Sense function to automatically compensate for the voltage drop caused by the load lead in high current output
• Provide timing output and delay output functions
•  Provide built-in recorder to sample and record the channel output according to the specified record period
•  Provide analyzer to analyze the recorded files and provide the analysis results of the channel voltage, current and power
• Support monitor to monitor the output status of the instrument and the instrument will execute the corresponding operation according to the current setting when the specified monitor condition is met
• Provide trigger and support trigger input and trigger output
•  Built-in V,A,W measurements and waveform display
•  3.5-inch TFT display
•  Various interfaces: USB Host&Device, LAN, RS232, USB-GPIB (option), digital IO, rear panel output interface (for DP813A/DP813/DP811A/DP811)

Applications

• R&D lab general purpose test
• Quality control and assessment
• Provide pure power for RF/MW circuits or components
• Provide power for automobile electronic circuit test
•  Production automation test
•  Device or circuit characteristic verification and troubleshooting
•  Educational experiment

Selecting Procedures

You can select the desired model of power supply and options according to the actual need. The procedures are as follows.

Select the proper model

Three-channel models

Dual-channel models

Single-channel models

Select and order the options

DP832A/DP831A/DP822A/DP821A/DP813A/DP811A
For these models, the high-resolution setting, trigger, monitor, analyzer as well as the RS232 and LAN communication functions are all standard functions. You can select and order the following option according to your need.

DP832/DP831/DP822/DP821/DP813/DP811
For these models, the high-resolution setting, trigger, monitor, analyzer as well as the RS232 and LAN communication functions are all optional functions. You can select and order the following options according to your need.

Note: To install the high-resolution option, digital I/O option, on-line monitor and analysis option as well as the RS232 and LAN communication interfaces option, you need to get the corresponding option license. For the acquisition method of the option license and the installation procedures of the options, refer to the corresponding specific manual (you can download the manual from RIGOL official website (www.rigol.com).

Select and order the rack mount kit

Select and order the safety plug

Note: For the detailed information of the optional accessories, please refer to the corresponding specific manual (you can download the manual from RIGOL official website (www.rigol.com).

Ordering Information
