Fontastic 256691 Sprex Gaming Kit User Manual

USER MANUAL

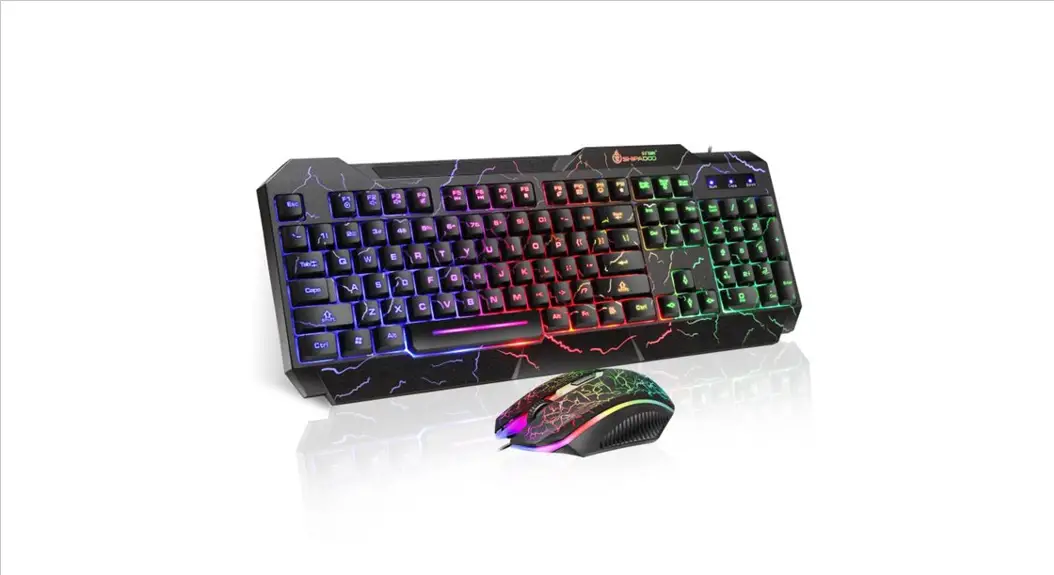

Sprex Gaming Kit

Thank you for choosing the Plug & Play Gaming Set „Sprex“ from the Fontastic ® program.

Gaming keyboard Terrax integrated, which has numerous advantages over standard keyboards such as:

• Ergonomic design
• Compact arrangement of the easily accessible, illuminated game buttons
• Anti-Ghosting keys (Anti-Ghosting is the unintentional pressing of a particular key when several keys are pressed simultaneously).
• Wide range of multimedia keys and hotkeys
• Combined control of the functions of the navigation field and the number field
• The unique playing feel due to absolutely high-quality operability and ergonomics
• Trendy design thanks to the ABS finish
• High durability with 10 million keystrokes

Translated with www.DeepL.com/Translator (free version)

Scope of delivery:

• USB Gaming Keyboard
• USB Gaming Mouse
• User manual

Installation:

Connect the USB port of the keyboard and mouse to an available USB port on the computer or a connected USB hub.
Your computer will recognize the keyboard and mouse and you can start playing right away. The speed of the mouse can be adjusted by pressing the DPI button.

Keyboard backlight

: LED lighting on/off
FN+Pageup: Increase LED intensity
FN+Pagedown: Decrease LED intensity
Fn+ : LED lighting up and down
Fn+ -_: Slow up and down of the LED illumination
Fn+ += Fast up and down of the LED illumination

Special key combination:

FN+W-L: Lock the Windows® function
Fn+W: Switch the ASWD keys to

Multimedia-Tastenfunktionen

1. Web/home page
2. Stop
3. Open mail app
4. Volume down
5. Volume up
6. Mute
7. Previous track
8. Pause/play
9. Next track
10. Open music player

Anti-Ghosting Keys

The following keys have Anti-Ghosting function:
Q | A | Z | W | S | X | E | D | C | B | SPACE | | Tab | Ctrl-L | Shift-L, | Alt-L

Compatibility

Wind 2000/XP/9X/VISTA/7/8/10
macOS is conditionally applicable (lighting is not supported)

Safety information

• Modification or alteration of the product impairs product safety. Attention Risk of injury!
• Never open the product unauthorized. Never carry out repairs yourself!
• The product can be damaged by shocks, blows, or falling from an already low height.
• Keep the product away from moisture and extreme heat.
• Never immerse the product in water or other liquids.

Technical data Keyboard:

• Layout: QWERTZ – German, 115 keys, 10 hotkeys, numeric keypad
• Background lighting: LED, 3 color modes
• Type: Cabled
• Interface: USB Plug & Play
• Power supply: Via USB
• Cable length: 1.5m PVC cable
• Housing material: ABS
• Ergonomic shape
• Keystroke life: Up to 10 million
• Compatible with Win XP, Vista, 7, 8 and 10
• Dimensions: 470 x 195 x 32 mm

Technical data Mouse:

• Type: Cabled
• Interface: USB Plug & Play
• Power supply: Via USB
• Cable length: 1.5m PVC cable
• Buttons: 6
• Sensor: Optical
• Backlight: 7 colors LED
• Sensitivity: 800-1200-2400-3200 DPI
• Compatible with Win 7 or newer
• Housing material: ABS

Registration and Safety

Certification/General Information
We hereby declare that this device carries the CE mark in accordance with the regulations and standards. It conforms with the fundamental requirements of the EMC directive  2014/30/EU, as well as the RoHS 2 directive 2011/65/EU.
The full text of the EU declaration of conformity is available at the following internet address: www.d-parts.de/Konfo

Note on environmental protection:

After the implementation of the European Directive 2012/19/EU in the national legal system, the following applies: Electrical and electronic devices may not be disposed of with domestic waste. Consumers are obliged by law to return electrical and electronic devices at the end of their service lives to the public collecting points set up for this purpose or point of sale. Details of this are defined by the national law of the respective country. This symbol on the product, the instruction manual, or the package indicates that a product is subject to these regulations. By recycling, reusing the materials, or other forms of utilizing old devices, you are making an important contribution to protecting

Technical changes and errors excepted
Fontastic, by D-Parts GmbH
● Birkenweiher Str. 16
● 63505 Langenselbold,
Germany / V2_01_22
