Ascentic 39-GMHDPH Gaming Headphones Demonstrator
Overview
Gaming Headphones Demonstrator
Model 39-GMHDPH

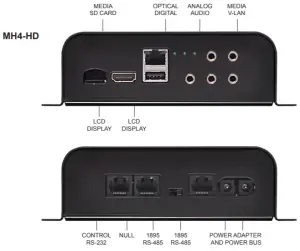

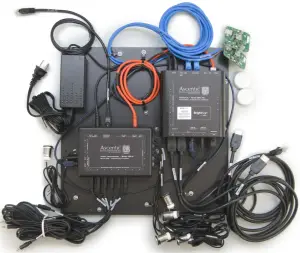

The system shown is for six analog headphones, but cables and push-buttons may be added to connect up to eight headphones, either analog or digital or a mixture of audio formats. The MediaHub provides both digital and analog audio simultaneously
Parts
| 39-GMHOPH | 1 | GAMING HEAOPHONE (4FT,8-UP) Two Displays |
| Pait | Born Qty | Desc |
| 1895N | 2 | ROTARY LEO CONTROL+PUSH RJ-45 |
| 013-102 | 6 | SWITCH PSB RJ9 19MM JV WHITE |
| 123,074-GMHOPH | 1 | FLASHCARO 8GB MICRO SOHC BLANK SANO |
| 571-053 | 1 | OE SKPACK 12V 5A 2.lMM W/AC CORO |
| 702-085 | 2 | KNOB 35MM BRUSHED ALUMINUM |
| 801-278 | 6 | CORO ASSY 3.SMM 6″ M-F STEREO |
| 801-205 | 1 | CORO ASSY 3.SMM M-M STEREO 181N |
| 801-208 | 1 | CORO ASSY 2.lMM X 5.SMM M-M lFT |
| 801-047 | 1 | CABLE OPTICAL 1FT BtACK |
| 801-256 | 2 | CABLE RJ45 TO IDC RS485 6FT |
| 802-418 | 3 | CABLE 3′ CATSE BLACK |
| 804-165 | 2 | OISPLAY KIT 10.1″ |
| 806-734 | 6 | CABLE RJ9 1.25M |
| ASS-IP | 1 | 8 POS AUOtO SWITCH ANAIOtG W/1 P GATE NO PACK |
| HO-HOMI-6 | 2 | CABLE HOMI 2M PREMIUM CE,RTIFIEO LAB |
| MH4-HO-W8 | 1 | BRIGHTSIGN INTEGRATED HOMI SPLITTER |
Network Configuration
| DeviceJConfig | IP Address | Config/Se1up Pon |
| MH4-HD (Microsoh) | 192-168.16.104 | 8008 |
| ASS-IP (Microsoh) | 192. 168.16.105 | 43521 |
| MH4·HD (Sony) | 192 168.16.106 | 8008 |
| ASS-IP (Sony) | 192.168.16.107 | 43521 |
| note: IP Addtesses w,e DHCP by defau/1, vcon/rgured once a target brand ,s selected on ftrst booL | ||
