hama 00184125 Bluetooth Earphones Spirit
Chop Instruction Manual

Operating Instructions
Thank you for choosing a Hama product Take your time and read the following instructions and information completely Please keep these instructions in a safe place for future reference If you sell the device, please pass these operating instructions on to the new owner

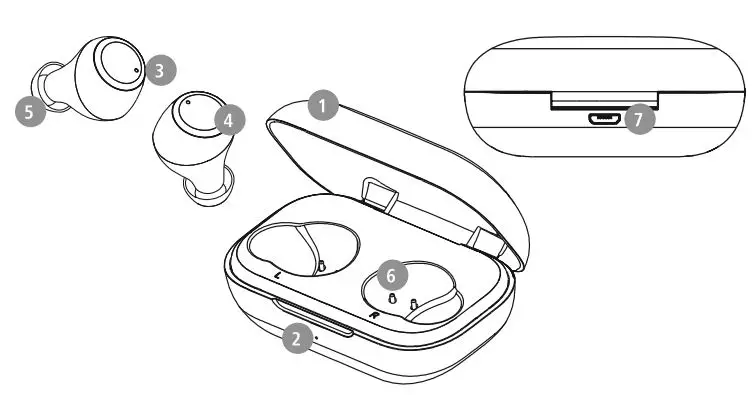

Controls and displays

Charging box
Charging box status LED
Earphones status LED
Multi-function touch sensor
Silicone ear pads
Charging contacts
Micro-USB connection

1. Explanation of warning symbols and notes

Warning
This symbol is used to indicate safety instructions or to draw your attention to specific hazards and risks

Note This symbol is used to indicate additional information or important notes

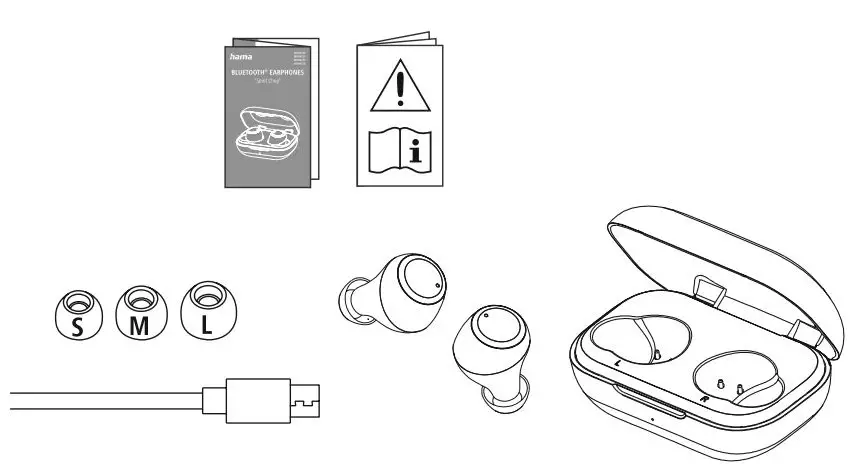

2. Package contents

1 x “Spirit Chop” True Wireless Bluetooth® earphones
1 x charging box
1 x USB charging cable
3 pairs of ear pads in various sizes (S/M/L)
1 x quick guide
1 x warning and safety instructions

3. Safety instructions

The product is intended for private, non-commercial use only
Use the product only for the intended purpose
Children should be supervised to ensure that they do not play with the product
Do not use the product in areas in which electronic products are not permitted
Do not attempt to service or repair the product yourself Leave any and all service work to qualified experts
Do not open the device or continue to operate it if it becomes damaged
Do not bend or crush the cable
Do not drop the product and do not expose it to any major shocks
Dispose of packaging material immediately in accordance with the locally applicable regulations
Do not modify the product in any way Doing so voids the warranty
Protect the product from dirt, moisture and overheating and use it in dry environments only
Do not use the product in the immediate vicinity of heaters, other heat sources or in direct sunlight
Only use the article under moderate climatic conditions
As with all electrical products, this device should be kept out of the reach of children
Do not operate the product outside the power limits specified in the technical data
Do not use the product in a damp environment and avoid splashing water
While driving a car or using sports equipment, do not allow yourself to be distracted by your product and keep an eye on the traffic situation and your surroundings
The battery is permanently installed and cannot be removed; dispose of the product as a whole in accordance with the statutory regulations
Do not incinerate the battery or the product
Do not tamper with or damage/heat/disassemble the batteries/rechargeable batteries
Do not use the product during the charging process!

Warning rechargeable battery

Only use suitable charging devices or USB connections to charge the product
Do not use defective chargers or USB ports and do not attempt to repair them
Do not overcharge the product or allow the battery to completely discharge
Avoid storing, charging and using in extreme temperatures and at extremely low atmospheric pressures (such as at high altitudes)
Charge regularly (at least quarterly) during periods of prolonged storage

Warning – magnets

This product generates magnetic fields Persons with a cardiac pacemaker should consult a doctor before using this product, as the pacemaker’s proper function could be affected
Do not store bank or similar cards with magnetic strips near the charging box or earphones The data on the cards could be damaged or completely deleted

Warning – high volume

High sound pressure!
There is a risk of hearing damage
To prevent any loss of hearing, avoid listening at loud volumes for prolonged periods
Always keep the volume at a sensible level Loud volumes, even over short periods, can cause hearing loss
Using this product limits your perception of ambient noise For this reason, do not operate any vehicles or machines while using this product

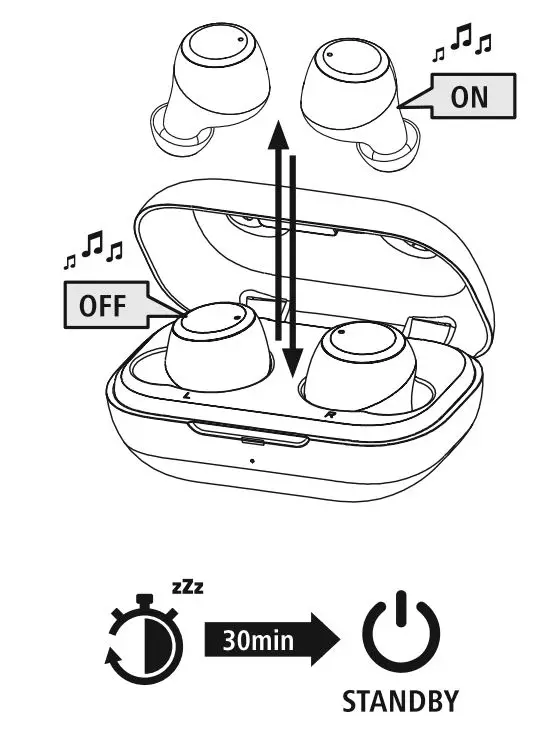

4. Switching on/off

(ON) Remove the two headphones simultaneously from the charging box Both earphones switch on automatically and start the pairing process Alternative:
Press the multi-function touch sensor (4) on the left and right earphones for approx. 2-3 seconds until you hear a signal sound

(OFF)T o switch them off, simply place the earphones back in charging box Ensure that the earphones are inserted into the correct sides, using the L/R markings as a guide
Alternative:
With the earphones switched on, hold the multi-function touch sensor (4) on the left or right earphone down for approx. 5 seconds until you hear a signal sound

Note Automatic switch-off of the earphones
The earphones are equipped with an automatic switch-off mechanism If there is no connection to your device within 30 minutes, they switch off automatically

5. Charging

Fully charge the earphones and the charging box once before using them for the first time

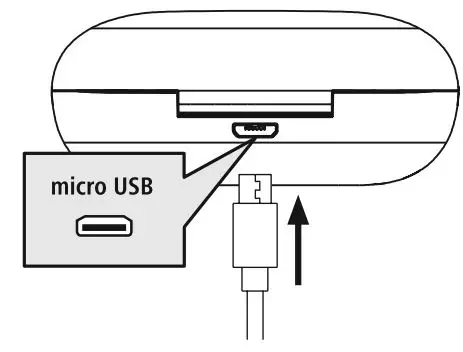

Insert the earphones and connect the charging box
Place the earphones in the charging box Ensure that the earphones are inserted into the correct sides, using the L/R markings as a guide
Connect the USB charging cable included to the charging socket (7) on the charging box Connect the free plug on the micro-USB charging cable to a suitable USB charger To do this, consult the operating instructions for the USB charger you are using

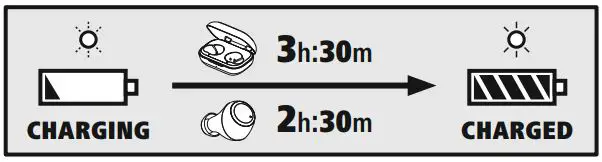

Charging procedure for the charging box and earphones
The status LED on the charging box (2) flashes red during the charging process Once the charging box is fully charged, the charging box LED (2) lights up red
The status LEDs on the earphones (3) light up solid red during the charging process Once the earphones are fully charged, the status LEDs (3) light up green for around 30 seconds and then the status LEDs go out
It can take up to 25 hours (earphones) or up to 35 hours (charging box) until the batteries are fully charged
Battery capacity

Charging box
When battery levels are low (< 10%), the status LED (2) flashes red

Earphones
When battery levels are low, the status LED (3) flashes red The actual battery life will vary depending on how you use the device, the settings and the ambient temperatures (rechargeable batteries have a limited life)

Note
If you have not used the device for a few months, it can take up to 15 – 30 minutes until the status LED (2/3) lights up red during the charging process

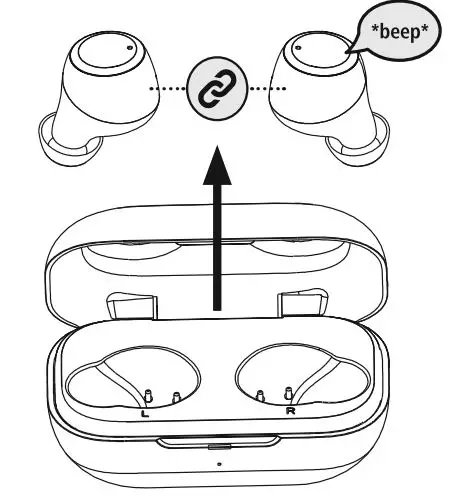

6. Bluetooth® pairing

Note – Pairing

Make sure that your Bluetooth®-capable device is switched on and that Bluetooth® is activated
For more information, please refer to the operating instructions of your device

The earphones and the device should not be more than 1 metre apart The shorter the distance, the better Ensure that the earphones are switched on

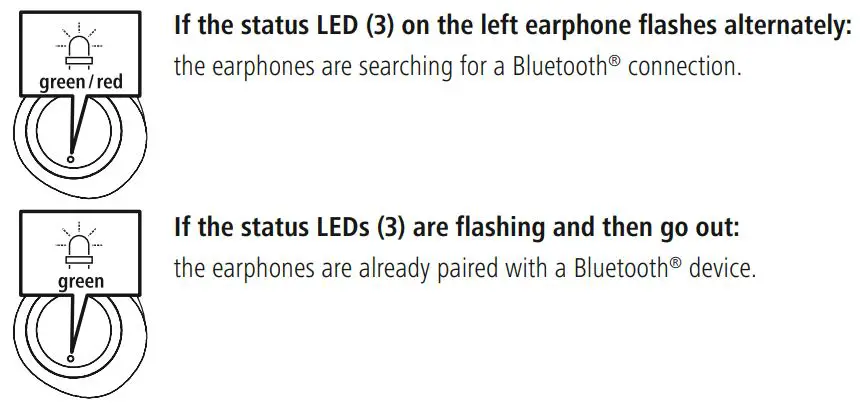

1 Check the status of the status LED (3)

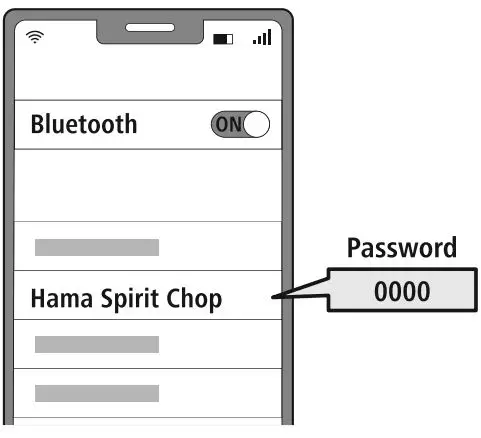

2 Search using your device for the earphones (only required on the first connection)
Open the Bluetooth® settings on your device and wait until the list of found Bluetooth® devices shows Hama Spirit Chop Select Hama Spirit Chop and wait until the earphones are shown as connected in your device’s Bluetooth® settings You will hear a brief signal sound

Note – Bluetooth® password
Some devices require a password in order to connect to another Bluetooth® device · If your device requests a password to connect to the earphones, enter 0000

7. Controls

Note

Please be aware that your terminal device must support some functions if they are to be used
For more information, please refer to the operating instructions of your device

7.1 Voice assistant function

Tap the multi-function touch sensor (4) on the left or right earphone three times to initiate communication with Siri or the Google Assistant

Note – Siri
Siri is only available on suitable devices running iOS 5 (iPhone 4s or later) or higher

Note – Google Assistant

The Google Assistant is only available on suitable devices running Android 5.0 or higher with Google Play Services, >15 GB of free memory and a minimum screen resolution of 720P
The Google Assistant App must be available on your device and be set as the default voice assistant

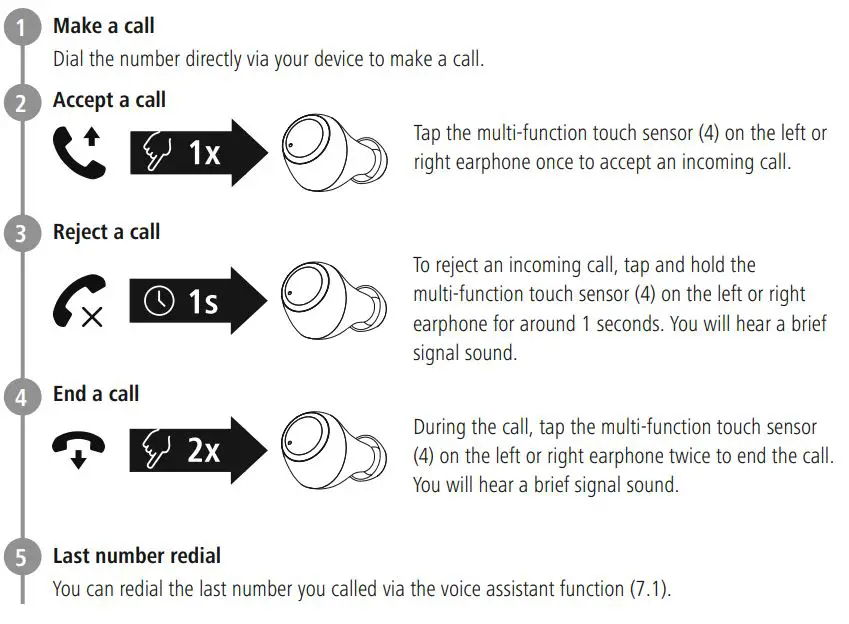

7.2 Hands-free function

It is possible to use the earphones like a hands-free facility for your device

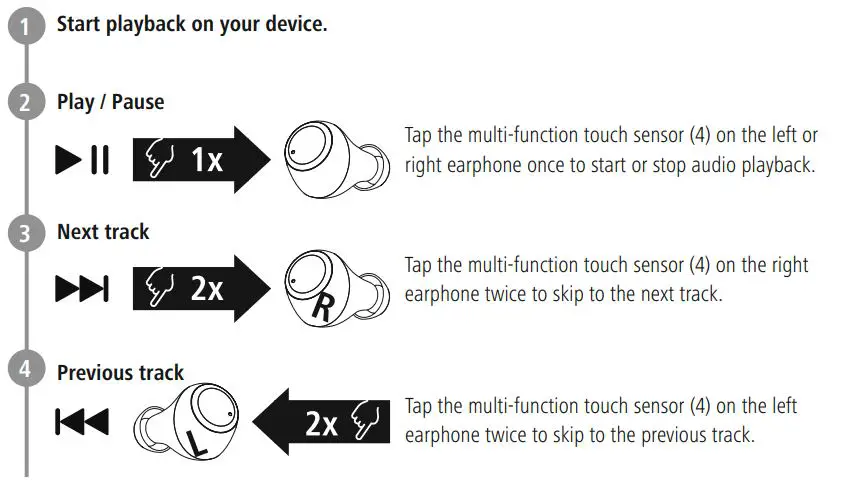

7.3 Audio playback

7.4 Volume control

The volume is controlled by the voice assistant function (71)
Alternatively, you can also control the volume via your smartphone

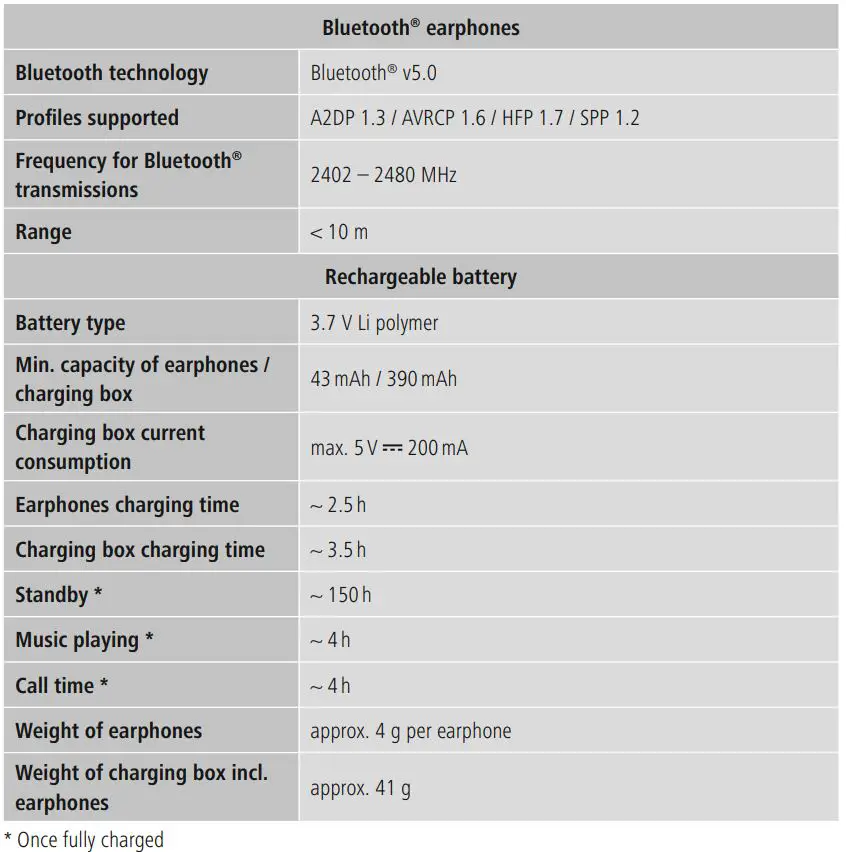

8. Technical data

9. Care and maintenance

Only clean this product with a slightly damp, lint-free cloth and do not use aggressive cleaning agents

10. Warranty Disclaimer

Hama GmbH & Co KG assumes no liability and provides no warranty for damage resulting from improper installation/mounting, improper use of the product or from failure to observe the operating instructions and/or safety notes

11. Service and Support

Please contact Hama Product Consulting if you have any questions about this product Hotline: +49 9091 502-0 (German/English) Further support information can be found here: www.hama.com

12. Recycling information

Note on environmental protection:
After the implementation of the European Directives 2012/19/EU and 2006/66/EU in the national legal system, the following applies: Electrical and electronic devices as well as batteries must not be disposed of with household waste Consumers are obliged by law to return electrical and electronic devices as well as batteries to the designated public collection points or to the point of sale at the end of their service lives Detailed information on this topic is defined in the national laws of the respective country This presence of the above symbol on the product, operating instructions or package indicates that the product is subject to these regulations By recycling, reusing the materials or other forms of utilising old devices/ batteries, you are making an important contribution to protecting our environment

13. Declaration of Conformity

Hama GmbH & Co KG hereby declares that the radio equipment type [00184125, 00184126, 00184127, 00184083] is in compliance with Directive 2014/53/EU The full text of the EU declaration of conformity is available at the following internet address: www.hama.com -> 00184125, 00184126, 00184127, 00184083 -> Downloads

Frequency band(s)
2402 2480 MHz

Maximum radio-frequency power transmitted
2,5mW EIRP
