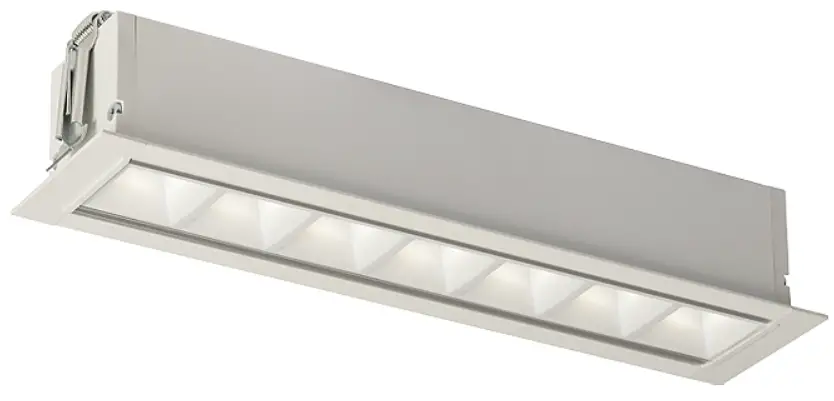

AURA LIGHT Sevede RE Plaster Ceiling Bracket Kit
Installation Instructions
Bracket kit for Sevede RE Plaster Ceiling.
Article number 9330600.

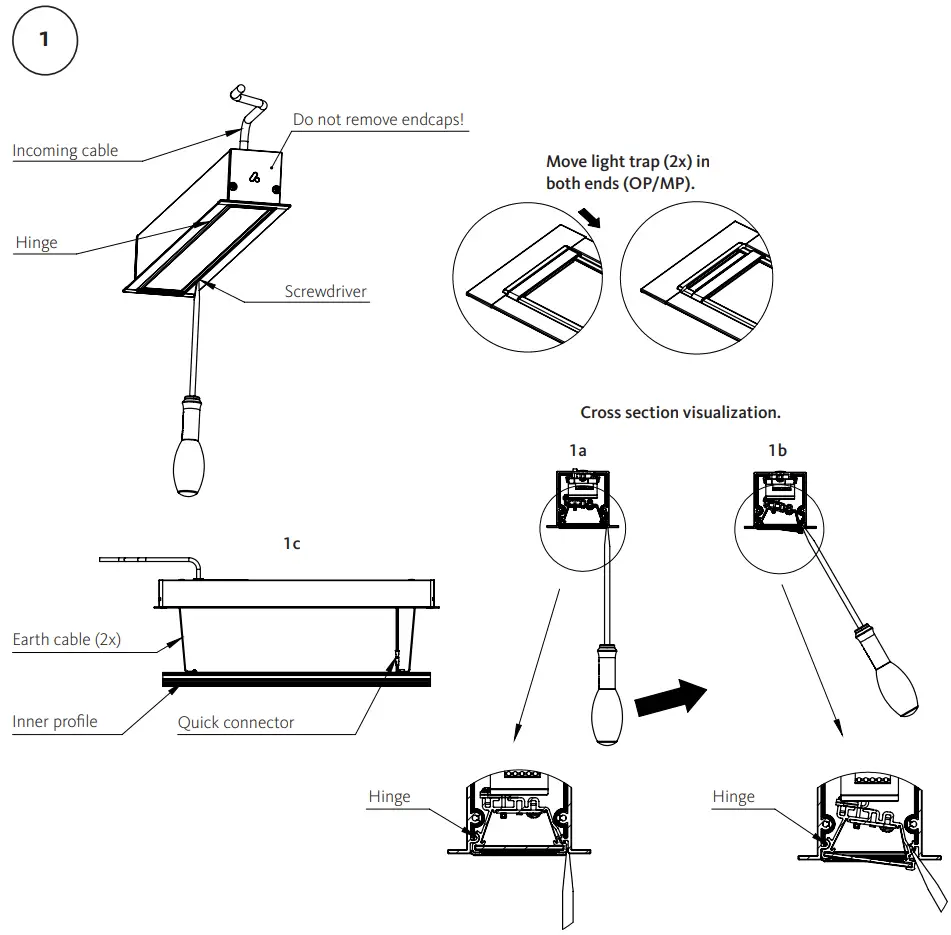

- Prepare the luminaire.
Remove inner profile.

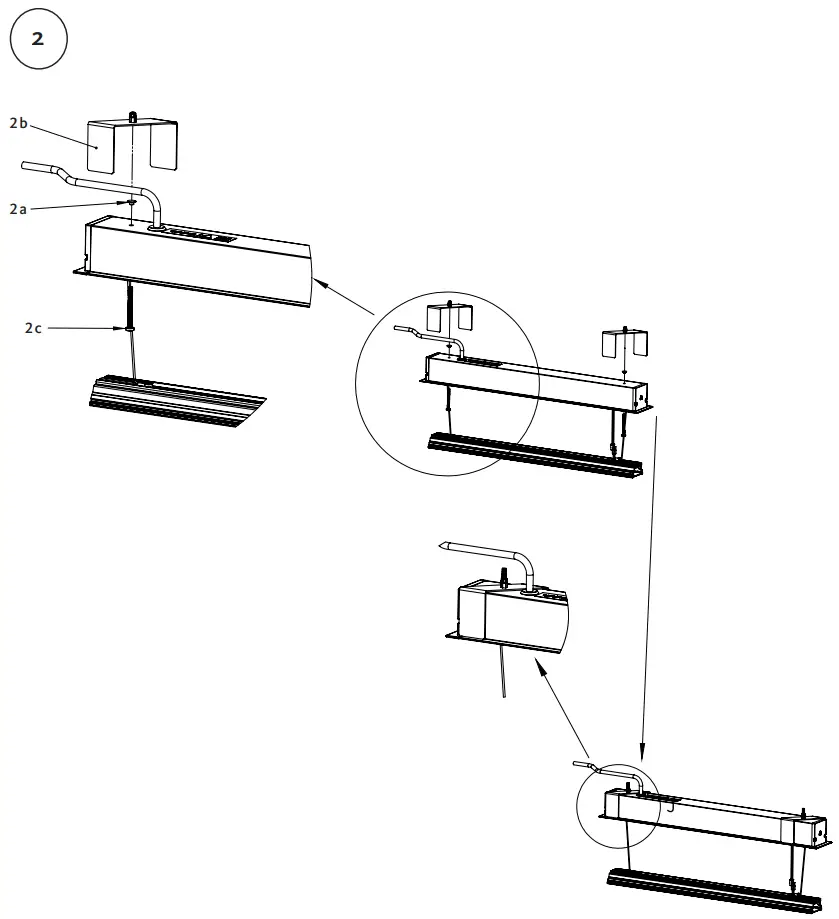

- Remove the plastic knobs (a). Attach
brackets 2x (b) and screws 2x (c).

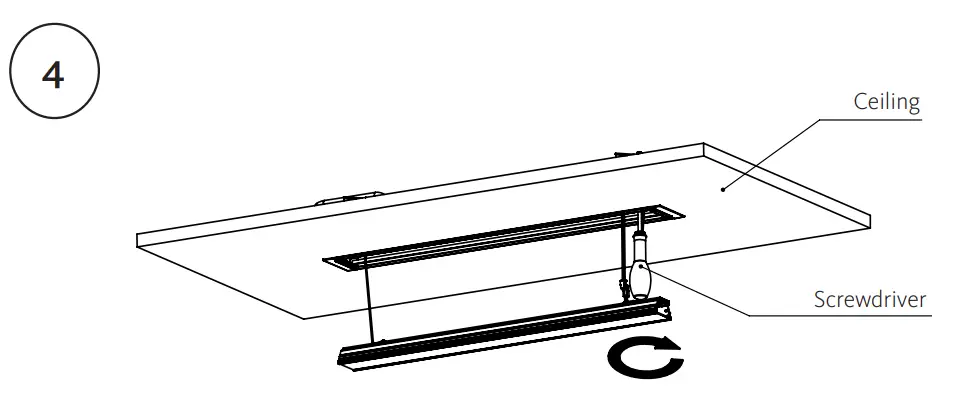

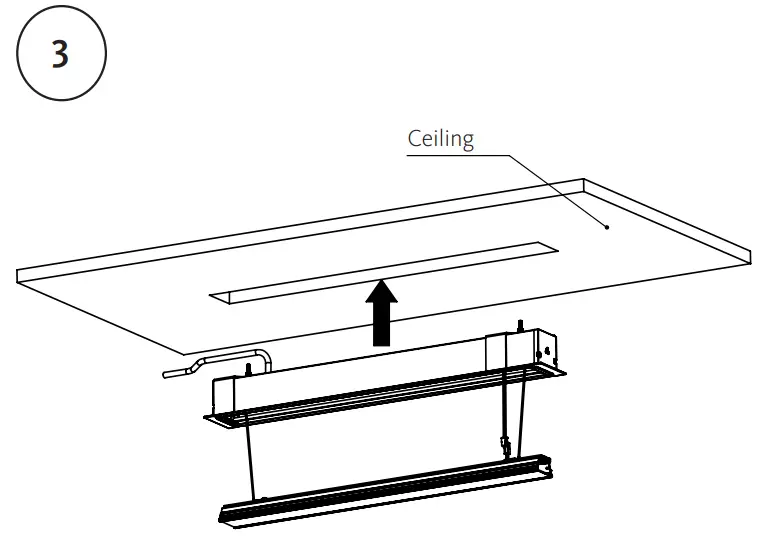

- Place the luminaire into the ceiling.

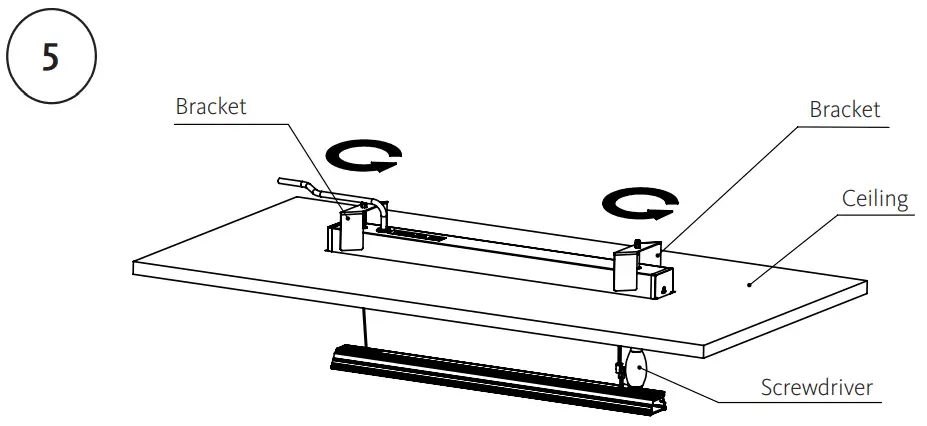

- Use screwdriver for both brackets.
- The brackets rotates 90°.

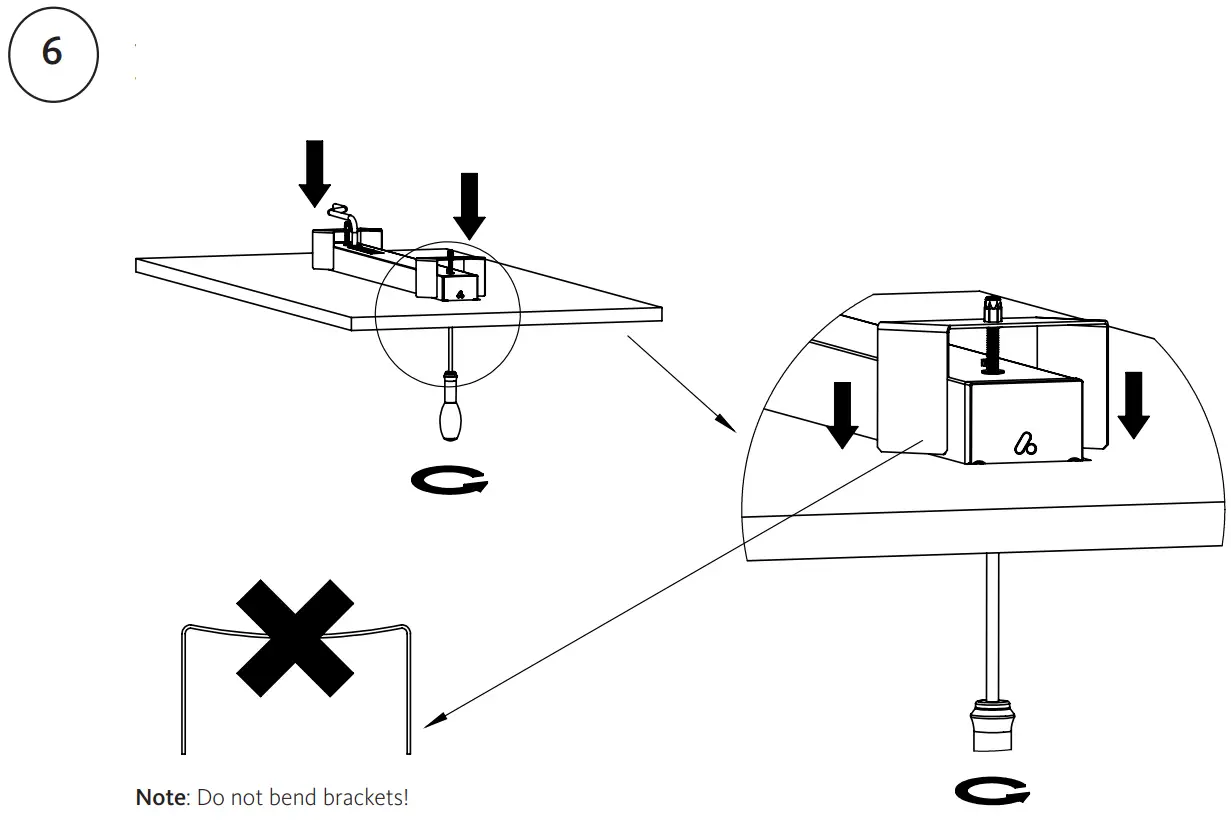

- The brackets press towards the ceiling while screwing
- Luminaire is now secured.

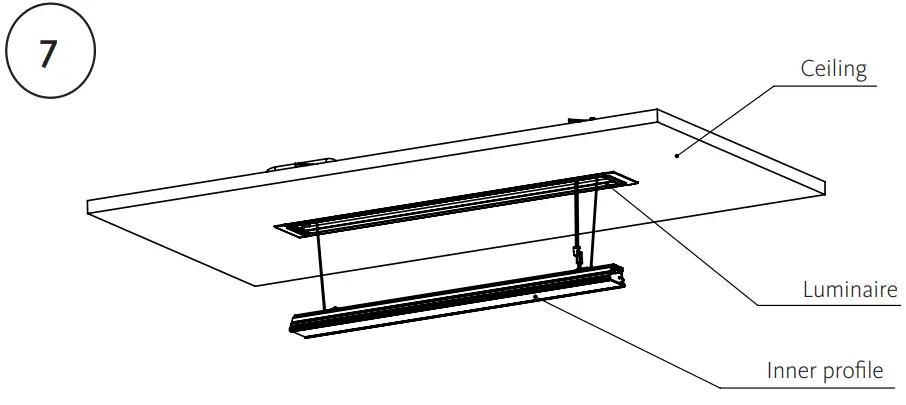

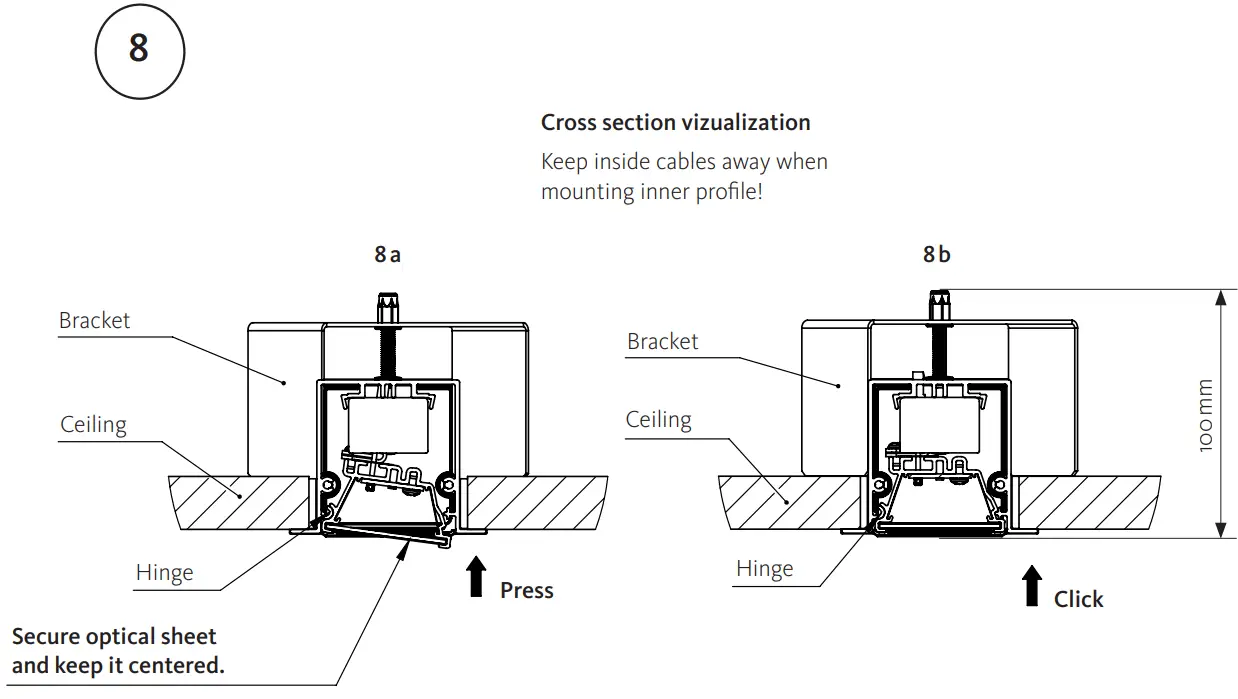

- Attach inner profile

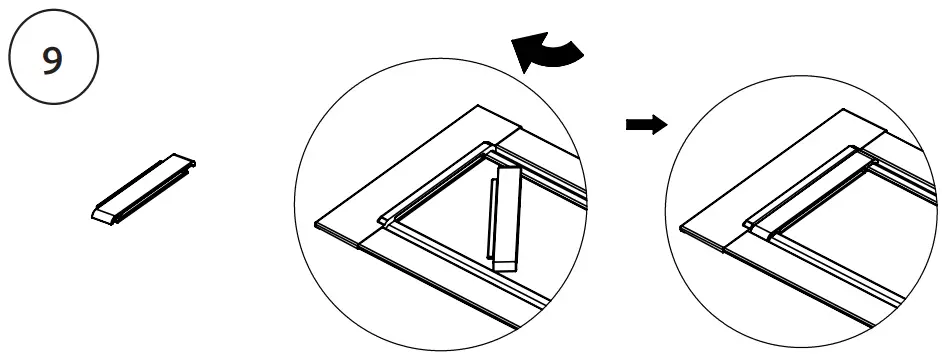

- Light trap (2x) in both ends (OP/MP).

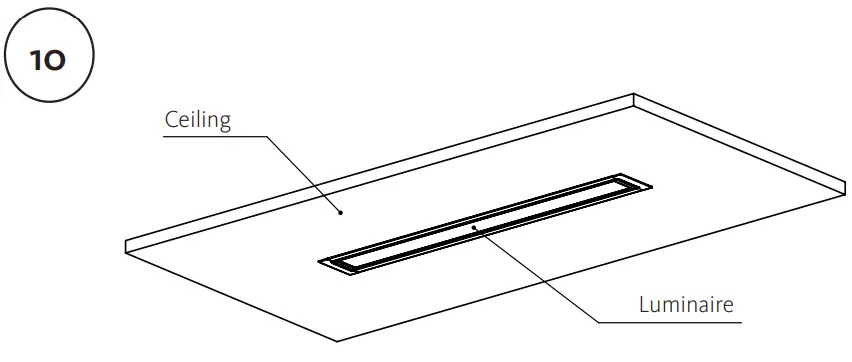

- Ready.

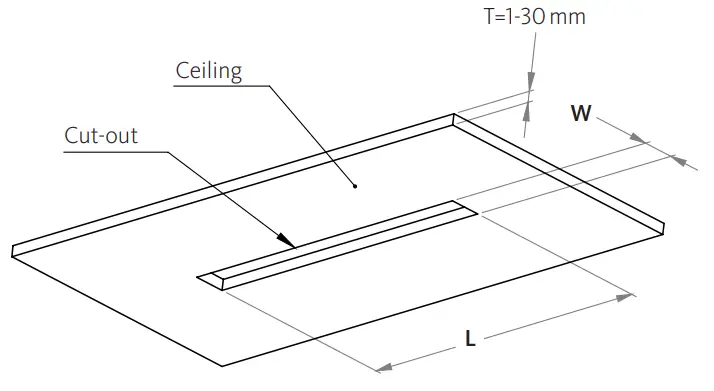

| VERSION | CUT-0UT LxW (mm) | THICKNESS =T (mm) |
| Sevede 600 | 580 x 60 | min. 1 – max. 30 |
| Sevede 625 | 605 x 60 | min. 1 – max. 30 |
| Sevede 1200 | 1170 x 60 | min. 1 – max. 30 |
| Sevede 1250 | 1220 x 60 | min. 1 – max. 30 |

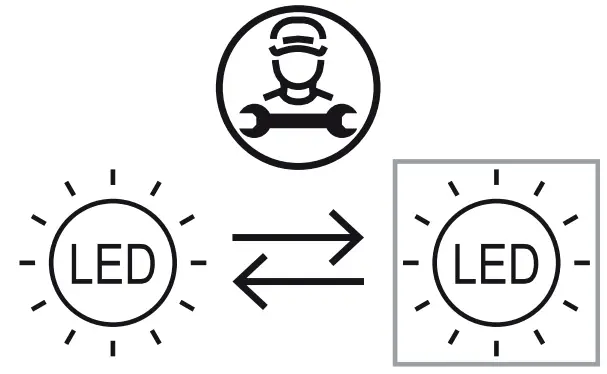

Note: The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
Basic insulation between supply- and control-terminals (DALI).

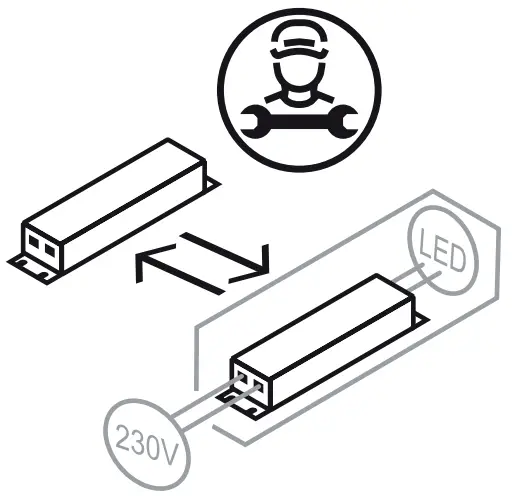

If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
Customer Support
Aura Light AB, Sweden
Phone customer service +46 (0)20 32 30 30
[email protected],
www.auralight.com
