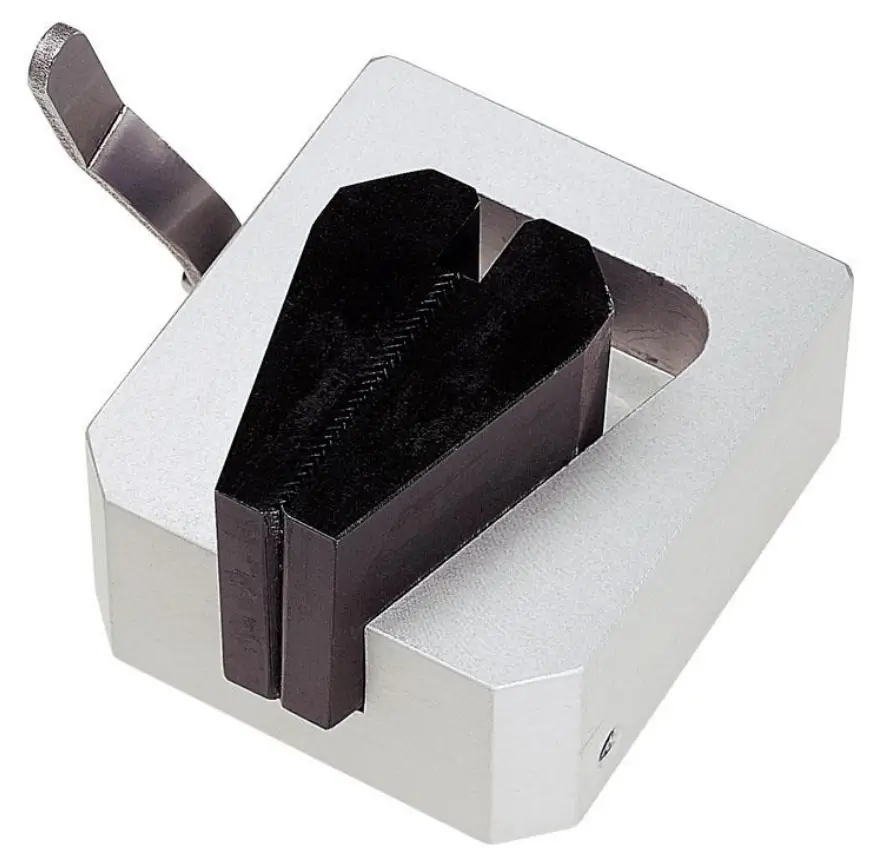

IMADA CW-500N Wire Clamp Grip

Wire Clamp Grip CW-500N

• The wedge type grip for wire/cable
• Designed to secure a sample very easily
• Self-tightening

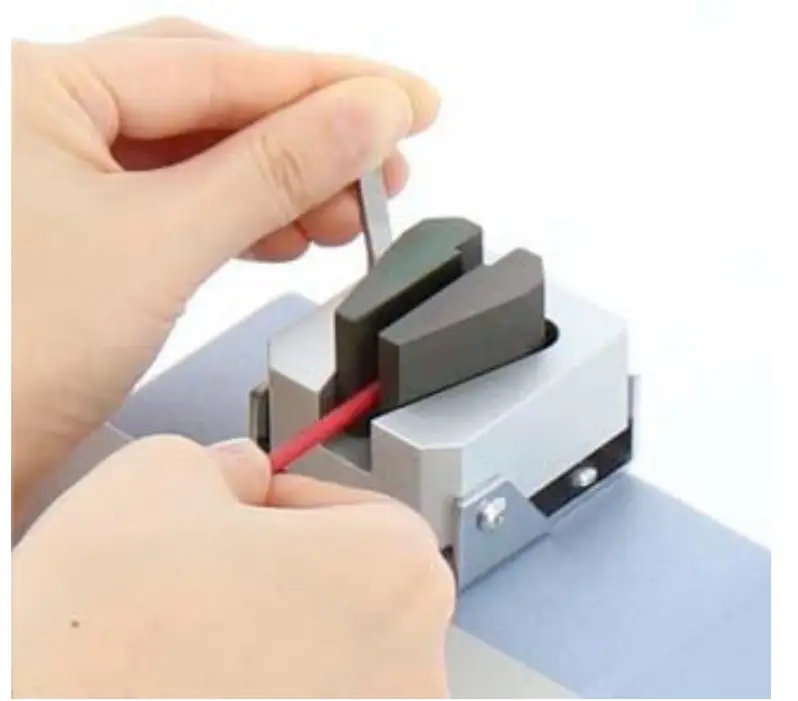

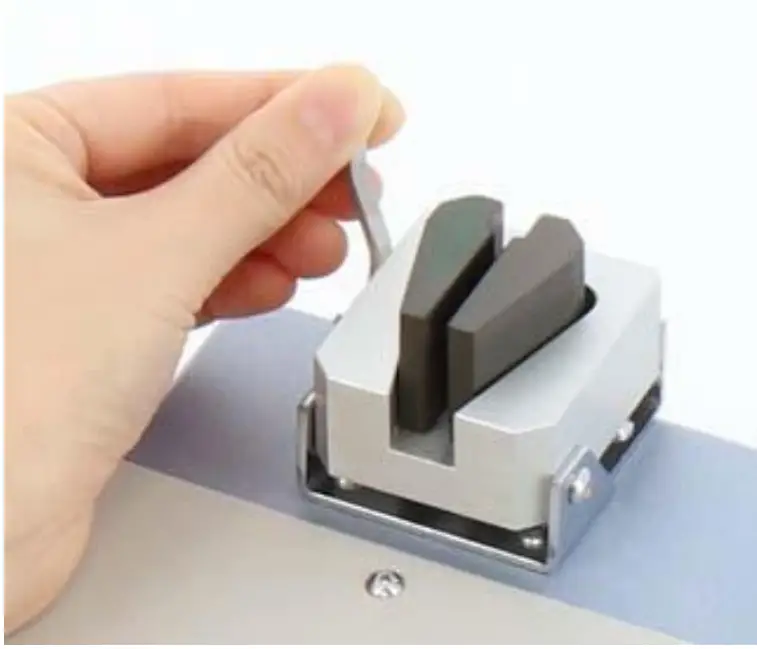

How to install test sample

Pull up the lever to open its jaws.	Put a cable between the jaws.

Specifications

* It is NOT suitable for hard sample as quenched or slippery samples.
* Soft or thin-covering cable could be broken.
* CW-500N is attachable for our horizontal stands. For our vertical stands, please use GP-30.
*1 Weight of the attachment is also applied as a load on the force gauge. Consider it when selecting the capacity of a force gauge.

Examples of Product Configuration

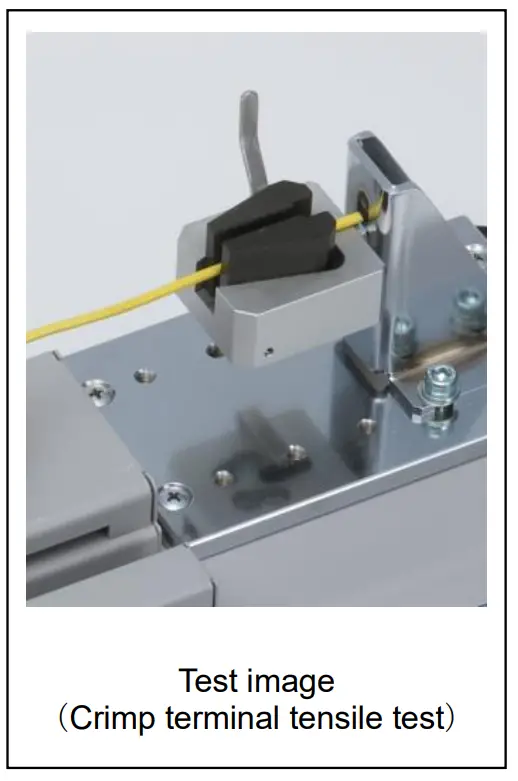

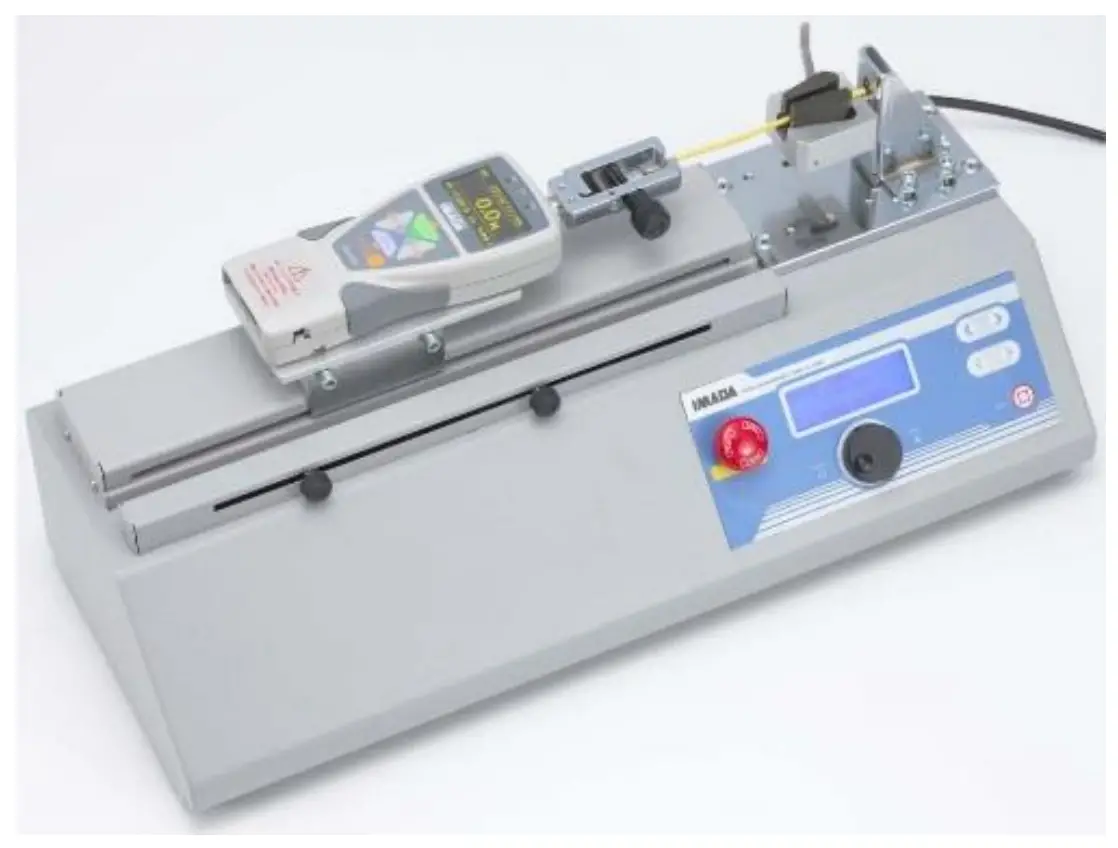

Example 1 (*1) Code: 1C2001A Crimp pull test up to 500N Automatically pulls a crimp terminal until it breaks and measure the strength Versatile to fit a wide range of samples Easy sample setting due to horizontal design Digital force gauge: ZTS-500N Motorized test stand: MH2-500N Optional attachment: CH-500N Optional attachment: CW-500N Optional cable: CB-528

*Refer to the specification of each product for details.
*Product configuration varies depending on the shape and characteristic of the sample, and measurement conditions.
*The recommended capacity of force gauge varies depending on the expected force to be loaded.

Mountable Force Gauges

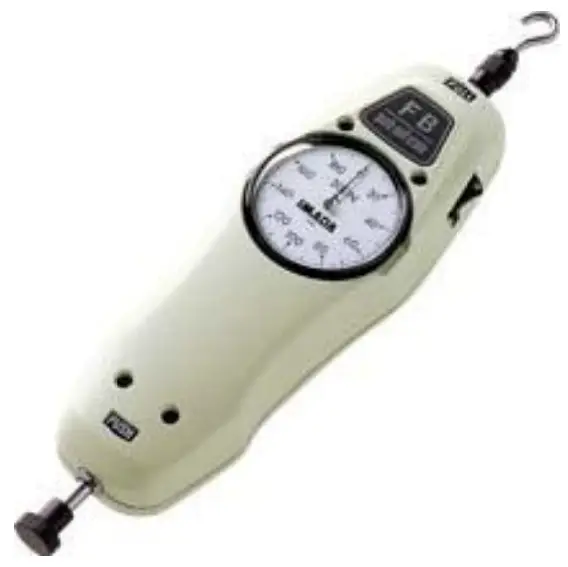

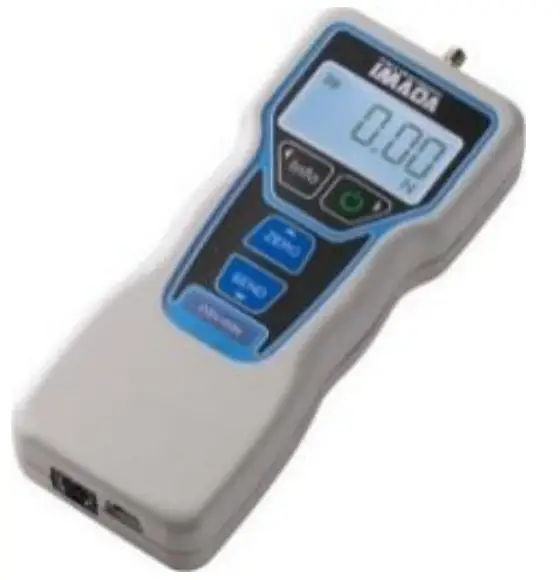

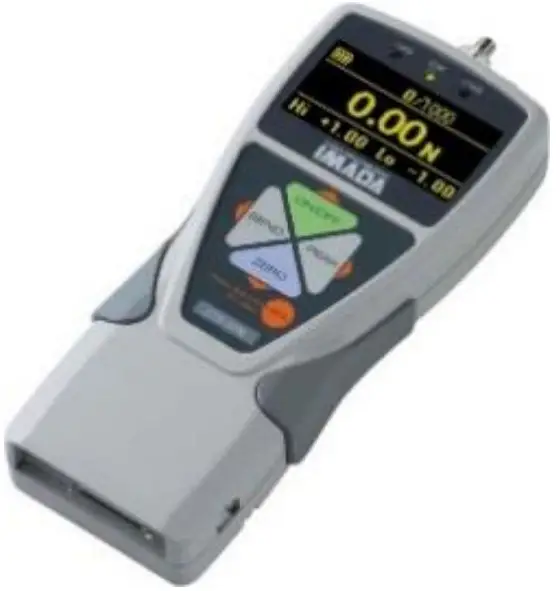

Digital force gauge DST/DSV series	Digital force gauge ZTS/ZTA series	Mechanical force gauge FB/PS/PSM series
Affordable model Easy data management on PC	High sampling speed High functionality High precision	Easy Handling

*Select suitable force gauge to correspond with the mounting screws of attachment.

Related Products

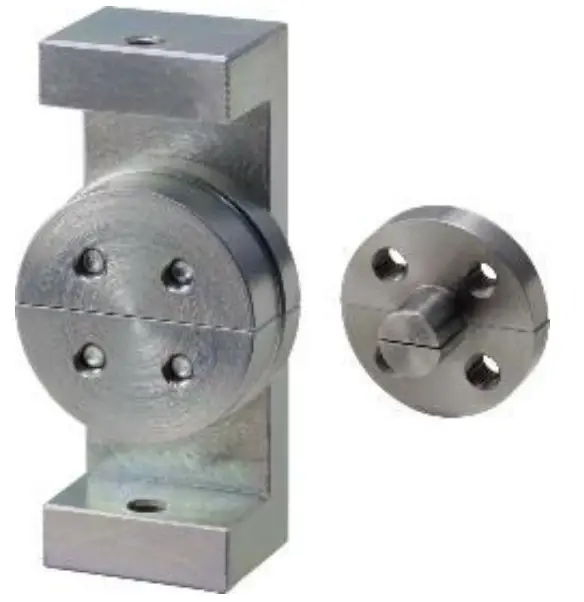

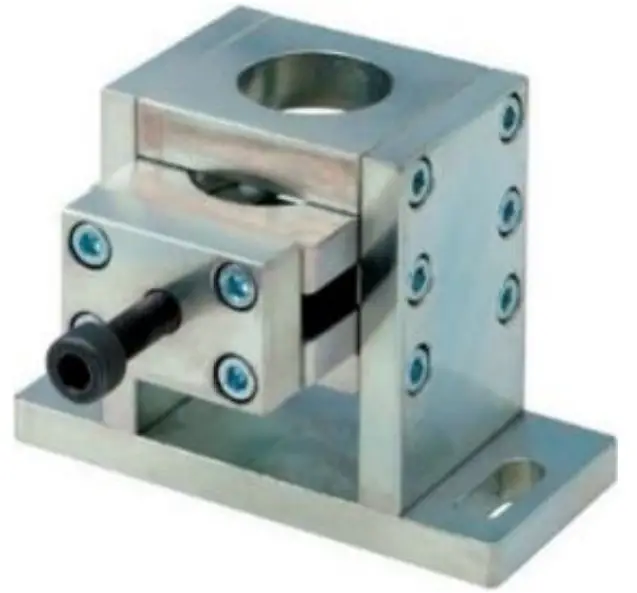

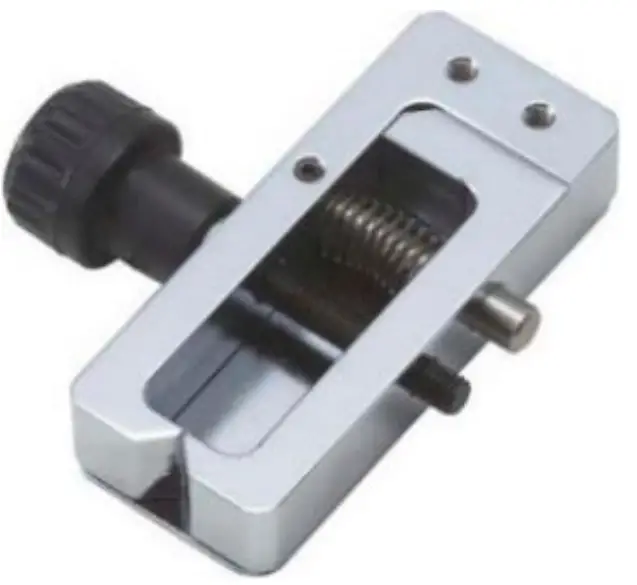

Terminal clamp jig CH-500N	High capacity wire clamp jig CW-5000N		Loop Tensile test fixture LOP-1000N
It secures a crimp terminal.	It secures a wire in capacity up to 5000N.		It is designed for tensile test of PP band in capacity up to 1000N.

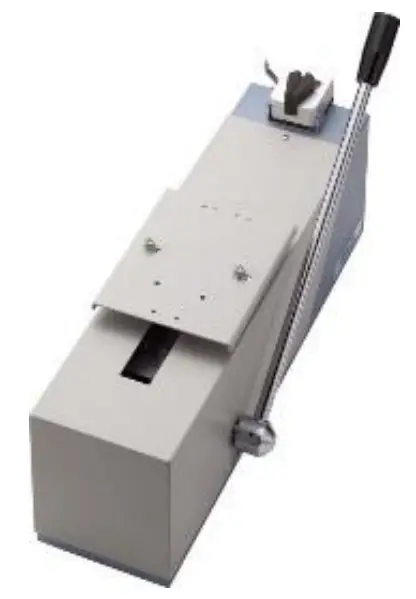

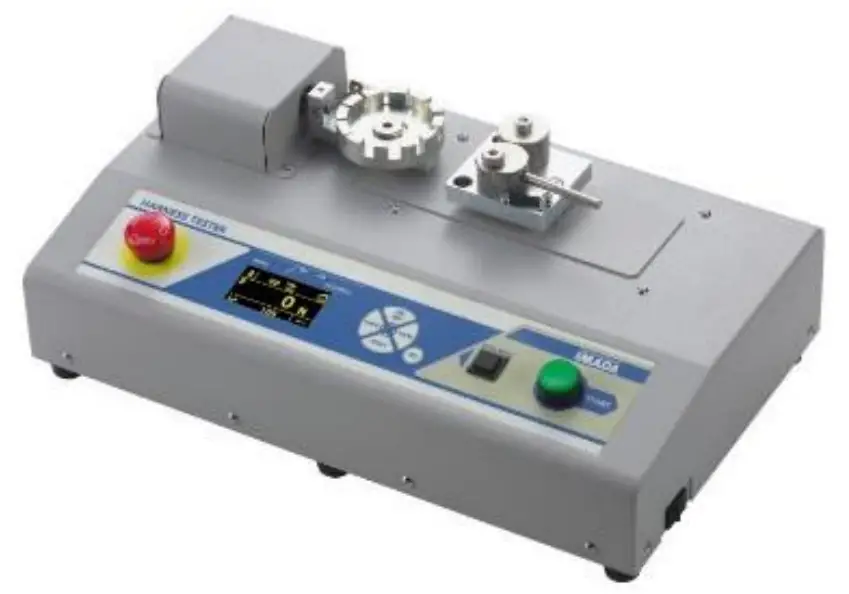

Automatic crimp tester ACT-1000N		Test stand for crimp pull test LH-500N
It tests tensile strength of a wire crimp terminal automatically. A supplied software enables data management and test condition setting very easily.		You can easily handle it due to simple lever operation. It comes with optional attachments.

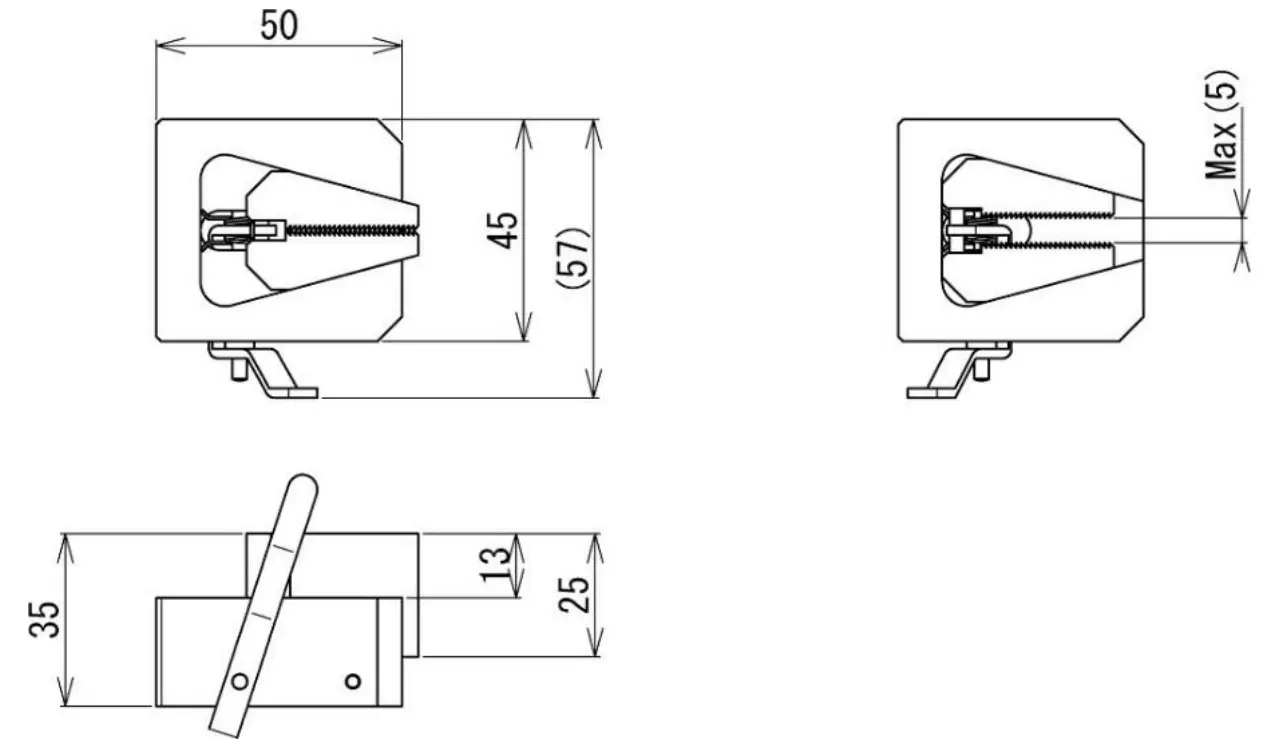

[Dimensions]

[Cautions]

• Specifications are subject to change without prior notice.
• A force gauge (sold separately) is required to use this product.
• This product is designed for force testing only. Do not use it for any other purposes.
• Some samples may not be suitable to grip with this product.
• Do not copy and use this content without authorization.

IMADA CO., LTD

99 Jinnoshinden-cho aza Kanowari Toyohashi
Japan 441-8077
Tel: +81-(0)532-33-3288
Fax: +81-(0)532-33-3866
E-mail: [email protected]
Website: https://www.forcegauge.net/en/

Visit our website for more information on wide product specifications, measurement applications and videos.
