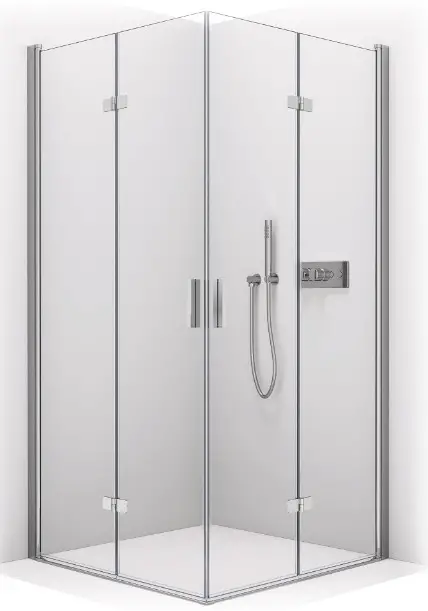

NT213 ECKDUSCHE
NT213 CORNER SHOWER
NT213 DOUCHE D‘ANGLE
NT213 DOCCIA ANGOLARE
https://qrco.de/bdG75P
MONTAGEANLEITUNG – III / 2022
ASSEMBLY INSTRUCTIONS

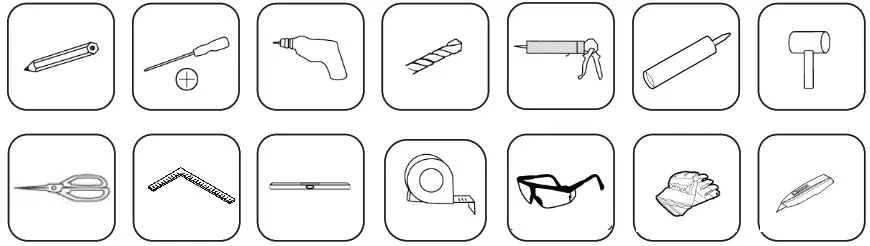

TOOLS REQUIRED

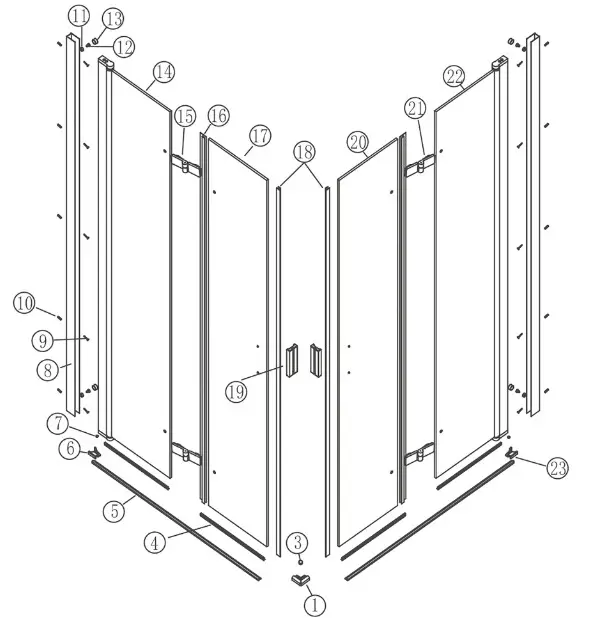

EXPLOSION DRAWING

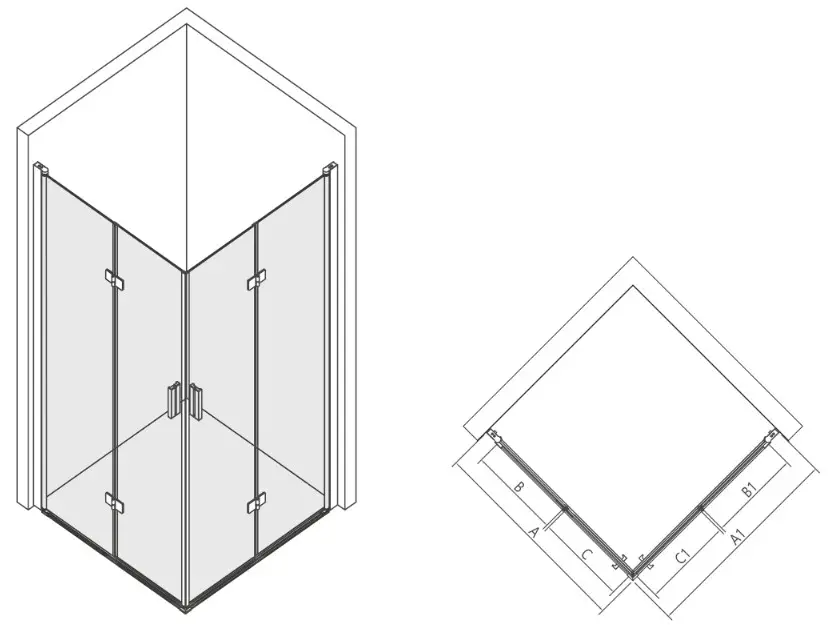

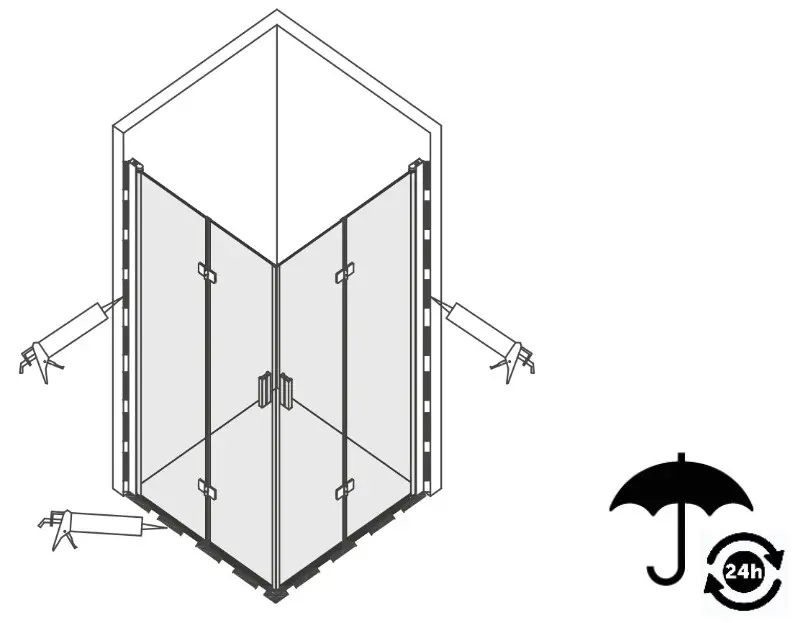

INSTALLATION SITUATIONS

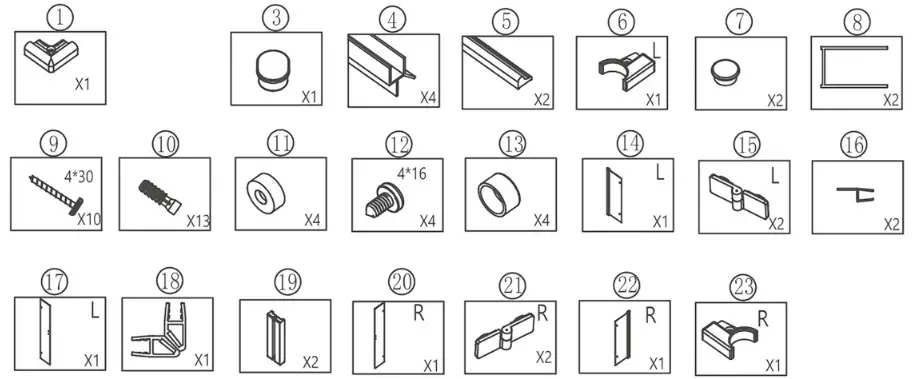

DELIVERY CONTENTS

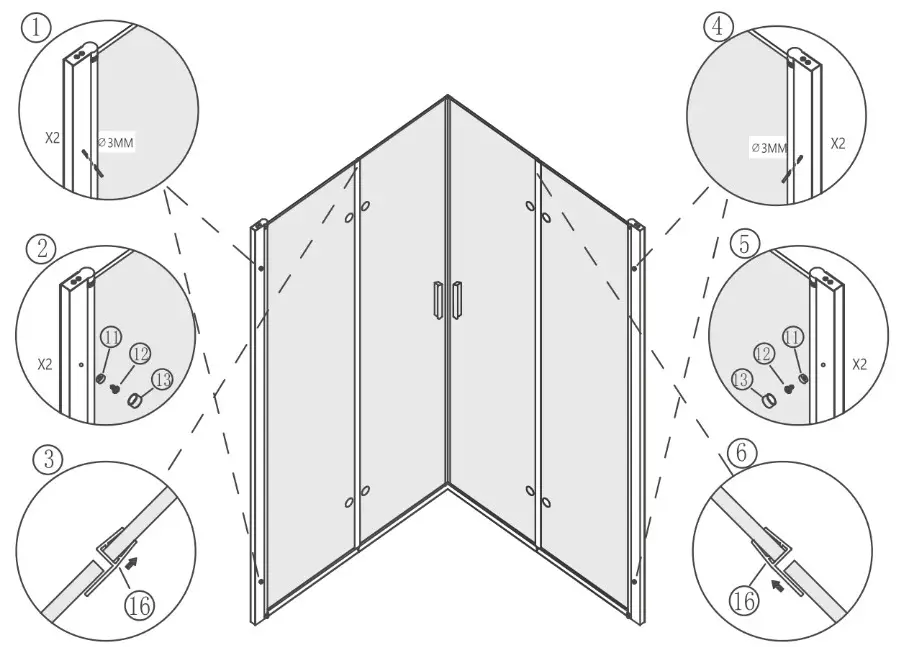

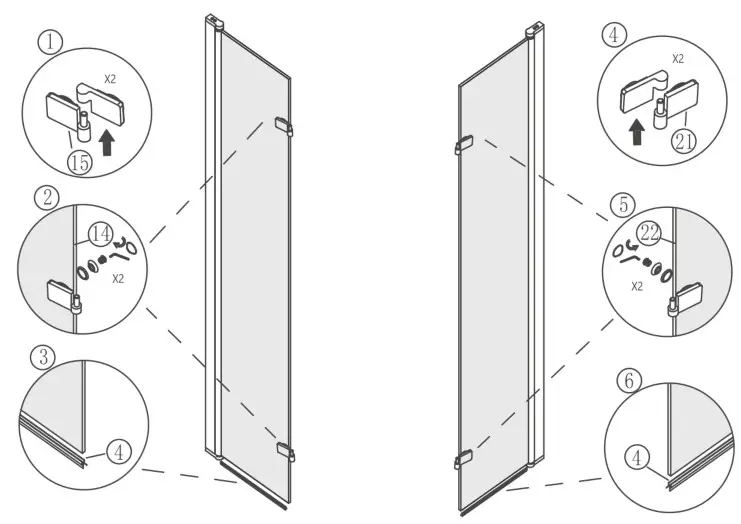

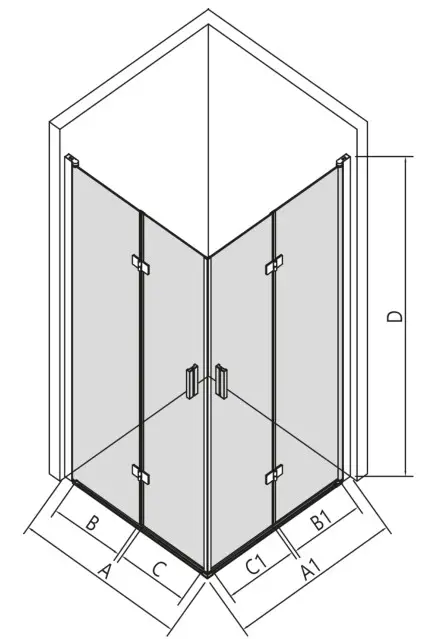

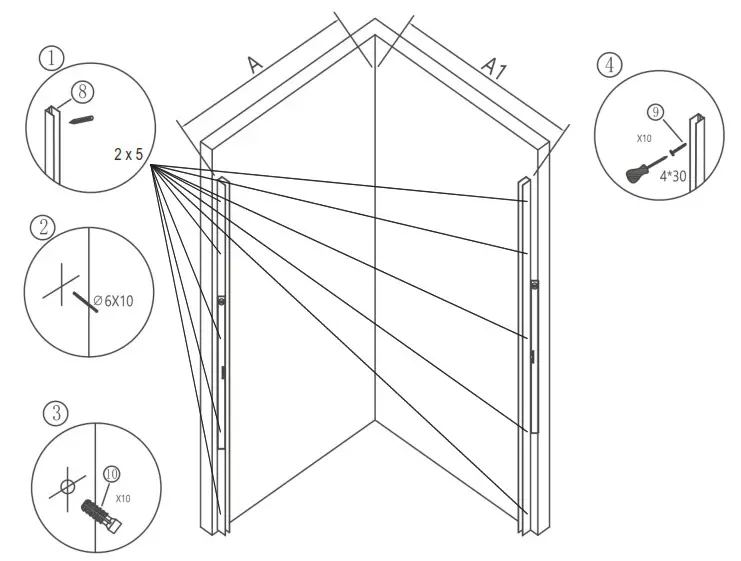

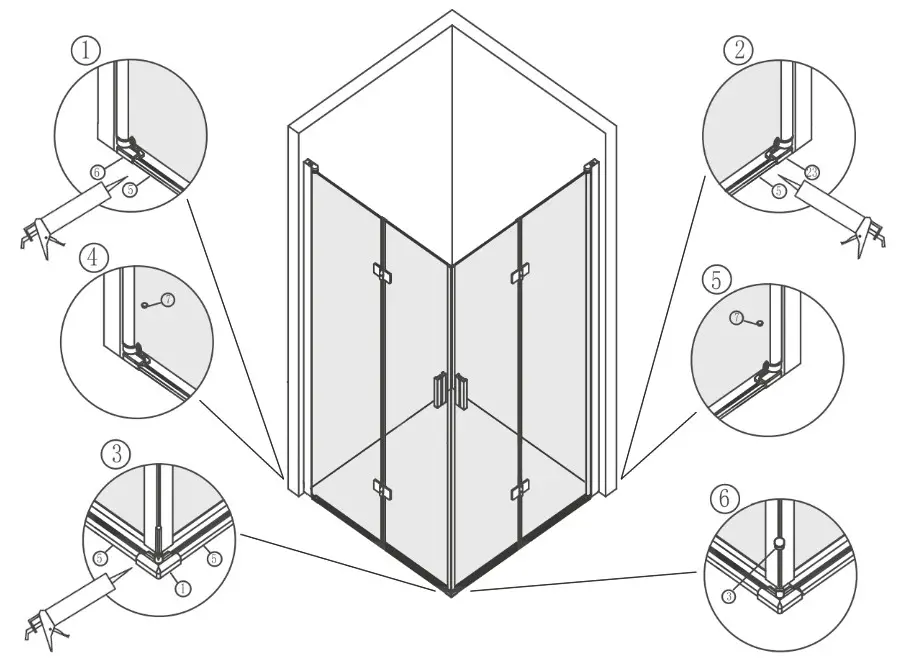

MEASUREMENTS
| Abmessungen | A min. – max. | B | C | D |
| 700 x 700 x 1950 mm | 680 – 700 mm | 305 mm | 290 mm | 1950 mm |
| 750 x 750 x 1950 mm | 730 – 750 mm | 330 mm | 315 mm | 1950 mm |
| 800 x 800 x 1950 mm | 780 – 800 mm | 355 mm | 340 mm | 1950 mm |
| 850 x 850 x 1950 mm | 830 – 850 mm | 380 mm | 365 mm | 1950 mm |
| 900 x 900 x 1950 mm | 880 – 900 mm | 405 mm | 390 mm | 1950 mm |
| 950 x 950 x 1950 mm | 930 – 950 mm | 430 mm | 415 mm | 1950 mm |
| 1000 x 1000 x 1950 mm | 980 – 1000 mm | 455 mm | 440 mm | 1950 mm |

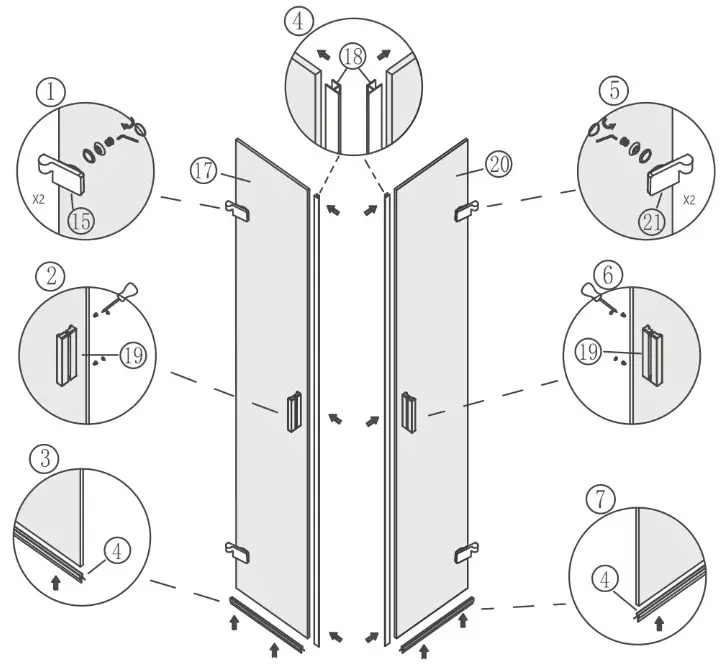

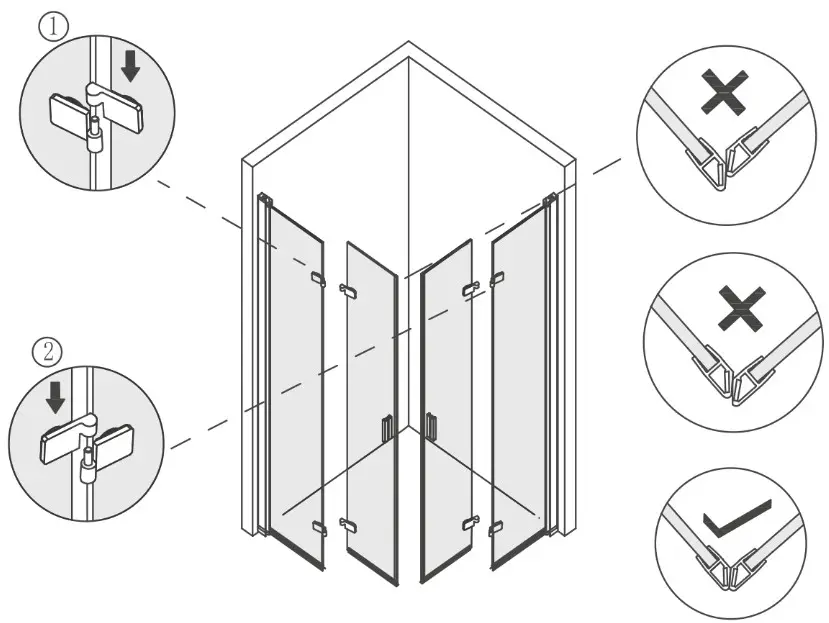

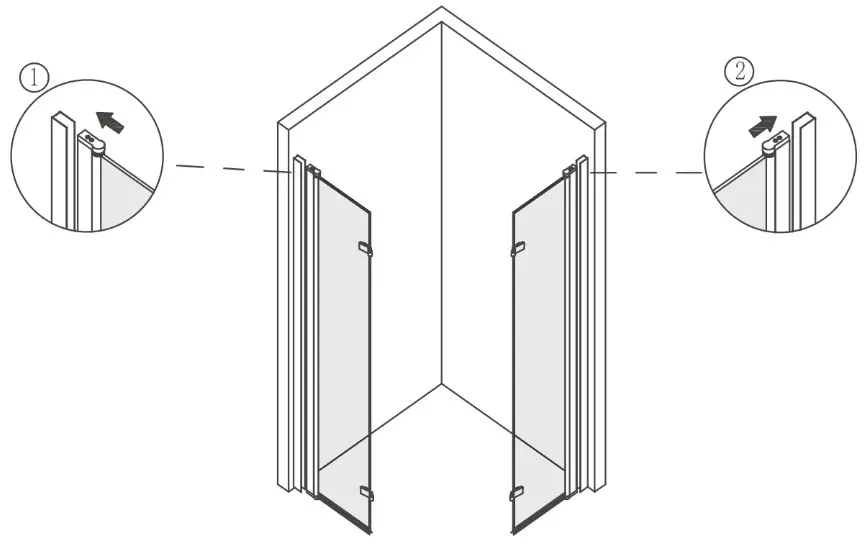

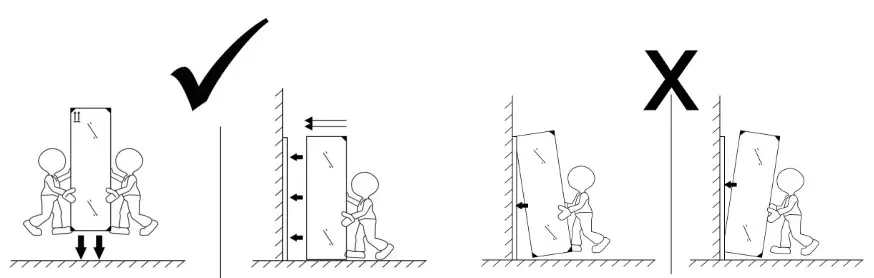

CAUTION: ASSEMBLY SHOULD BE CARRIED OUT BY TWO PEOPLE
Please read these instructions carefully before starting the installation. incorrect assembly can have consequences that are not covered by the guarantee. Check the completeness of the delivery and and make sure you have the necessary tools. Assembly should be carried out by two people. We recommend to have the installation carried out by a professional. Ensure that the shower is fixed on a level base. The supplied accessories are only suitable for solid walls. Plasterboard or stud walls may require special fasteners. All components must be handled with great care to prevent them from being damaged.
MAINTAINING
Use only soft towels and clear water to clean the profiles and glass of the shower enclosure. Please do not use any corrosive chemicals or cleaning agents to clean the shower enclosure. Avoid cleaning with objects that cause scratches. For stubborn stains, you can use a low concentration vinegar cleaner if you rinse with plenty of water afterwards. Regularly wipe the components of the shower with a damp cotton cloth. Please do not clean the shower cubicle with toilet cleaner! If cleaner should accidentally splash onto the shower enclosure, immediately rinse the areas with clean water.
These operating instructions are for reference only. It may contain different information. The products described may be updated at any time.
The drawings in these instructions are for illustration purposes only and do not claim to be up-to-date.
