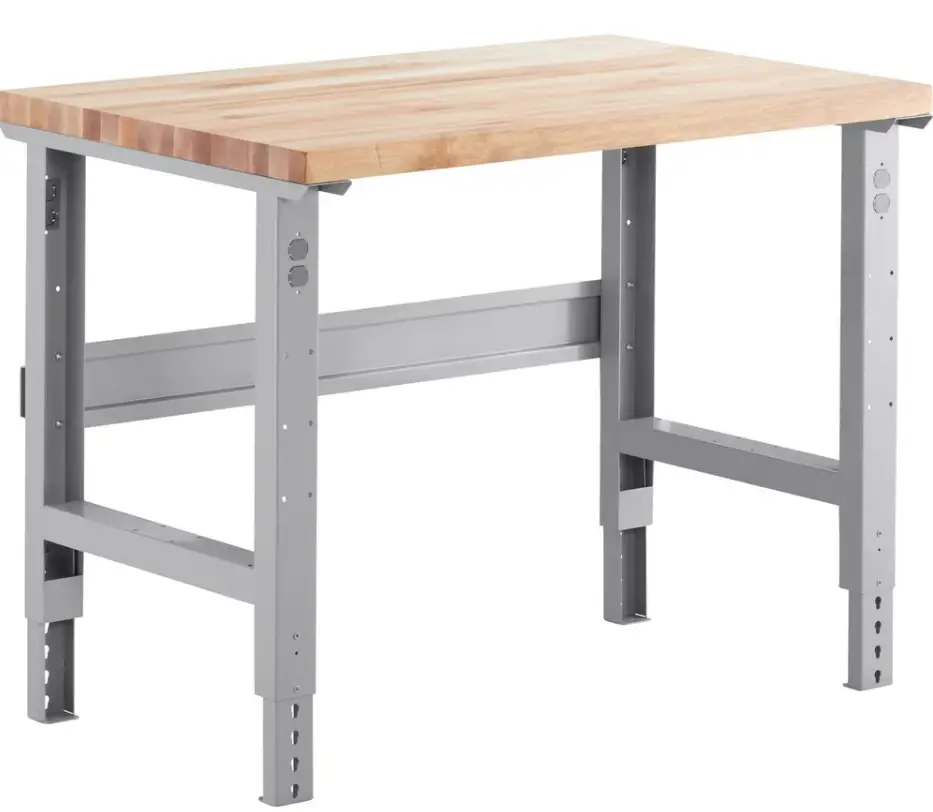

LAVEX INDUSTRIAL 257WB3048W Wooden Tabletop Worktable

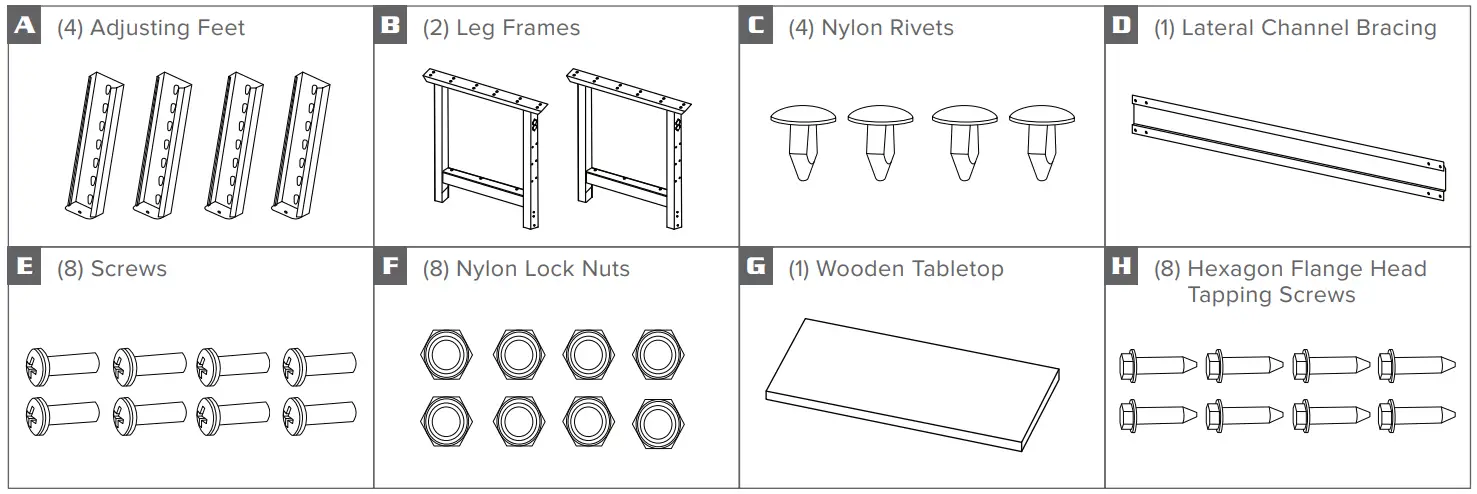

PARTS
ASSEMBLY
- STEP 1

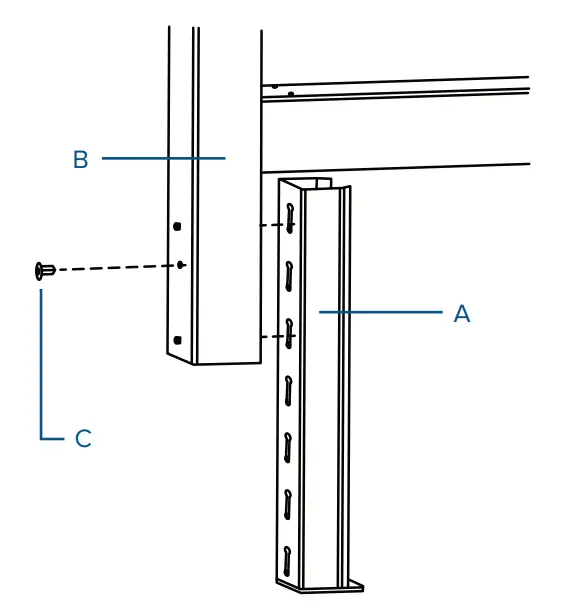

Insert one of the adjusting feet (A) into a step rivet of one of the leg frames (B). Choose your desired height and use a nylon rivet (C) to secure the foot.
- STEP 2

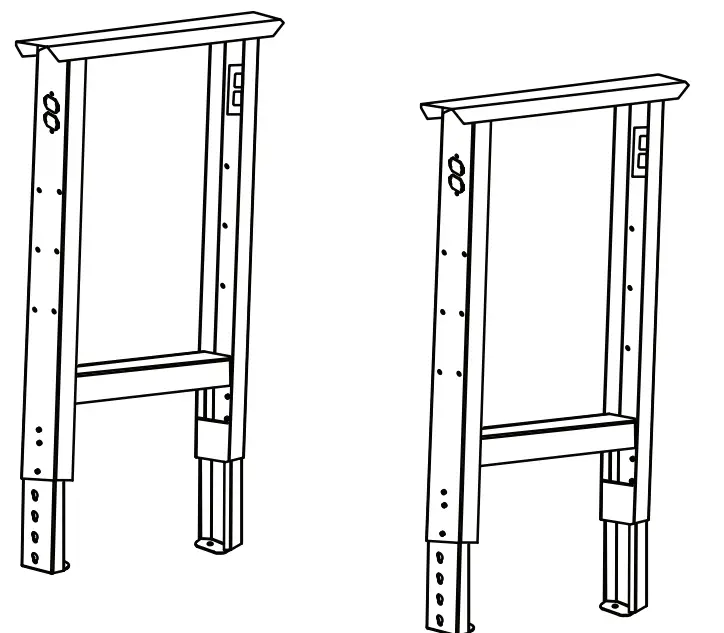

Repeat Step 1 to install all four adjusting feet.
- STEP 3

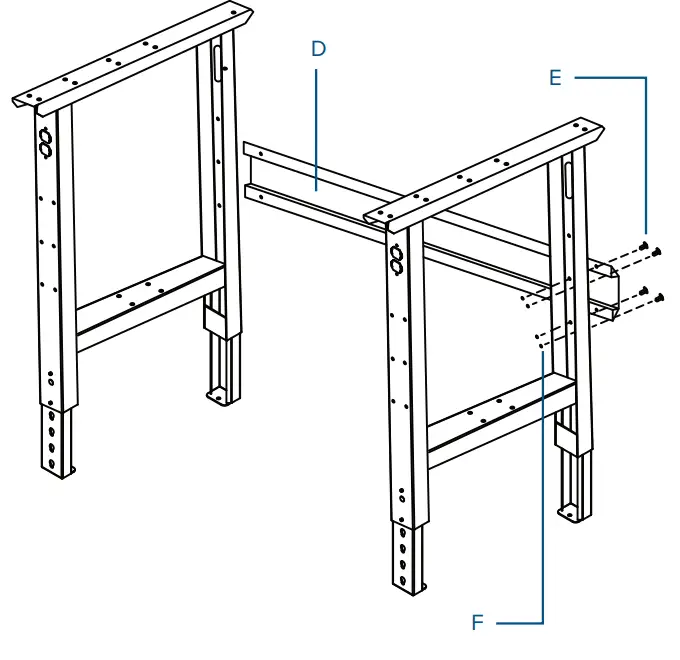

Secure the lateral channel bracing (D) to the leg frames using the screws (E) and nylon lock nuts (F) provided.
- STEP 4

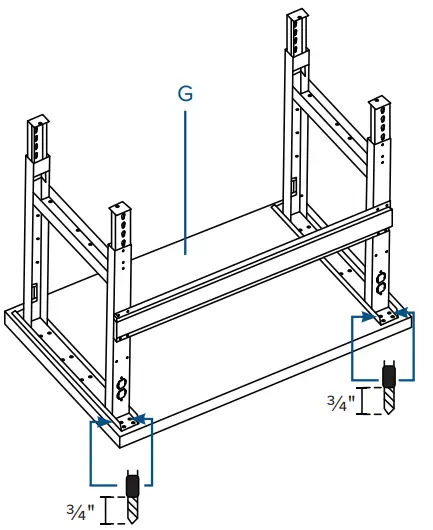

Place the tabletop (G) upside down on asurface that won’t scratch it.
- STEP 5
To prevent wood splitting, place tape on drill bit ¾” from the end of the bit, and drill pilot holes ¾” deep with the provided drill bit. - STEP 6

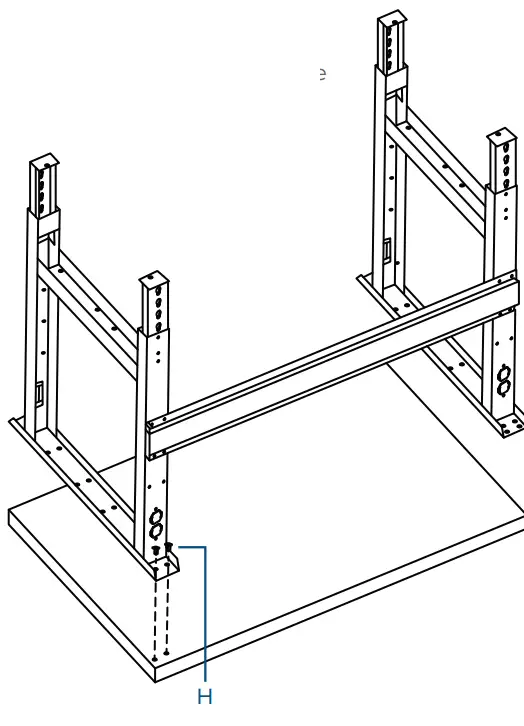

Secure the tabletop to the leg frames using the hexagon flange head tapping screws (H).

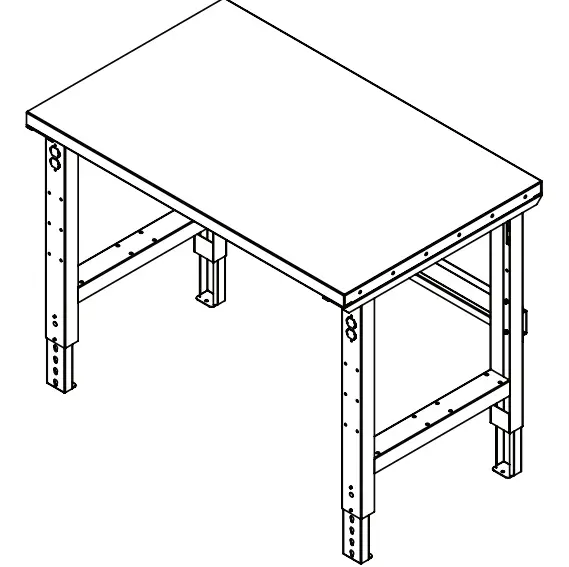

INSTALLATION FINISHED
