ASSEMBLY INSTRUCTIONS
DIT-O06BW

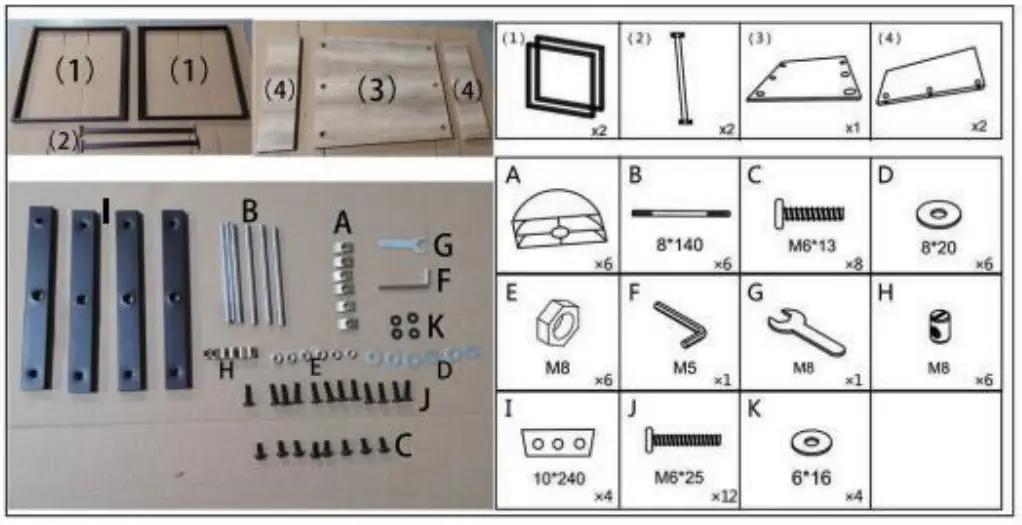

PARTS
INSTALLATION STEPS

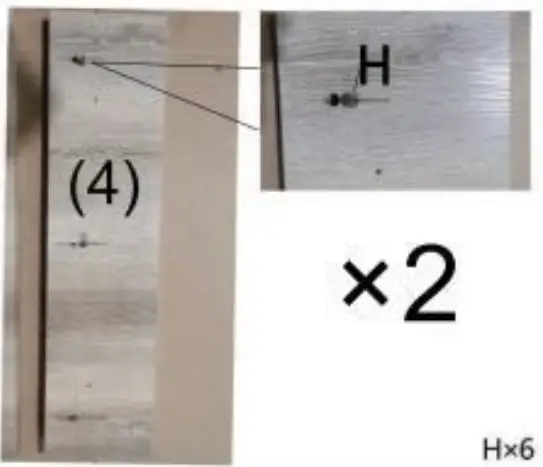

- Place H in the holes ofthe plate (4)

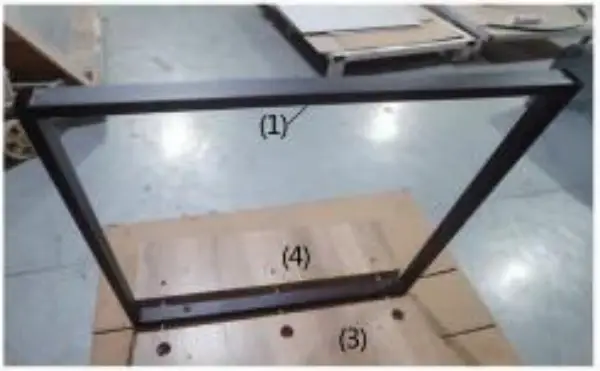

- (2),(3), and (4) go together
Note that the holes face ‘towards

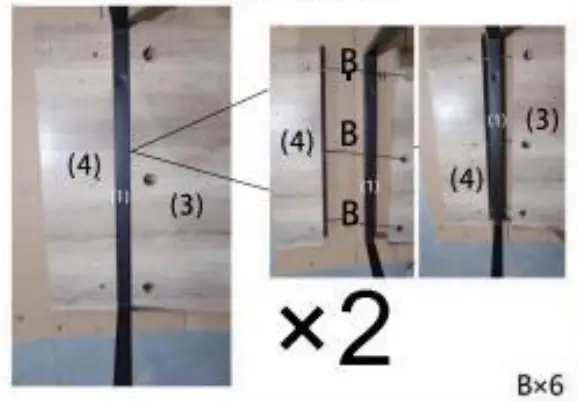

- B is inserted into hole (4) and tightened with H. The other end of B is then inserted into the holes in (1) and (3) in turn

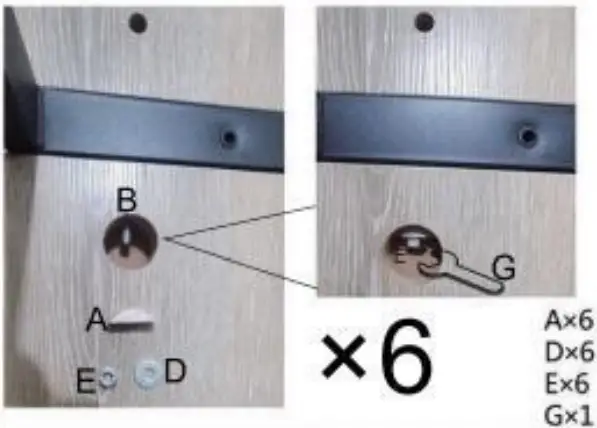

- A D and E are threaded into B in turn and E is tightened with G

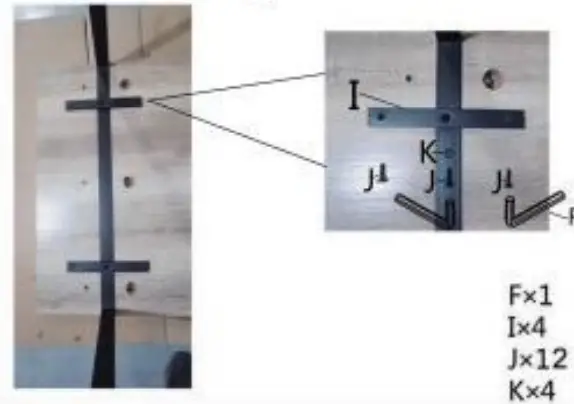

- J and K are threaded into the middle hole of I in turn. tighten J with E J is threaded into the holes on both sides of I, Tighten J with F

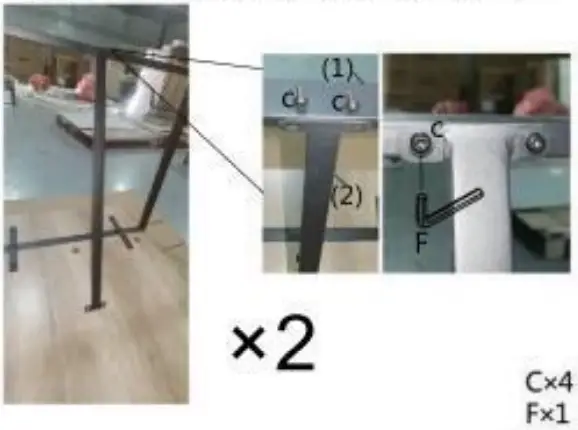

- (2) is attached to (1), C is threaded through the holes in (2) and (1) in turn and tightened with F

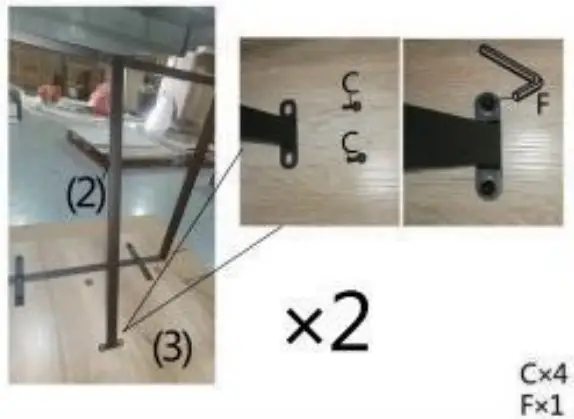

- (2) and (3) are connected, C is inserted into holes (2) and (3) in turn F tightens C

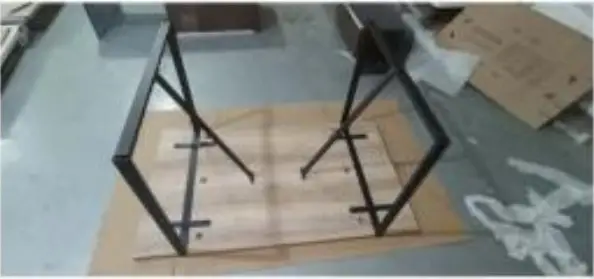

- Installation complete
If you encounter any problems during the installation process, you can contact our customer service via Amazon inbox and we will be happy to answer your questions.
