Magic Home Mh-dtt18b-dtl1b Luxury Rectangular Stone Dining Table Instruction Manual

Magic Home Mh-dtt18b-dtl1b Luxury Rectangular Stone Dining Table Instruction Manual

Installation

Hardware ListHardware List
Magic Home Hardware 01
Table top
1 Magic Home Hardware 05

Table leg

4
 Magic Home Hardware 02
Short square beam
2 Magic Home Hardware 06

Long square beam

2
 Magic Home Hardware 03 8x16mm screw28

 Magic Home Hardware 07 Washer

4
Magic Home Hardware 04
spare 4x15mm Self-tapping screws
8Magic Home Hardware 08Hexagonal screw tap1

1

Magic Home Hardware 09

Magic Home Hardware 10

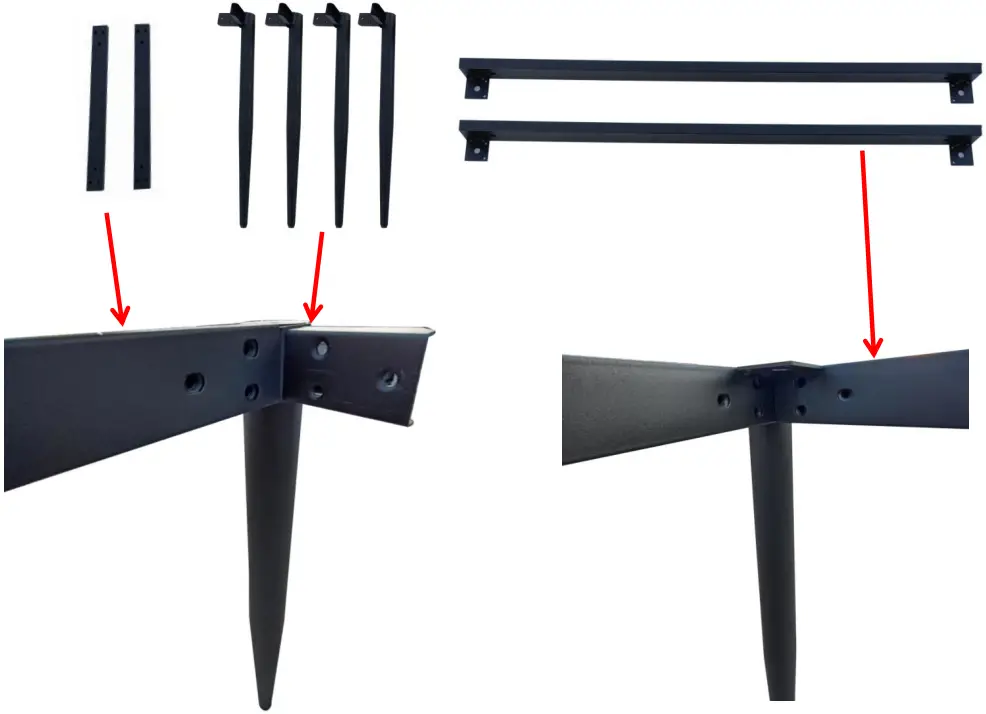

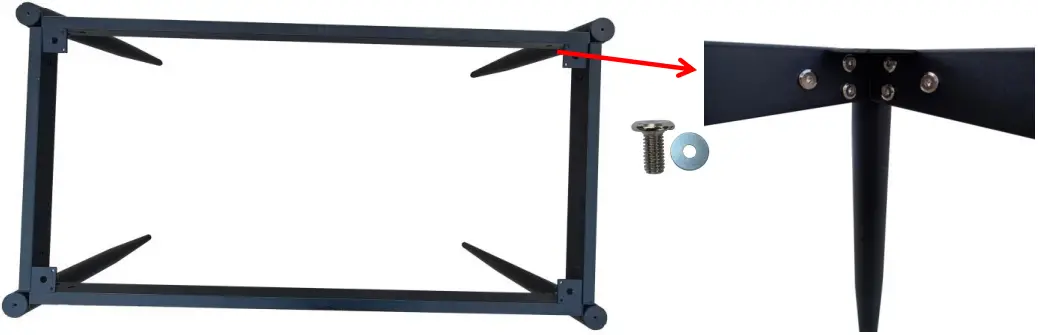

First connect the beams with the legs, and then fix it with 8x16mm


2

Magic Home Hardware 11

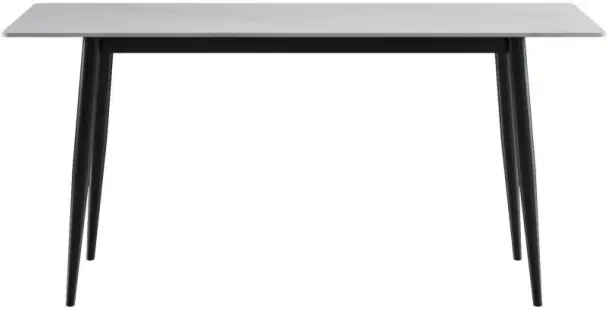

  1. Put the table top on the table leg, make sure the reserved screw holes of the table top and the frame are corresponding, tighten 8x16mm screws to finish the installation.
  2. This is a spare screw hole. When the 8x16mm screw fails to be screwed in, the hole can be fixed with a 4x15mm self-tapping screw. Either way will do.

Magic Home Hardware 12
