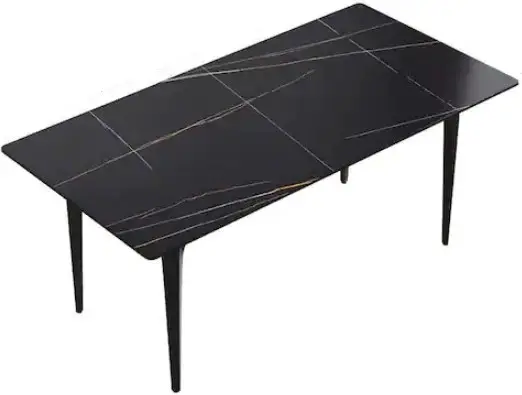

Magic Home CS-WF194552AAE Sintered Stone Top Black Dining Table Instruction Manual
Installation
Hardware List

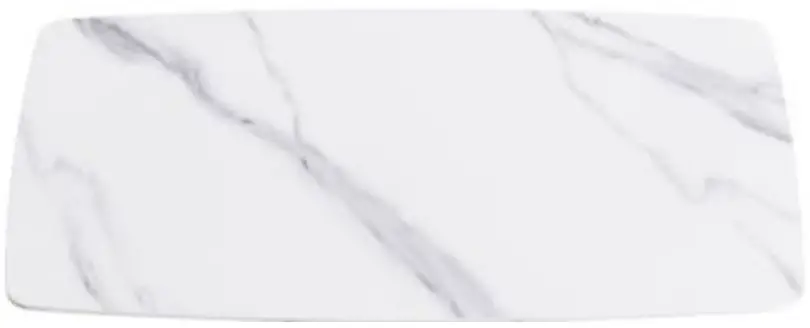

Table top

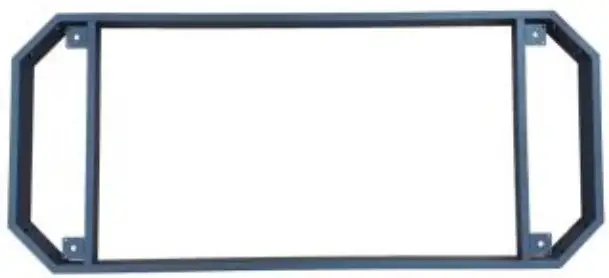

Support frame
8x30mm screws
spare 4x15mm Self-tapping screws
Table legs
8x16mm screws
Washers

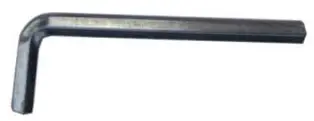

Hexagonal screwtap

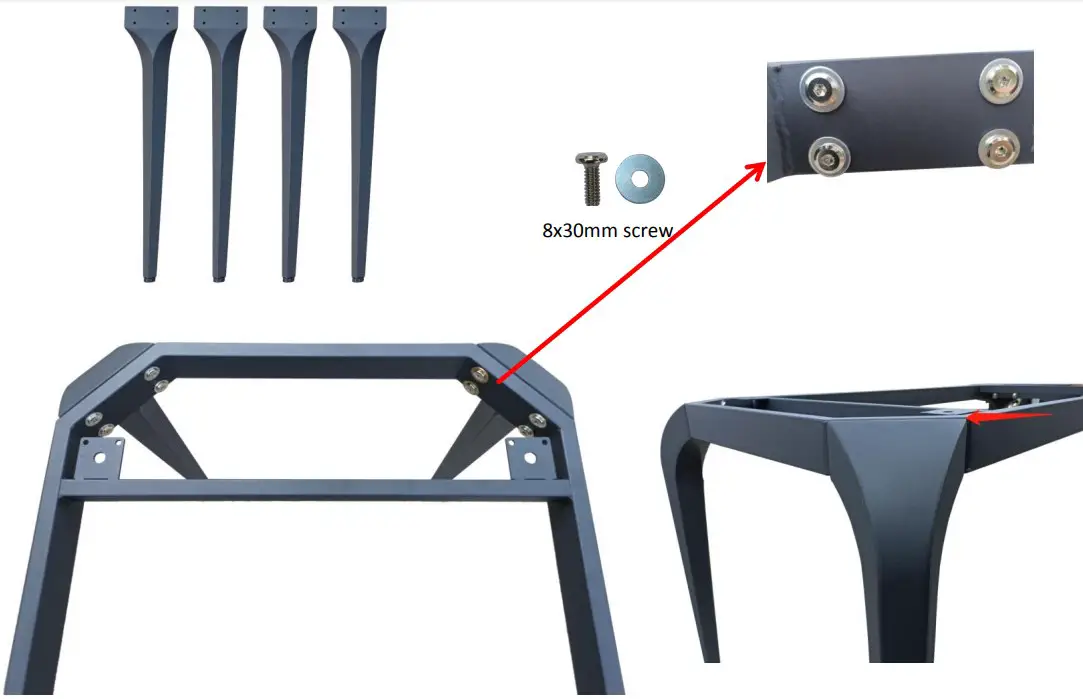

Place it as shown in figure 1, align the screw holes with 8x30mmscrews andnutsand tighten them. Note that the table legs should be as high as the support framefrom the ground, otherwise the table top installation will be affected.

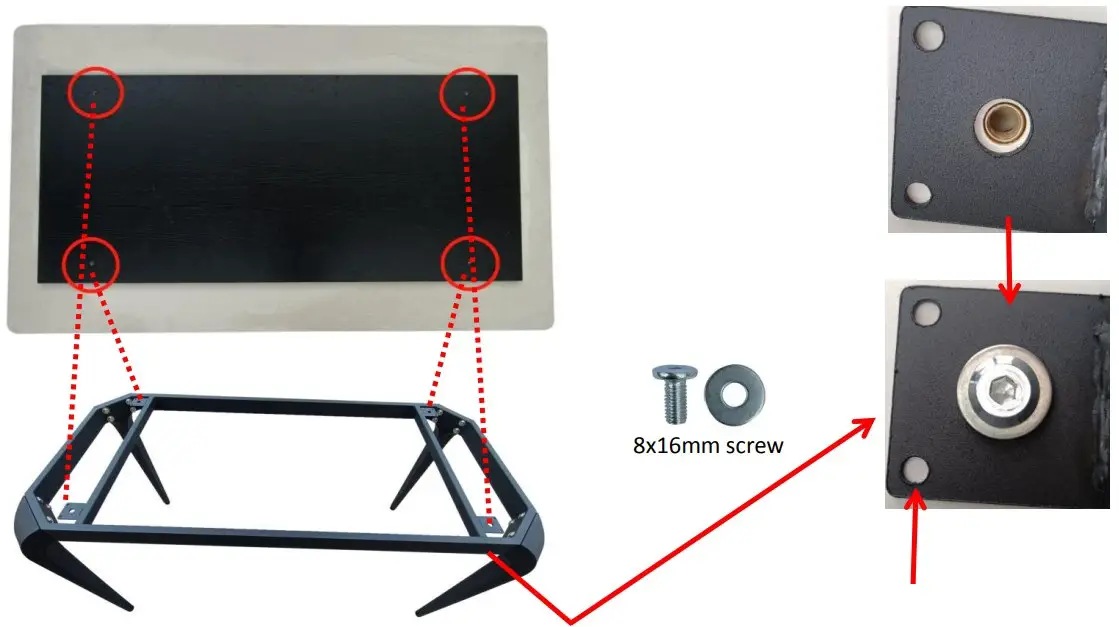

This is a spare screwhole. Whenthe 8x16mmscrewfails tobescrewed in, the holecanbefixedwith a 4x15mmself-tappingscrew.Either way will do. Put the table top on the table leg, make sure the reserved screw holes of the table top and the frame are corresponding, tighten 8x16mm screws from the bottom to finish the installation

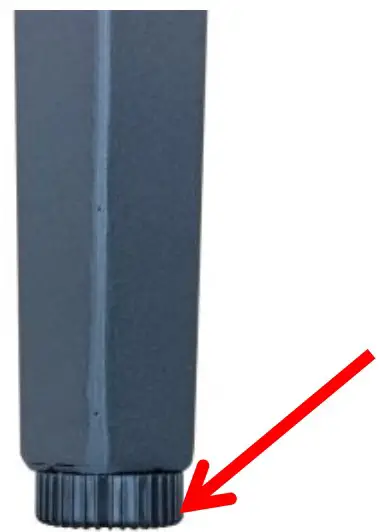

Adjustablefootpadsatthe bottomofthesupport legs(whenthegroundis uneven,thefoot pads canbeusedto adjust thebalance)
