20871N Adapter for Brake Lever
User Manual
20871N Adapter for Brake Lever
MOTOPLASTIC recommends that this operation must be conducted by a specialist mechanic.

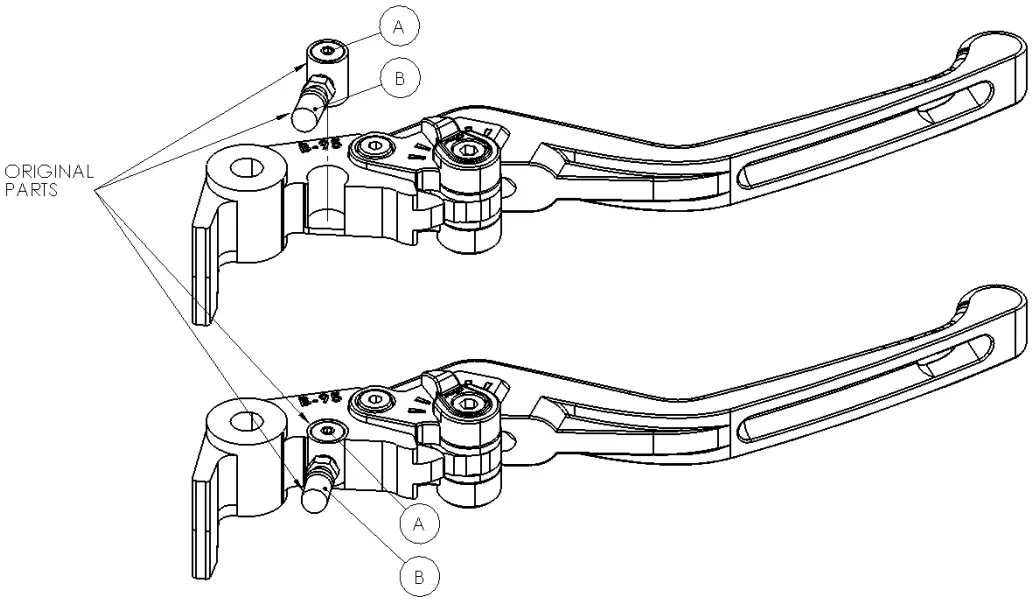

Before driving the motorcycle, verify that handle travel without clutch pressure exists. If it’s necessary, the original parts can regulate the input clutch pressure. Loosen the screw “A” and turn the axis “B” until the optimum position. Finally, tighten the screw “A”.
Ref. 20871N (B-95)
