SENSEA logoSENSEA 3276007141917 Bathroom Furniture - iconEASY
EASY_UNDER-BASIN_50_40_70_2-DOORS

EASY_UNDER-BASIN_70_40_70_2-DOORSSENSEA 3276007141917 Bathroom FurnitureSENSEA 3276007141917 Bathroom Furniture - icon 1 EAN: 3276007141917, 3276007141924 , 3276007141948, 3276007141986
Assembly – Use – Maintenance ManualQF6065 2022/04-V01

SENSEA 3276007141917 Bathroom Furniture - icon8Legal & Safety Instructions

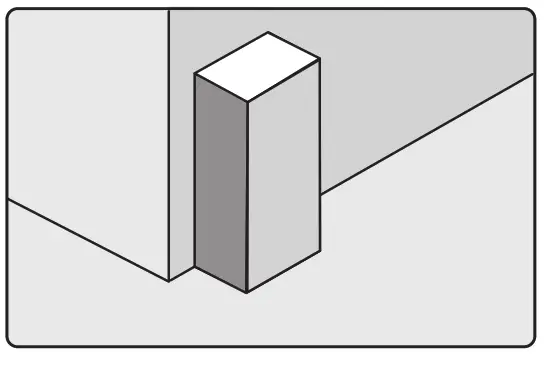

Thank you for purchasing this product. We recommend that you read the installation, user, and maintenance instructions carefully. We have designed this product to ensure your complete satisfaction. If you require assistance, the team at your retailer is on hand to help you.SENSEA 3276007141917 Bathroom Furniture - fig3



WARNING: To avoid any risk of toppling, this furniture item/object must be securely attached to the wall. Check the suitability and the strength of the wall to ensure that the wall can bear the load of the furniture/object and withstand the forces put on the securing elements. Improper installation can result in the furniture/object falling and cause serious injuries to people. In case of a doubt regarding the installation, ask for advice from a specialized sales assistant or contact a professional.
Use screws, washers and plugs suited to the type of material of your wall. These are not included. To obtain advice on the screws and fitting suited to your wall,ask a specialized assistant.

SENSEA 3276007141917 Bathroom Furniture - icon 2 : Preparation

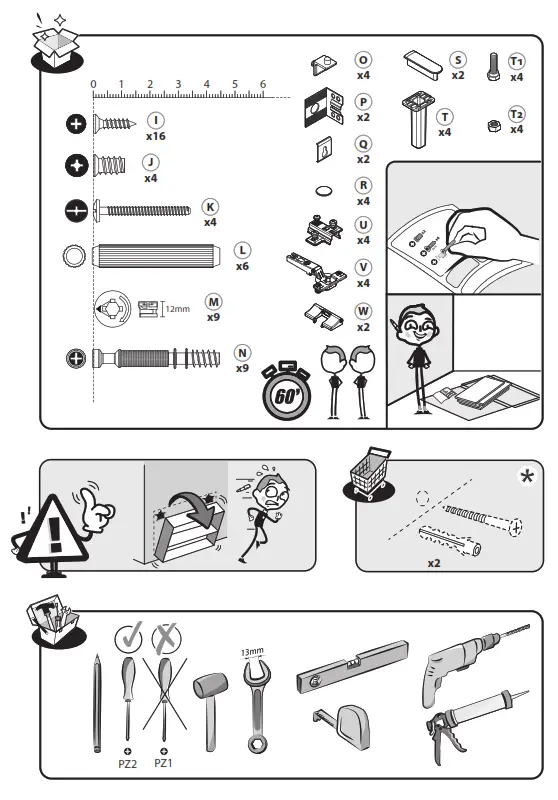

SENSEA 3276007141917 Bathroom Furniture - fig4SENSEA 3276007141917 Bathroom Furniture - fig6

SENSEA 3276007141917 Bathroom Furniture - icon 4 : Assembly

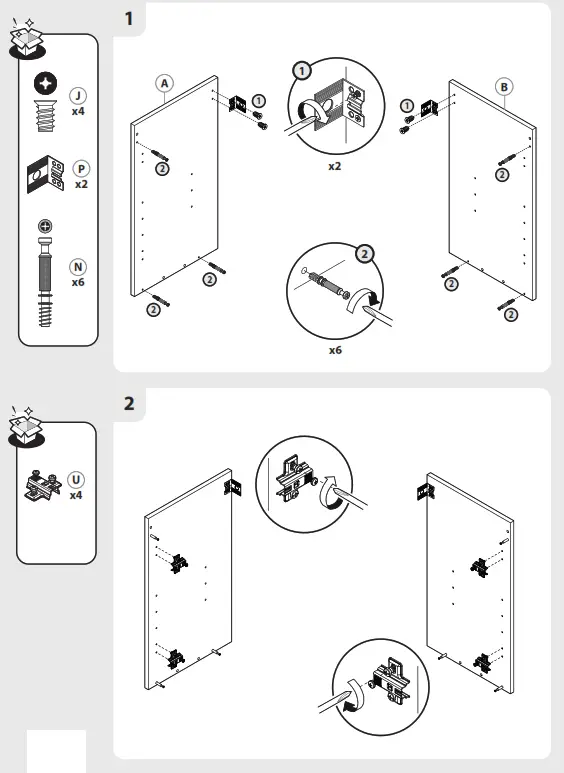

SENSEA 3276007141917 Bathroom Furniture - fig7SENSEA 3276007141917 Bathroom Furniture - fig14

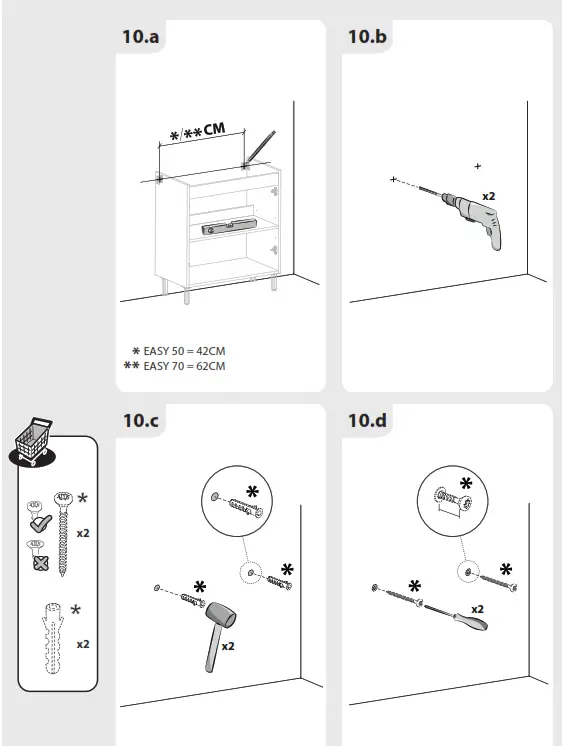

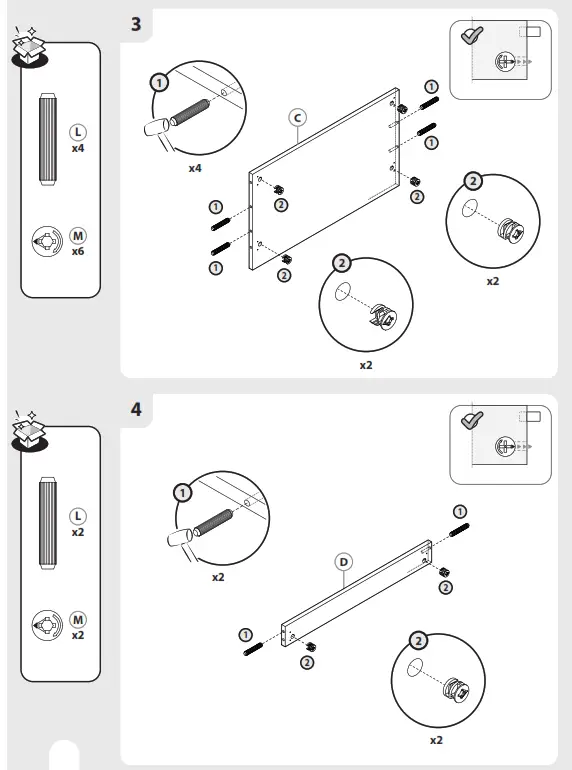

SENSEA 3276007141917 Bathroom Furniture - fig8SENSEA 3276007141917 Bathroom Furniture - fig15

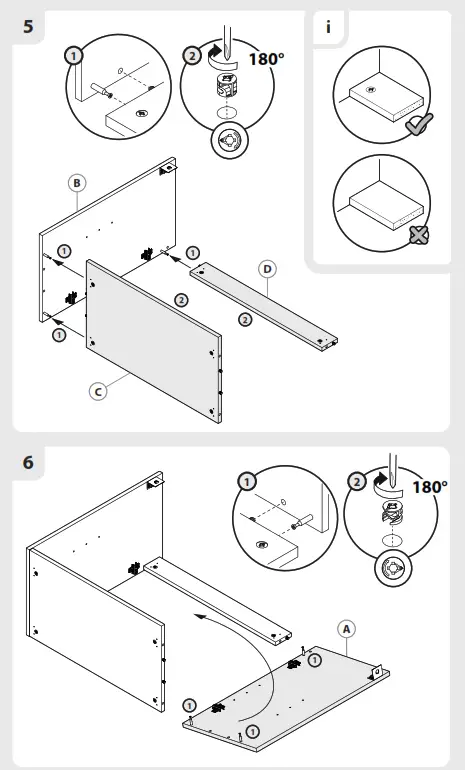

SENSEA 3276007141917 Bathroom Furniture - fig9SENSEA 3276007141917 Bathroom Furniture - fig16

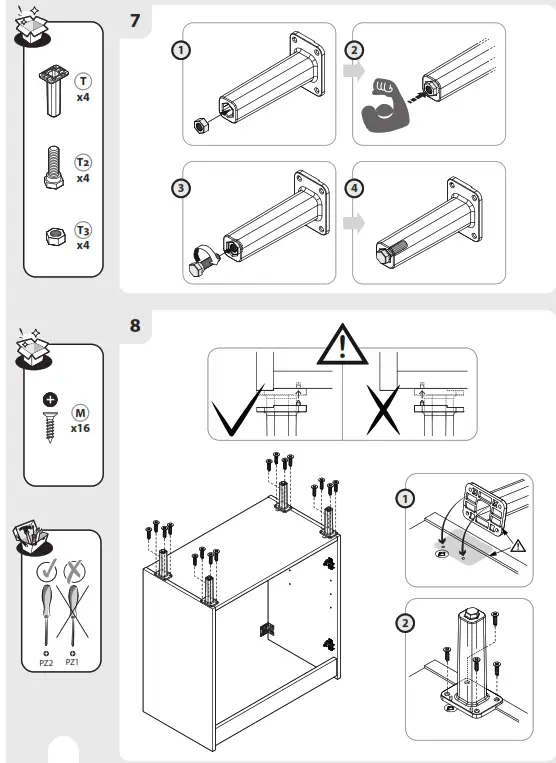

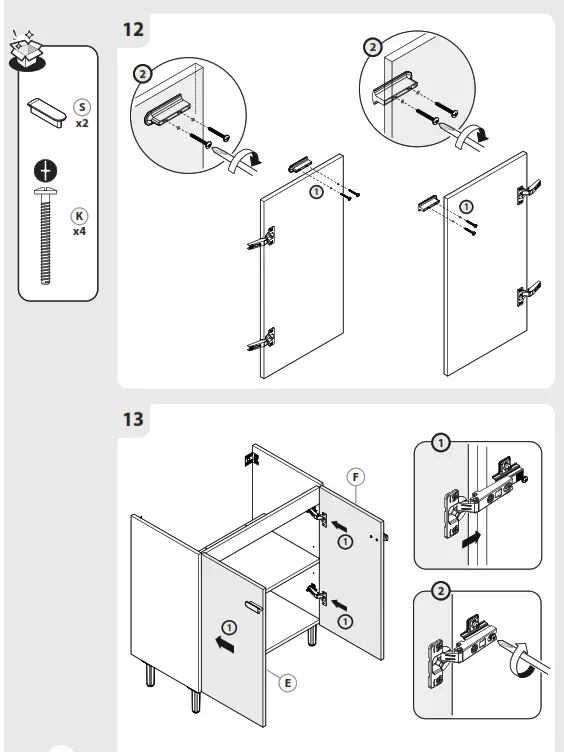

SENSEA 3276007141917 Bathroom Furniture - fig10SENSEA 3276007141917 Bathroom Furniture - fig17

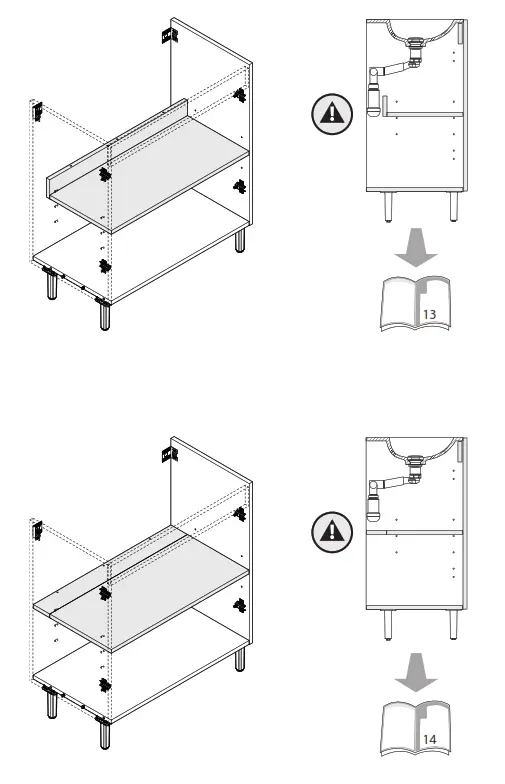

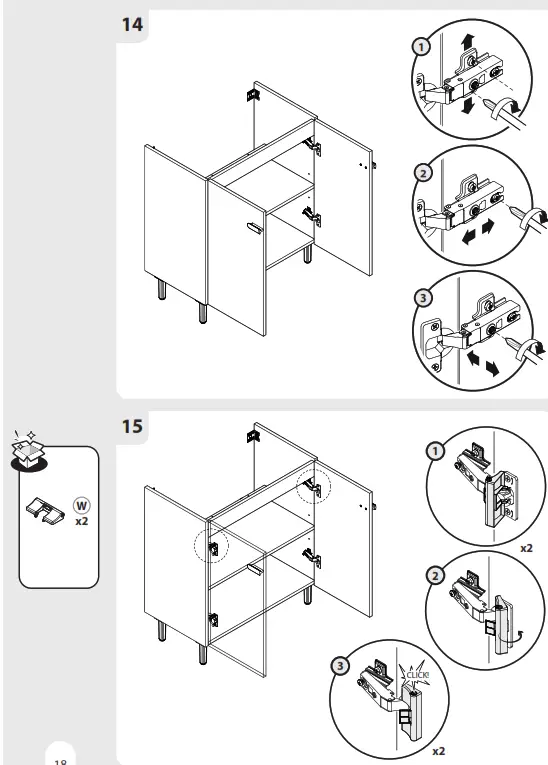

SENSEA 3276007141917 Bathroom Furniture - fig12SENSEA 3276007141917 Bathroom Furniture - fig19

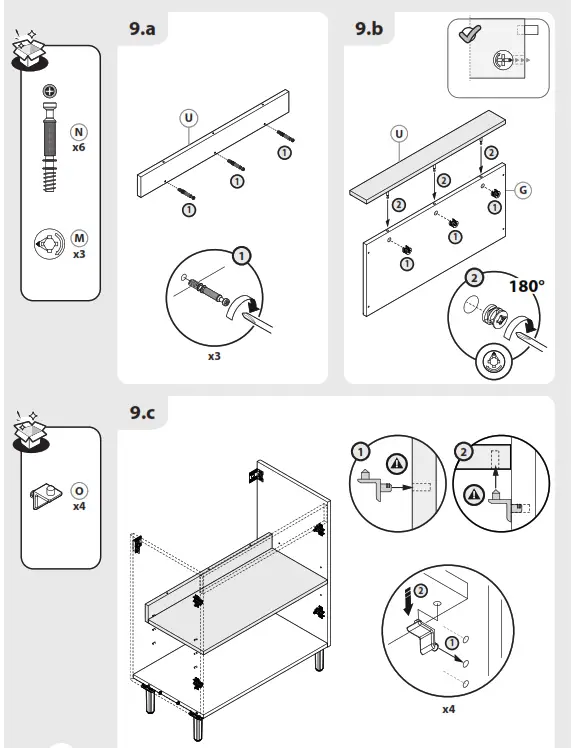

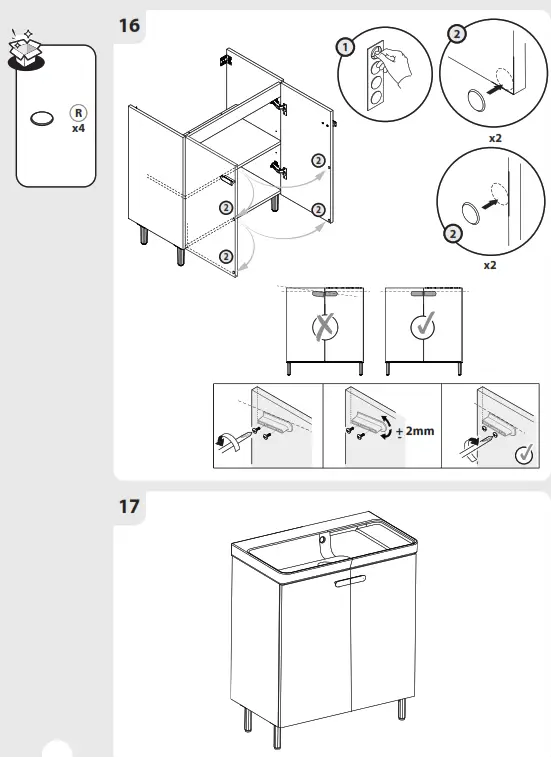

SENSEA 3276007141917 Bathroom Furniture - fig13SENSEA 3276007141917 Bathroom Furniture - fig20

SENSEA 3276007141917 Bathroom Furniture - icon 6 : Maintenance

Warning The bowl is not included.

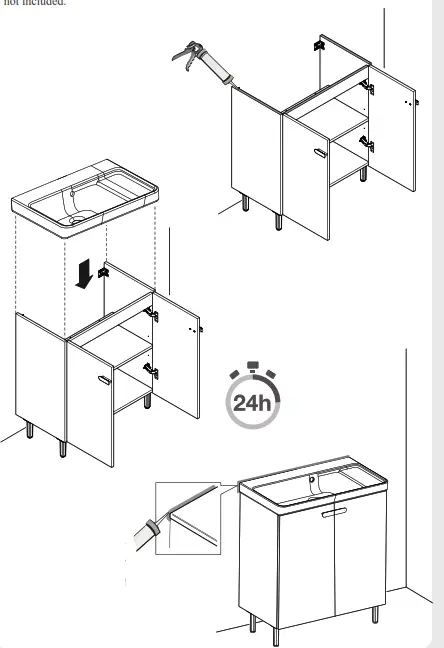

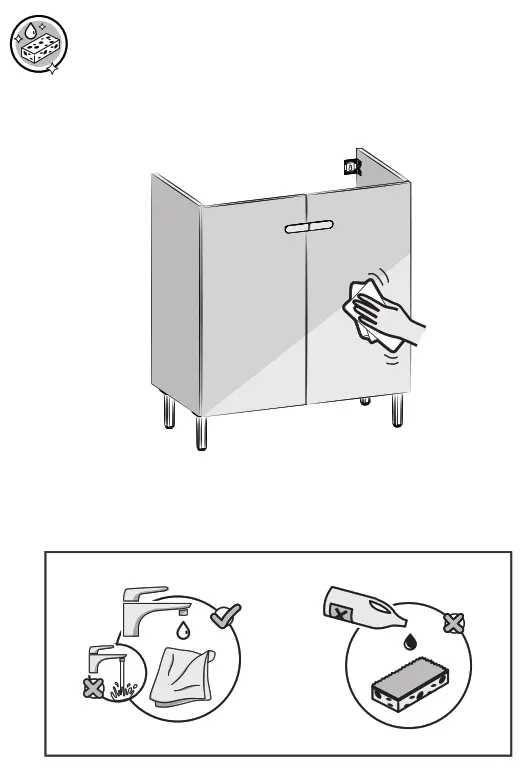

SENSEA 3276007141917 Bathroom Furniture - fig21SENSEA 3276007141917 Bathroom Furniture - fig22

IMPORTANT, TO BE RETAINED FOR FUTURE REFERENCE: PLEASE READ CAREFULLY
SENSEA 3276007141917 Bathroom Furniture - fig23www.quefairedemesdechets.fr
® This piece of furniture is recyclable. If it cannot be used anymore, please take it to the waste recycling center.

SENSEA 3276007141917 Bathroom Furniture - fig265-year guarantee
ADEO Services – 135 Rue Sadi Carnot – CS 00001
59790 RONCHIN ys Store, 35 Roos Street,
Imported by Adeo South Africa (PTY) LTD T/A Leroy Merlin, Hosted in Leroy Merlin FourwaysSENSEA 3276007141917 Bathroom Furniture - fig24Witkoppen Ext 97, Sandton, 2191, Johannesburg, Gauteng, South Africa.
Made in ITALY
