231 Whisper Latch Cam Cabinet
Instruction Manual
(Part #’s: 231 series)
PARTS NEEDED:
 |  |  |

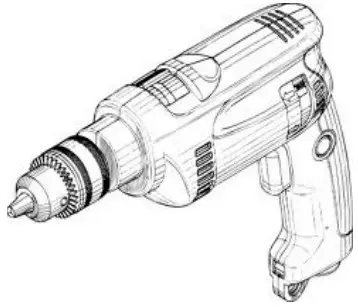

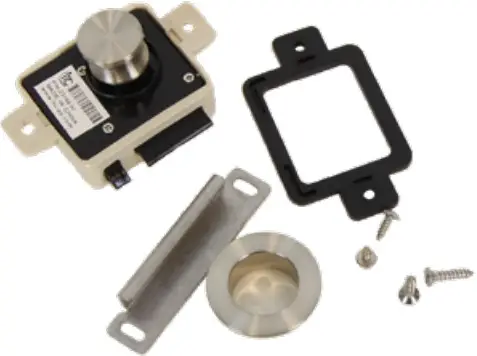

| Whisper Latch Assembly | 1” Spade Bit (not provided) | Power Drill (not provided) |
Whisper Latch Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY FOR YOUR PROTECTION AND SAVE ALL INSTRUCTIONS.
* To avoid a hazard to children, account for all parts and destroy all packing materials.

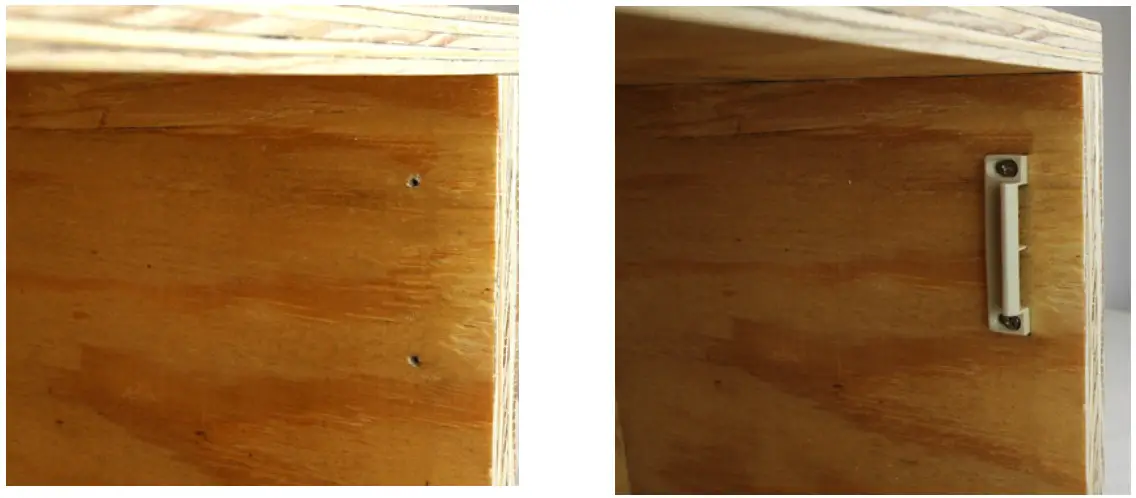

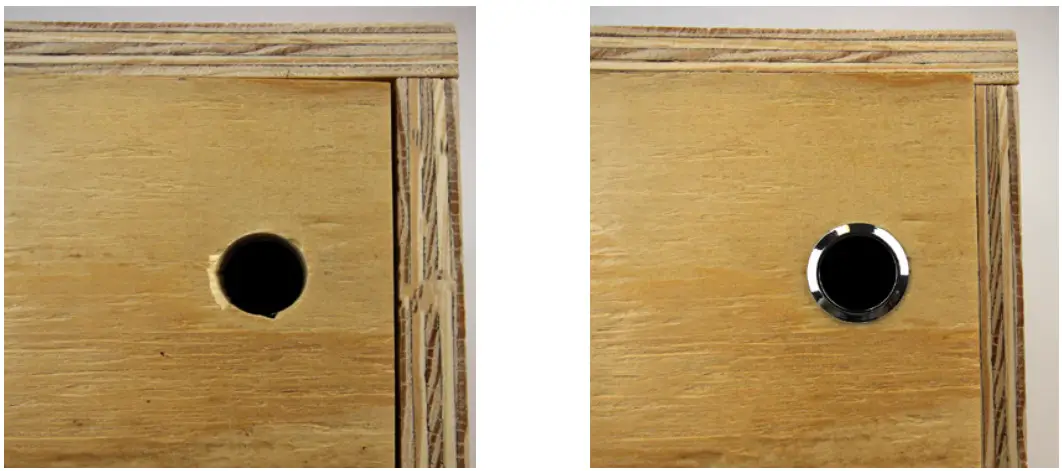

| 1. Determine the installation location and drill a 1” hole using a spade bit. Mark the location for the mounting screws and pre-drill. Insert the round collar into the hole. | 3. Determine the installation location for the latch. Mark the location and secure the latch via screws. |
 |  |

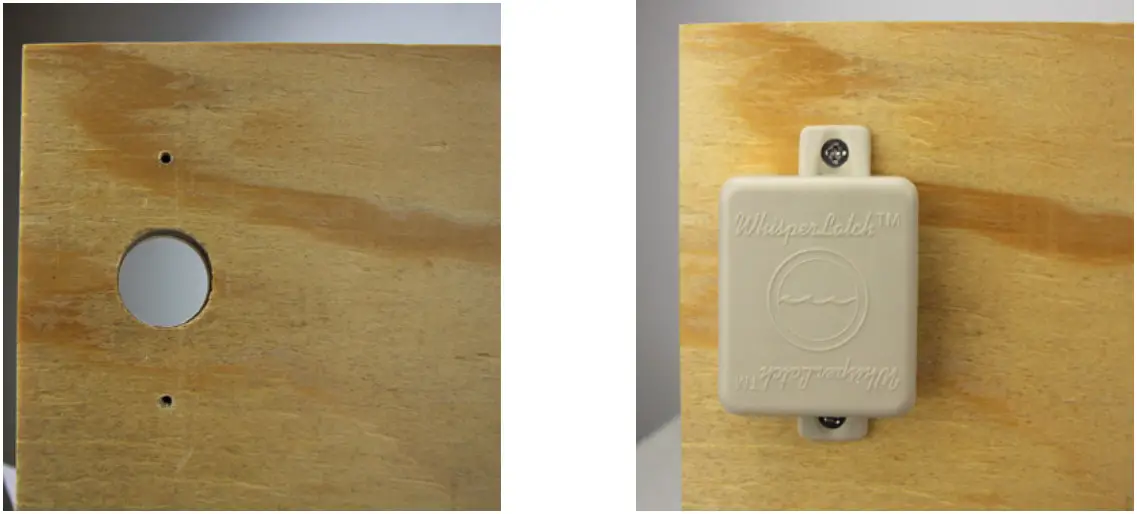

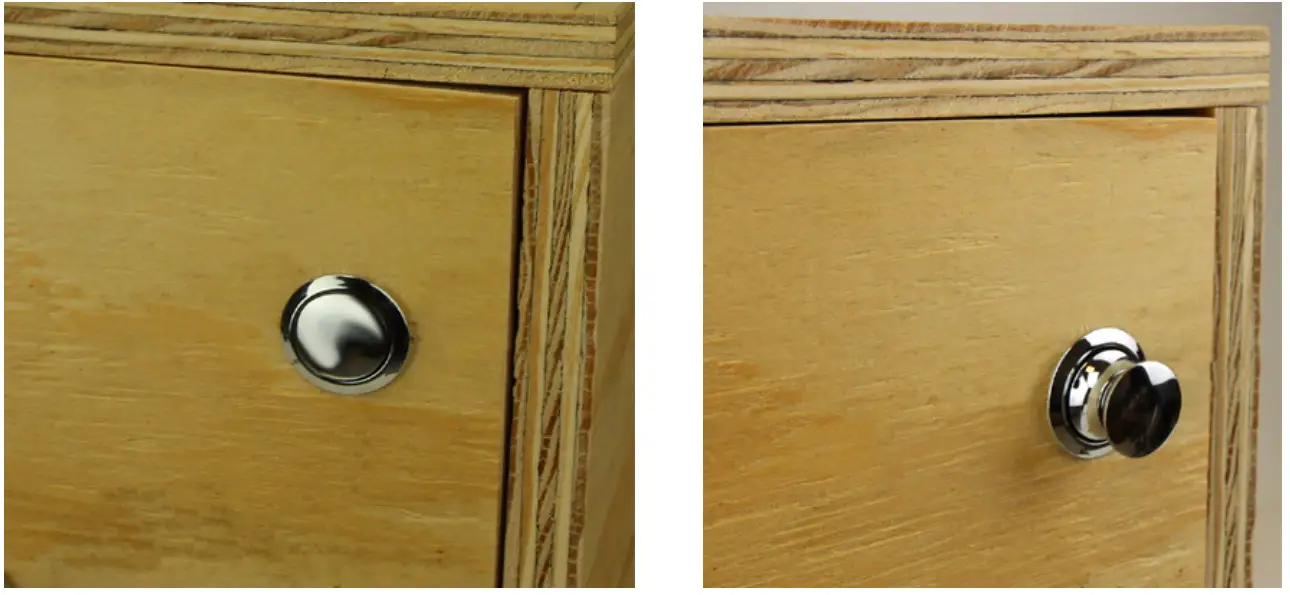

| 2. Push the round knob through the hole and attach the latch assemby along with the black shim to the door using the screws provided. | 4. Push the switch to ensure the latch is in working order. |
 |  |
For warranty information please visit www.itc-us.com
3030 Corporate Grove Dr
• Hudsonville
• MI
• 49426
Phone: 616-396-1355
• www.itc-us.com
• [email protected]
• DOC # 710-00205
• Rev A: 11/19/2021
