Shutter Mounted Exhaust Fan

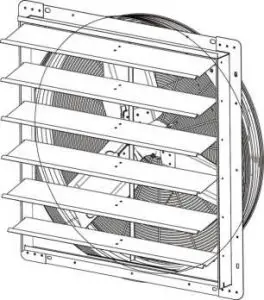

exhaust fan

SHUTTER MOUNTED EXHAUST FAN
Models: ILG8SF7V/ILG8SF10V/ILG8SF12V/ILG8SF16V ILG8SF18V/ILG8SF18S/ILG8SF20V/ILG8SF24V ILG8SF30S/ILG8SF36S

OWNER’S MANUAL
PLEASE READ AND SAVE THESE INSTRUCTIONS

PLEASE READ AND SAVE THESE INSTRUCTIONS. READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE, OR MAINTAIN THE PRODUCT DESCRIBED. PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION. FAILURE TO COMPLY WITH INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE! RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.

BEFORE YOU BEGIN

WARNING!
Installation, trouble shooting, and replacement of parts are to be performed only by authorized service technicians.

Electrical Requirements:
  • The motor amperage and voltage ratings must be checked for compatibility to supply voltage prior to final electrical connection. Please refer to the motor’s nameplate label.
  • Wiring must conform to local, state, and national codes.
Tools / Materials Needed:
  • Mounting Fasteners (8)
  • Sealant or Caulk
  • Regular Screwdriver Set
Recommended Accessories:
  • Speed control for ILG8SF7V, ILG8SF10V, ILG8SF12V, ILG8SF16V, ILG8SF18V, ILG8SF20V, ILG8SF24V
UNPACKING Contents:
  • Shutter Mounted Exhaust Fan
  • Owner’s Manual
Inspect:
  • After unpacking fan, carefully inspect for any damage that may have occurred during transit. Check for loose, missing, or damaged parts.
  • Check all bolts, screws, set-screws, etc. for looseness that may have occurred during transit. Tighten as needed. Rotate propeller by hand to ensure it turns freely.
  • See General Safety Instructions on page 3, and Cautions and Warnings as shown.
GENERAL SAFETY INSTRUCTIONS

Fans are UL/CUL Listed, Standard 705.

  1. Do not depend on any switch as the sole means of disconnecting power when installing or servicing the fan.
  2. Always disconnect, lock-out, and tag-out power source before installing
    or servicing. Failure to disconnect power source can result in fire, shock, or serious injury.
  3. Motor will restart without warning after thermal protector trips. Do not touch operating motor; it may be hot enough to cause injury.
  4. Do not place body parts or objects in fan or motor openings while motor is connected to the power source.
  5. All electrical connections should be made by a qualified electrician.
  6. These utility exhaust fans are for general purpose exhaust applications only. Do not use these exhaust fans in an area where corrosive or explosive materials may be found.
  7. Follow all local and state/provincial electrical and safety codes in the United States and Canada, as well as the National Electrical Code (NEC) and the Occupational Safety and Health Act (OSHA) in the United States, and the Canadian Electric Code (CEC) in Canada.
  8. Always disconnect power source before working on or near a motor or its connected load.
  9. Protect the power cable from coming in contact with sharp objects.
  10. Do not kink or create tight bends in the power cable and never allow the cable to come in contact with oil, grease, hot surfaces, or chemicals.
  11. Make certain that the power source conforms to the requirements of your specific exhaust fan model. The fan frame and motor must be electrically grounded to a suitable electrical ground, such as a grounded water pipe or ground wire system.
  12. To reduce the risk of injury to persons, please observe the following: In the United States, OSHA compliant guards are required when fan is installed within 7 feet of the floor or working level. In Canada, CSA compliant guards are required when fan is installed below 2.5 meters (8.2 feet) above the floor or grade level.
  13. Questions? Please contact our service center by calling 1-800-3171688.
INSTALLATION INSTRUCTIONS
  1. The unit should be securely mounted in a rigid framework.
    NOTE: Allowing the fan frame to flex or move will result in excess vibrations, which may cause possible premature motor, propeller, or shutter failure.
  2. Install any auxiliary components such as thermostats, switches, or speed controls.
  3. Connect power to the motor using an approved wiring method. Refer to the following wiring diagrams: Figure 1 & Figure 2.

Fan frame and motor must be securely and adequately grounded to a suitable electrical ground, such as a ground water pipe or ground wiring system.

electric ground

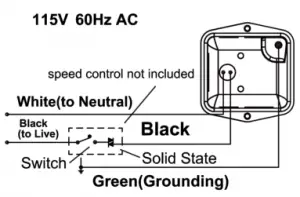

Figure 1: Wiring Diagram – Speed Controllable. 115-volt connection. for ILG8SF7V, ILG8SF10V, ILG8SF12V, ILG8SF16V,ILG8SF18V, ILG8SF20V, ILG8SF24V

wiring diagram

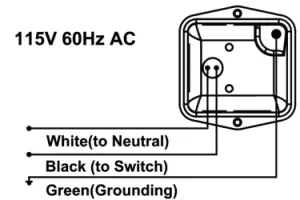

Figure 2: Wiring Diagram – Single speed. 115-volt connection. for ILG8SF18S, ILG8SF30S, ILG8SF36S

GENERAL SPECIFICATIONS

Power source

115V, 60Hz

Mounting Position

Vertical

Frame Material

Galvanized Steel

Shutter Blade Material

Aluminum Alloy

Propeller Material

Aluminum Alloy and Galvanized Steel

Agency Compliance

UL/CUL 705

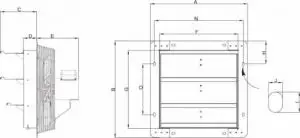

Dimensions (Inches)

Dimensions

Figure 3

MODEL

Prop.  Dia.

A

B

C

D

E

N

G

F

O

H

J

I

Suggested wall  opening (Sq)

ILG8SF7V

7″

11″

11″

5 3/4″

2″

5 7/8″

9 21/32″

8 1/8″

8 1/8″

4 1/16″

3 17/32″ 9/32″

1/2″

8 1/2″

ILG8SF10V

10″

13″

13″

4 17/32″

2″

5 7/8″

11 21/32″

10 1/8″

10 1/8″

6″

3 17/32″ 9/32″

1/2″

10 1/2″

ILG8SF12V

12″

15″

15″

5 3/4″

2″

6 5/32″

13 5/8″

12 1/8″

12 1/8″

8″

3 1/2″

9/32″

1/2″

13″

ILG8SF16V

16″

18 29/32″

18 29/32″

5 3/4″

2″

7 7/8″

17 3/4″

16″

16″

11 29/32″

3 17/32″ 9/32″

1/2″

17″

ILG8SF18V

18″

21″

21″

5 3/4″

2″

8 3/4″

19 11/16″

18″

18″

14″

3 17/32″ 9/32″

1/2″

19″

ILG8SF18S

18″

21″

21″

5 3/4″

2″

10 13/16″ 19 11/16″

18″

18″

14″

3 17/32″ 9/32″

1/2″

19″

ILG8SF20V

20″

23″

23″

5 3/4″

2″

11″

21 25/32″

20″

20″

16″

3 17/32″ 9/32″

1/2″

21″

ILG8SF24V

24″

27″

27″

5 3/4″

2″

11″

25 21/32″

24 1/8″

24 1/8″

20 1/32″

3 17/32″ 9/32″

1/2″

25″

ILG8SF30S

30″

33″

33″

5 3/4″

3″

13 3/32″

31 5/8″

30 1/8″

30 1/8″

26″

3 17/32″ 9/32″

1/2″

31″

ILG8SF36S

36″

39″

39″

5 3/4″

3″

13 11/16″ 37 21/32″ 36 5/32″

36 5/32″

32″

3 17/32″ 9/32″

1/2″

37″

Performance

MODEL

Prop.

Dia.

Nom.

HP

Amps

Nom.

RPM

Bearing  Type

Sones @  0.0″ SP @ 5′

CFM Air Delivery @ Static Pressure Shown

0.00″

0.125″

0.25″

ILG8SF7V

7″

1/25

0.40

1550

Sleeve

5.37

242

N/A

N/A

ILG8SF10V

10″

1/25

0.55

1550

Sleeve

6.19

600

354

N/A

ILG8SF12V

12″

1/20

0.60

1625

Sleeve

5.9

772

418

N/A

ILG8SF16V

16″

1/20

0.85

1550

Ball

6.39

1200

416

180

ILG8SF18V

18″

1/15

0.85

1075

Ball

7.4

1736

1108

N/A

ILG8SF18S

18″

1/4

3.50

1725

Ball

7.28

3852

2836

2172

ILG8SF20V

20″

1/4

2.75

1075

Ball

6.67

3368

2312

1868

ILG8SF24V

24″

1/4

2.75

1075

Ball

7

4244

2676

2220

ILG8SF30S

30″

1/3

3.30

825

Ball

7.01

5088

3432

1552

ILG8SF36S

36″

1/2

6.00

825

Ball

8.24

6128

4380

2620

OPERATING INSTRUCTIONS
  1. Keep the area free of objects that could impede air flow on both the intake and exhaust side of fan.
  2. For proper exhaust operation, a window, door, or louver should be opened for fresh air intake on the opposite side of the area to be ventilated.
  3. Turn the fan ON; the shutter will open automatically. When the unit is turned OFF, the shutter will close.
  4. Speed controllable units are designed to operate at a minimum of fifty percent line voltage.
MAINTAINANCE
  1. Disconnect power source before servicing.
  2. Periodically clean off accumulated dirt from the propeller, guard, motor, and shutter.
    Do not depend on any switch as the sole means of disconnecting power when installing or servicing. If power disconnect is not visible, utilize OSHA Lock out/Tag out procedure. Failure to do so may result in fatal electrical shock. Employ proper lock-out/tag-out procedures when performing maintenance.

TROUBLESHOOTING

Symptom

Possible Cause(s)

Solution

Excessive noise

Dry motor bearings

Re-lubricate motor bearings as per instructions  or replace motor.

Loose propeller

Tighten set screws on  propeller hub.

Bent or damaged propeller

Replace propeller

Loose guard assembly or motor fasteners.

Tighten as required to 15- 20 lbs. per inch.

Fan inoperative

Blown fuse or open circuit breaker

Replace fuse or reset circuit breaker

Defective motor

Replace motor

Switch in OFF position

Turn switch ON

Insufficient air  flow

Blocked intake or exhaust opening

Clear intake and exhaust  openings of any obstructions.
Clean motor, guard, propeller, and shutter assembly. Increase the opening of the fresh air intake.

Low voltage

Check electrical wiring.

Speed control set too low

Increase speed with controller
