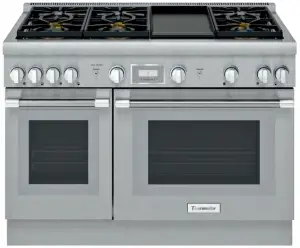

Thermador PRG486WDH Gas Pro Harmony Range with Griddle
FEATURES & BENEFITS
- – The Star® Burner delivers superior flame spread for more even heating
- – ExtraLow® feature provides a wide range of temperature control, perfect for simmering delicate sauces
- – 2 ExtraLow® burners for simmering, melting, or holding long durations
– Non-stick griddle with even heating across the entire surface
– Convection Bake offers precise multi-level baking results
TECHNICAL DETAILS
| Circuit Breaker | 20 A |
| Volts | 120 V, 60Hz |
| Energy Source | Gas |
| Plug Type USA | 120V – 3 Prong |
| Power Cord Length | 65″ (1,651mm) |
| Gas Supply | 3/4″ |
WARRANTY
| Limited Warranty, Entire Appliance, Parts and Labor | 2 Year |
RANGETOP

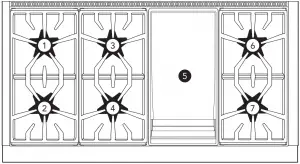

| Total number of cooktop Burners | 6 + Griddle |
| 1 – Power of Back Left Burner BTU | 15,000 and XLO |
| 2 – Power of Front Left Burner BTU | 18,000 and XLO |
| 3 – Power of Back Center Burner BTU | 15,000 |
| 4 – Power of Front Center Burner BTU | 18,000 |
| 5 – Power of Center 12″ Electric Griddle | 1,630 W (6-Pass) |
| 6 – Power of Back Right Burner BTU | 15,000 |
| 7 – Power of Front Right Burner BTU | 18,000 |
OVEN
| Oven Capacity Lg. / Sm. | 4.6 / 2.5 cu. ft. |
| Cooking Modes, Lg. Oven Bake, Convection Bake, Roast, Broil | |
| Cooking Modes, Sm. Oven Bake, Proof, Keep Warm, Roast, Broil | |
| Sabbath Lg. / Sm. | Yes / Yes |
| Self-Clean Lg. / Sm. | No / No |
| Telescopic Rack(s) Lg. / Sm. | 3 / 1 |
| Interior Lights Lg. / Sm. | 2 / 1 |
| Bake Power Lg. / Sm. | 20,500 BTU / 15,000 BTU |
| Broil Power Lg. / Sm. | 17,500 BTU / 7,000 BTU Infrared |
| Home Connect™ (Wi-Fi Enabled) | Yes, Large Oven Only |
| Lg. Cavity Interior Dimensions (HxWxD) | 16 1/2″ x 26″ x 18 5/8″ |
| Lg. Cavity Usable Dimensions (HxWxD) | 11 1/4″ x 22 3/8″ x 16 3/4″ |
| Sm. Cavity Interior Dimensions (HxWxD) | 16 1/2″ x 14 1/4″ x 18 5/8″ |
| Sm. Cavity Usable Dimensions (HxWxD) | 11 7/8″ x 10 7/8″ x 16″ |
DIMENSIONS & WEIGHT
| Overall Appliance Dimensions (HxWxD) | 35 3/4″ – 36 3/4″ x 47 15/16″ x 24 5/8″ |
| Required Cutout Size (HxWxD) | 35 3/4″ – 36 3/4″ x 48″ x 24″ |
| Net Weight | 556 lbs. |
ACCESSORIES (INCLUDED)
- 3 Telescopic Racks,
- 1 Sm. Telescopic Rack, Meat Probe,
- 1 Griddle Plate.
- 1 Grease Tray,
- 1 Lg. Broil Pan,
- 1 Sm. Broil Pan, Island Trim
ACCESSORIES (OPTIONAL)

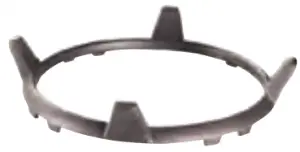

 | PWOKRINGHC Wok Ring |  | PA12CHPBLK Chopping Block / Cutting Board |

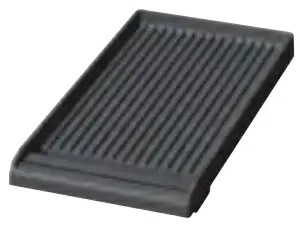

 | PAGRIDDLE Professional Griddle, Sits on Top of Grates Over 2 Star Burners, High-Release Coating |  | PA12GRILLW 12″ Pro Grill Plate with Tray, (for Griddle Models), Non-Fusion Coating |
 | PAGRIDLFW 12″ Pro Griddle with Tray, (Fusion Coating Option for Griddle Models) |  | PA12GRILFW 12″ Grill Plate with Tray (for Griddle Models), Fusion Coating |

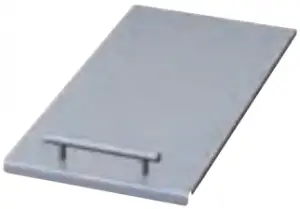

 | PA12LCVRW 12″ Professional Griddle Cover |  | PA48WLBH Pro Harmony 7″ Low Backguard* |
 | PARKB48DHY Metallic Blue Knob Kit |  | PALPKITGW LP Conversion Kit, Pro Harmony Gas Models with 4 and 6 Burners |
PAALTKITHW
High Altitude Kit, Natural Gas Pro Harmony Ranges, 5,400 ft. to 10,200 ft.
Contact Customer Support
High Altitude Kit, Gas or Dual-Fuel Pro Harmony Ranges Connected to LP Gas, 10,000 ft. to 10,200 ft.
* Models PCG305xx, PRD305xx, PRD606xx, PRG305xx, PRG304xx and PRD304xx are suitable for 0″ rear clearance to combustible surfaces. All other models: when using the included Island Trim a minimum 6″ (152 mm) rear clearance is required to a combustible surface. When installing against a combustible surface, a Thermador® Low Backguard is required for a 0″ rear clearance to the combustible surface. A Thermador Low Backguard must be purchased separately. A rear clearance to a surface covered in a noncombustible material (metal, ceramic tile, brick, marble, or stone) is 0″ when using the included Island Trim. Clearances of less than 6″ (152 mm) should be approved by the local codes and/or by the local authority having jurisdiction. Clearances from non-combustible materials are not part of the ANSI Z21.1 scope and are not certified by CSA.

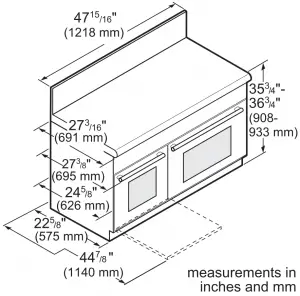

48-INCH RANGE DIMENSIONS
ELECTRICAL SUPPLY

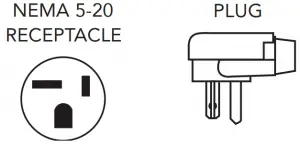

IMPORTANT: The cord supplied with gas ranges having an electric griddle requires a NEMA 5-20 receptacle as shown here. Local codes my require a different wiring method.
WARNING: This appliance is equipped with a three-prong grounding plug for protection against shock hazard and should be plugged directly into a properly grounded receptacle. DO NOT cut or remove the grounding prong from this plug. DO NOT ALTER THIS PLUG.

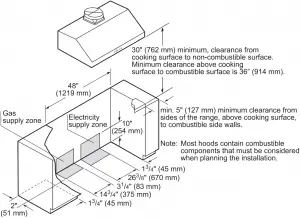

48-INCH RANGE CUTOUT DIMENSIONS
measurements in inches (mm)

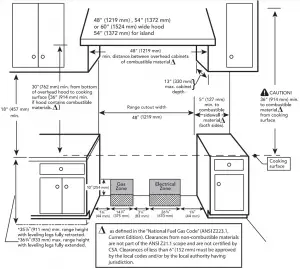

48-INCH RANGE DIMENSIONS AND CLEARANCE REQUIREMENTS

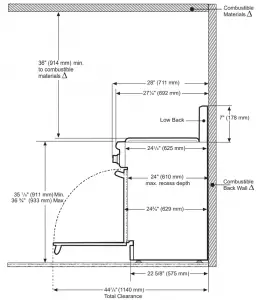

LOW BACK
NOTE: A 36-inch minimum clearance is required between the top of the cooking surface and the bottom of an unprotected cabinet. A 30-inch clearance can be used when the bottom of the wood or metal cabinet is protected by not less than 1/4 inch of a flame retardant material covered with not less than No. 28 MSG sheet steel, 0.015 inch (0.4 mm) thick stainless steel, 0.024 inch (0.6 mm) aluminum, or 0.020 inch (0.5 mm) thick copper.
As defined in the “National Fuel Gas Code” (ANSI Z223.1, Current Edition).
Clearances from non-combustible materials are not part of the ANSI Z21.1 scope and are not certified by CSA. Clearances of less than 6″ (152 mm) must be approved by the local codes and/or by the local authority having jurisdiction.

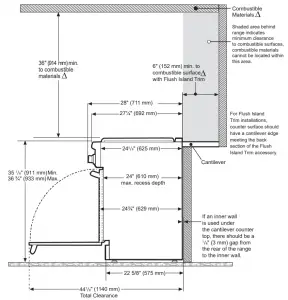

FLUSH ISLAND TRIM
These warranties give you specific legal rights and you may have other rights that vary from state to state. Full warranty and limited warranty from date of installation. For complete warranty details, refer to your Use & Care manual, or ask your dealer.
Specifications are for planning purposes only. Refer to installation instructions and consult your countertop supplier prior to making counter opening. Consult with a heating and ventilation engineer for your specific ventilation requirements. For the most detailed information, refer to installation instructions accompanying product or write to Thermador indicating the model number. Specifications are correct at time of printing. Thermador reserves the right to change product specifications or design without notice. Some models are certified for use in Canada.
Thermador is not responsible for products that are transported from the U.S. for use in Canada.
1 800 735 4328 | USA THERMADOR.COM | CANADA THERMADOR.CA | ©2020 BSH HOME APPLIANCES CORPORATION. ALL RIGHTS RESERVED.
