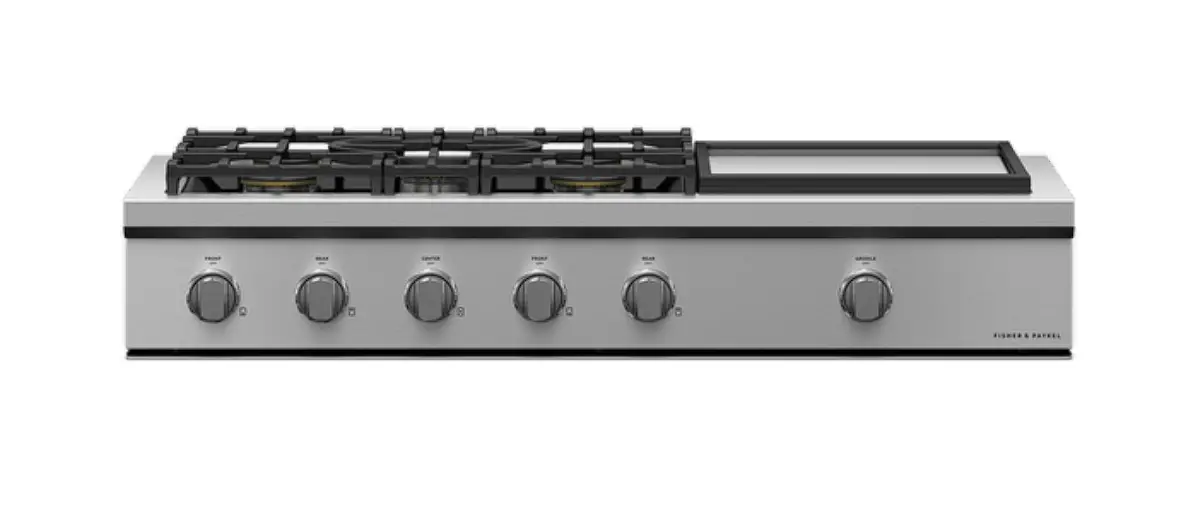

FISHER PAYKEL CPV3-485GD-N 48 Inch Griddle Gas Rangetop
A powerful five burner rangetop with Professional styling and the additional cooking flexibility of a stainless steel griddle.
- Your burners can deliver anything from very high 23,500 BTU heat for seriously fast boiling, to the most gentle flame for simmering
- Continuous surface grates designed for pots and pans to move safely across the cooktop
- The stainless steel griddle is great for cooking anything from pancakes to bacon, grilled cheese to quesadillas
- Made from quality materials and real stainless steel
DIMENSIONS
Height 8 5/16″
Width 47 7/8″
Depth 28″
FEATURES & BENEFITS
Cooktop power
Sealed Dual Flow Burners™ deliver rangetop power up to 23,500 BTU for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames.
Precise control
From the highest to the lowest temperatures you get total control with halo-illuminated rangetop dials. A precise full surface simmer is delivered across all burners.
Cooking flexibility
The continuous surface grates are designed for pots and pans to move safely across the rangetop. The deep-platform style grates provide full coverage so heat goes directly onto the pot, for a faster boil.
<<Missing Feature Title>>
These rangetops are easy to clean with sealed burners and a continuous, porcelain basepan.
Information at a glance
LED halo control dials provide information at a glance and assist in alerting you if any burners are accidentally left on.
Design quality
This rangetop is built to last with craftsmanship in every detail, featuring real stainless steel, cast-iron grates, and titanium coated dials.
SPECIFICATIONS
Burner ratings
Max burner power 23,500 BTU
Power back left 18,500 BTU
Power back right 18,500 BTU
Power front centre 23,500 BTU
Power front left 18,500 BTU
Power front right 18,500 BTU
Power griddle 24,000 BTU
Total cooktop power 121,500 BTU
Cleaning
Easy clean porcelain basepan •
Controls
Metal illuminated dials •
Star K Certification •
Titanium coated, illuminated •
Gas Requirements
Fitting and pipe ½ NPT, min. ⅝” flex line
Supply Pressure (natural gas) 6″ to 9″ W.C
Performance
Sealed Dual Flow Burners™ 5
Sealed cooking surface •
Sealed range top •
Simmer on all burners 140°F
Power requirements
Amperage 15A
Supply frequency 60Hz
Supply voltage 120VV
Product dimensions
Depth 28″
Height 8 5/16″
Width 47 7/8″
Recommended Back Guards Ventilation
Combustible situation BGCV2-3048H
Non combustible situation BGCV2-3048 / BGCV2-1248
Pro hood HCB48-12_N
Warranty
Parts and labor 2 years
Zone ratings
Front right 18500 BTU
SKU 82010
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
