QUICK REFERENCE GUIDE > CPV3-485GD-L
Gas Rangetop, 48″, Griddle,
LPG
Series 9 | Professional
Stainless Steel | LPG

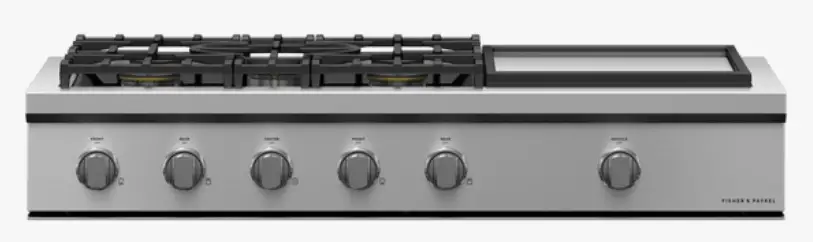

CPV3-485GD-L 48 Inch Gas Rangetop Griddle LPG
A powerful five burner rangetop with Professional styling and the additional cooking flexibility of a stainless steel griddle.
- Your burners can deliver anything from very high 19,000 BTU heat for seriously fast boiling, to the most gentle flame for simmering
- Continuous surface grates designed for pots and pans to move safely across the cooktop
- The stainless steel griddle is great for cooking anything from pancakes to bacon, grilled cheese to quesadillas
- Made from quality materials and real stainless steel
DIMENSIONS
| Height |  |
| Width | |
| Depth |
FEATURES & BENEFITS
Cooktop power
Sealed Dual Flow Burners™ deliver rangetop power up to 19,000 BTU for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames.
Precise control
From the highest to the lowest temperatures you get total control with halo-illuminated rangetop dials. A precise full surface simmer is delivered across all burners.
Cooking flexibility
The continuous surface grates are designed for pots and pans to move safely across the rangetop. The deep-platform style grates provide full coverage so heat goes directly onto the pot, for a faster boil.
<<Missing Feature Title>>
These rangetops are easy to clean with sealed burners and a continuous, porcelain basepan.
Information at a glance
LED halo control dials provide information at a glance and assist in alerting you if any burners are accidentally left on.
Design quality
This rangetop is built to last with craftsmanship in every detail, featuring real stainless steel, cast-iron trivets, and titanium coated dials.
SPECIFICATIONS
Burner ratings
| Max burner power | 19,000 BTU |
| Power back left | 11,500 BTU |
| Power back right | 11,500 BTU |
| Power centre | 19,000 BTU |
| Power front left | 15,000 BTU |
| Power front right | 15,000 BTU |
| Power griddle | 24,000 BTU |
| Total Power | 96,000 BTU |
Controls
| Metal illuminated dials | • |
| Star K Certification | • |
| Titanium coated, illuminated | • |
Gas requirements
| Fitting and pipe | ½ NPT, min. ⅝”  flex line |
| Supply Pressure (LPG) | 11″ to 14″ W.C |
Performance
| Easy clean porcelain basepan | • |
| Sealed Dual Flow Burners™ | 5 |
| Sealed cooking surface | • |
| Simmer on all burners | 140°F |
Power requirements
| Amperage | 15A |
| Supply frequency | 60Hz |
| Supply voltage | 120V |
Product dimensions
| Depth |  |
| Height | |
| Width |
Recommended back guards and ventilation
| Combustible situation | BGCV2-3048H |
| Non combustible situation | BGCV2-3048 / BGCV2-1248 |
| Pro hood | HCB48-12_N |
Warranty
| Parts and labor | 2 Years |
| SKU | 82011 |
TEST The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
