FISHER and PAYKEL CPV2-364GDL N Gas Rangetop 36Inch Griddle LPG
A powerful six burner rangetop with professional styling and the additional cooking flexibility of a stainless steel griddle.
- Your burners can deliver anything from a high 19,000 BTU heat per burner for fast boiling, to a gentle flame for simmering
- The stainless steel griddle is great for cooking anything from pancakes to bacon, grilled cheese to quesadillas

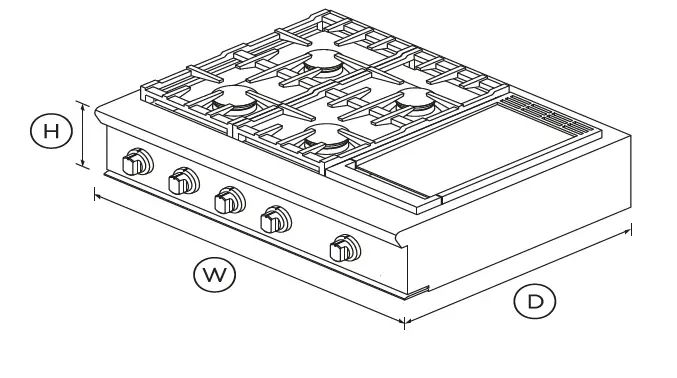

DIMENSIONS
| Height | 8 5/16″ |
| Width | 35 7/8″ |
| Depth | 28″ |
FEATURES & BENEFITS
- Perfect heat
Sealed Dual Flow Burners™ deliver rangetop power up to 23,500 BTU (NG models) for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames. - Precise control
From the highest to the lowest temperatures you get total control with halo-illuminated rangetop dials. A precise full surface simmer is delivered across all burners. - Cooking flexibility
The continuous surface grates are designed for pots and pans to move safely across the rangetop. Heavyweight stainless steel griddles can be set to desired temperatures and then maintained evenly across the entire griddle surface. - Easy cleaning
These rangetops have sealed burners and a single sheet cooking surface which, combined with a commercial-style stainless steel finish and dishwasher-safe grates, allow easy cleaning. - Information at a glance
LED halo control dials provide information at a glance and assist in alerting you if any burners are accidentally left on. - Complementary Design
Built to last with distinctive, bold styling, this rangetop is designed to match the Fisher & Paykel Professional style family of appliances.
SPECIFICATIONS
Burner ratings
| Max burner power | 19,000 BTU |
| Power back left | 13,000 BTU |
| Power back right | 13,000 BTU |
| Power front left | 19,000 BTU |
| Power front right | 15,000 BTU |
| Power griddle | 15,000 BTU |
| Total cooktop power | 75,000 BTU |
Controls
| Metal illuminated dials | • |
Gas Requirements
| Fitting and pipe | ½ NPT, min. ⅝” flex line |
| Supply Pressure (LPG) | 11″ to 14″ W.C |
Performance
| Sealed Dual Flow Burners™ | 4 |
| Sealed cooking surface | • |
| Simmer on all burners | 140°F |
Power requirements
| Amperage | 15A |
| Supply frequency | 60Hz |
| Supply voltage | 120VV |
Product dimensions
| Depth | 28″ |
| Height | 8 5/16″ |
| Width | 35 7/8″ |
Recommended Back Guards Ventilation
| Combustible situation | BGCV2-3036H |
| Minimum CFM | 600 BTU |
| Non combustible situation | BGCV2-3036 / BGCV2-1236 |
| Pro hood | VS36 / VS1236 |
| Traditional hood | ES36 |
Warranty
| Parts and labor | 2 years |
| SKU | 71387 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
