Koala Kare KB310 Replacement Handles Instructions

Hardware Provided

Step 1:

• Remove and discard the old handles and set screws.

Step 2:

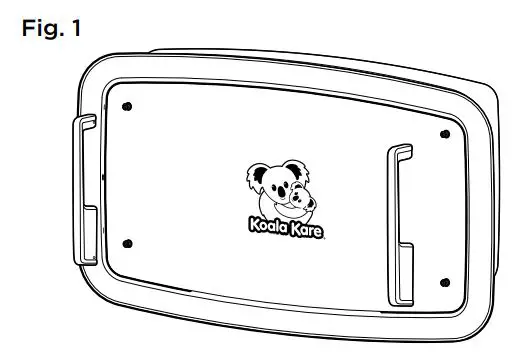

• Take the provided handles and position them over the handle mounting studs. Fig. 1

Step 3:

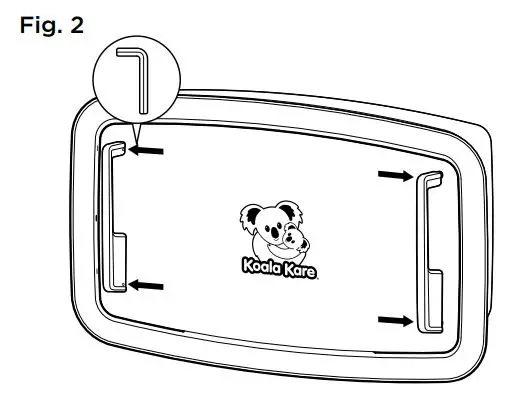

• Use provided Allen wrench to tighten the set screws in the handles, securing it to the handle mounting studs. Fig. 2

Step 4:

• Test the unit by opening and closing multiple times, ensuring it opens and closes smoothly.

Step 5:

• Clean up and close the unit.

Koala Kare Products A Division of Bobrick

6982 South Quentin Street, Centennial, CO 80112-3945 Main: 303.539.8300 | Toll Free: 888.733.3456 | Fax: 303.539.8399 Website: koalabear.com | Email: [email protected]

©2022 Koala Kare Products, P/N 310-68 January 2022

*Diagrams are not to scale.
