ARCY-Line: CADM Commercial Downlights
2-Piece Design + Adjustable Beam Angle
Owner’s Manual
Detail Specification:
- Finish: White Smooth & Clear-Specular Options
- Round or Square Trims Available
- Wet Location Rated
- Field Adjustable Beam Angle: 24-45°
- Chip: COB, R9 >50, CRI >90, UGR<16
- 3 Step MacAdam Ellipses
- Operating Temperature: -40° – 114° F
- Lens: Frosted PC, non-yellowing
- Average life (L70) of 70,000 hours
Applications:
- General Recessed Lighting
- Residential & Multifamily
- Office, Hallways and Meeting Rooms
- Education, Healthcare, Retail, Hospitality
- Commercial Lighting
Product Information:
- Metal housing and trim for better heat dissipation

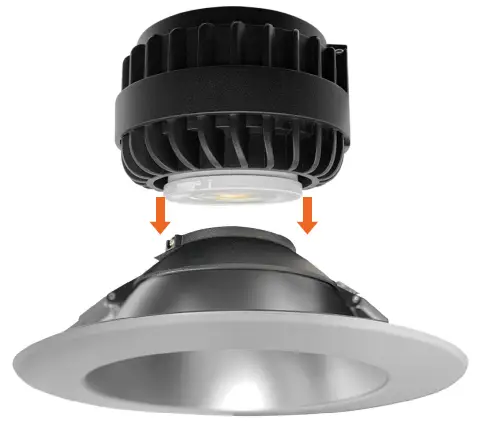

- Module twists and locks into the trim
- SnapTrim Canless: Spring clips with remote j-box eliminates can
- Deep reflector lens reduces glare and optimizes even beam distribution
- 3M20, 3M30, 3M35: Compatible with 4”, 6”, 8”, 10” Trims
- 3M55: Compatible with 6”, 8”, 10” Trims
- Select-n-Switch Technology: 5-CCT + 3-Power Selectable
Driver Options:
- 120-277V 0-10V Dimmable down to 1%
- THD: <20% (+/-5% tolerance), PF >0.9, 50/60Hz
- Built in 2.5Kv Surge Protector
- Flicker Free
Mounting & Installation:
- Cut Out Dimensions:
– 4”: 4-3/4” — 5-1/2”
– 6”: 6-1/8” – 7-3/16”
– 8”: 7-1/2” – 8-7/8”
– 10: 9” — 10” - Optional new construction plate available
- This fixture does not fit into a recessed can
- No housing needed in remodel applications, tension clips mount into 1/2″ to 1.5″ thick ceiling
- Can be removed from below the ceiling for service or replacement
- Pre-wired junction box with circuit wiring built in (3 in / 3 out)
Certifications:
- ETL Listed for USA and CA
- Energy Star Certified
- CA Title 24 JA8-2022 CEC Listed
- 5 Year Limited Warranty
- FCC CFR 47, GCC Part 15, Subpart B:2017
- 3M20 Module is IC Rated and ASTM-E283 Air-Tight
- 3M30, 3M35, 3M55 is Non-IC
- Complies with UL 263, ASTM E119, CAN ULC S101
| Modules | Voltage1 | Emergency |
| LED-CADM-3M20-5CCT 10/12/20W • 750/1,000/1,500lm LED-CADM-3M30-5CCT 20/24/30W • 1,700/2,000/2,400lm LED-CADM-3M35-35K 13/20/35W • 1,250/2,000/3,000lm LED-CADM-3M55-30K 32/40/55W • 3,200/4,000/5,000lm LED-CADM-3M55-35K 32/40/55W • 3,200/4,000/5,000lm LED-CADM-3M55-40K 32/40/55W • 3,200/4,000/5,000lm | UNV 120-1277V HV 347-480V | Emergency- |
1. HV: Step down transformer into 4” j-box
| Trim2 | Goof Ring | Emergency Backup | Junction Box | Junction Box |
| CADM-4-CSH √ 4” Round Clear-Specular Haze Reflector / White Flange CADM-4-WH 4” Round White Reflector White Flange 2 2 CADM-4-CSH-SQ 4” Square Clear-Specular Haze Reflector / White Flnge CADM-6-CSH 6” Round Clear-Specular aze Reflector / White Flage CADM-6-WH 6” Round White Reflector White Flange CADM-6-CSH-SQ 6” Square Clear-Specular Haze Reflector / White Flange CADM-8-CSH 8” Round Clear-Specular Haze Reflector / White Flange CADM-8-WH 8” Round White Reflector White Flange CADM-8-CSH-SQ 8” Square Clear-Specular Haze Reflector / White Flange CADM-10-CSH 10” Round Clear-Specular Haze Reflector / White Flang CADM-10-WH 10” Round White Reflector / White Flange | GR-4-WH 4-8” Width GR-6-WH 6.3-10” Width GR-8-WH 8-12.5” Width GR-10-WH 9-14.1” Width | CUNV-NC-ICAT-7H Universal plate w/ hanging bars CUNV-JBX-RI-XL Universal tough in plate. Extra long. C4-NC-RI-J-JBX 4” plate w/ handing bards + j-box C6-NC-RI-J-JBX 6” plate w/ handing bards + j-box C8/10-NC-RI-J-JBX 8 &10” plate w/ handing bards + j-box | LED-EMB-8W-HV0/10V-2P 8W Emergency Backup LED-EMB-15W-HV0/10V-2P 15W Emergency Backup LED-EMB-25W-HV0/10V-2P 25W Emergency Backup | JBOX-ALM Junction box with 4 ½” knockouts |
- Only compatible with 3M20 & 3M30
- Field installable. Lasts 90 minutes.
Specs and model numbers are subject to change with or without notice.

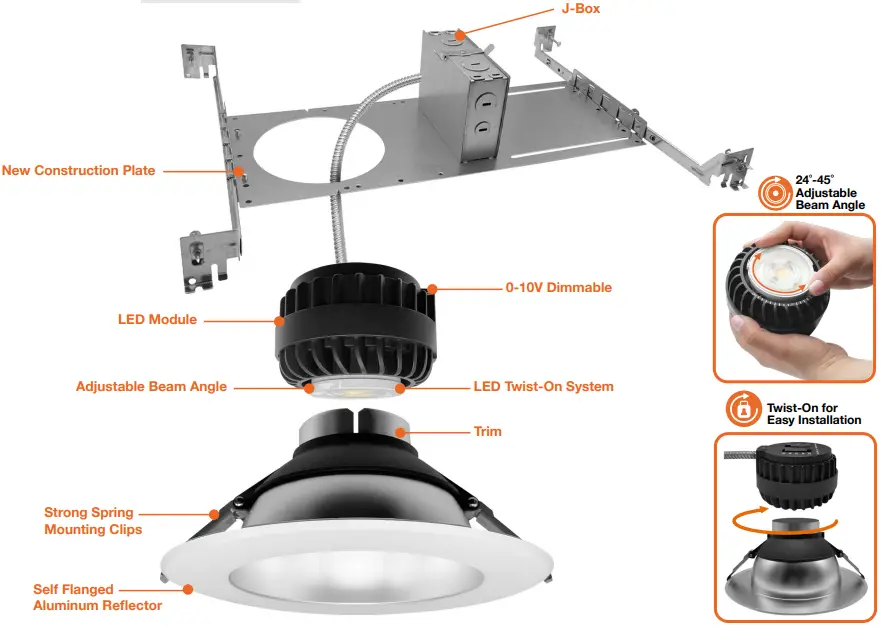

FEATURES

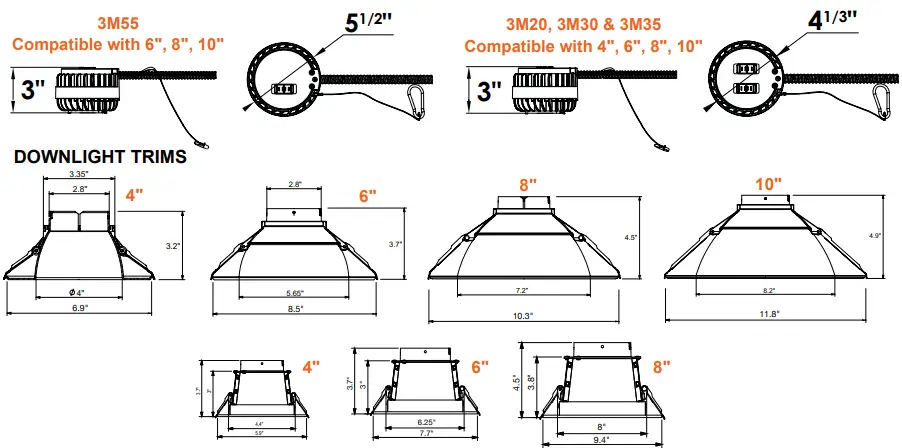

DIMENSIONS
DOWNLIGHT MODULE
3M55
Compatible with 6″, 8″, 10″
ACCESSORIES
DOWNLIGHT MODULE
| Model | Voltage | Watts | Lumens | Color | CRI |
| LED-CADM-3M20-5CCT-UNV | 120-277V | 10/12/20w | 750/1000/1500lm | 27/30/35/40/50K | >90 |
| LED-CADM-3M30-5CCT-UNV | 120-277V | 13/20/35w | 1250/2000/3000lm | 27/30/35/40/50K | >90 |
| LED-CADM-3M35-35K-UNV | 120-277V | 13/20/35w | 1250/2000/3000lm | 3500k | >90 |
| LED-CADM-3M55-30K-UNV | 120-277V | 32/40/55w | 3200/4000/5000lm | 3000k | >90 |
| LED-CADM-3M55-35K-UNV | 120-277V | 32/40/55w | 3200/4000/5000lm | 3500k | >90 |
| LED-CADM-3M55-40K-UNV | 120-277V | 32/40/55w | 3200/4000/5000lm | 4000k | >90 |
TRIMS
| Model | Description |
| CADM-4-CSH | 4” Round Clear-Specular Haze Reflector / White Flange |
| CADM-4-WH | 4” Round White Reflector / White Flange |

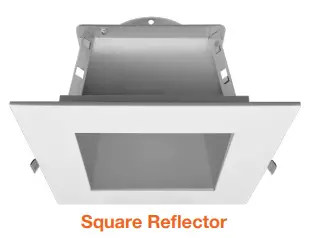

| CADM-4-CSH-SQ | 4” Square Clear-Specular Haze Reflector / White Flange |
| CADM-6-CSH | 6” Round Clear-Specular Haze Reflector / White Flan |
| CADM-6-WH | 6” Round White Reflector / White Flange |
| CADM-6-CSH-SQ | 6” Square Clear-Specular Haze Reflector / White Flange |
| CADM-8-CSH | 8” Round Clear-Specular Haze Reflector / White Flange |
| CADM-8-WH | 8” Round White Reflector / White Flange |
| CADM-8-CSH-SQ | 8” Square Clear-Specular Haze Reflector / White Flange |
| CADM-10-CSH | 10” Round Clear-Specular Haze Reflector / White Flange |
| CADM-10-WH | 10” Round White Reflector / White Fla |
GOOF RING
| Accessory Model | Description |
| GR-4-WH | 4″ Goof Ring, Inner Dim: 6.3″ Outer Dim: 10.5″ |
| GR-6-WH | 6″ Goof Ring, Inner Dim: 6.3″ Outer Dim: 10.5″ |
| GR-8-WH | 8″ Goof Ring, Inner Dim: 8″ Outer Dim: 12.5″ |
| GR-10-WH | 10″ Goof Ring, Inner Dim: 9″ Outer Dim: 14.1″ |

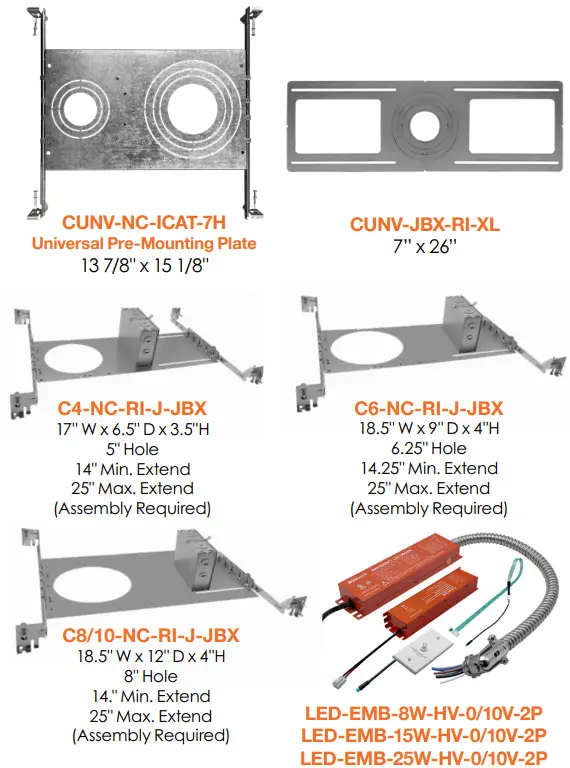

NEW CONSTRUCTION PLATES
| Accessory Model | Description |
| CUNV-NC-ICAT-7H | Universal plate w/ hanging bars |
| CUNV-JBX-RI-XL | Universal tough in plate. Extra long |
| C4-NC-RI-J-JBX | 4” plate w/ handing bards + j-box |
| C6-NC-RI-J-JBX | 6” plate w/ handing bards + j-box |
| C8/10-NC-RI-J-JBX | 8 &10” plate w/ handing bards + j-box |
BATTERY BACK-UP
| Accessory | Description |
| LED-EMB-8W-HV-0/10V-2P | 8W Emergency Backup |
| LED-EMB-15W-HV-0/10V-2P | 15W Emergency Backup |
| LED-EMB-25W-HV-0/10V-2P | 25W Emergency Backup |

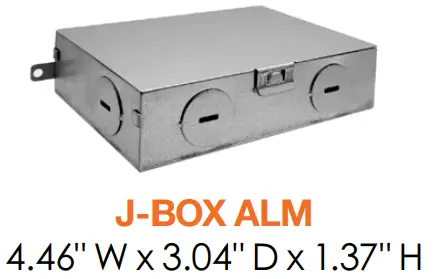

JUNCTION BOX
| Accessory | Description |
| JBOX-ALM | Junction box with 4 ½” knockouts |
TESTED COMPATIBLE DIMMERS
Other dimmers may be compatible but have not been tested.
Please contact us for more information.
| Brand | Item# |
| Synergy | ISD BC 120/277 WH |
| Eaton | SF10P-W |
| Lutron | DVSTV-WH |
| Leviton | IP710-DLZ |
| Lithonia Lighting | ISD BC 120/277 WH |
Project:__________________
Part #:__________________
Type:___________________
