Dell Inspiron 24 5415 24 Inch Touch Screen User Guide

Inspiron 24 5415
Setup and Specifications
User Guide

Inspiron 24 5415 24 Inch Touch Screen

Notes, cautions, and warnings
NOTE: A NOTE indicates important information that helps you make better use of your product.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Set up your computer

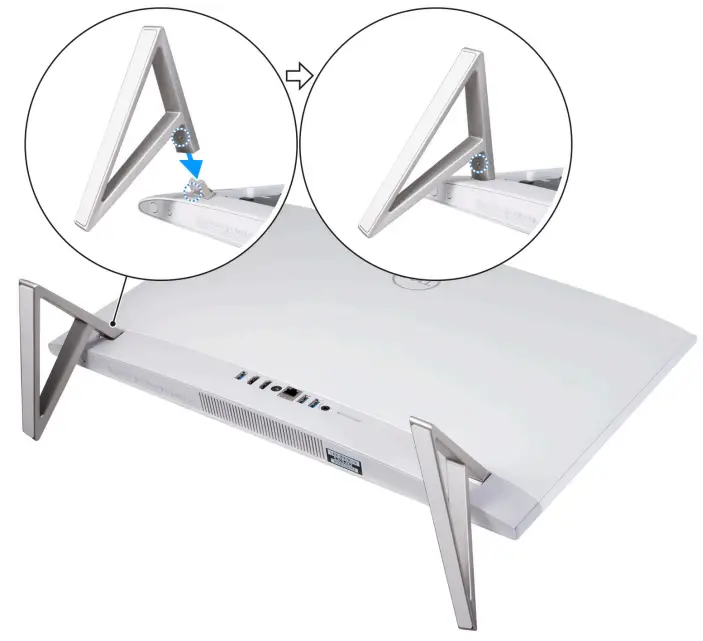

1. Set up the stand by inserting it into the slot on the back cover until it snaps into place.
2. Set up the keyboard and mouse.
   NOTE: For setup instructions, see the documentation shipped with the keyboard and mouse.

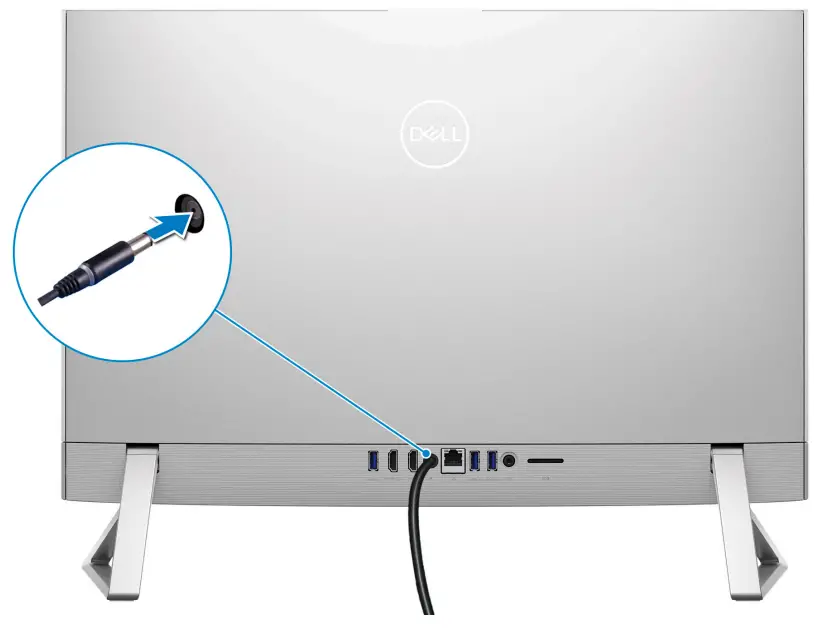

3. Connect the power cable.

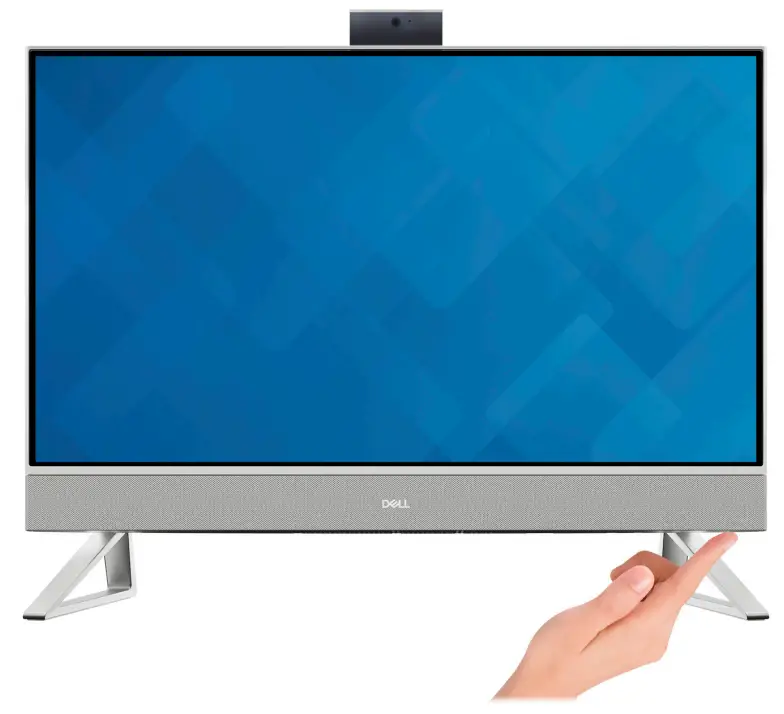

4. Press the power button.
5. Finish Windows setup.
   Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you:
   ● Connect to a network for Windows updates.
   NOTE: If connecting to a secured wireless network, enter the password for the wireless network access when prompted.
   ● If connected to the internet, sign-in with or create a Microsoft account. If not connected to the internet, create an offline account.
   ● On the Support and Protection screen, enter your contact details.
6. Locate and use Dell apps from the Windows Start menu—Recommended

Table 1. Locate Dell apps

Resources	Description
	My Dell Centralized location for key Dell applications, help articles, and other important information about your computer. It also notifies you about the warranty status, recommended accessories, and software updates if available.
	Dell Update Updates your computer with critical fixes and latest device drivers as they become available. For more information about using Dell Update, see the knowledge base article 000149088 at www.dell.com/support.
	Dell Digital Delivery Download software applications, which are purchased but not preinstalled on your computer. For more information about using Dell Digital Delivery, see the knowledge base article 000129837 at www.dell.com/support.
	SupportAssist SupportAssist proactively and predictively identifies hardware and software issues on your computer and automates the engagement process with Dell Technical support. It addresses performance and stabilization issues, prevents security threats, monitors, and detects hardware failures. For more information, see SupportAssist for Home PCs User’s Guide at www.dell.com/serviceabilitytools. Click SupportAssist and then, click SupportAssist for Home PCs. NOTE: In SupportAssist, click the warranty expiry date to renew or upgrade your warranty.

Views of Inspiron 24 5415

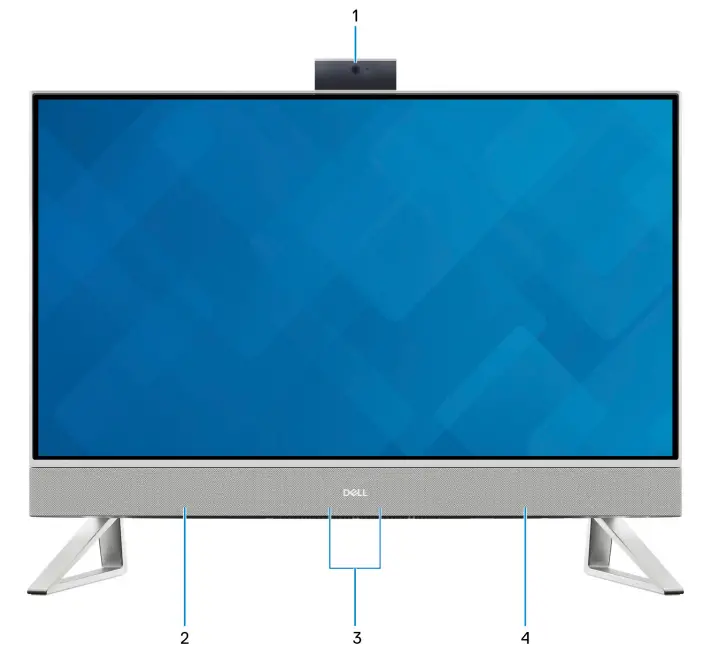

Front

1. Retractable-camera assembly
   Enables you to videochat, capture photos, and record videos. This camera can be retracted to protect your privacy.
2. Left speaker
   Provides audio output.
3. Digital-array microphones (2)
   Provide digital sound input for audio recording, voice calls, and so on.
4. Right speaker
   Provides audio output.

Retractable camera

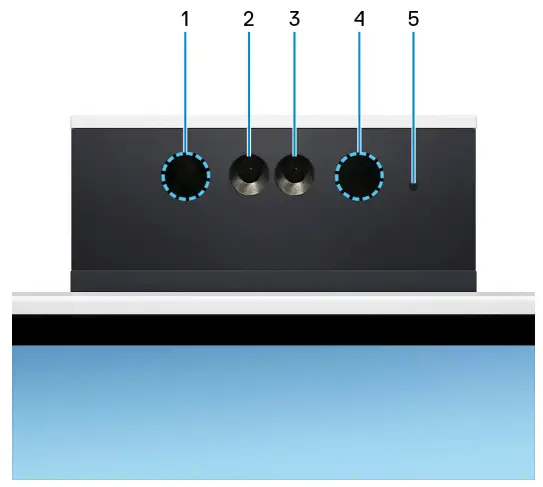

Retractable camera for computers shipped with IR camera

1. Infrared emitter
   Emits infrared light, which enables the infrared camera to sense and track motion.
2. Infrared camera
   Enhances security when paired with Windows Hello face authentication.
3. Camera
   Enables you to video chat, capture photos, and record videos.
4. Infrared emitter
   Emits infrared light, which enables the infrared camera to sense and track motion.
5. Camera-status light
   Turns on when the camera is in use.

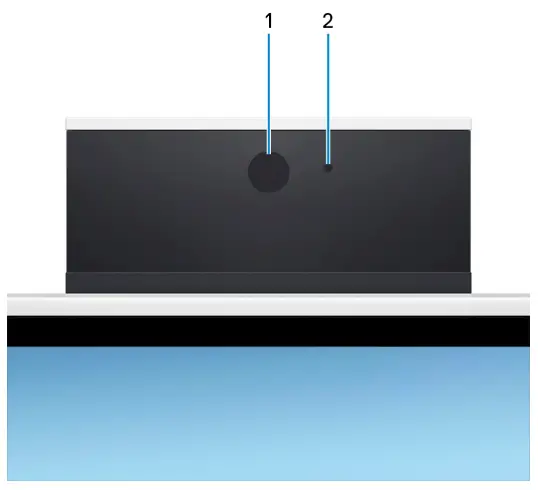

Retractable camera for computers shipped with FHD camera

1. Camera
   Enables you to video chat, capture photos, and record videos.
2. Camera-status light
   Turns on when the camera is in use.

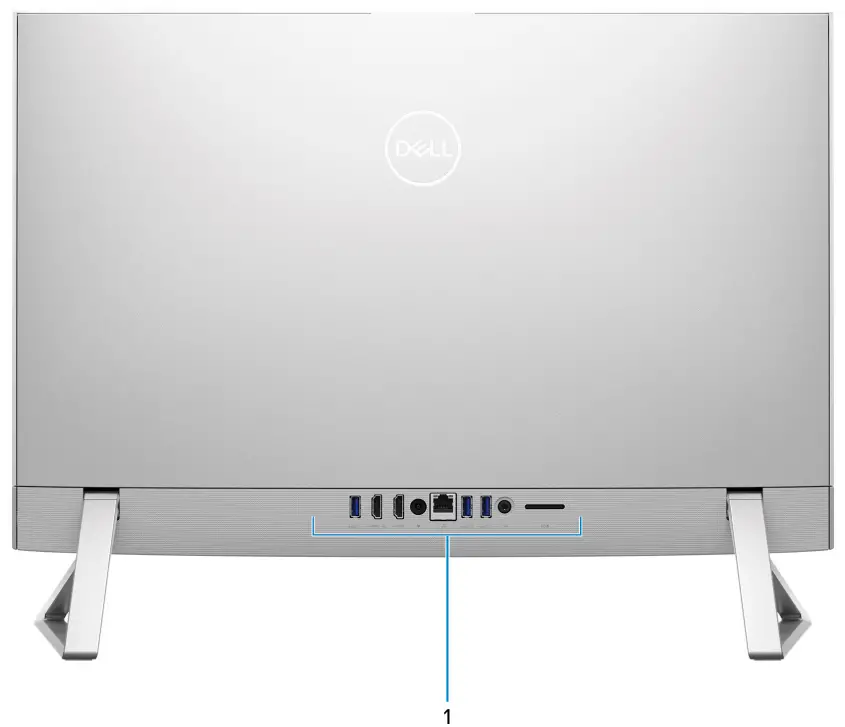

Back

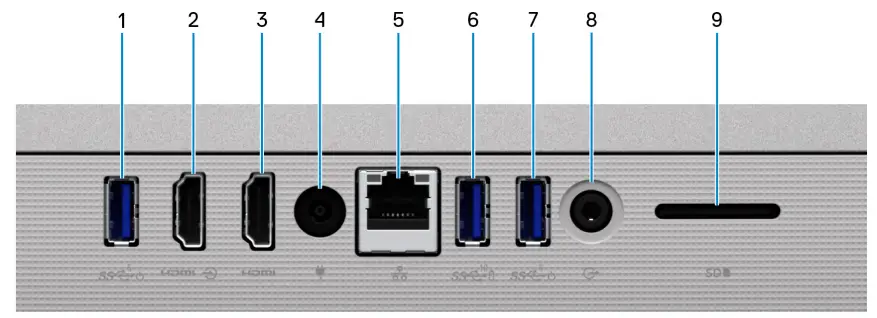

1. Back panel
   Connect USB, audio, video, and other devices.
   For more information on the rear ports, see Back panel.

1. USB 3.1 Gen 1 port with Power on/Wake-up support
   Connect peripherals such as external storage devices and printers. Provides data transfer speeds up to 5 Gbps. Wake the computer from standby with the keyboard or mouse connected to this port.
   NOTE: Set the BIOS Deep Sleep control to disabled to enable Wake up when the computer is powered off.
2. HDMI-in port
   Connect a gaming console, Blu-ray player, or other HDMI-out enabled device.
3. HDMI port
   Connect to a TV, external display or another HDMI-in enabled device. Provides video and audio output.
4. Power-adapter port
   Connect a power adapter to provide power to your computer.
5. Network port
   Connect an Ethernet (RJ45) cable from a router or a broadband modem for network or Internet access, with a transfer rate of 10/100/1000 Mbps.
6. USB 3.1 Gen 2 port with PowerShare
   Connect peripherals such as external storage devices and printers.
   Provides data transfer speeds up to 10 Gbps. PowerShare enables you to charge connected USB devices.
   NOTE: Connected USB devices will not charge when the computer is turned off. Please set BIOS Deep Sleep control to  disabled to start charging when the computer is powered off.
7. USB 3.1 Gen 1 port with Power on/Wake-up support
   Connect peripherals such as external storage devices and printers. Provides data transfer speeds up to 5 Gbps. Wake the computer from standby with the keyboard or mouse connected to this port.
   NOTE: Set the BIOS Deep Sleep control to disabled to enable Wake up when the computer is powered off.
8. Audio-out port
   Connect audio-output devices such as speakers, amplifiers, and so on.
9. SD-card slot
   Reads from and writes to the SD card. The computer supports the following card types:
   ● Secure Digital (SD)
   ● Secure Digital High Capacity (SDHC)
   ● Secure Digital Extended Capacity (SDXC)

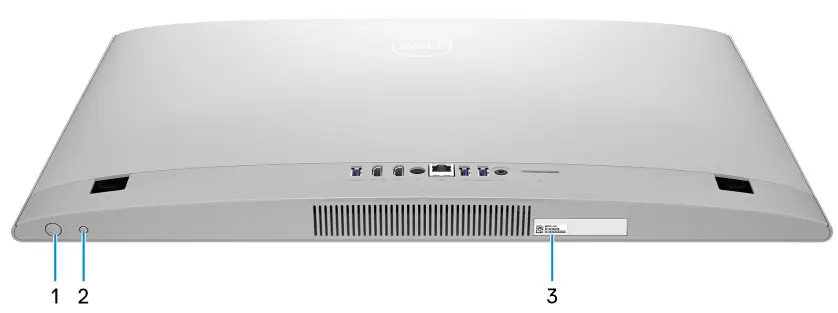

Bottom

1. Power button
   Press to turn on the computer if it is turned off, in sleep state, or in hibernate state.
   When the computer is turned on, press the power button to put the computer into sleep state; press and hold the power button for 10 seconds to force shut-down the computer.
   NOTE: You can customize the power-button behavior in Windows. For more information, see Me and My Dell at www.dell.com/support/manuals.
2. Display Built-in Self Test button
   Press to test the display.
3. Service Tag label
   The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components in your computer and access warranty information.

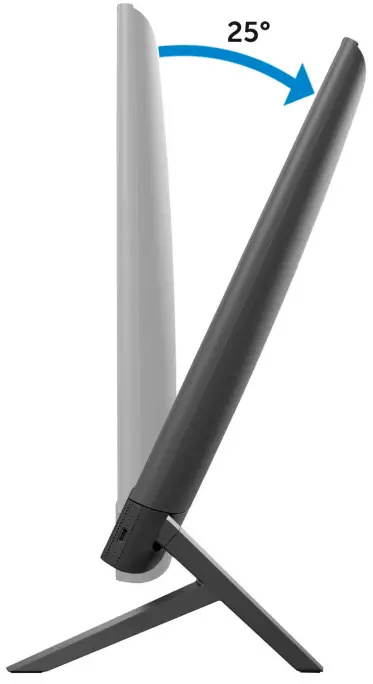

Tilt
Y stand

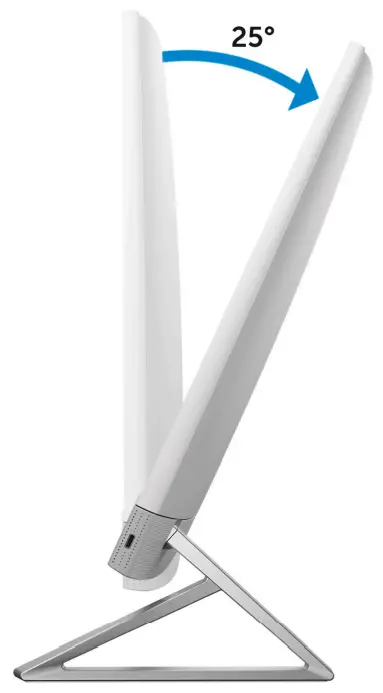

Isosceles stand

Specifications of Inspiron 24 5415

Stand
Table 2. Stand

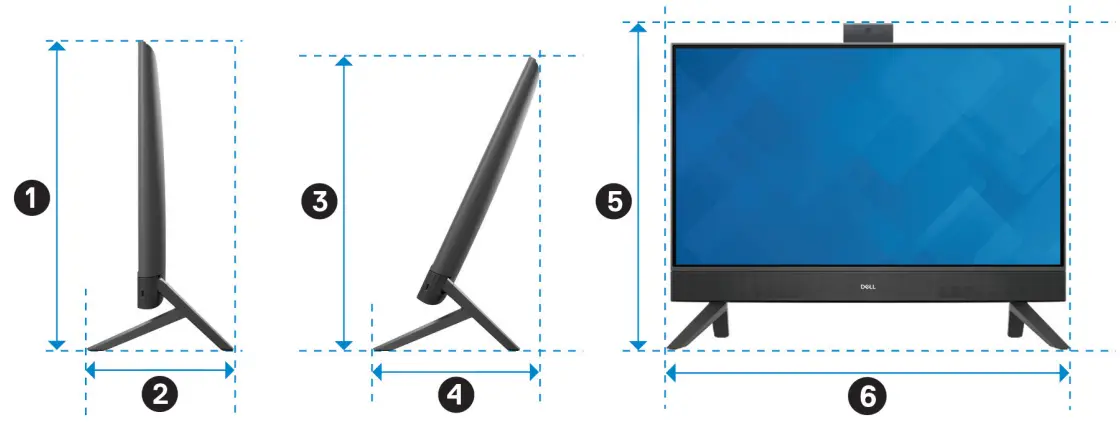

Y stand

Table 3. Y stand dimensions

Isosceles stand

Table 4. Isosceles stand

Dimensions and weight
Table 5. Computer dimensions and weight (without stand)

Description	Values
Height	358.50 mm (14.11 in.) NOTE: The height of your computer varies depending on the stand installed.
Width	542.70 mm (21.37 in.)
Depth	40.20 mm (1.58 in.)
Weight	5.42 kg (11.95 lb) – maximum for touchscreen 5.39 kg (11.88 lb) – maximum for non-touchscreen NOTE: The weight of your computer varies depending on the configuration ordered and the manufacturing variability.

Processor
The following table lists the details of the processors supported by your Inspiron 24 5415.
Table 6. Processor

Chipset
The following table lists the details of the chipset supported by your Inspiron 24 5415.
Table 7. Chipset

Operating system
Your Inspiron 24 5415 supports the following operating systems:

• Windows 11 Pro, 64-bit
• Windows 11 Home, 64-bit

Memory
The following table lists the memory specifications of your Inspiron 24 5415.
Table 8. Memory specifications

Ports and connectors
The following table lists the external and internal ports available on your Inspiron 24 5415.
Table 9. Ports and connectors

Description	Values
External:
Network	One RJ-45 port
USB	● Two USB 3.1 Gen 1 ports with Power on/Wake-up support ● One USB 3.1 Gen 2 port with PowerShare ● One USB 3.2 Gen 2 (Type-C) port
Audio	One universal audio jack
Video	●  One HDMI 1.4b port ● One HDMI-in 1.4b port
Media-card reader	One SD-card slot
Power port	One 4.5 mm x 2.9 mm DC-in adapter port
Security	Not supported
Internal:
PCIe expansion card slots	Not supported
M.2	● One M.2 2230 slot for WiFi and Bluetooth combo card ● One M.2 2230/2280 slot for solid-state drive NOTE: To learn more about the features of different types of M.2 cards, see the knowledge base article 000144170 at www.dell.com/support .

Ethernet
The following table lists the wired Ethernet Local Area Network (LAN) specifications of your Inspiron 24 5415.
Table 10. Ethernet specifications

Wireless module
The following table lists the Wireless Local Area Network (WLAN) modules supported on your Inspiron 24 5415.
Table 11. Wireless module specifications

Audio
The following table lists the audio specifications of your Inspiron 24 5415.
Table 12. Audio specifications

Table 12. Audio specifications (continued)

Storage
This section lists the storage options on your Inspiron 24 5415.
Your Inspiron 24 5415 supports one of the following storage configurations:

• One 2.5-inch hard-drive
• One M.2 2230/2280 solid-state drive
• One 2.5-inch hard-drive and one M.2 2230/2280 solid-state drive

Table 13. Storage specifications

Media-card reader
The following table lists the media cards supported by your Inspiron 24 5415.
Table 14. Media-card reader specifications

Description	Values
Media-card type	One SD-card slot
Media-cards supported	● Secure Digital (SD) ● Secure Digital High Capacity (SDHC) ● Secure Digital Extended Capacity (SDXC)
NOTE: The maximum capacity supported by the media-card reader varies depending on the standard of the media card installed in your computer.

Camera
The following table lists the camera specifications of your Inspiron 24 5415.
Table 15. Camera specifications

Display
The following table lists the display specifications of your Inspiron 24 5415.
Table 16. Display specifications

Power adapter
The following table lists the power adapter specifications of your Inspiron 24 5415.
Table 17. Power adapter specifications

Description		Values
Type		90 W
Connector dimensions:
	External diameter	4.50 mm
	Internal diameter	2.90 mm
Input voltage		100 VAC–240 VAC
Input frequency		50 Hz–60 Hz
Input current (maximum)		1.50 A
Output current (continuous)		4.62 A
Rated output voltage		19.50 VDC
Temperature range:
	Operating	0°C to 40°C (32°F to 104°F)
	Storage	-40°C to 70°C (-40°F to 158°F)
CAUTION: Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

GPU—Integrated
The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your Inspiron 24 5415.
Table 18. GPU—Integrated

Operating and storage environment
This table lists the operating and storage specifications of your Inspiron 24 5415.
Airborne contaminant level: G1 as defined by ISA-S71.04-1985
Table 19. Computer environment

Description	Operating	Storage
Temperature range	0°C to 35°C (32°F to 95°F)	-40°C to 65°C (-40°F to 149°F)
Relative humidity (maximum)	10% to 90% (non-condensing)	0% to 95% (non-condensing)
Vibration (maximum)*	0.66 GRMS	1.30 GRMS
Shock (maximum)	110 G†	160 G†
Altitude range	-15.2 m to 3048 m (-49.87 ft to 10000 ft)	-15.2 m to 10668 m (-49.87 ft to 35000 ft)
CAUTION: Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

* Measured using a random vibration spectrum that simulates user environment.
† Measured using a 2 ms half-sine pulse.

Dell ComfortView

CAUTION: Prolonged exposure to blue light, particularly from digital sources, may disrupt sleep patterns and cause long-term effects such as eye strain, eye fatigue, or damage to the eyes.
Blue light is a color in the white light spectrum which has a short wavelength and high frequency. Chronic exposure to blue light, particularly from digital sources, may disrupt sleep patterns and change our body’s Circadian rhythm. Using the computer for an extended period may also cause fatigue in other body parts such as the neck, arm, back, and shoulder.
Dell low blue light displays optimize eye comfort with a flicker-free screen. The ComfortView feature reduces the amount of blue light emitted from the monitor to optimize eye comfort. ComfortView mode can be enabled and configured using the Dell CinemaColor (DCC) application. Dell ComfortView has been certified by TÜV Rheinland as a low blue light software solution.

Dell CinemaColor
Dell CinemaColor (DCC) combines the hardware and software to deliver clear visuals that appear every bit as vibrant as the world around you. The DCC has four color profiles that optimize these settings depending on the content and your surroundings.
When you open DCC, you can choose Movie (default), ComfortView, Sports, or Animation from the list. The ComfortView Profile optimizes eye comfort with a Low Blue Light software solution that meets TÜV standards to reduce harmful blue light emissions to make extended screen time easy on your eyes compared to standard digital panels while still retaining the vibrant colors.
ComfortView mode is certified by TÜV for the effective reduction of hazardous blue light by adjusting display parameters. You can adjust the Saturation, Temperature, and Contrast values to create your custom setting in the ComfortView mode.
NOTE: For more information on DellCinema components see KB article 000178241 at https://www.dell.com/support.

ComfortView Plus
ComfortView Plus is a built-in, always-on, and virtually unnoticeable low blue light solution for Dell displays. ComfortView Plus employs a hardware-based design that allows for a wider blue spectrum, with a much lower peak and reduced intensity. Dell ComfortView Plus has been certified by TÜV Rheinland as a low blue light hardware solution. This feature is enabled at the factory.
NOTE: ComfortView Plus is an optional hardware feature to be configured at the point of sale.

To reduce the risk of eye strain, it is also recommended that you:

• Position the display at a comfortable viewing distance between 20 in. to 28 in. (50 cm and 70 cm) from your eyes.
• Blink frequently to moisten your eyes, wet your eyes with water, or apply suitable eye drops.
• Look away from your display, and gaze at a distant object at 20 ft (609.60 cm) away for at least 20 seconds during each break.
• Take an extended break for 20 minutes every two hours.

Getting help and contacting Dell

Self-help resources
You can get information and help on Dell products and services using these self-help resources:
Table 20. Self-help resources

Self-help resources	Resource location
Information about Dell products and services	www.dell.com
My Dell app
Tips
Contact Support	In Windows search, type Contact Support, and press Enter.
Online help for operating system	www.dell.com/support/windows
Access top solutions, diagnostics, drivers and downloads, and learn more about your computer through videos, manuals and documents.	Your Dell computer is uniquely identified by a Service Tag or Express Service Code. To view relevant support resources for your Dell computer, enter the Service Tag or Express Service Code at www.dell.com/support. For more information on how to find the Service Tag for your computer, see Locate the Service Tag on your computer.
Dell knowledge base articles for a variety of computer concerns	1. Go to www.dell.com/support. 2. On the menu bar at the top of the Support page, select Support > Knowledge Base. 3. In the Search field on the Knowledge Base page, type the keyword, topic, or model number, and then click or tap the search icon to view the related articles.

Contacting Dell
To contact Dell for sales, technical support, or customer service issues, see www.dell.com/contactdell.
NOTE: Availability varies by country/region and product, and some services may not be available in your country/region.
NOTE: If you do not have an active Internet connection, you can find contact information about your purchase invoice, packing slip, bill, or Dell product catalog.

Regulatory Model: W29C
Regula tory Type: W29C002
January 2022
Rev. A00
