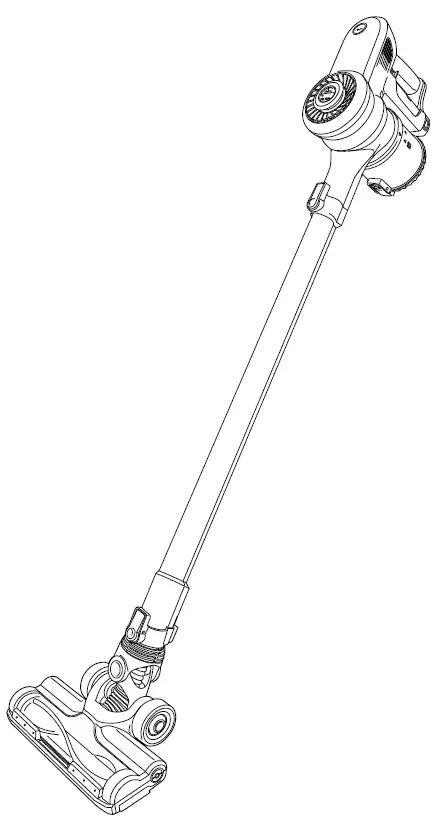

Simplicity S65 Vacuum Cleaner
ASSEMBLIES AND TOOLS
| KEY | PART NUMBER | DESCRIPTION |
| 1 | B240-0100 | Main Body (Does not include dust cup, filter cover, or filter) |
| 2 | B240-0200 | Wand |
| 3 | B240-0500 | Angle Adapter (S65, S65P) |
| 4 | B240-0300 | Upholstery Tool ( S65, S65D, S65P) |
| 5 | C240-0300 | Pet Tool Turbo Brush (S65, S65D, S65P) |
| 6 | B240-0400 | Crevice/Dusting Tool Combo( All Models) |
| 7 | C240-1000 | Bare Floor Soft Nozzle (S65, S65P) |
| 8 | C240-0600 | Carper/Bare Floor Nozzle (All Models) |
| 9 | B240-0700 | Wall Mount w/ anchors and screws |
| 10A | B240-0600 | Storage/Charging Station (S65, S65D, S65S) |
| 10B | B240-0610 | Storage Dual Charging Station (S65P) |
| 11 | C240-0100 | Battery |
| 12 | C240-0900 | Battery Charger Cord |

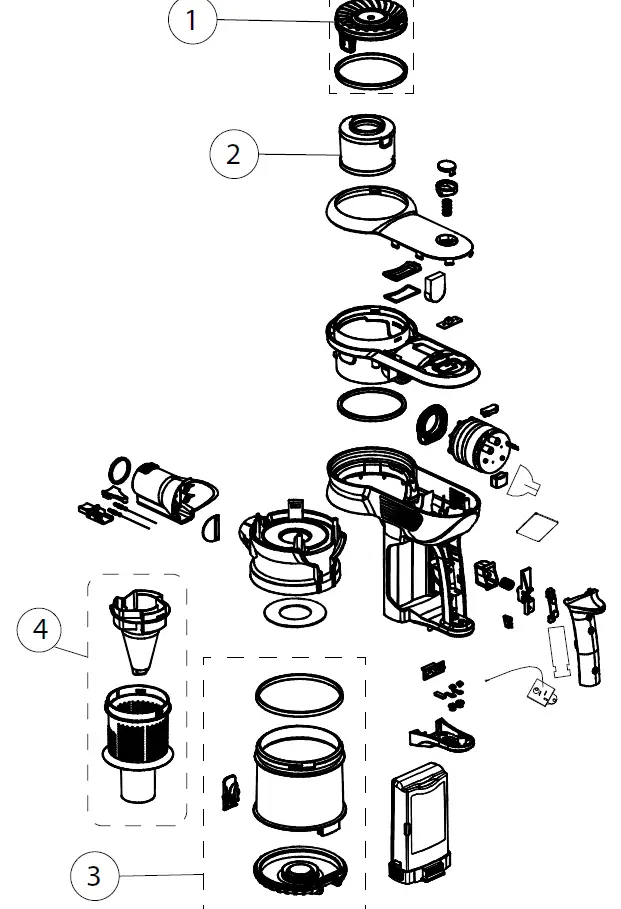

DUST CUP ASSEMBLY
| KEY | PART NUMBER | DESCRIPTION |
| 1 | C240-0200 | Filter Top Assembly |
| 2 | SF65 | Filter |
| 3 | C240-0800 | Dust Cup Assembly |
| 4 | C240-1100 | Dustcup Filter Assembly S65 |

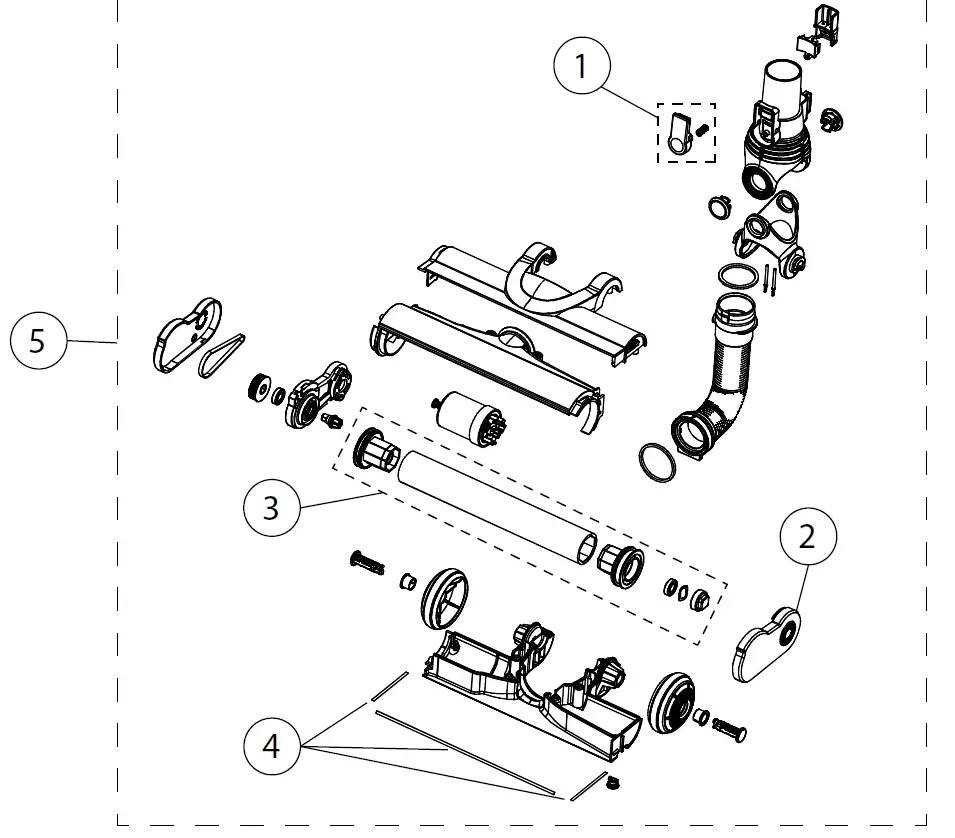

BARE FLOOR NOZZLE ASSEMBLY Simplicity Model S65, S65P
| KEY | PART NUMBER | DESCRIPTION |
| 1 | C240-0500 | Nozzle Neck Button and Spring |
| 2 | B240-0800 | Bare Floor Soft Brushroll Left Cover |
| 3 | C240-0400 | Bare Floor Soft Brushroll Assembly (Blue) |
| 4 | B240-1000 | Nozzle Felt Strips (Set) |
| 5 | C240-1000 | Bare Floor Soft Nozzle Assembly |

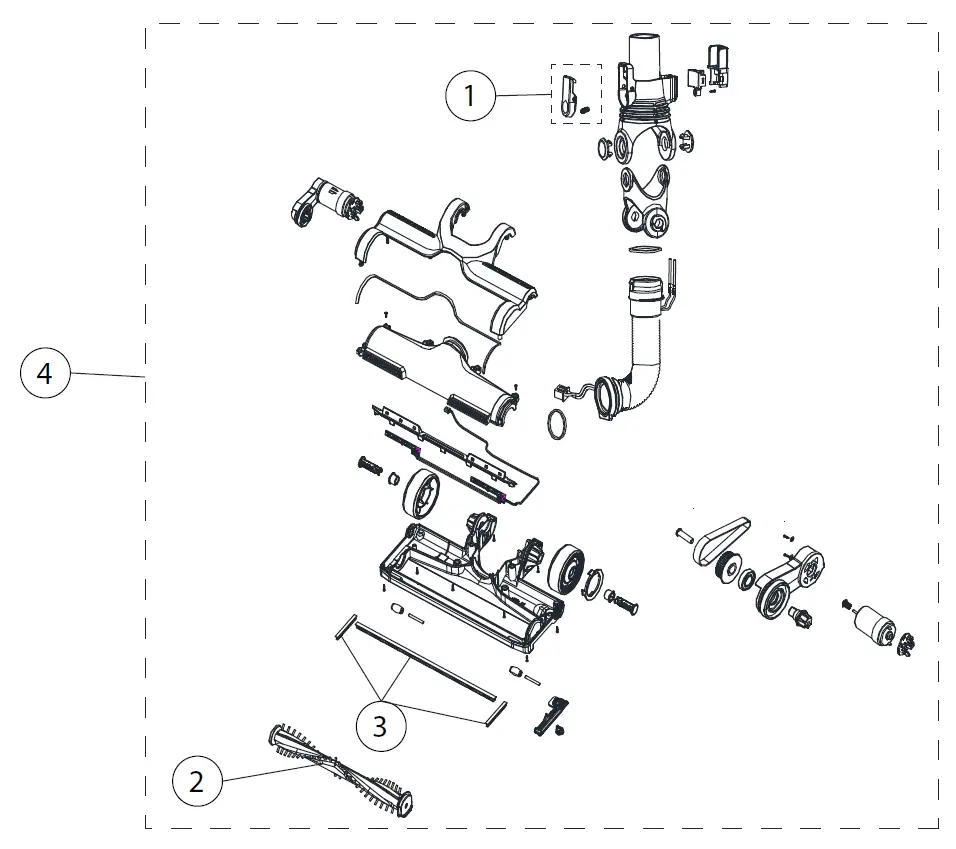

Carpet Floor Nozzle Assembly
| KEY | PART NUMBER | DESCRIPTION |
| 1 | C240-0500 | Nozzle Neck Button and Spring |
| 2 | C240-0700 | Carpet/Floor Brushroll Assembly |
| 3 | B240-1100 | Nozzle Felt Strips (Set) |
| 4 | C240-0600 | Carpet/Floor Nozzle Assembly |
