QAA AUDIO AMPLIFIERS
QAA AUDIO AMPLIFIER

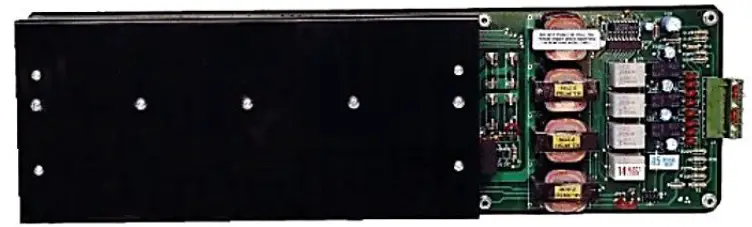

QAA-5415-70 Quad 15-Watt Amplifiers
QAA-5415-70 and QAA-5415-25 Quad 15-Watt Amplifiers

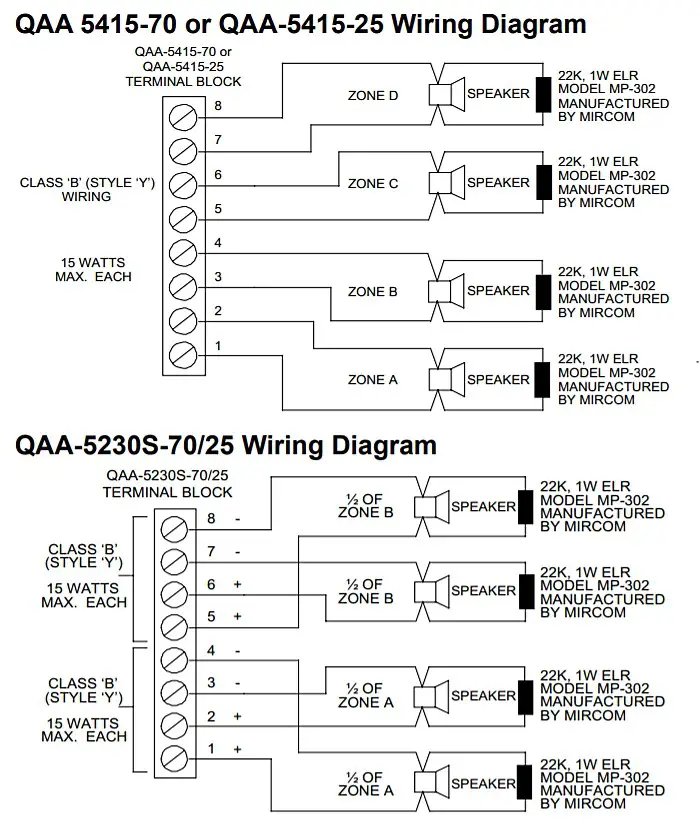

The QAA-5415-70 and QAA-5415-25 consist of four 15-watt supervised paging/speaker circuits which can be wired in Class `B’ (Style `Y’) only. The QAA-5415-70 is a 70 Volt amplifier and the QAA-5415-25 is a 25 Volt amplifier. Both models mount in either the QMB-5000N or QMB-5000B card cage and occupy one amplifier slot.
QAA-5230S-70/25 Dual 30-Watt Amplifier
The QAA-5230S-70/25 consists of two 25 or 70 Volt 30-watt amplifiers. Each amplifier has two 15-watt supervised speaker outputs which are used for `A’ `B’ speakers per floor and are wired in Class `B’ (Style `Y’) only. The QAA-5230S70/25 mounts in either the QMB-5000N or QMB-5000B card cage and occupies one amplifier slot.
QAA-5230-70/25 Dual 30-Watt Amplifier

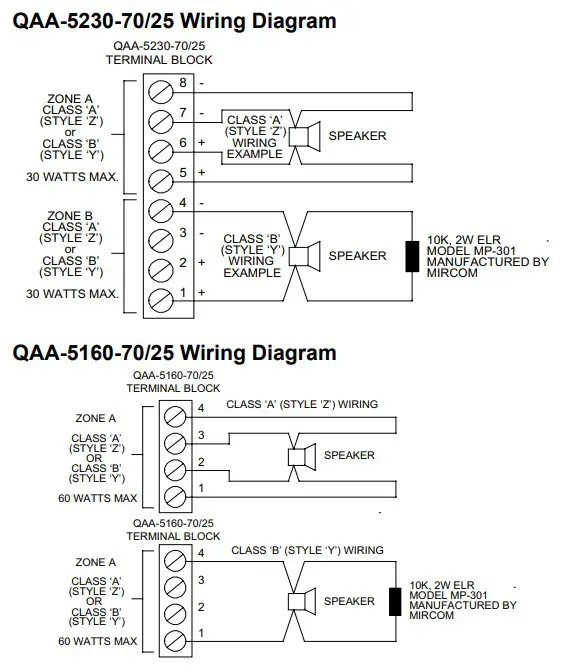

The QAA-5230-70/25 consists of two 25 or 70 Volt 30-watt supervised paging/speaker circuits which can be wired in Class `A’ (Style `Z’) or Class `B’ (Style `Y’). The QAA-523070/25 mounts in either the QMB-5000N or QMB-5000B card cage and occupies one amplifier slot.
QAA-5160-70/25 60-Watt Amplifier
The QAA-5160-70/25 consists of one 25 or 70 Volt 60-watt supervised paging/speaker circuit which can be wired in Class `A’ (Style `Z’) or Class `B’ (Style `Y’). The QAA-516070/25 mounts in either the QMB-5000N or QMB-5000B card cage and occupies one amplifier slot.
Power Consumption
| Model | Description | Standby (Amps) | Alarm (Amps) |
| QAA-5415-70 | 70 Volt Quad 15-Watt Amplifier | 0.055 | 0.35 |
| QAA-5415-25 | 25 Volt Quad 15-Watt Amplifier | 0.055 | 0.35 |
| QAA-5230S-70/25 | 25 or 70 Volt Dual 30-Watt Amplifier split ‘A’ ‘B’ circuits | 0.055 | 0.35 |
| QAA-5230-70/25 | 25 or 70 Volt Dual 30-Watt Amplifier | 0.055 | 0.35 |
| QAA-5160-70/25 | 25 or 70 Volt 60-Watt Amplifier | 0.055 | 0.35 |
Ordering Information
| Model | Description |
| QAA-5415-70 | 70 Volt Quad 15-Watt Amplifier |
| QAA-5415-25 | 25 Volt Quad 15-Watt Amplifier |
| QAA-5230S-70/25 | 25 or 70 Volt Dual 30-Watt Amplifier split ‘A’ ‘B’ circuits |
| QAA-5230-70/25 | 25 or 70 Volt Dual 30-Watt Amplifier |
| QAA-5160-70/25 | 25 or 70 Volt 60-Watt Amplifier |
Canada | U.S.A. |
THIS INFORMATION IS FOR MARKETING PURPOSES ONLY AND NOT INTENDED TO DESCRIBE THE PRODUCTS TECHNICALLY.
For complete and accurate technical information relating to performance, installation, testing and certification, refer to technical literature. This document contains intellectual property of Mircom. The information is subject to change by Mircom without notice. Mircom does not represent or warrant correctness or completeness
