FOREST DS-XL LED Strip
ASSEMBLY INSTRUCTIONS

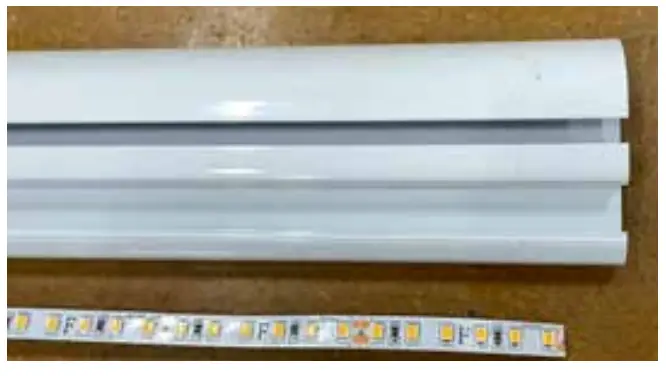

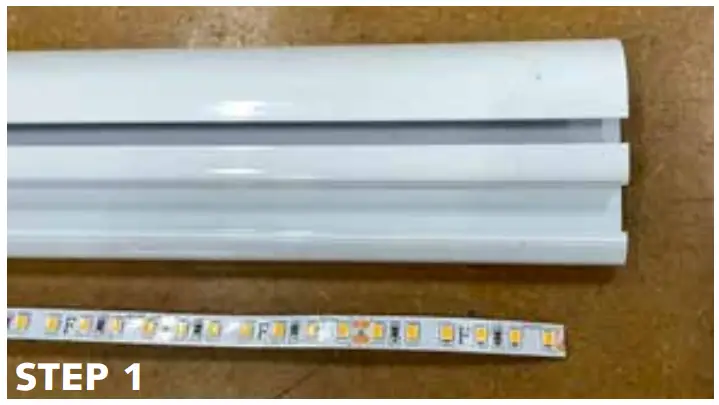

- Cut the LED strip to the desired length.

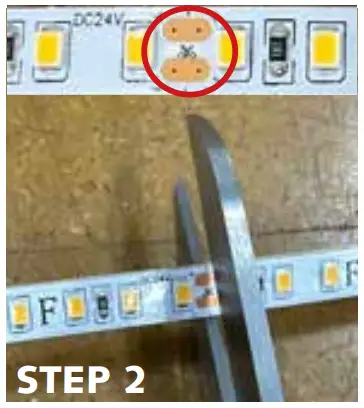

- Each 5cm there is a scissor sign.

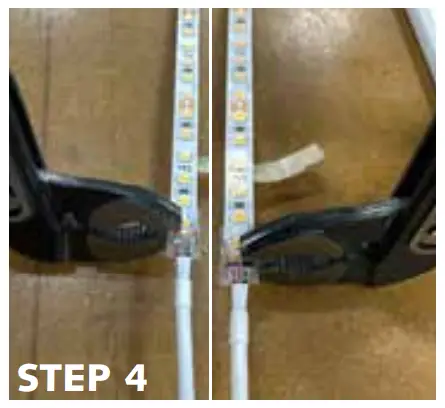

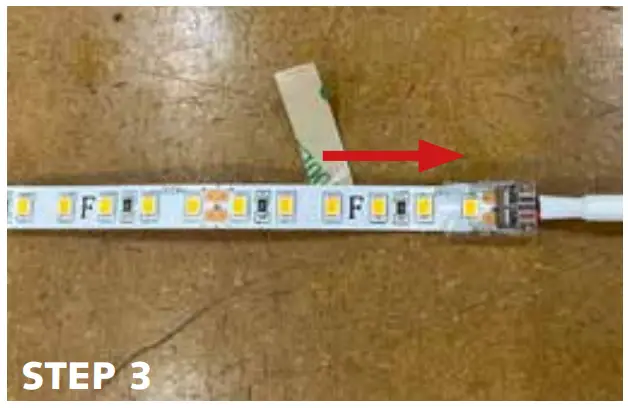

- Carefully slide the LED strip into the strip into the connector as shown above.

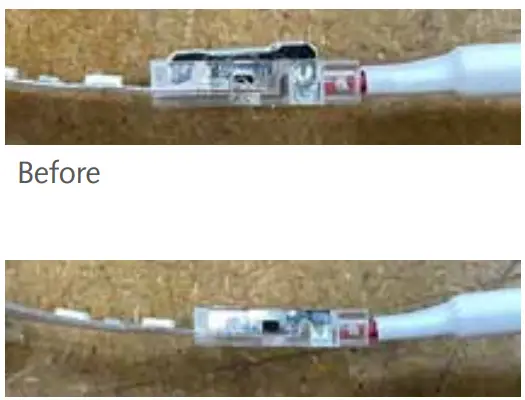

- Press the metal contacts into the connector.
After

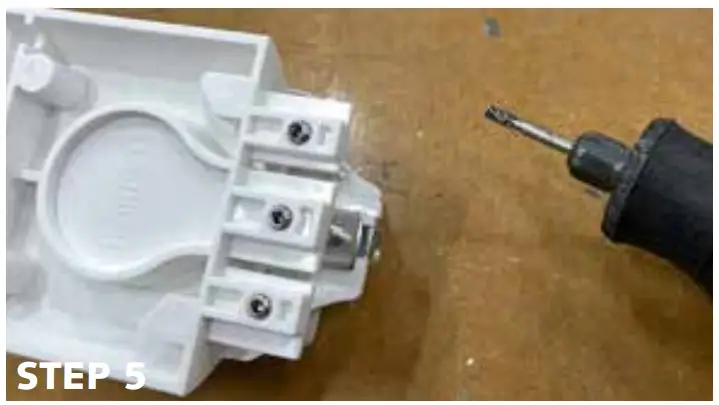

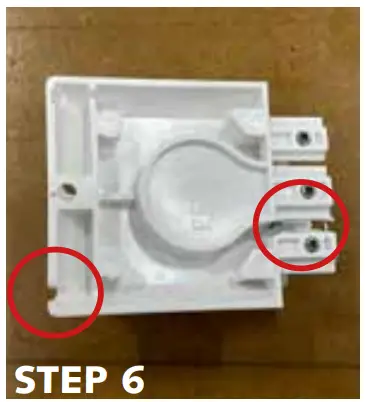

- With a rotary tool (e.g.) Dremel carve a bit of the motor pulley
- Now you have created a full opening

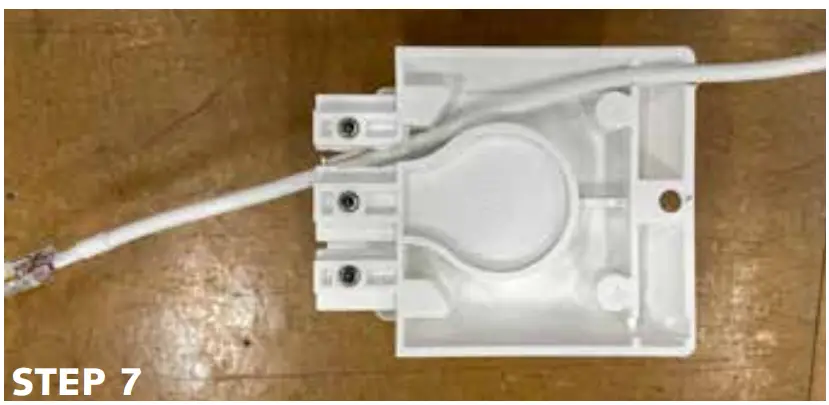

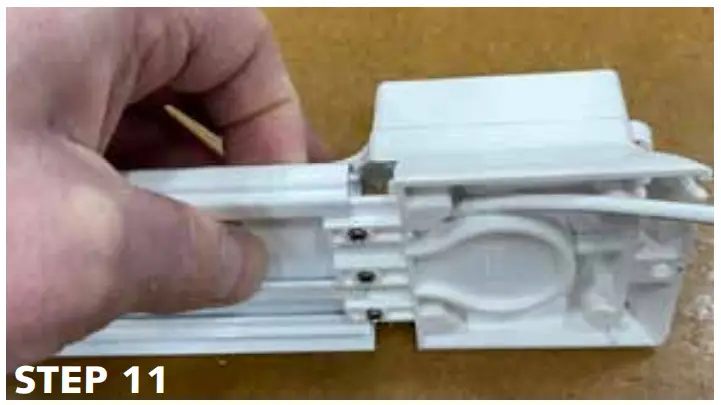

- Now guide the cable through the carved slot.

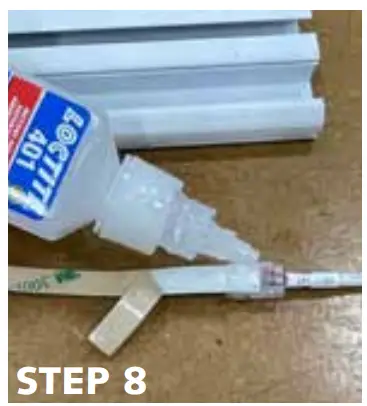

- Put a small drop of instant glue on the back of the connector.

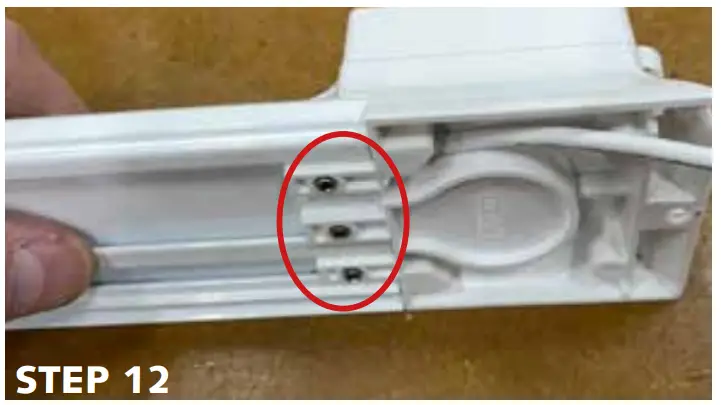

- Put the connector into the track and press the connector until the glue hardens. Take off the foil of the back of the LED strip and press the sticky strip into the track

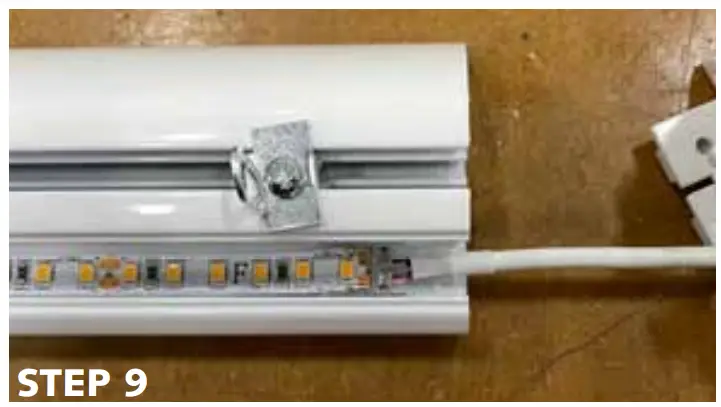

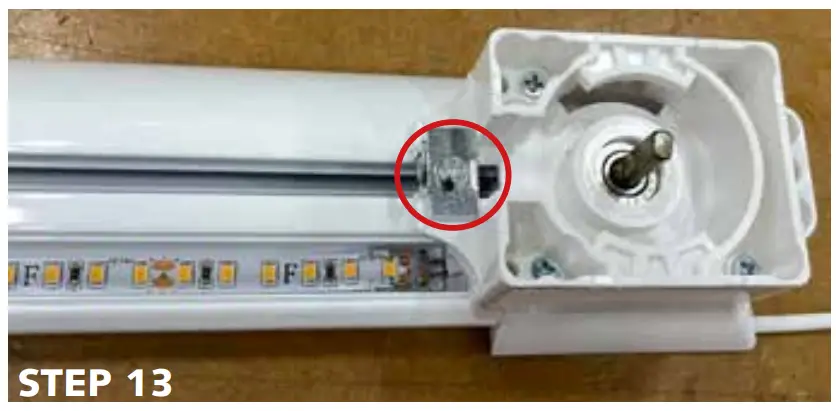

- Slide the metal clip into the track

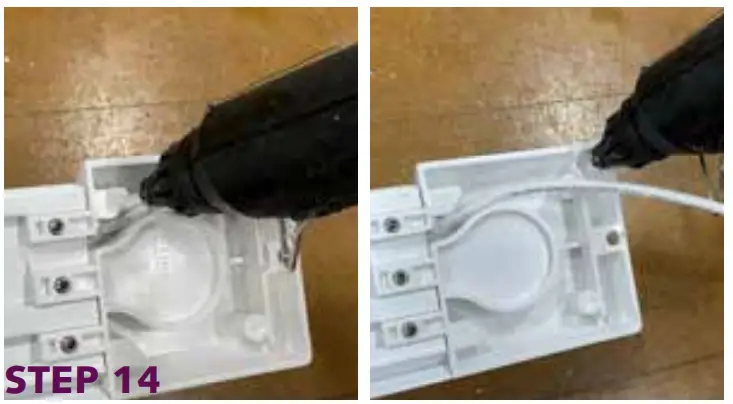

- Carefully slide the motor pulley into the track, whilst keeping the connector in place with your finger.
- Fix the motor pulley onto the track by tightening the three allen screws (not too tight).

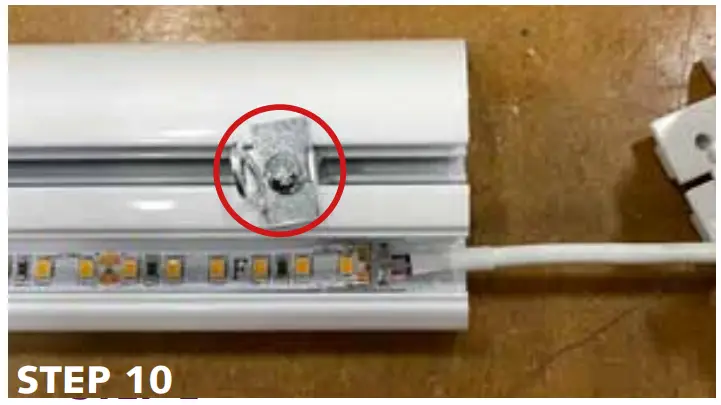

- Slide the metal clip in place and tighten the screw.
- Put a small drop of instant glue on the back of the connector.
