Your Off-Grid & Any-Grid Partner

Industry Experts

Two decades of experience as a leading provider of reliable, innovative energy solutions has earned Phocos continuous respect
from the solar industry. We have proudly grown from being ‘Your Off-Grid Partner’ to ‘Your Any-Grid Partner’ as we expand our
product offering to meet more energy access challenges in the global market today

Global Leader, Local Partner

With our headquarters in Ulm, Germany, we operate four sales, support and R&D subsidiaries and have a network of depend-able distributors worldwide. Our commitment to local service and support anywhere in the world makes Phocos much more than a supplier of components and solutions for off-grid systems. It makes us “Your Off-Grid and Any-Grid Partner.”

Rely on Phocos

Innovative
Leading in advanced technologies for clean, reliable and affordable energy.

Reliable
Setting industry standards in first-class quality and superior reliability.

Cost-Effective
Optimizing features-to-cost ratio to minimize the total cost of ownership.

Flexible
Providing power products with the flexibility to build optimal Off-Grid, On-Grid or Any-Grid installations.

Any-GridTM Applications
Our innovative technologies are used in homes, businesses and industry. Phocas offers a variety of products to support a broad range of Off-Grid, On-Grid and Any-Grid solar power applications.

Residential & Rural Electrification
High-quality energy solutions for locations and populations without access to reliable grid power

Your Off-Grid & Any-Grid Partner

Phocos Any-Grid + Any-Cell = Maximum Reliability Anywhere, Anytime, Any-Grid

• Recreation
  Supporting clean, sustainable living on the road, on the water or off the beaten path
• Solar Lighting
  Rugged, efficient and dependable solutions with advanced lighting controls
• Industry
  Reliable industrial power for remote monitoring, oil & gas, traffic signals, security and telecom towers

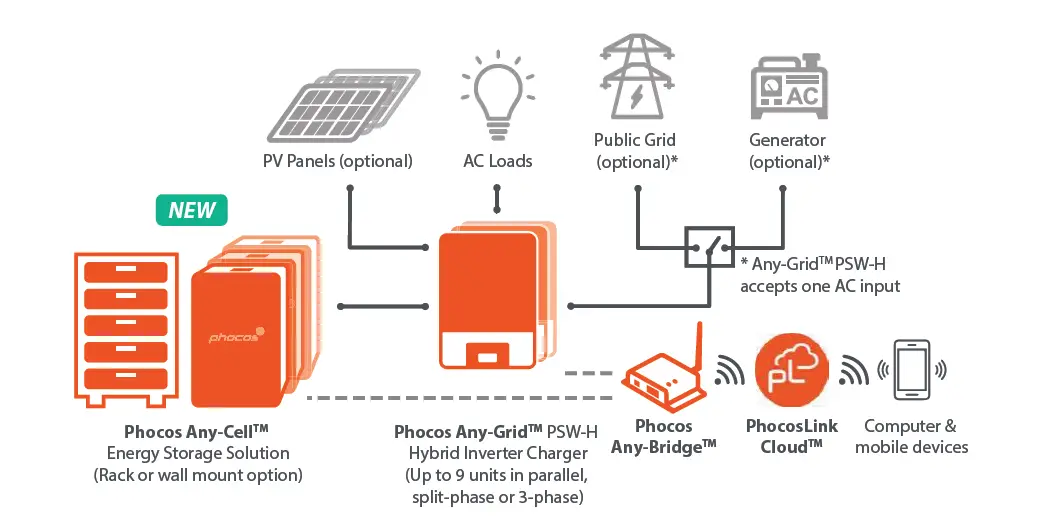

Phocos in an Any-GridTM System

Any-GridTM Hybrid Inverter Chargers

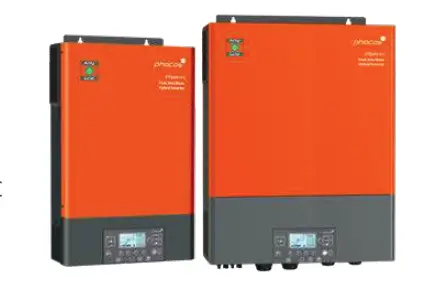

Any-GridTM PSW-H Hybrid Inverter Chargers

The Phocos Any-GridTM PSW-H Inverter Charger Series (Pure Sine Wave Hybrid) represents Phocos’ most versatile line of inverters/chargers. Flexibility and reliability are key characteristics of this product line, with a strong potential for cost saving opportunities in real world conditions. The Any-Grid PSW-H combines the functionality of an MPPT solar charge controller, inverter, uninterruptible power supply (UPS) and AC battery charger into a single, easy-to-use and simple to install unit. It acts as a power hub to manage multiple energy sources. Models available in 230 and 120 Vac.
Any-Grid PSW-H

Product Features

• 3 kW, 5 kW, 6.5 kW or 8 kW output power per model, with integrated AC battery charger
• Integrated high-voltage 80 A MPPT charge controller
• Charge controller can function even if inverter is turned off to keep batteries fully charged
• Compatible with Lithium batteries
• Detachable display / communication unit with 6 LEDs and an intuitive LCD screen
• High level of connectivity: BLE, USB-OTG (on-the-go), CAN Bus, RS-485, RS-232, relay for generator start
• Up to 9 units connectable in parallel, split-phase or 3-phase for 85.5 kW of synchronized AC power
• Datalogger with up to 60 days of data storage
• Uninterruptible power supply functionality due to 10 ms switching time (typical, UPS mode) in case of grid blackout

Any-GridTM Battery Inverter Chargers

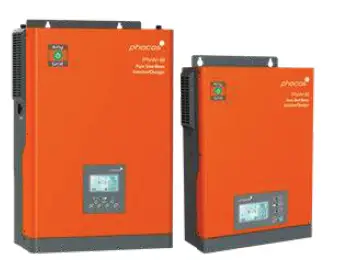

Any-GridTM PSW-B Battery Inverter Charger

• 0.5 kW, 1 kW, 1.6 kW or 3 kW output power per model
• Flexible, advanced features with options to solve many common challenges in the field
• Integrated MPPT charge controller and AC battery charger
• Charge controller functions even if inverter is turned off to keep batteries fully charged
• Compatible with Lithium batteries
• Display unit with 3 LEDs, 3/4 buttons, and an intuitive LCD screen
• RS-232 and USB connectivity
• Common negative and galvanically isolated inverter

Any-Grid PSW-B

Any-Grid PSW-B Series
is the most cost-effective entry point to all-in-one inverter chargers

Power Connections:

• Solar/PV
• AC Source
• Battery
• AC Output

Any-Grid Inverter Portfolio

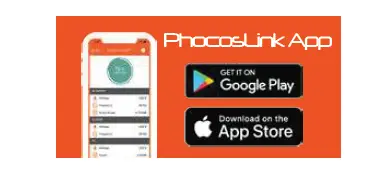

Remote System Monitoring Available

using the Any-Grid PSW-H and Phocos Any-Bridge AB-PLC-CAN

Any-CellTM LFP-Energy Storage System

What is Any-CellTM?

The Phocos Any-CellTM is a compact and modular Lithium energy storage system that complements the Any-GridTM hybrid inverter series to allow energy to be stored on site regardless of charging resources available. Combining Phocos Any-Cell energy storage with Any-Grid hybrid inverters and Any-Bridge remote monitoring provide seamless integration between power conversion and energy storage while optimizing the use of locally available energy resources. Any-Cell represents the latest in Phocos innovation, showcasing our commitment to provide flexible energy access solutions Anywhere, Anytime, Any-GridTM.

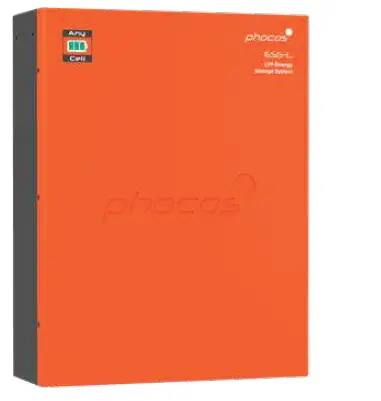

ESS-L-5kWh-48V

Product Features

• Seamless integration with Phocos Any-Grid portfolio
• Safe, maintenance-free, LiFePO4 / LFP Chemistry
• Advanced Battery Management System
• Compact, high efficiency form factor
• Modular, scalable up to 8 batteries in parallel
• Wall or Rack mount
• High efficiency and low resistance
• High charge / discharge rate
• Greater than 6,000 cycles @90% DoD

    Any-Cell ESS-L

Technical Data

Any-Cell provides seamless integration between
Phocos power conversion products and energy storage

Charge Controller Portfolio

Optimizing Energy from PV Arrays
Our MPPT (Maximum Power Point Tracking) and PWM (Pulse Width Modulation) solar charge controllers are designed with an optimal feature-to-cost ratio to minimize total cost of ownership of the off-grid system.
Our models offer these advantages:

• CML: Designed for rural electrification and mobile device charging
• ECO: Compact size and economical choice for low-power industrial applications
• CXN: Advanced features and intelligence for industry and lighting applications
• CIS: Built for the harshest environments with advanced lighting control features

MPPT Solar Charge Controllers

PWM Solar Charge Controllers
