Hatco Corporation Iwrm Series Palletti Induction Warmer Instruction Manual

IWRM Series Palletti Induction Warmer

Product Information

The product is an Induction Warmer manufactured by Hatco
Corporation. It comes in three different models: IWRM Series,
IWRM-C1-1317-06, IWRM-CD1-03, IWRM-CD1-05, IWRM-B1-1313-06, and
IWRM-B1-1313-05. The product is designed for countertop use and is
available in both international and standard models. It is equipped
with various components and replacement parts to ensure efficient
operation.

Specifications:

• Model Name: IWRM Series
• Model Numbers:
  • IWRM-C1-1317-06
  • IWRM-CD1-03
  • IWRM-CD1-05
  • IWRM-B1-1313-06
  • IWRM-B1-1313-05
  • IWRM-UX-06

Replacement Parts List:

The product comes with a list of replacement parts for easy
maintenance and repair. The parts include:

Wiring Diagram:

The product also includes a wiring diagram for easy installation
and troubleshooting.

Product Usage Instructions

1. Locate the Specification Label on the unit to determine the
   exact Model Name and electrical specifications. This information is
   necessary to identify the correct replacement parts.
2. Refer to the exploded view illustration(s) in the user manual
   to find the location of the Specification Label.
3. CAUTION: Only use replacement parts supplied
   by Hatco Corporation. Using other parts will void all warranties
   and may result in damage to the unit or injury to personnel.
4. If any component or part needs replacement, refer to the
   Replacement Parts List and note down the corresponding Item
   Description and Part No.
5. For installation and troubleshooting, refer to the Wiring
   Diagram provided.
6. Follow the wiring instructions carefully to ensure proper
   electrical connections.
7. If you are using a countertop daisy chain induction warmer
   (Models IWRM-CD1-03, IWRM-CD1-05), refer to the specific item
   descriptions and part numbers mentioned for these models.
8. For built-in induction warmers (Models IWRM-B1-1313-06,
   IWRM-B1-1313-05, IWRM-UX-06), follow the same instructions
   mentioned above, referring to the relevant item descriptions and
   part numbers.

By following these instructions, you can ensure proper usage and
maintenance of the Hatco Corporation Induction Warmer.

IMPORTANT NOTE:
Locate the Specification Label on unit to determine exact Model Name and electrical specifications. This information is needed to identify the correct replacement parts. See exploded view illustration(s) for Specification Label location.
CAUTION
Use of replacement parts other than those supplied by Hatco Corporation will void all warranties and may result in damage to the unit or injury to personnel.
Palletti®
Induction Warmers

IWRM Series

Model Name

Page

IWRM-C1-1317-06 ….. 2

Model Name

Page

IWRM-CD1-03 ………… 3

IWRM-CD1-05 ………… 3

Model Name

Page

IWRM-B1-1313-06…… 4

IWRM-B1-1313-05…… 4

IWRM-UX-06 ………….. 4

Replacement Parts List
© 2023 Hatco Corporation

Countertop Induction Warmers
Model IWRM-C1-1317-06

1

2
3 4
5 6

13 14 7

8

15

16

9

17

10 18

11

Specification Label

located on bottom

of unit.

12

Item Description 1 Top, Ceramic Glass 2 Connector Wire 3 Label, Control Panel 4 Control Board, Panel 5 Insulation, Glass 6 MICA Plate 7 Control Board, Main 8 Spacer, Nylon 9 Cooling Fan 10 USB Cable

Part No. 04.40.577.00 02.18.994.00 07.01.448.00 R02.01.574.01 05.05.552.00 02.05.1063.00 R02.01.551.03 05.30.252.00 02.12.175.00 02.18.786.00

Qty. 1 1 1 1 1 1 1 4 2 1

Item Description 11 USB Cover 12 Rubber Foot 13 Thermistor Assembly 14 Induction Coil 15 Fuse 16 Control Board, EMI 17 Cord Grip 18 Power Cord w/Plug NEMA 5-15P, 120 V
Wiring Diagram

Part No. 02.20.288.00 05.30.295.00 02.18.887.00 04.44.128.00 02.03.093.00 R02.01.565.00 02.20.447.00

Qty. 1 4 2 1 1 1 1

02.18.583.00

1

10-01-1502

NOTE: The last four digits in a ten digit numerical serial number are the manufacturing date code: 9625062004
Year 2020 Week Four

The shaded areas contain information for International models only.

2

IWRMRP-0323

Countertop Daisy Chain Induction Warmer
Models IWRM-CD1-03, IWRM-CD1-05

1

2
3 4
5 6

13
14 7

8

15

16

9

17

18 10
19

11

Specification Label

located on bottom

of unit.

12

Item Description 1 Top, Ceramic Glass 2 Connector Wire 3 Label, Control Panel 4 Control Board, Panel 5 Insulation, Glass 6 MICA Plate 7 Control Board, Main IWRM-CD1-03, 600 W, 120 V IWRM-CD1-05, 500 W, 230 V 8 Spacer, Nylon 9 Cooling Fan 10 USB Cable 11 USB Cover 12 Rubber Foot 13 Thermistor Assembly
IWRMRP-0323

Part No. 04.40.577.00 02.18.994.00 07.01.448.00 R02.01.574.01 05.05.552.00 02.05.1063.00
R02.01.551.05 R02.01.551.02
05.30.252.00 02.12.175.00 02.18.786.00 02.20.288.00 05.30.295.00 02.18.887.00

Qty. 1 1 1 1 1 1
1 1 4 2 1 1 4 2

Item Description 14 Induction Coil IWRM-CD1-03, 600 W, 120 V IWRM-CD1-05, 500 W, 230 V 15 Fuse 16 Control Board, EMI 17 Power Inlet, IEC IWRM-CD1-03, 15 A IWRM-CD1-05, 10 A 18 Circuit Breaker IWRM-CD1-03, 125 V IWRM-CD1-05, 125/250 V 19 Power Outlet, IEC IWRM-CD1-03, 15 A IWRM-CD1-05, 10 A
Wiring Diagram IWRM-CD1-03 IWRM-CD1-05

3

Part No. Qty.

04.44.128.00

1

02.10.016.00

1

02.03.093.00

1

R02.01.565.00

1

02.18.1315.00

1

02.18.1101.00

1

02.19.282.00

1

02.19.293.00

1

02.18.1314.00

1

02.18.1102.00

1

10-01-1503 10-01-1611

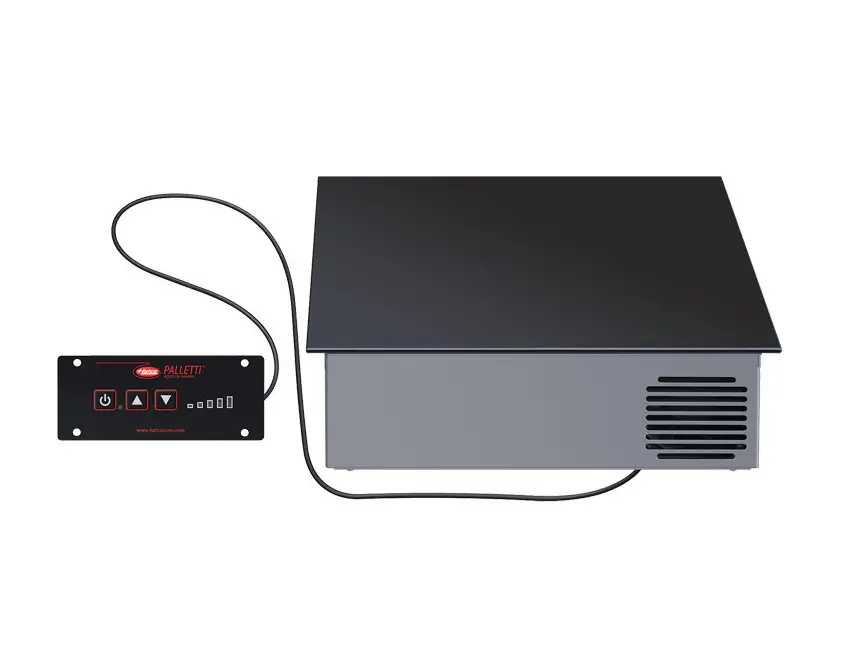

Built-In Induction Warmer
Models IWRM-B1-1313-06, IWRM-B1-1313-05. IWRM-UX-06

1 2 3 8 4 5 6 7 9
10

Specification Label located on bottom of unit.
4

11
12 13
17 14 15 16 18 19 20 21 22 23
IWRMRP-0323

Item Description

Part No.

1 Screw w/Washer, Pan Head

05.04.855.00

2 Rear Enclosure, Control Panel IWRM-B1-1313-06, -05, -06

04.44.144.00

3 Standoff

05.04.1004.00

4 Control Board, Panel

R02.01.574.01

5 Front Panel, Control Panel

04.44.143.00

6 Label, Control Panel

07.01.449.00

7 Control Cable, RJ45

02.18.1064.00

8 Control Box Kit

R04.44.143.00

9 Cooling Fan

02.12.183.00

10 Communication Cable

02.18.1054.00

11 Top, Ceramic Glass

IWRM-B1-1313-06, -05 Black White

04.40.596.00 04.40.616.00

IWRM-UX-06, Black

04.40.627.00

12 Mounting Frame

04.44.221.00

13 MICA Plate

05.05.573.00

14 Insulation, Glass

05.05.575.00

15 MICA Plate, Coil

05.05.574.00

16 Thermistor Assembly IWRM-B1-1313-06, -05 IWRM-UX-06

02.18.887.00 02.18.1111.00

17 Top Sensor Kit, IWRM-B1

R02.18.887.00

(includes Items 12, 13, 14, and 15)

Qty. 6
1 4 1 1 1 1 1 1 1 1
1 1 1 1 1 1 1
2 1 1

The shaded areas contain information for International models only.

Item Description 18 Induction Coil IWRM-B1-1313-06, 120 V IWRM-B1-1313-05, 230 V 19 Fuse 20 Control Board, EMI 21 Control Board, Main IWRM-B1-1313-06, 120 V IWRM-B1-1313-05, 230 V IWRM-UX-06 22 Power Cord w/Plug NEMA 5-15P, 120 V BS-1363, 220­240 V CEE 7/7 Schuko, 220­240 V CCC 10 A, 220­240 V AS 3112, 220­240 V 23 Cord Grip 24 Wire Harness (not shown) 25 Trim Ring (not shown)
Wiring Diagram IWRM-B1-1313-06 IWRM-B1-1313-05 IWRM-UX-06

Part No. Qty.

04.44.128.00

1

02.10.016.00

1

02.03.093.00

1

R02.01.565.00

1

R02.01.551.04

1

R02.01.551.01

1

R02.01.551.06

1

02.18.583.00

1

02.18.066.00

1

02.18.077.00

1

02.18.598.00

1

02.18.606.00

1

02.20.447.00

1

02.18.1090.00

1

04.44.305.00

1

10-01-1504 10-01-1612 10-01-1551

NOTE: The last four digits in a ten digit numerical serial number are the manufacturing date code: 9625062004
Year 2020 Week Four

IWRMRP-0323

5
