Ikea Trevlig Induction Cooker User Manual

TREVLIG

www.ikea.com

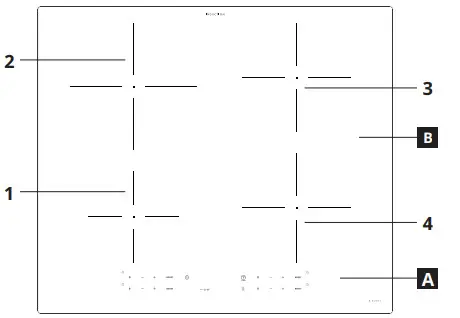

Product description

A Control panel
B Cooking zones: 1, 2, 3, 4
Pot incorrectly positioned or missing
This symbol appears if the pot is not suitable for induction cooking, is not positioned correctly, or is not of an appropriate size for the cooking zone selected. If no pot is detected within 30 seconds of making the selection, the cooking zone switches off.
H Residual heat
If the display shows “H“, the cooking zone is still hot. When the cooking zone cools down, the display goes off.

Control panel

Daily use

POSITIONING

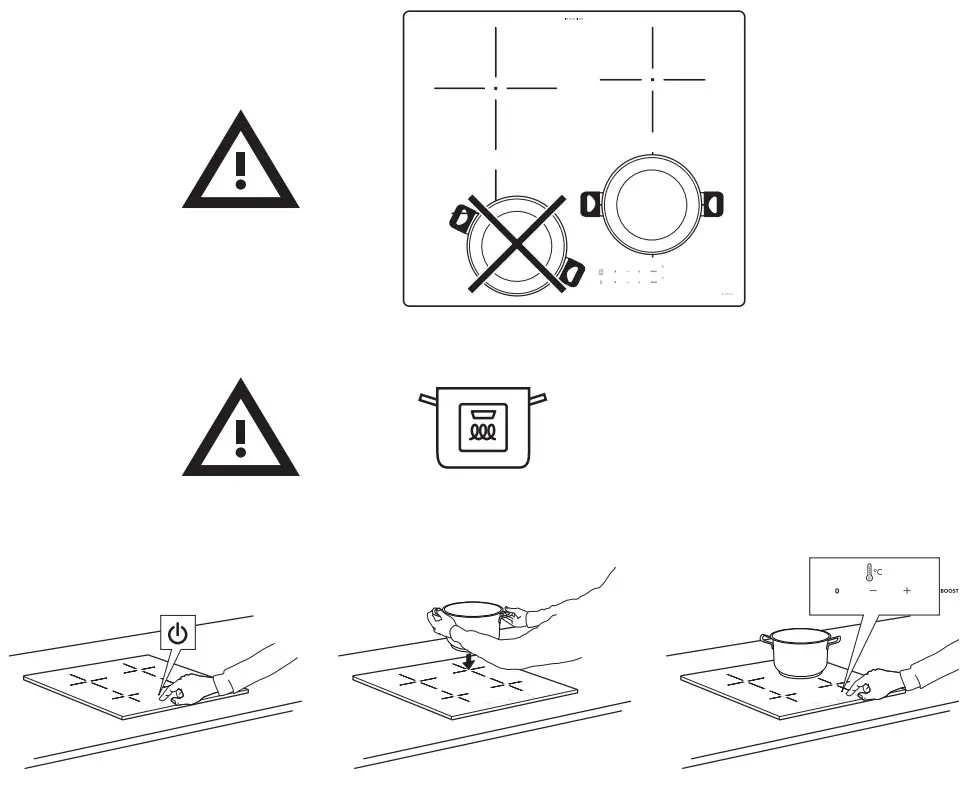

CAUTION: Never cover the control panel with cookware or any other objects otherwise the product could enter in protection mode.
To restore the working condition of the product, remove the cookware and wait at least 10 seconds before using the product.

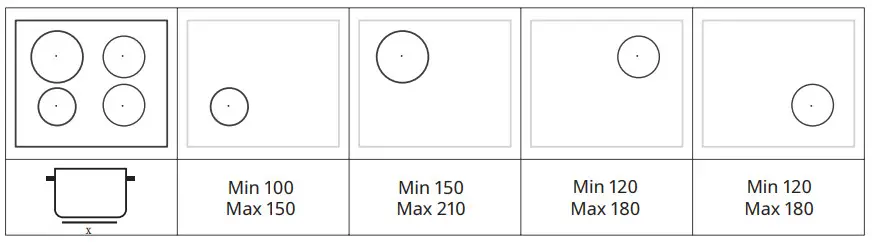

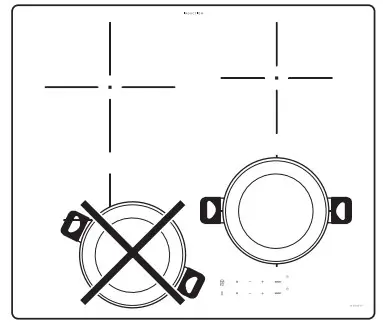

In the cooking zones close to the control panel, pots and pans must be kept inside the markings and centered within the cooking zones.
When grilling or frying, is it recommended to use the rear cooking zones.

First Use

POWER LIMITATION
At the time of purchase, the hob is set to the maximum possible power. Adjust the setting in relation to the limits of the electrical system in your home as described in the following paragraph.
NOTE: in case of activation of the max power level of 2.5 kW, some features with more power demand will be not available.
To set the power of the hob:
Once you have connected the device to the mains power supply, you can set the power level within 60 seconds.
Press the timer “+“ button for at least 5 seconds. The display shows
PL
Press the button until the last power level selected appears.

Use the “+“ and “-“ buttons to select the desired maximum power consumption of the hob. The levels available are:
2.5 kW – 4.0 kW – 6.0 kW – 7.2 kW. Confirm by pressing.
The power level selected will stay in the memory even if the power supply is interrupted.

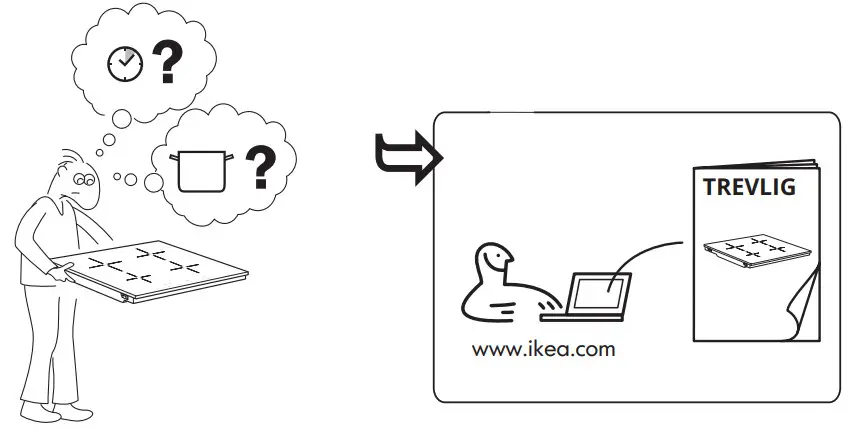

To download the full version visit www.ikea.com

Functions

CONTROL PANEL LOCK
To lock the settings and prevent it from being switched on accidentally, press and hold the OK/Keylock button for 3 seconds. A beep and a warning light above the symbol indicate that this function has been activated. The control panel is locked, with the exception of the On/Off button. To unlock the controls, repeat the activation procedure.

–+TIMER
There is one timer witch controls each cooking zones button.
To activate the timer:
Select the cooking zone, press the “+“ or “-“ button to set the desired time. An indicator light will be activated in line with the specific symbol. Once the set time has elapsed, a beep will sound, and the cooking zone will switch off automatically.
The time can be changed at any point, and several timers can be activated simultaneously.
In case the timer is activated “Zone selection indicator“ flashes and the relative cooking time selected is displayed on the central display.

To deactivate the timer:
Press the “+“ and “-“ buttons together until the timer is deactivated.
The timer is not available with auto functions.
TIMER INDICATOR
The LED of the “timer active indicator” indicates that the timer has been set for the cooking zone.

Troubleshooting

• Check that the electricity supply has not been shut off.
•  If you are unable to turn the hob off after using it, disconnect it from the power supply.
• If alphanumeric codes appear on the display when the hob is switched on, consult the following table for instructions.

Please note: The presence of water, liquid spilled from pots, or any objects resting on any of the hob buttons can accidentally activate or deactivate the control panel lock function.

Display code	Description	Possible causes	Solution
No Code	You cannot activate or operate the hob.	There is residual water or stains on the control panel.	Clean and dry the control panel.
No Code	The display does not react to touch.	Part of the display is covered or the pots are placed too near to the display.	Remove the objects. Move the pots away from the display. If the problem persists wait 10 seconds.
FOE1	Cookware is detected but it is not compatible with the requested operation.	The cookware is not well positioned on the cooking zone, or it is not compatible with one or more cooking zones.	Press On/Off button twice to remove the FOE1 code and restore the functionality of the cooking zone. Then, try to use the cookware with a different cooking zone, or use different cookware.

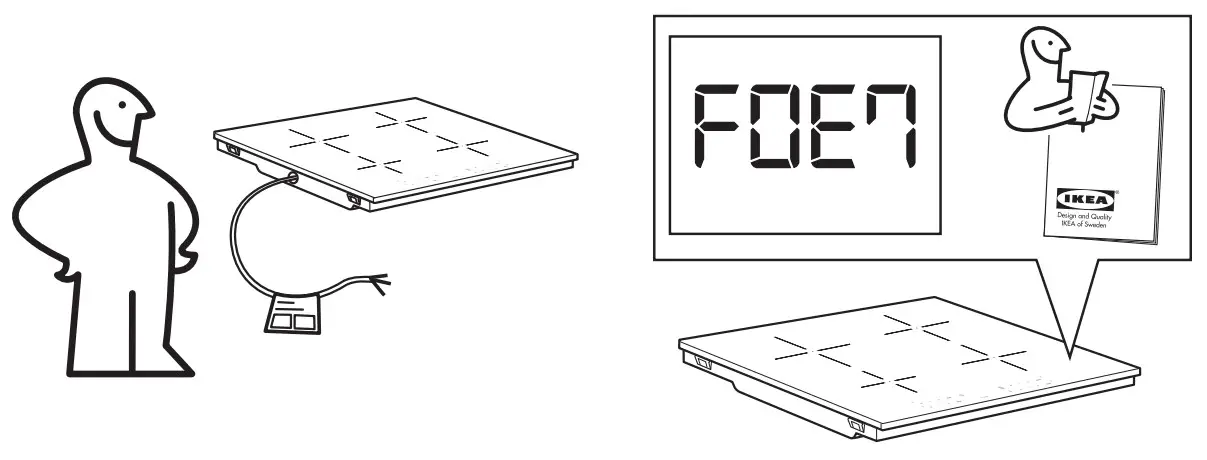

FOE7	Wrong power cord connection	The power supply connection is not exactly as indicated in the “ELECTRICAL CONNECTION” paragraph.	Adjust the power supply connection according to the “ELECTRICAL CONNECTION” paragraph.
FREE	The control panel switches off because of excessively high temperatures.	The internal temperature of electronic parts is too high.	Wait for the hob to cool down before using it again.
FOE2, FOE4, FOE6, FOES, FOEC, F1E1, F6E1, F7E5, F7E6, F2E1	Disconnect the hob from the power supply. Wait a few seconds then reconnect the hob to the power supply. If the problem persists, call the service center and specify the error code that appears on the display.
	The hob does not allow a special function to be activated.	The power regulator limits the power levels in accordance with the maximum value set for the hob.	See paragraph “Power management”.
e.g.
e.g. [Power level lower than level requested]	The hob automatically sets a minimum power level to ensure that the cooking zone can be used.	The power regulator limits the power levels in accordance with the maximum value set for the hob.	See paragraph “Power management”.

© Inter IKEA Systems B.V. 2021
