ZEPHYR AK2100CS Typhoon 42 Inch Stainless Steel Under-Cabinet Hood Instructions

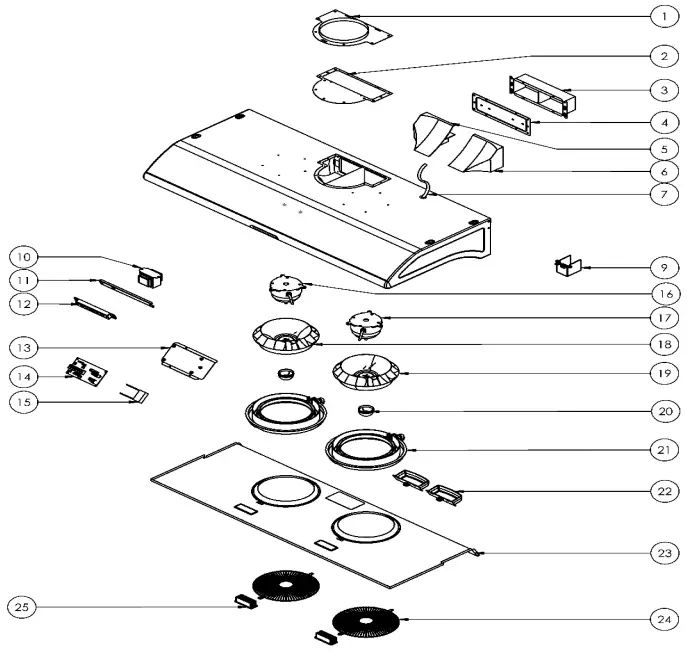

Product Description
| Ref # | Part # | Description | Qty. |
| 1 | 54050065 | 7″ Round Transition Adaptor w/ Collar | 1 |
| 2 | 54050034 | Rectangular Transition Adaptor | 1 |
| 3 | 54050010 | Rectangular Collar | 1 |
| 4 | 52170081 | Rectangular Cover Plate | 1 |
| 5 | 56090020 | Air Diverter Block, Left | 1 |
| 6 | 56090021 | Air Diverter Block, Right | 1 |
| 7 | 11030015 | Power Cord | 1 |
| 8 | 50250036 | Bull Nose, AK2100CS | 1 |
| 8 | 50250037 | Bull Nose, AK2100CB | 1 |
| 8 | 50250038 | Bull Nose, AK2100CW | 1 |
| 8 | 50250039 | Bull Nose, AK2136CS | 1 |
| 8 | 50250040 | Bull Nose, AK2136CB | 1 |
| 8 | 50250041 | Bull Nose, AK2136CW | 1 |
| 8 | 50250042 | Bull Nose, AK2142CS | 1 |
| 8 | 50250043 | Bull Nose, AK2148CS | 1 |
| 9 | 54200011 | Electrical Junction Box | 1 |
| 10 | 12110022 | Transformer | 1 |
| 11 | 54140188 | Switch Holding Bracket | 1 |
| 12 | 11000144 | Switch Assembly | 1 |
| 13 | 54140296 | Control Board Holding Bracket | 1 |
| 14 | 11010120 | Control Board | 1 |
| 15 | 12050013 | Capacitor | 1 |
| 16 | 12120024 | Motor, Left | 1 |
| 17 | 12120026 | Motor, Right | 1 |
| 18 | 54250014 | Blower Wheel, Left | 1 |
| 19 | 54250015 | Blower Wheel, Right | 1 |
| 20 | 56140010 | Blower Wheel Cap, Black | 2 |
| 20 | 56140011 | Blower Wheel Cap, White | 2 |
| 21 | 56130025 | Residue Pan | 2 |
| 22 | 56160003 | Residue Cup | 2 |
| 23 | 50130152 | Bottom Panel, AK2100CS | 1 |
| 23 | 50130153 | Bottom Panel, AK2100CB | 1 |
| 23 | 50130154 | Bottom Panel, AK2100CW | 1 |
| 23 | 50130155 | Bottom Panel, AK2136CS | 1 |
| 23 | 50130156 | Bottom Panel, AK2136CB | 1 |
| 23 | 50130157 | Bottom Panel, AK2136CW | 1 |
| 23 | 50130158 | Bottom Panel, AK2142CS | 1 |
| 23 | 50130159 | Bottom Panel, AK2148CS | 1 |
| 24 | 50220024 | Safety Grill, Stainless Steel | 2 |
| 24 | 50220025 | Safety Grill, Black | 2 |
| 24 | 50220026 | Safety Grill, White | 2 |
| 25 | Z0B0047 | LumiLight LED, 6W, DC | 2 |
| 26 | 05000148 | Hardware Packet | 1 |
