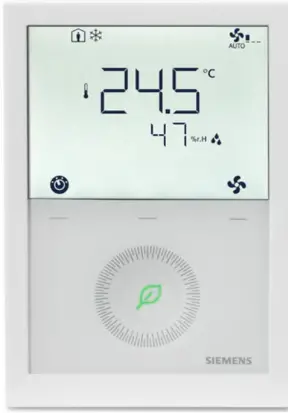

SIEMENS RDG200KN KNX Communicating Room Thermostat

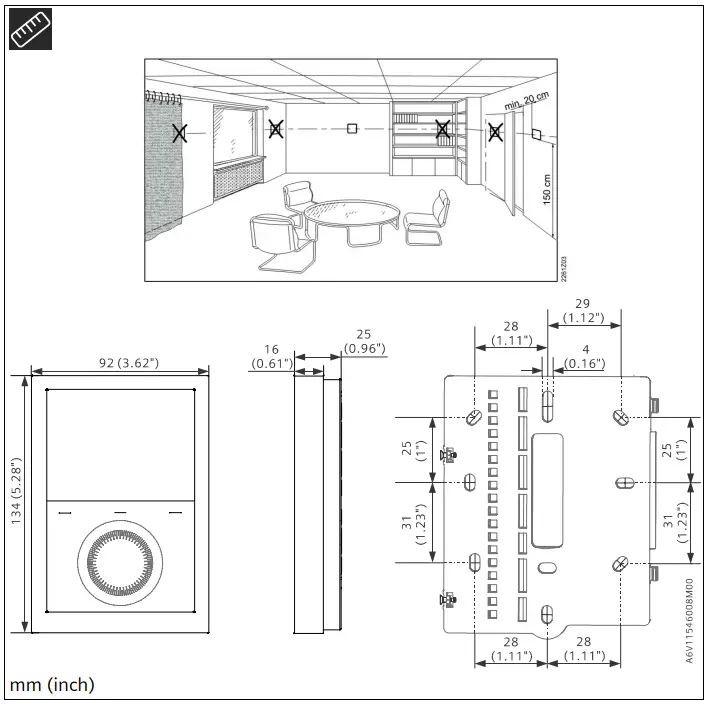

Dimension

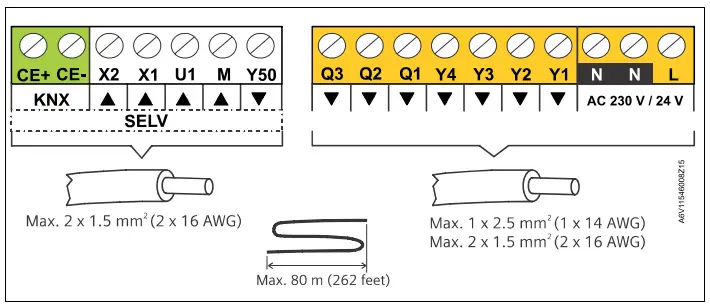

Wiring Capacity

KNX programming mode

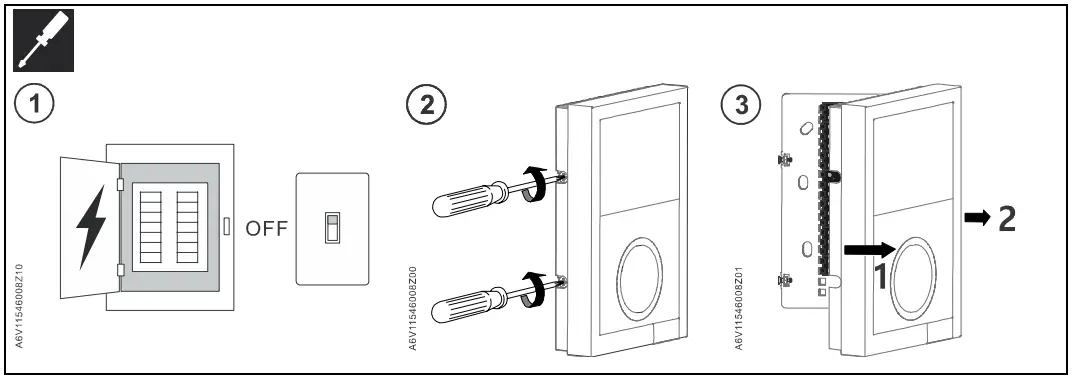

installation

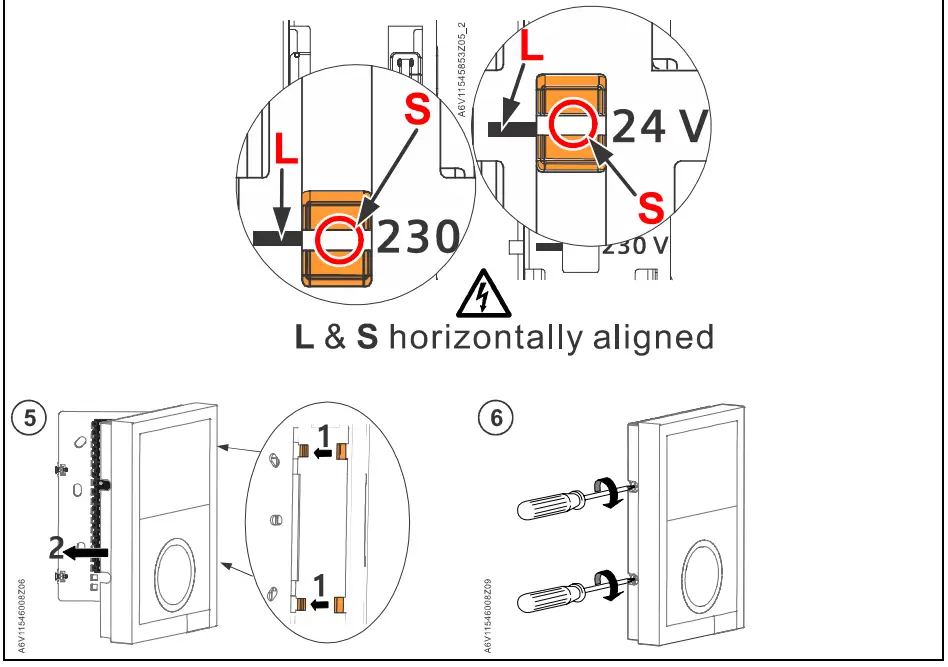

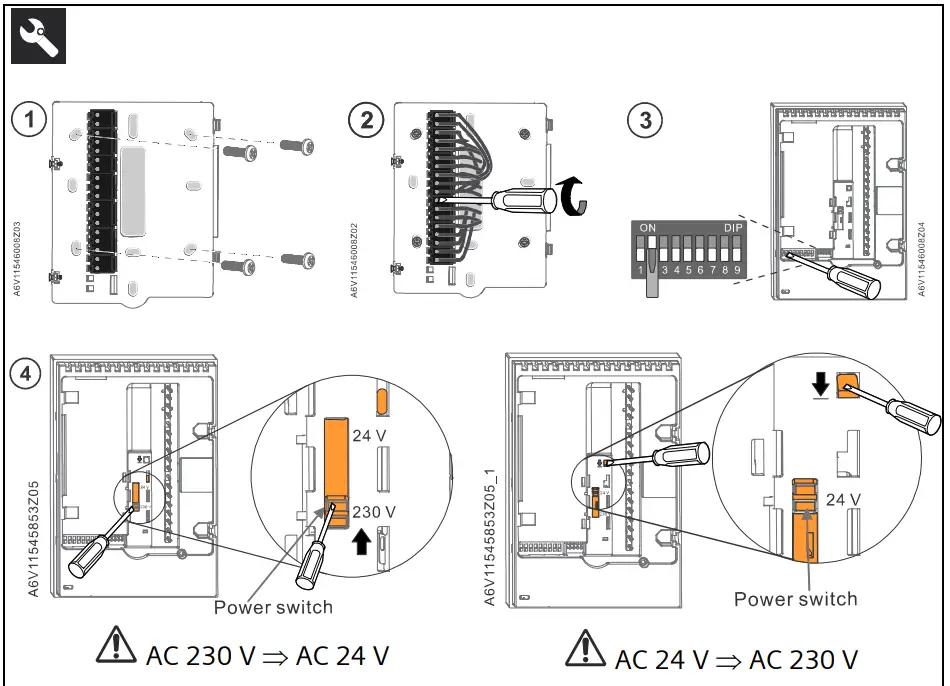

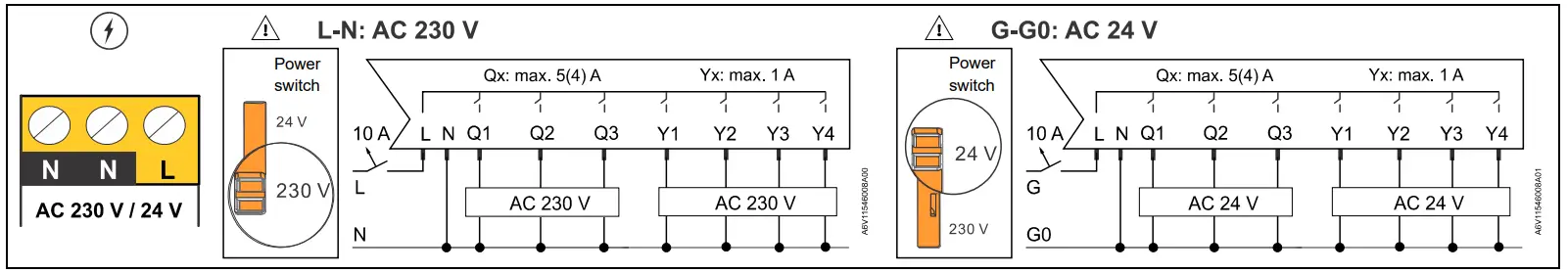

L-N: AC 230V / G-GO AC 24V

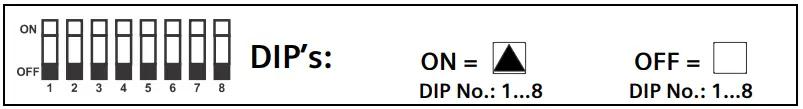

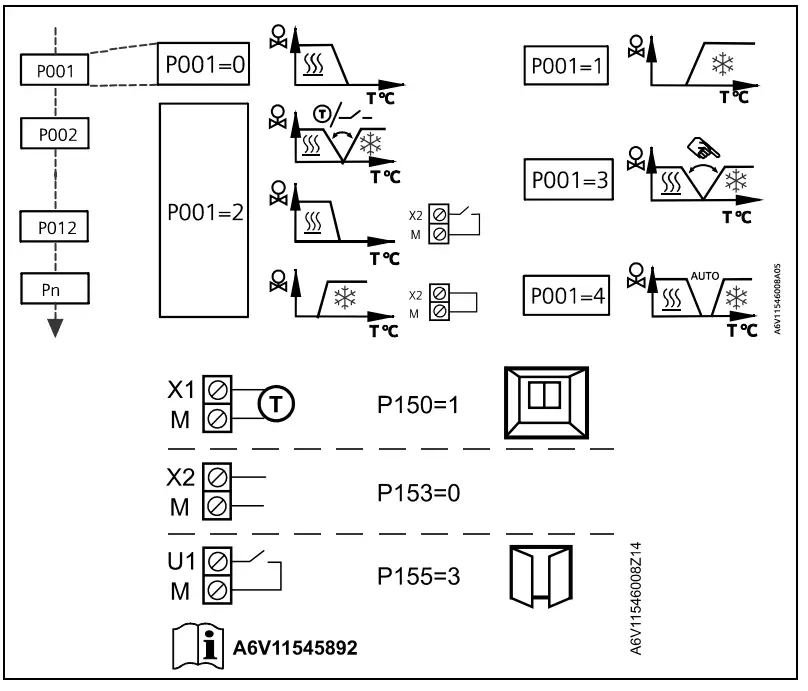

DIP’s:

Fan coil

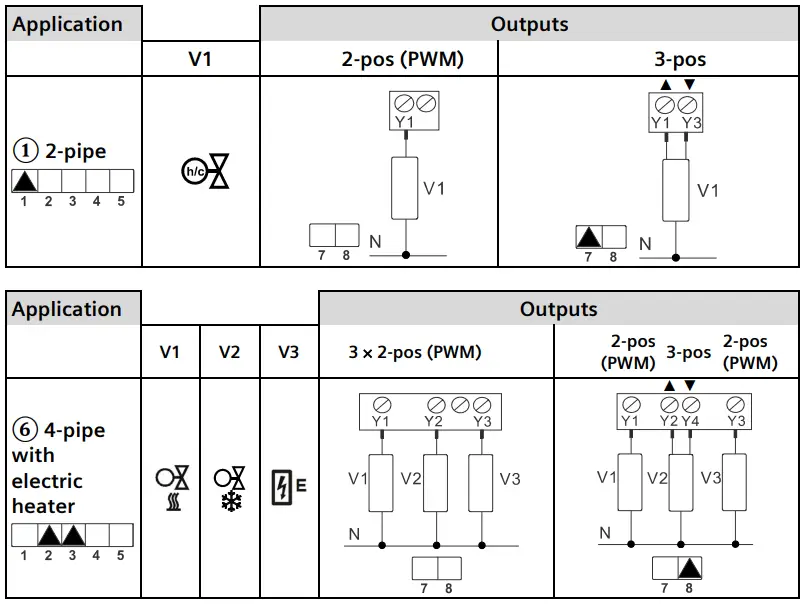

Application

FCU

• 2-pipe fan coil

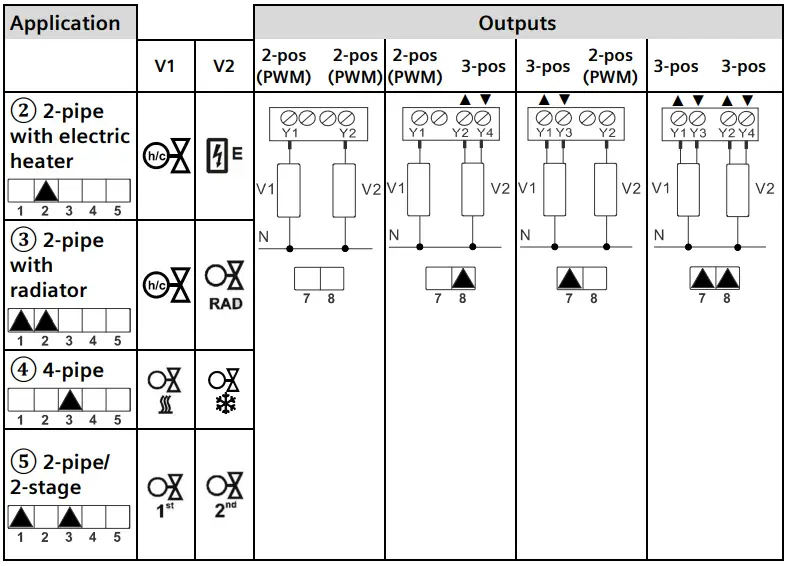

• 2-pipe with electric heater
• 2-pipe with radiator
• 4-pipe fan coil
• 2-pipe/2-stage
• 4-pipe with electric heater

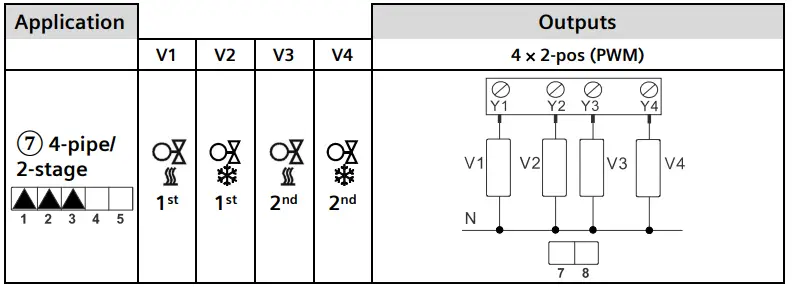

• 4-pipe/2-stage
