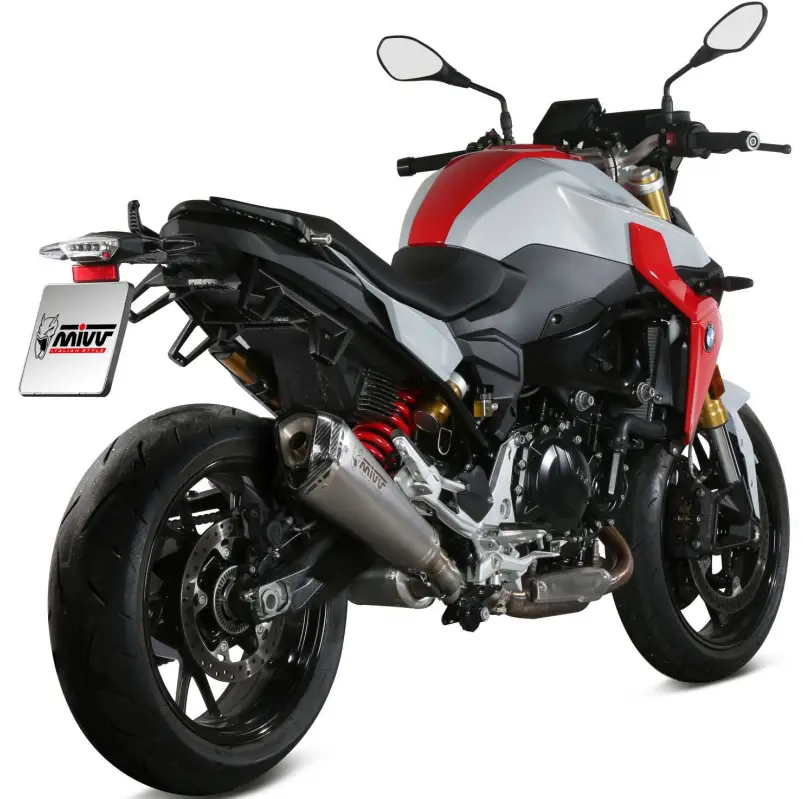

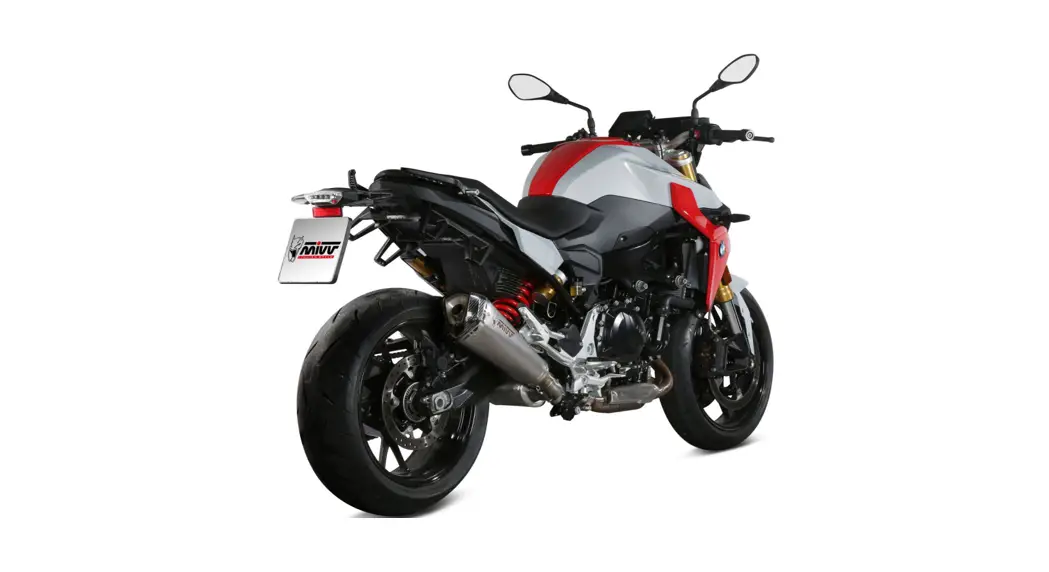

BMW F 900 R Stainless Steel Delta Race Black
Instruction Manual
BMW F 900 R Stainless Steel Delta Race Black
INSTALLATION INSTRUCTIONS
SCAN QR CODE
https://www.mivv.com/wp-content/uploads/2020/12/B037_B038_MONTAGGIO.pdf
DELTA RACE

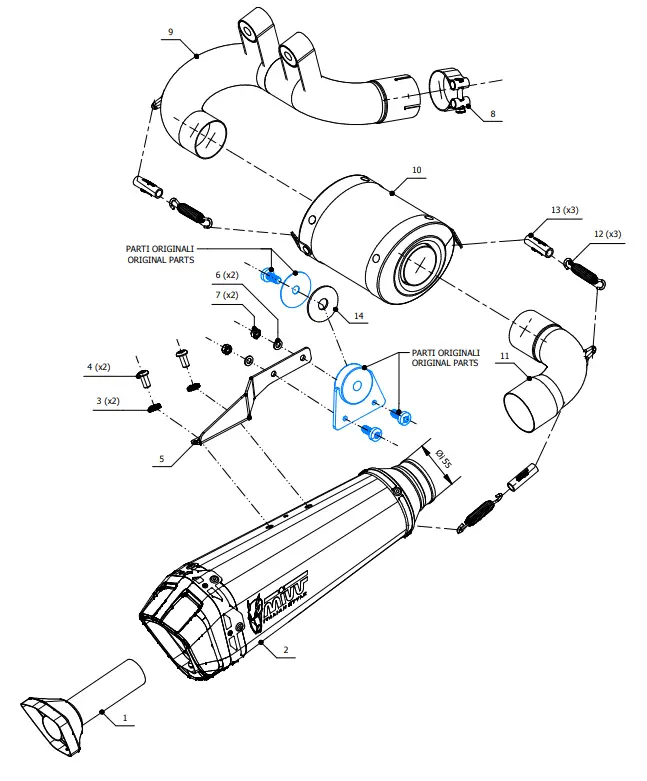

PARTS LIST
| # | QTY | DESCRIPTION | CODE |
| 1 | 1 | DB killer | 50.DK.128.0 |
| 2 | 1 | Muffler | DELTA RACE |
| 3 | 2 | Safety washer | 50.73.604.1 |
| 4 | 2 | Screw M8 x 16 | 50.73.098.1 |
| 5 | 1 | Bracket | 50.SS.1224.0 |
| 6 | 2 | Washer M6 | 50.72.027.1 |
| 7 | 2 | Nut M6 | 50.73.146.1 |
| 8 | 1 | Pipe clamp Ø 48/51 mm | 50.FA.007.1 |
| 9 | 1 | Link pipe | 9773B037S2A |
| 10 | 1 | Muffler | 9773B037S2B |
| 11 | 1 | Link pipe | 9773B037S2C |
| 12 | 3 | Mid-size spring | 50.73.359.1 |
| 13 | 3 | Rubber for spring | 50.73.210.1 |
| 14 | 1 | Bush Ø45 | 50.73.958.0 |
WARNING: Removal of the noise reducer is considered tampering with the exhaust system which entails the loss of both the type approval for road use and the product warranty. In case of removal of the noise reducer, the exhaust system is in a “racing” configuration and can be only used on the track.
APPLICATIONS
| CODE | MUFFLER | PIPE |
| B.038.LDRX B.038.LDRB | ST. STEEL (CARBON CAP) STEEL BLACK | ST. STEEL |
