Kitone Freego X01 Bluetooth Headset User Manual

kitone FREEGO X01 Bluetooth Headset User Manual

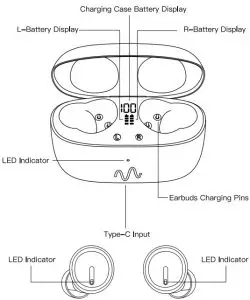

Appearance

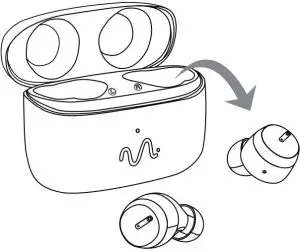

Power&Charging

The earbuds will power on automatically when taken out from the charging case. The Indicators will turn to blue for is and the earbuds will play “power on” sound.

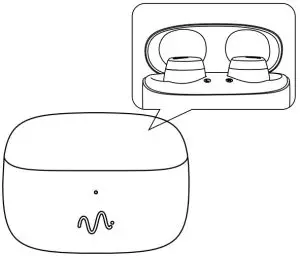

1. The earbuds will turn off when they’re put into the case, they’ll play “power off” sound and the lights will turn red for is. Then the earbuds will start charging.
2. In charging status, the LED indicators keep staying red, and when the charging is finished, the LED indicators will turn to blue for 5s and then turn off.

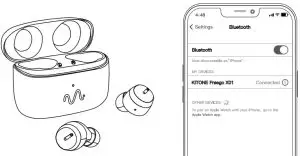

Pairing

1. At the first time you use the earbuds, please put them into the charging case and then take out, they’ll turn on automatically, connect to each other and turn into pairing mode.
2. In the pairing mode, in which the lights flash red and blue alternately, you can find the pairing name [KITONE Freego X01] on the bluetooth devices list, select it to pair with the earbuds.
3. When the pairing with a new device done, the earbuds will play “Pairing succeed” and “Your headset is connected” sounds.
4. Next time when the earbuds turn on, they’ll connect the last connected device automatically. If the device won’t be found, the earbuds will turn into the pairing mode again.

Function Table

	Power On	Press and hold (L/R) for 3s. (Not in charging status)
	Power Off	Press and hold (L/R) for 5s. (No calling or music playing)
	Play/Pause	Single tap (L/R)
	Previous Track	Double tap (L)
	Next Track	Double tap (R)
	Volume Up	Press and hold (R). (When music playing or in a call)
	Volume Down	Press and hold (L). (When music playing or in a call)
	Answer Call	Single tap (L/R)
	End Call	Single tap (L/R)
	Reject Call	Press and hold (L/R) for 2s
	Voice Assistant	Triple tap (L/R) (when connected to cellphone)
	Factory Reset	Triple tap (L/R) in pairing mode

Specifications

Safety Information

 Do not disassemble the product.
 Do not submerge in water.
 Do not expose to fire or high temperature.
 Keep out of reach from children.
 Do not always use loud volume.

FCC Warning

This device complies with part 15 of the FCC Rules. Operation is subject to the folowing two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment_

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection aganst harmful nerference in a residential installation This equipment generates uses and can radiate race frequency energy arc, if not installed and used in accordance with the instructions, may cause harmful ntercerence to rac-o conimurucatons. However, there is no guarantee that interference will not occtr in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by tumng the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Comect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radicuTV technic an ‘or help.

The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.
