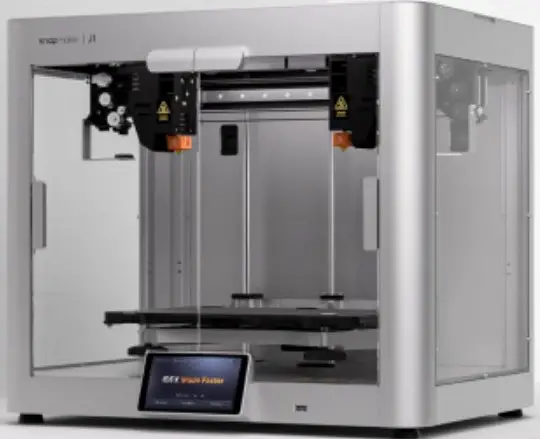

Snapmaker J1 Idex 3d Printer User Guide

snapmaker J1 IDEX 3D Printer User Guide

Foreword

Before using your Snapmaker J1, make sure to read thoroughly and understand the Safety Guidelines. Failure to follow the safety instructions may result in personal injury, inferior results, or damage to the product.

In the Box

1. Snapmaker J1 3D Printer × 1
2. Quick Start Guide × 1
3. Safety Guidelines × 1
4. Calibration Card × 1
5. Filament × 2
6. Left Door × 1
7. Right Door × 1
8. Side Panel × 2
9. PEI Glass Plate × 1

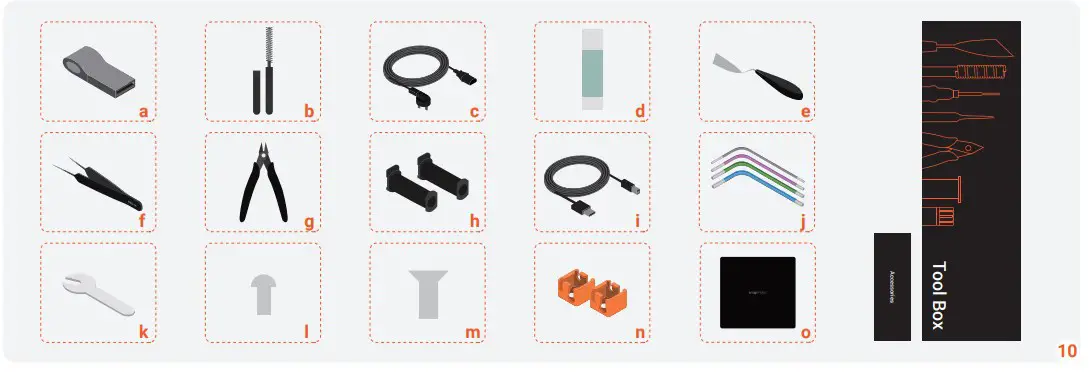

10. Tool Box × 1

a. USB Flash Drive × 1
b. Wire Brush × 1
c. Power Cable × 1
d. Glue Stick × 1
e. Palette Knife × 1
f. Tweezers × 1
g. Diagonal Pliers × 1
h. Filament Holder × 2
i. USB-B Cable × 1
j. Hex Key × 4
k.Open-end Wrench × 1
l. M3 × 6 Screw × 16
m. M4 × 10 Screw × 4
n. Hot End Sock × 2
o. Wiping Cloth × 1

Installation

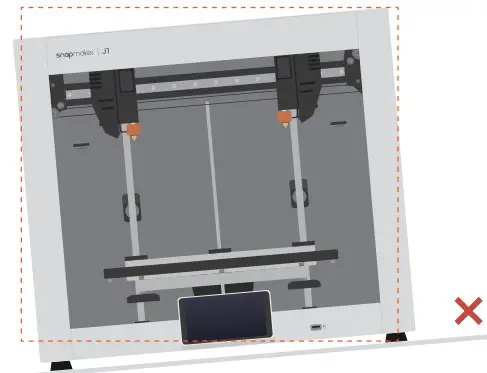

Place the Printer Horizontally

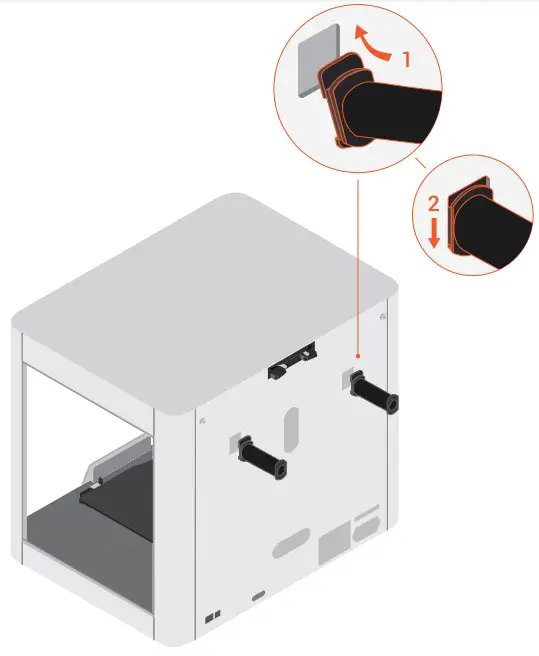

Install Filament Holders

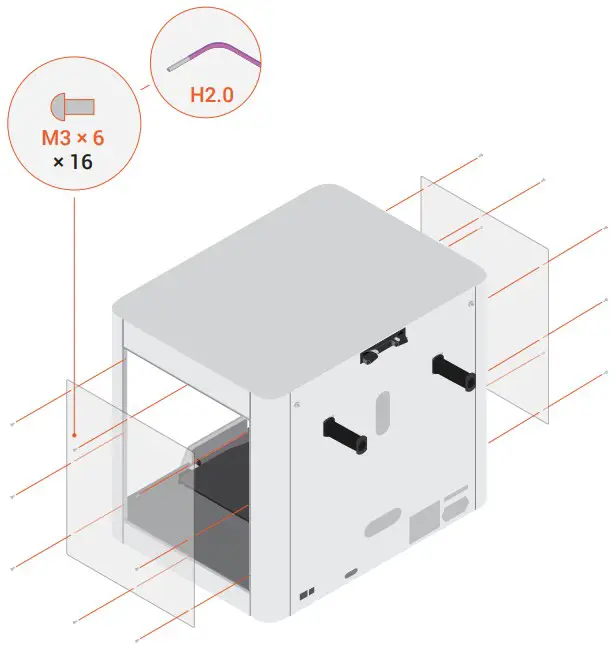

Install Side Panel

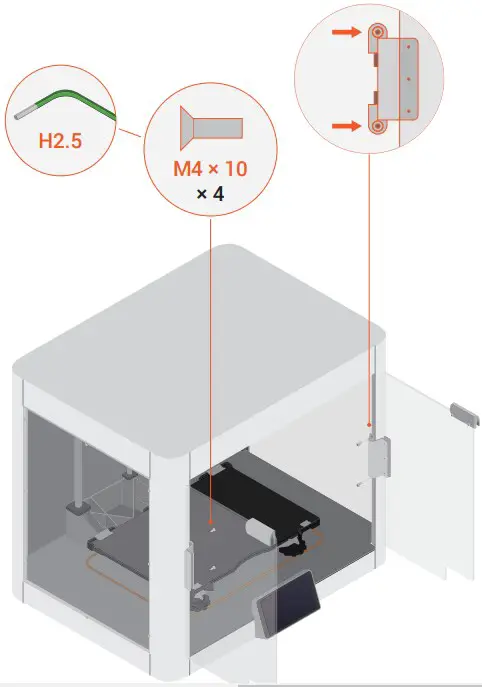

Install Doors

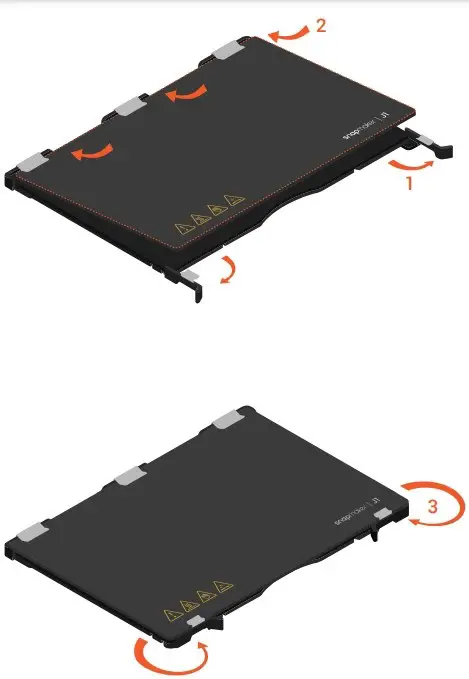

Install the PEI Glass Plate

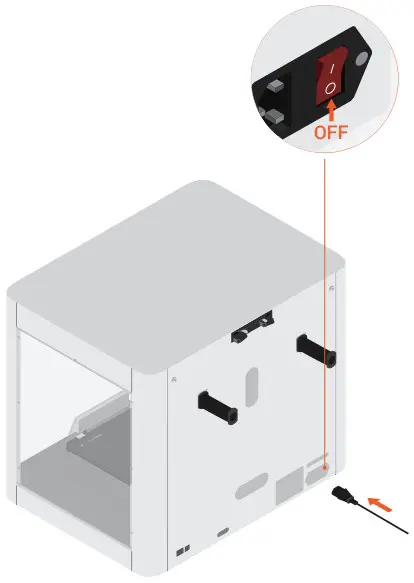

Connect the Power Cable

Using the Printer

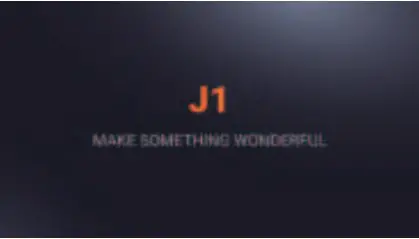

Turn on the printer

Follow the guidance of the Touchscreen to set up your printer

Complete the general settings

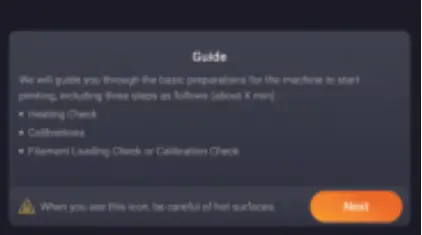

Follow the Wizard to complete the steps needed to start a print

Starting a Print

Download Lava Studio at https://support.snapmaker.com and install it on your computer.

Slice your model and generate the G-code file in Lava Studio

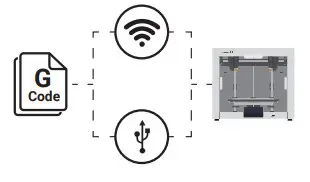

Send the G-code file to the printer via Wi-Fi or USB flash drive.

On the Touchscreen, tap the blank area in the home screen to select the file to print.

Resourses

A detailed User Manual is available on our Support website:
Select Snapmaker J1 > Go to User Manual.

The latest version of this guide is on our Support website:
Select Snapmaker J1 > Go to Quick Start Guide.

We are here for you whenever you need general information or technical support:

Purchase spare parts and materials:

Share anything you want with other Snapmaker users in our community:
