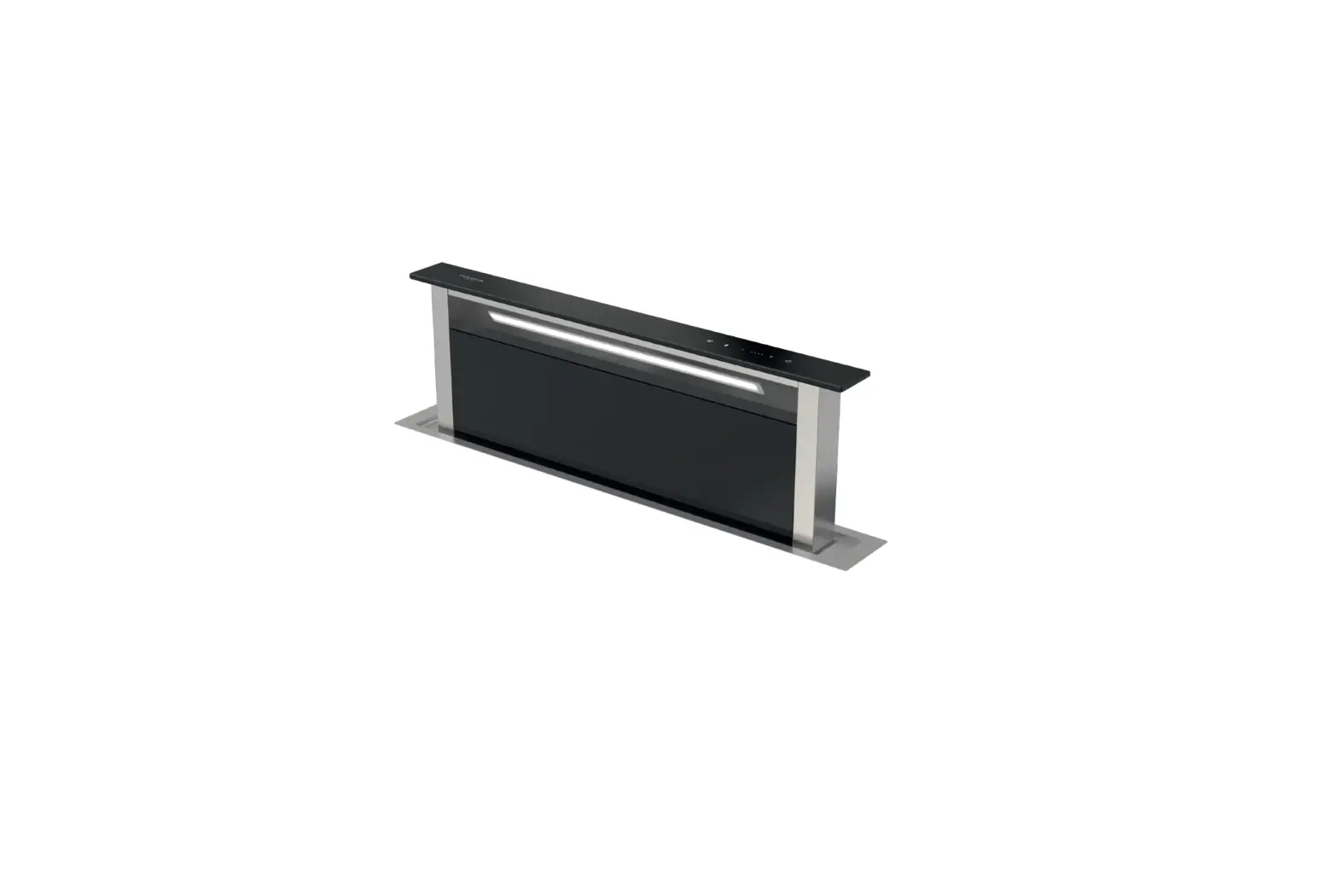

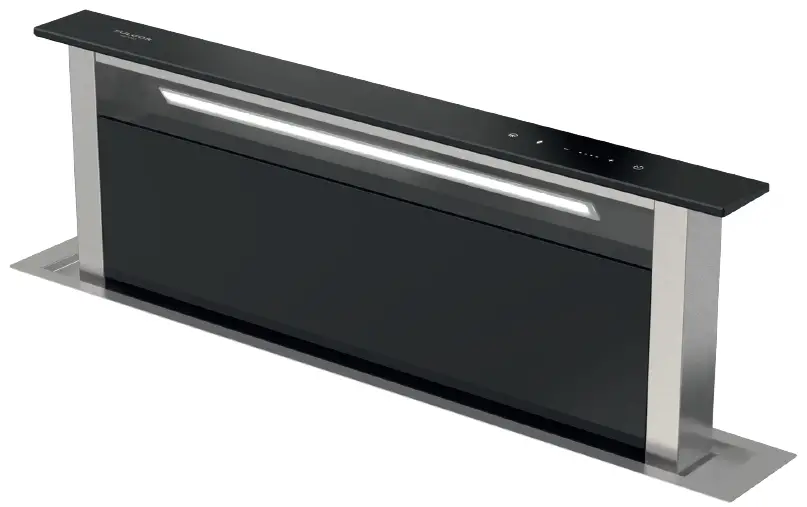

FULGOR MILANO FDDH 900 TRC BK Downdraft Floor Hood
FDDH 900 TRC BK
Auto – Power Off
Energy Class
Suction
Touch Control
Timer
Remote Control
Filtering
LED Lighting
Downdraft
LIFT-UP SYSTEM HOOD
- Energy Class: A
- Black glass
PERFORMANCE
- Automatic opening of filtering surface
- Suction power up to 760 m3 / h
- 4 suction levels
- Auto-off
- Filter saturation indicator
- Suction operation with
- filter predisposition
- Sound power from 38 to 68 dBA
FEATURES
- Touch controls
- LED lighting
- Internal aluminium grease filters
- Minimum air outlet Ø 150 mm
- Non-return air valve (suction)
SERIES ACCESSORIES
- Power Cord
OPTIONAL ACCESSORIES
- FCHF 9: carbon filter for filtering version
BLACK GLASS
FDDH 900 TRC BK
VENTILATION
| FDDH 900 TRC BK | |
| Type | Downdraft |
| Finishing | Black glass |
| Installation | Flush top |
| Special feature | Lift |
| FEATURES | |
| Energy efficiency class | A |
| Speed levels | 4 |
| Automatic cut-off | – |
| Grease filter reset warning light | – |
| Charcoal filter reset warning light | – |
| Lighting type | Strip LED |
| Grease filters material | Alluminium |
| Dishwashable grease filters | • |
| Ø duct diameter | Ø 150 mm / rectangular 220 x 90 (230 x 80 ) |
| Non return flap | • |
| CONTROLS | |
| Programming non return flap | Touch control |
| Remote control | • |
| POWER RATINGS | |
| Output m3/h (max) | 757 |
| Sound level (dBA) | 42 – 59 |
| Yearly energy cinsumption (kWH) | 45 |
| Motor power (W) | 275 |
| Tension and frequency (V-Hz) | 220 – 240 / 50 – 60 |
| Power cord lenght (m.) | 2 |
| ACCESSORIES | |
| Motor | – |
| HP filter for filtering version | FCHF 9 ( x 2 ) |

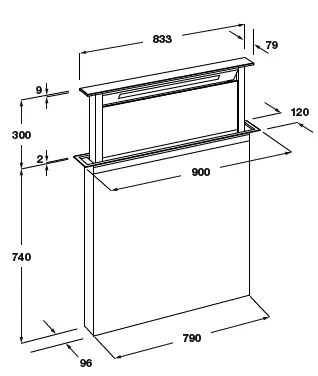

| DIMENSIONS | |
| Width mm | 900 |
| Height mm | 300 |
| Depth mm | 79 |
