MRS 1.801.000 Wallbox MCharger Easy Charger

MCharger

No matter which electric car you prefer our MCharger wallbox provides an easy charging experience.

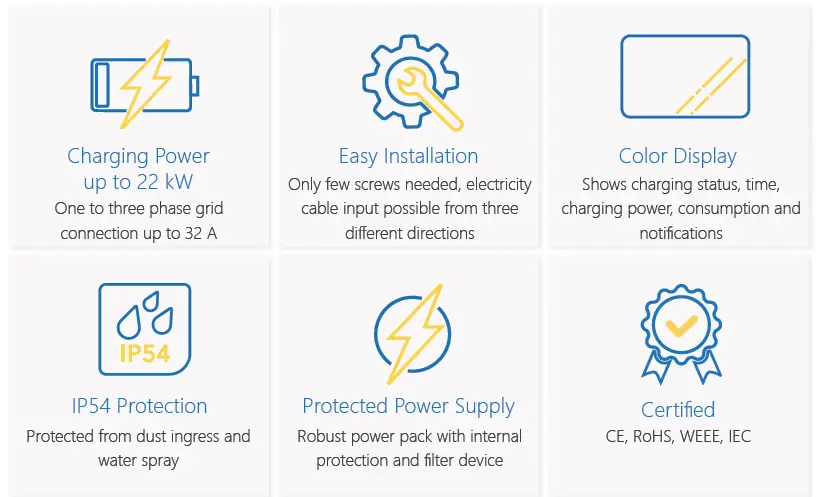

From simple installation process, user friendly interface, IP54 protection class, to several user access solutions and online control options. Choose the MCharger model that fits your needs, add our smartly designed accessories and enjoy the advantages of e-mobility to the fullest! More than 20 years of expertise in smart electronics production has led MRS to designing its e-mobility solutions that are innovative, reliable and meet the needs of today’s customers.

Highlights

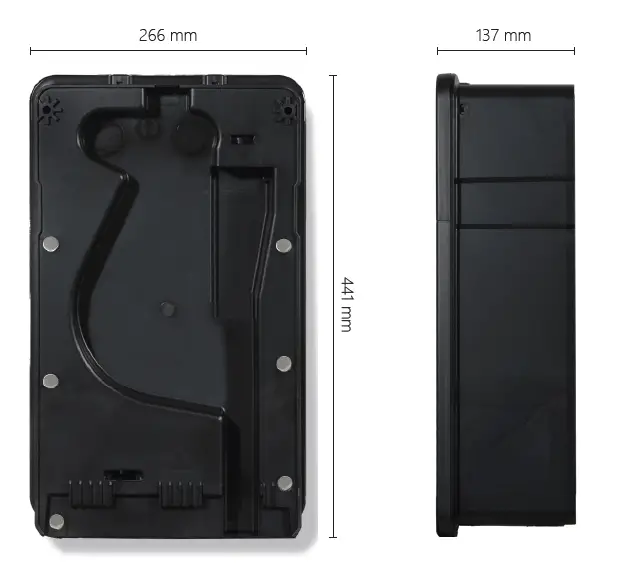

DIMENSION

MCharger Easy

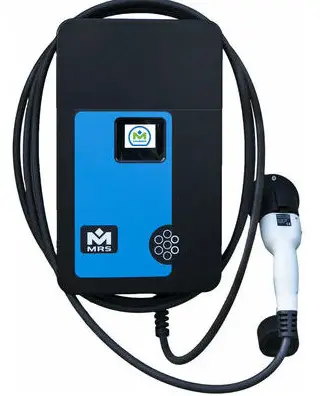

Simple but effective charger with Type 2 socket or 5 meters long cable with Type 2 plug. There are two available power options (11 kW and 22 kW) to choose from depending on your car or house grid capabilities. MCharger Easy is designed for single household use. Just plug in and charge, no user management available for this model. All Easy models have a color display showing the charging status, time, power and consumption as well as notifications.

Easy C 11 kW

Type 2 charging cable 5m
Part no.: 1.801.000

Easy C 22 kW

Type 2 charging cable 5m Part no.: 1.801.001
Plug holder is not included and can be ordered separately.

Easy S 11 kW

Type 2 socket Part no.: 1.801.010

Easy S 22 kW

Type 2 socket Part no.: 1.801.011

MCharger Connected

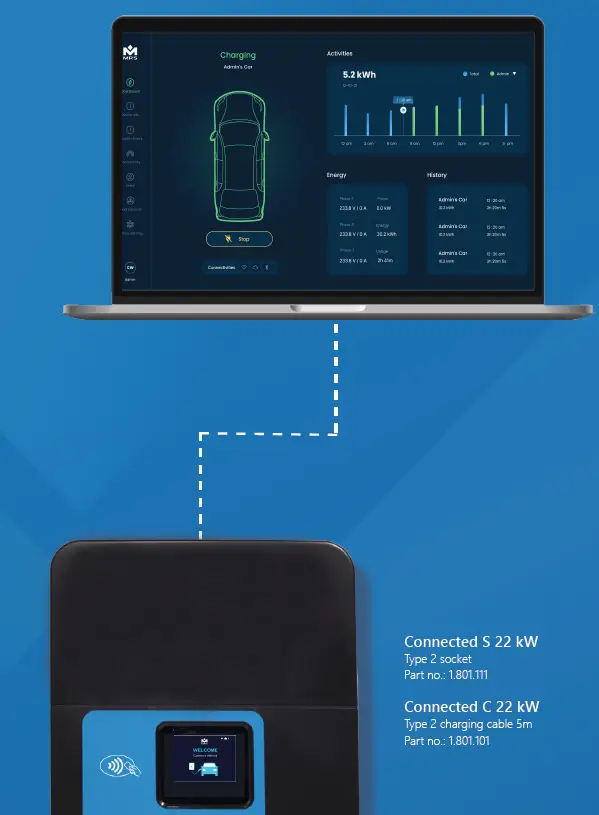

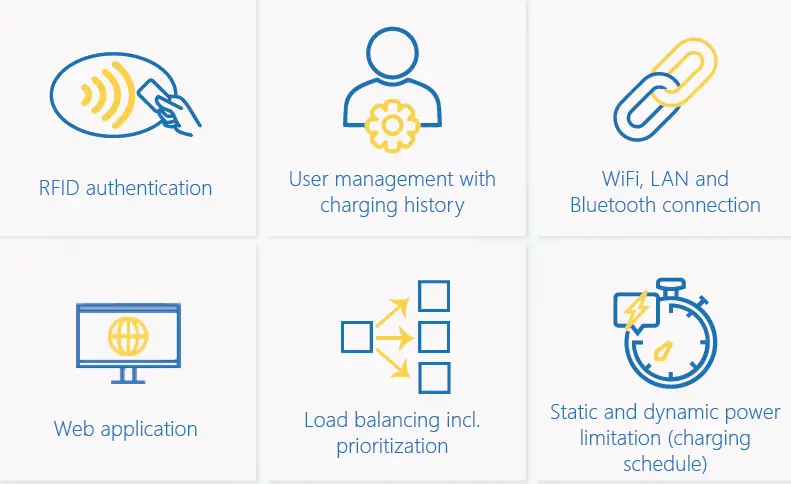

A smart charger with user authentication, RFID and load balancing if several chargers are connected in one line. Also allows to adapt the power to the electrical grid conditions. These models are up to 22 kW with Type 2 socket or 5 meters long cable and Type 2 plug. The owner can adjust max charging power in a web application if needed.
MCharger Connected provides user management with up to 128 user accounts with 2 RFID cards per user. You can see each user’s charging patterns and get full overview of the charging history and export it as a PDF file.

Highlights

Connected S 22 kW

Type 2 socket
Part no.: 1.801.111

Connected C 22 kW

Type 2 charging cable 5m Part no.: 1.801.101

MCharger Overview

	Charging Power	Connection Type	Web Platform	User Authentication	Connectivity
Easy S 11 kW Part no.: 1.801.010	11 kW	Socket	–	–	–
Easy C 11 kW Part no.: 1.801.000	11 kW	5 m cable	–	–	–
Easy S 22 kW Part no.: 1.801.011	22 kW	Socket	–	–	–
Easy C 22 kW Part no.: 1.801.001	22 kW	5 m cable	–	–	–
Connected S 22 kW Part no.: 1.801.111	22 kW	Socket	Yes	RFID	Bluetooth, Wifi & LAN
Connected C 22 kW Part no.: 1.801.101	22 kW	5 m cable	Yes	RFID	Bluetooth, Wifi & LAN

Accessories

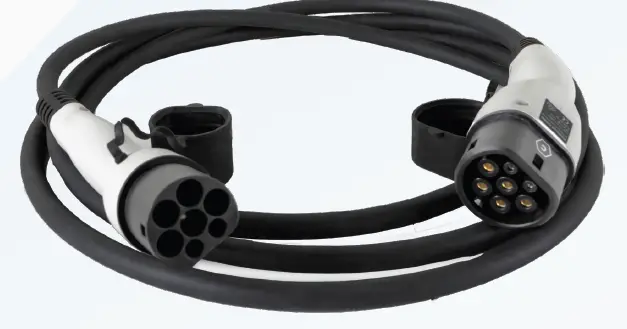

Type 2 charging cable 5 m
An additional type 2 charging cable in case your car was not equipped with one or you have lost or damaged it. Available in the 11 kW and 22 kW variant.

5 m 11 kW
Part no.: 1.801.A21
5 m 22 kW
Part no.: 1.801.A23

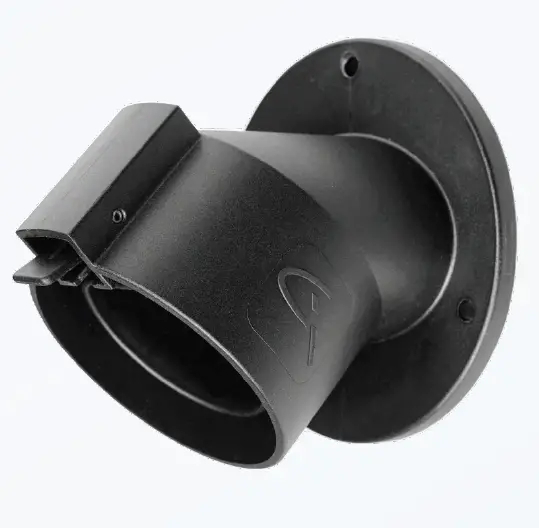

Type 2 charging cable plug holder

Mount the holder to the surface with 3 screws and conveniently place the charging cable plug.

Datasheet

Part number	Easy C 11 kW	Easy S 11 kW
	1.801.000	1.801.010
Max. Charging Power	11 kW
Input Voltage
Rated current	16 A
Installation cable	Min. 2,5 mm²
Mains frequency
Connection type	Cable 5 m	Socket
Connector plug
Charging mode
Housing dimensions (W x H x D in mm)
Net weight	5,2 kg	3,0 kg
Cable entry
IP protection class
Machanical impact class
Surge protection 61010-1
IEC protection class
Operating temperature
Max. humidity
Max. altitude
Certifications
2,4 inch color display
Accoustic error warning
DC fault detection 6 mA DC
Loas Balancing	–
RFID reader	–
Power limitation	–
User management	–
