Braytron Bd02-00781 Led Spotlight User Manual

BD02-00781 LED SpotLight
User Manual

Mounting instructions

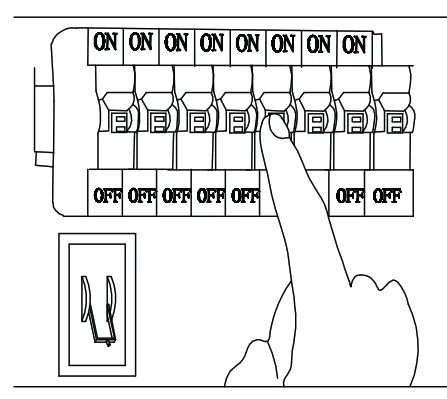

1. Cut off the electricity.

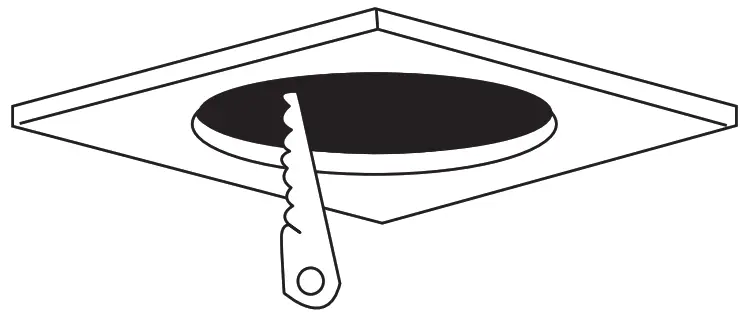

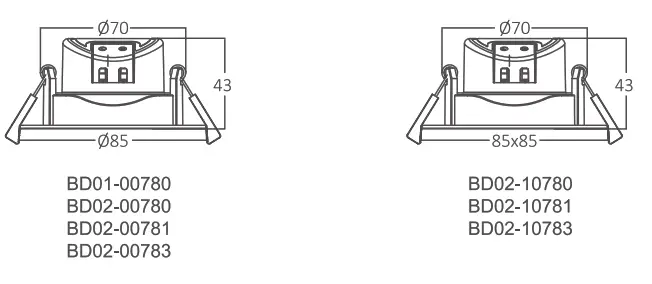

2. Cut the ceiling according to product ceiling cut out diameter size.

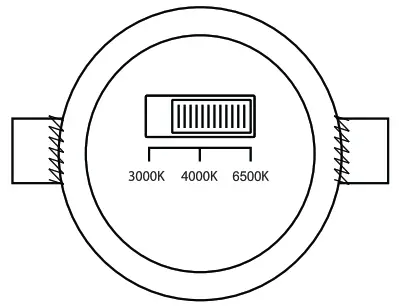

3. Set the CCT with the button on the back of the product.

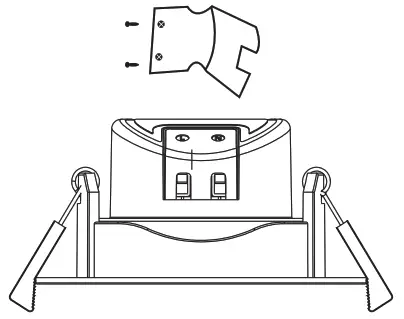

4. Release the screw by screw driver to take off the terminal blocks cover.

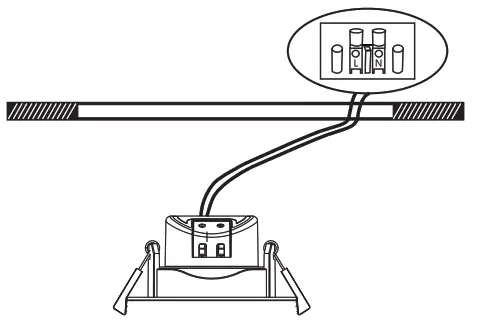

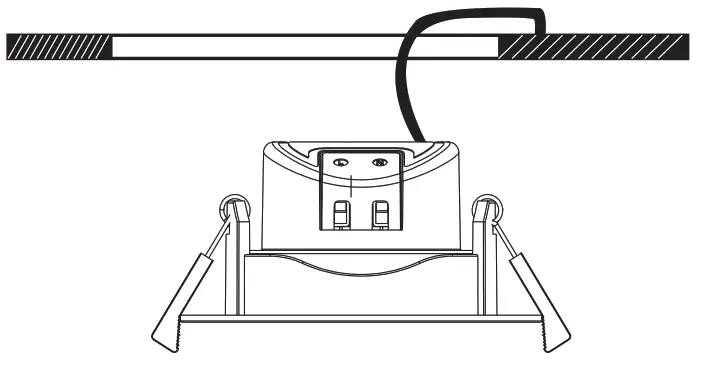

5. Connect the terminal blocks with power cable, close the terminal blocks cover with screws after cable connection.

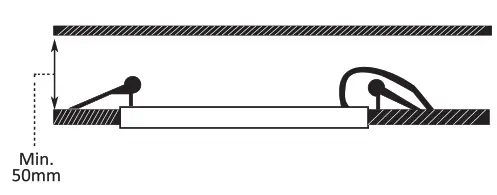

6. Push the springs upward into the hole and release it.
7. Fixture is ready to use.

WARNINGS

1. Please read the user manual carefully before installing or using the product.
2. Before installation please read and follow technical specification and symbols indicated on the product box.
3. Before installation ensure that electricity is turned off.
4. Product is not suitable for dimmer switches.
5. Product is not suitable for covering thermally insulating material.
6. Do not dispose with household waste. please ask your local municipality for the way of utilization.
7. Product must be installed and maintenanced by qualified person.

WARRANTY TERMS

1. If any defect due to faulty product occurs within the warranty period, company is responsible for repair. If repair is not possible company may replace the product.
2. Warranty is valid only provided that the product has been handled properly in accordance with the wamings, symbols, and/or technical specifications indicated on the box or user manual.
3. Company is not responsible for injuries and damages resulting from improper use of the product.

Mode in P.R.C
