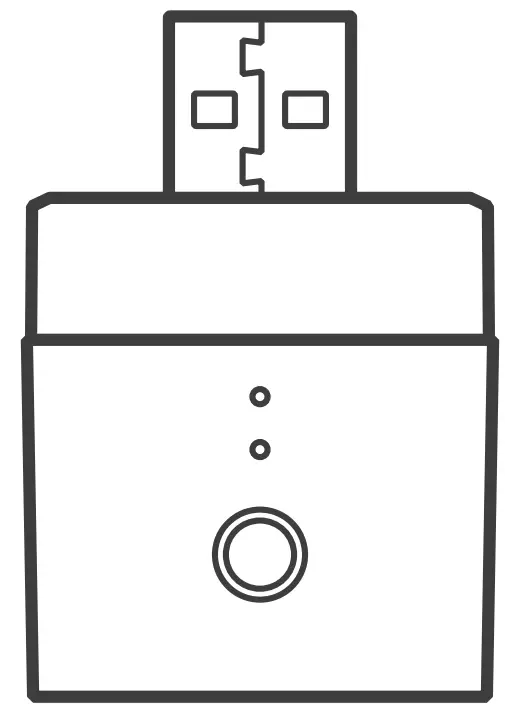

M0802010006 USB Smart Adapter
User Manual
User manual V1.0
USB Smart Adapter
Operation instruction
- Download eWeLink APP

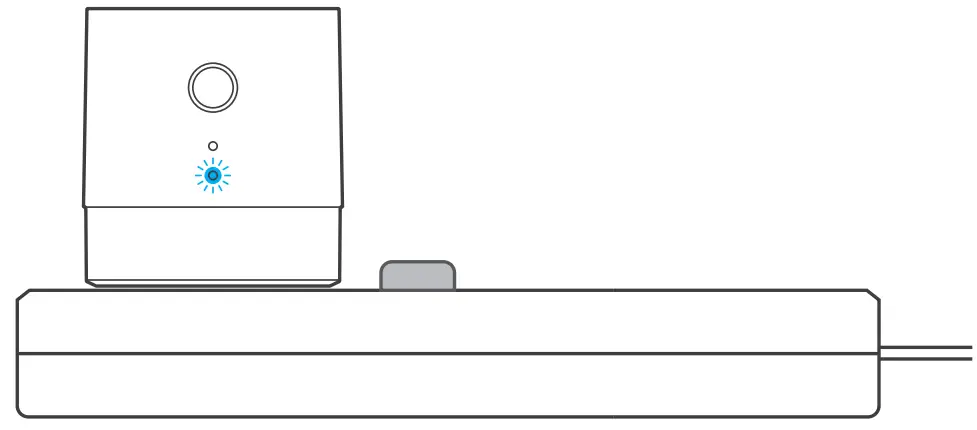

http://app.coolkit.cc/dl.html - Power on
Powering on, the device will enter the quick pairing mode (Touch) during the first use. The Wi-Fi indicator flashes quickly.
It will exit the pairing mode (Touch) if the device is not paired within 3mins. If you want to enter this mode again, long-press the configuration button for 5s until the Wi-Fi indicator flashes quickly and releases.
3. Add the device

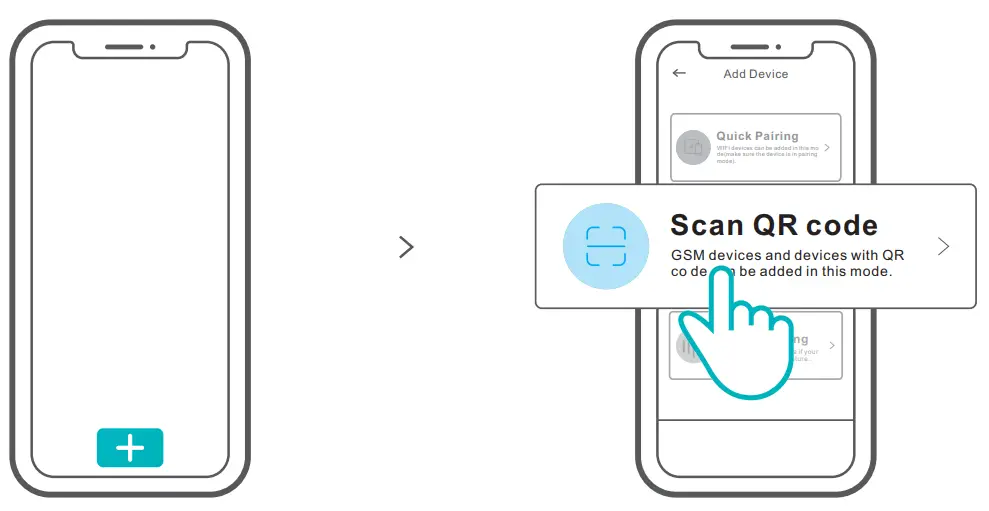

Method 1: Scan the code to add (recommended)
Tap “+” and select “Scan QR code”, then scan the QR code on the card in the package to add the device.

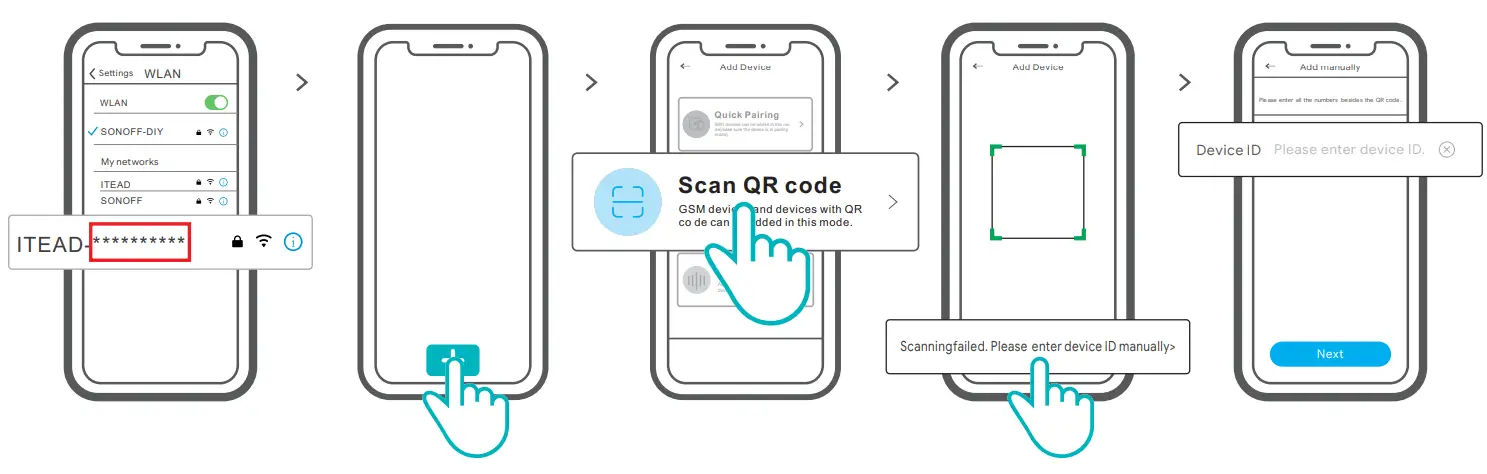

Method 2: manual to add
- Set the device to the pairing mode, find the Wi-Fi SSID with ITEAD-*********** on your mobile phone, and save the last 10 digital codes (The digital code is the unique ID of the device)
- Go back to the “eWeLink” app, tap”+”, select “Scan QR code” , then tap the word “Scanning failed. Please enter the device ID manually” on the bottom and save the device ID, tap “Next” and wait until the adding is successful.
Specifications
| Model | Micro |
| Input | 5V |
| Output | 5V 2.5A |
| Operating systems | Android & iOS |
| Wi-Fi | IEEE 802.11 b/g/n 2.4GHz |
| Working temperature | -10℃~40℃ |
| Material | PC V0 |
| Dimension | 31×26.5x33mm |

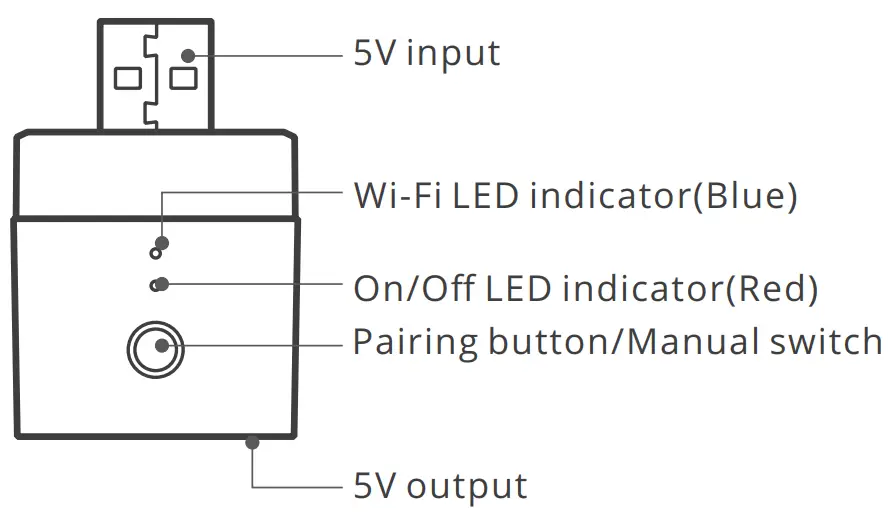

Product Introduction
Wi-Fi LED indicator status instruction
| LED indicator status | Status instruction |
| Blue light flashes quickly | Pairing mode |
| Blue light is always on | The device is connected successfully |
| Blue light flashes quickly once | Unable to find the router |
| Blue light flashes quickly twice | Successfully connected to the router but Wi-Fi is not connected |
| Blue light flashes quickly three times | Upgrading |
Features
Micro is a portable mini USB smart adaptor that makes your USB devices smart. You can remotely turn on/off the connected devices of your home anywhere, schedule it on/off and share it with your family to control together.

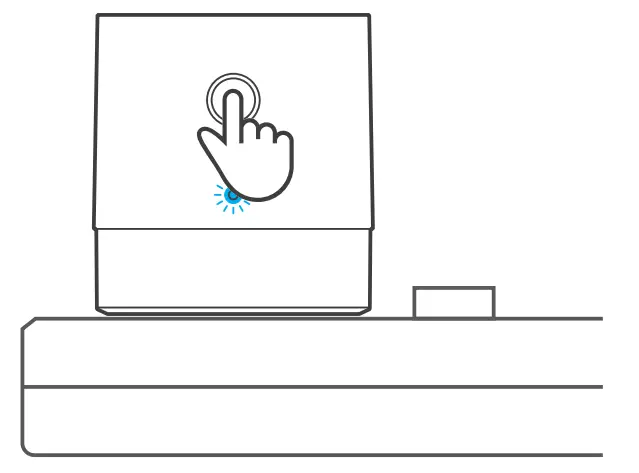

Switch Network
If you need to change the network, long-press the pairing button for 5s until the Wi-Fi indicator flashes quickly and releases., then the device enters pairing mode and you can pair again.
Factory Reset
Deleting the device on the eWeLink app indicates you restore it to the factory setting.
Common Problems
Q: Why my device stays “Offline”?
A: The newly added device needs 1 2mins to connect Wi-Fi and network. If it stays offline for a long time, please judge these problems by the blue Wi-Fi indicator status:
- The blue Wi-Fi indicator quickly flashes once per second, which means that the switch failed to connect your Wi-Fi:
1. Maybe you have entered the wrong Wi-Fi password.
2. Maybe there’s too much distance between the switch and your router or the environment causes interference, consider getting close to the router. If failed, please add it again.
3. The 5G Wi-Fi network is not supported and only supports the 2.4GHz wireless network.
4. Maybe the MAC address filtering is open. Please turn it off.
If none of the above methods solved the problem, you can open the mobile data network on your phone to create a Wi-Fi hotspot, then add the device again. - The Blue indicator quickly flashes twice per second, which means your device has connected to Wi-Fi but failed to connect to the server.
Ensure a steady enough network. If double flash occurs frequently, which means you access an unsteady network, not a product problem. If the network is normal, try to turn off the power to restart the switch.
FCC Warning
Changes or modifications not expressly approved by the party responsible for compliance could avoid the user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Note:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to protect reasonably against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.
Hereby, Shenzhen Sonoff Technologies Co., Ltd. declares that the radio equipment type Micro is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.sonoff.tech/usermanuals
TX Frequency:
WiFi: 2412-2472MHz/2422-2462MHz
RX Frequency:
WiFi: 2412-2472MHz/2422-2462MHz
Output Power:
11.49dBm(802.11b), 10.61dBm(802.11g), 11.09dBm(802.11n20), 11.44dBm(802.11n40)
Shenzhen Sonoff Technologies Co., Ltd.
1001, BLDG8, Lianhua Industrial Park, Shenzhen, GD, China
ZIP code: 518000
Website: sonoff. tech
MADE IN CHINA
