Eaton Pv-a-20g14-h-1cd Powring Business Worldwide User Manual

Powering business worldwide
Instruction Leaflet
EN 61439-3 – Low-voltage switchgear and control gear assemblies
Ue = 230V/InA =16A/fn =50Hz/RDF =1/IPA4XPV-A-20G14-H-1CD

PV-A-20G14-H-1CD powring business worldwide

Electric current! Danger to life!
Installation, commissioning and maintenance work must be carried out by qualified personnel only.

PV-A-20G14-H-1CD
PV-A-20G14-H-2CD
PV-I-10G14-H-2CD+1A
PV-I-10G14-H-1CD+1A
PV-A-10G14-H-1CD-A03
PV-A-10G14-H-2CD-A03

Note-
Screws to mount the box to the wall are not included in the scope of delivery

3.

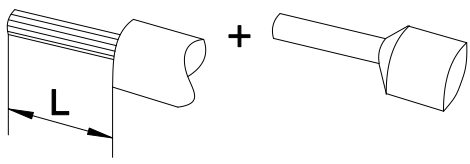

	solid	2 x 1.5 — 10 mm2	L = 8 mm	1.2 — 1.5 Nm
	stranded with ferrule	2 x 1.5 — 6 mm2	L = 8 mm	1.2 — 1.5 Nm
	solid	12 x 1.5 — 6 mm2	L = 8 mm	1.2 — 1.5 Nm
	stranded with ferrule	12 x 13 — 4 mm2	L = 8 mm	1.2— 1.5 Nm

	All openings need to be closed to fulfill IP4X standard

Eaton Industries (Austria) GmbH,
Eugenia 1, 3943 Schrems,
Austria
© 2018 by Eaton Industries (Austria) GmbH,
www.eaton.eu/documentation
www.eaton.com/recycling
2021-09-17 Revision 2 / IL014052ZU / 1991127 G01 02
All Rights Reserved / Printed in Europe
