VIKING W24W
User Manual
Thank you for purchasing this solar power bank. Please carefully read this manual before operating your solar charger and keep it in a safe place for future reference.
* 24000mAh IP67 waterproof solar power bank with QC3.0 & Wireless
Specifications:
| Capacity | 24000mAh |
| Solar Panel | 5V-300mA |
| Micro USB input | 5V 2A 9V 2A 12V 1.5A |
| Type-C input | 5V 2A 9V 2A 12V 1.5A |
| QC 3.0 output 1 / 2 | 5V 3A 9V 2A 12V 1.5A |
| Type-C output PD | 5V 2.4A 9V 2A 12V 1.5A |
| Wireless Output | 5W/7.5W/10W |
| Size | 180*89*30mm |
| Product net weight | 553(g) |
| Battery type | Li-polymer |
| Operation temperature | 0∼45 (°C) |
| Flashlight | 1W*1 |
Note:
- The full charging time is only for your reference, please refer to the actual operation.
- Due to the exchange rate of the power bank, the actual capacity is not equal to the chargeable capacity.
- Specification and external form of this power bank may change anytime due to product improvement and upgrade.
- High-quality guarantee, using A-grade Li-polymer battery cell for this power bank, please be assured use.
- Please use the matched charging cable according to your mobile phone and digital product.
- It will cause slight heating due to electric consumption when charging and discharging, it’s a normal phenomenon.
- Please store this power bank in a cool and dry place, if do not use it for a long period, please fully charged this power bank at every 6 months interval.
- Please find our suggestion for choosing a regular 5V-2A charger to charge this solar charger, in order to ensure the stability of this product usage.
- Please do not put together this power bank with metal or tool items, in order to avoid scratching surfaces or damage.
- Don’t leave this item out in your car to charge. The car’s dashboard will become very hot from the sun and would ruin the internal
Applicable Devices:
Output Connector | Output Current | Applicable Devices |
| USB/Type-C | Type-C output 5V 3A USB output: 5V 3A | Samsung Sony Nokia HTC and any other brand smartphones, and iPhone. iPack iPod series Apple devices or devices that need 5V 0.5-1A input. |
Accessory List:
| 24000mAh Solar Power Bank | *1 |
| Micro USB Cable | *1 |
| User Manual | *1 |
| Carabiner | *1 |

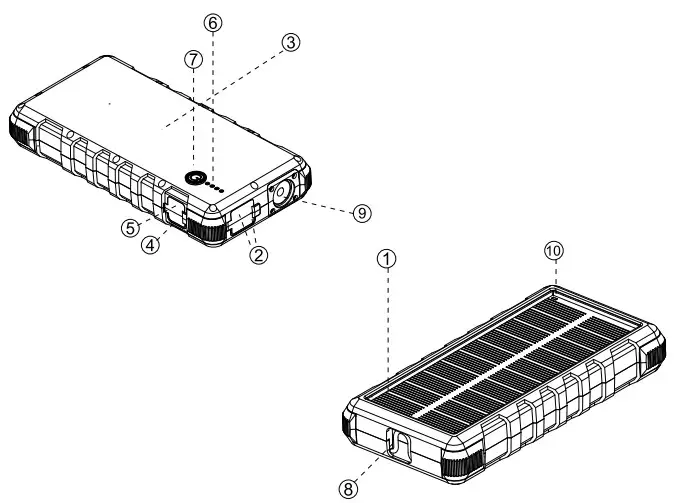

Product Diagrams
- Monocrystalline Solar Panel.
- QC 3.0 Output 1/2
- Wireless output
- Micro USB Input Port.
- Type – C port
- LED Indicators.
- Power Switch.
- Carabiner hole.
- LED Flashlight.
- Solar charging indicator
Operating Instructions
To collect and store solar power to the Solar Charger’s internal battery:
- Place the Solar Charger in direct sunlight: make sure the embedded solar panel is positioned towards the sun.
- The LED indicator light glows solid green while charging in the sunlight
Note: Kindly note that the solar panel is designed for emergency charging. It should not be the primary source of charging.
Prolonged exposure to the burning sun will cause damage to the solar panel.
Charging the Solar Charger from an external power source:
- Plugin the included USB cable to a power source such as an AC power adapter or any other USB power source( i.e. Computer).
- The power bank will shut off in about 30 seconds when no device is connected.
- Battery’s charging status is indicated by 4 LED light indicators in the following manner:
| Charging Status | 0%-25% | 25%-50% | 50%-75% | 75%-99% | 100% |
| LED Indicators | |||||
| 1st LED Indicator | Flashing Blue |  | | | |
| 2nd LED Indicator | OFF | Flashing Blue | | | |
| 3rd LED Indicator | OFF | OFF | Flashing Blue | | |
| 4th LED Indicator | OFF | OFF | OFF | Flashing Blue | |
Solid Blue.
- LED indicators will be off after the solar charger is fully charged.
NOTE: • Power bank can charge 2 devices simultaneously by QC output and USB output, except Type-C - Not allow charging and discharging at the same time
Charging other devices:
- Press the power button to turn the charger on.
- Use the original cable that came with your device. Connect the USB-A/Type-C end to one of the USB output ports on the power bank
- The device will start charging.
Note: When the Solar Charger is in use and the capacity is less than 2%, the Solar Charger will automatically shut off to avoid over discharge of the battery.
For charging power bank, it doesn’t support charging and discharging at the same time, Micro and Type-C can’t charge devices at the same time.
You can charge the device by USB-A and QC 3.0, but not accept to charge the device by USB-A and Type-C/QC 3.0 and Type-C
Operating the Emergency LED Flashlight:
- To turn on the Emergency LED flashlight: Press the power button 3 seconds for the emergency torch
- Press again shift to caution light
- Press once again shift to SOS
- Long press the button to turn off the LED light
Troubleshooting :
If the following “operation” could not be troubleshoot, please stop using this product, and contact the distributor or service center.
| When Charging | ||
| Phenomenon | Reason | Operation |
| Charging bright indicators are not | Using an improper adapter to charge. | Please use the advising adapter by the original factory. |
| Poor contact for Micro USB input port/ USB output port. | Please re-detect whether the Micro USB input port or USB output port contact well. | |
| Using improper USB charging cable. | Please use the original data charge cable. | |
| When Using | ||
| Phenomenon | Reason | Operation |
| Indicators still on disconnect adapter equipment. Or after load | The normal phenomenon, it takes some buffer time for indicators to turn off. | It will turn off automatically after 15 seconds. |
| Short using time | Battery life will end. | If there is still no electricity after charging the battery again, the battery life is end. |
WARNING
- DO NOT place this power bank under sunlight when the 4th LED indicator is on.
- DO NOT attempt to open or dismantle the Solar Charger.
- DO NOT subject the Solar Charger to knock or blow.
- DO NOT subject the Solar Charger to naked flames or extreme
- DO NOT stand on or otherwise apply pressure to the Solar Charger.
- DO NOT allow children to play with the Solar Charger.
- Whilst the device will charge in high temperatures please ensure the device never sits in direct sunlight for a prolonged period of time as the charger has a maximum temperature of 45°C(113°F).
- Stop using this solar charger if it occurs expansion or breaks down, and contact your distributor.
- Unless supervised and guided by a professional man, and ensuring the safety of the user, the following person is not suitable to use this power bank: people who degenerate on physical function or mental ability, people who lack operating experience, and lack acknowledgment of this power bank.
